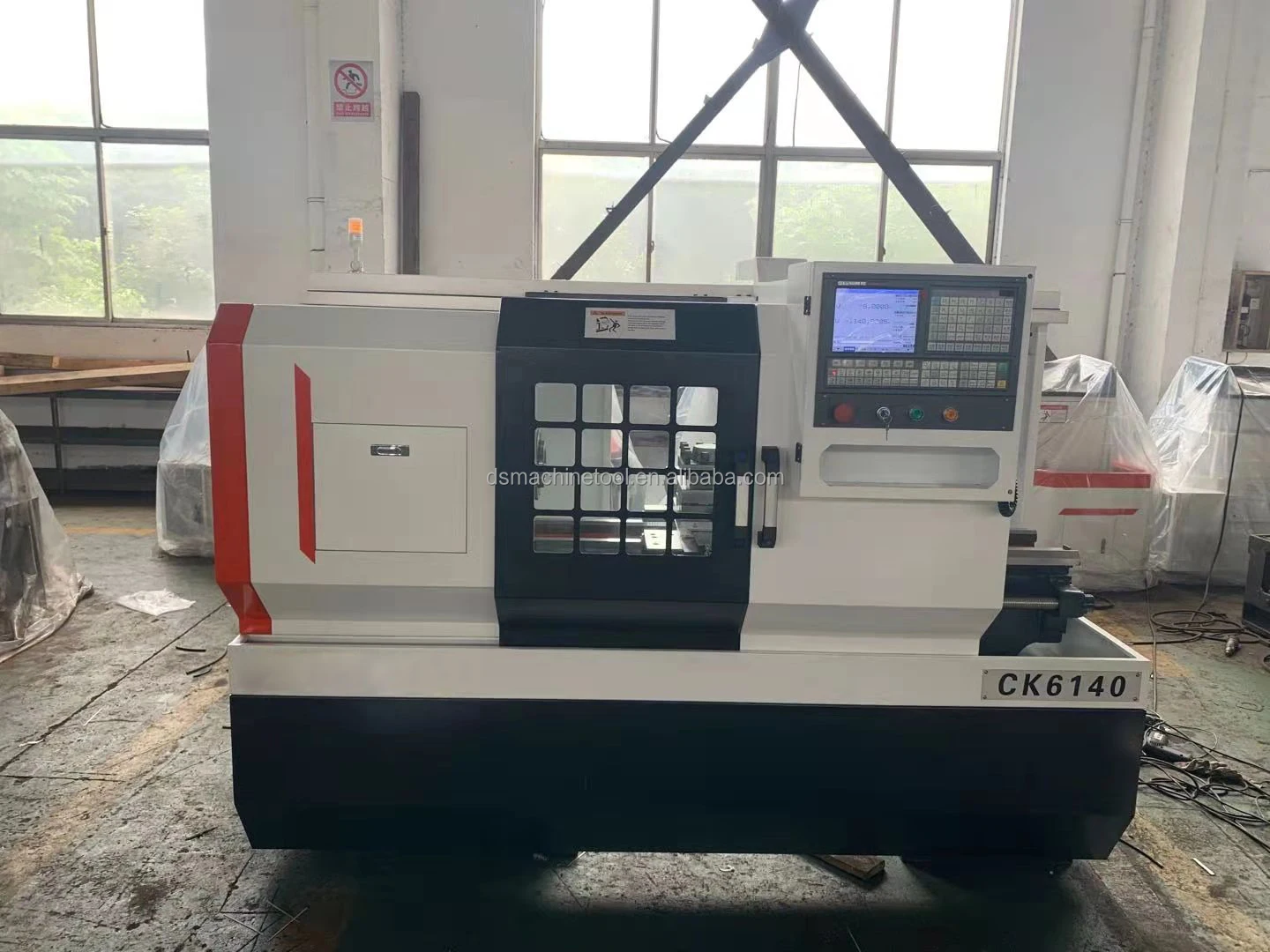

China Factory Headman Economic CNC Lathe Machine ck6140
- Category: >>>
- Supplier: Zaozhuang DS Machine Tool Co. Ltd.
Share on (60805677638):
Product Overview
Description

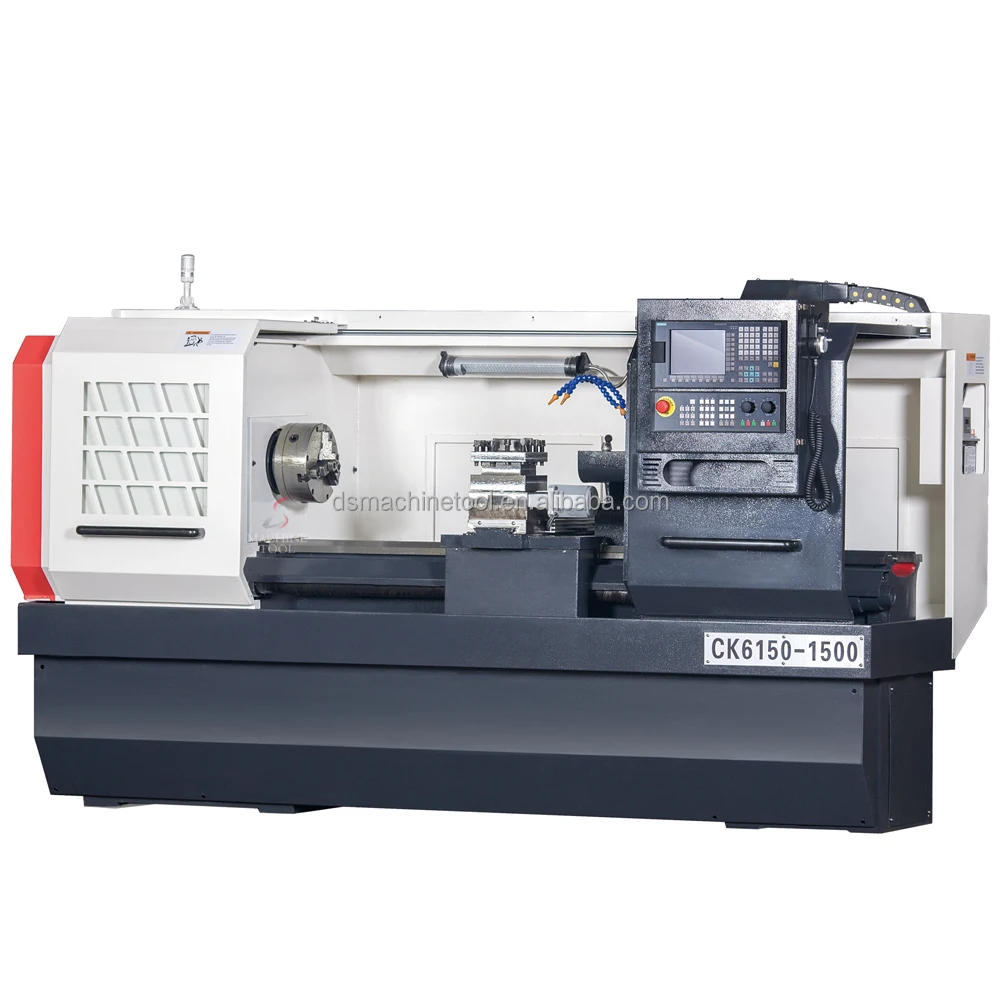

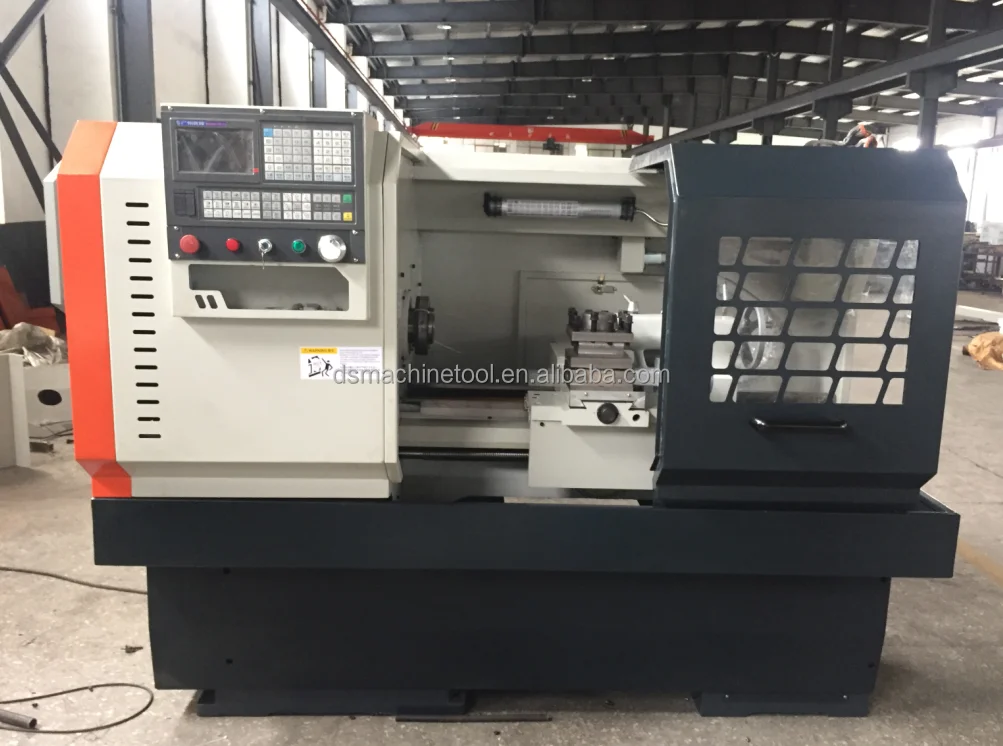

CNC Lathe Machine: CK6136/6140/6150
The model CK6136/CK6140/CK6150 is capable of performing the following operations automatically on shaft workpiece or on chuck work: the internal and external turning, taper turning, circular surface cutting, facing, undercutting and chamfering. The machine is capable of cutting straight threads and taper threads. The machine is well-suited for the batch production of components in the conventional machine-building factories. It’s superiority can be brought into full display especially when the machine is used to cut a high-precision component of complicated profile. The machine is also well-recommended for the tool making factory and the educational departments.
Product Main features:
1.The machine guide ways are accurately grinded, which has good wear resistance and high precision.
2.The spindle adopts single spindle frequency shift, two axes and two gear variable speed.
3.The machine is equipped with an automatic lubrication system, thus making it possible to minimize the thermal deformation effectively and assure good machining accuracy.
4.Operating system: GSK, SIEMENS,FANUC etc.
5.According to client’s requirements, we can equip with pneumatic chuck, hydraulic chuck and other special accessories.
Product Main features:
1.The machine guide ways are accurately grinded, which has good wear resistance and high precision.
2.The spindle adopts single spindle frequency shift, two axes and two gear variable speed.
3.The machine is equipped with an automatic lubrication system, thus making it possible to minimize the thermal deformation effectively and assure good machining accuracy.
4.Operating system: GSK, SIEMENS,FANUC etc.
5.According to client’s requirements, we can equip with pneumatic chuck, hydraulic chuck and other special accessories.
Model | CK6136 | CKI6140 | CK6150 | |||
Capacity | Max.swing over bed (mm) | 360 | 400 | 500 | ||
Max.swing over cross slide (mm) | 180 | 210 | 310 | |||
Center distance (mm) | 750/1000/ 1500 | |||||
Bed width (mm) | 360 | |||||
Spindle | Spindle taper | C6 | C8 | |||
Spindle hole (mm) | 52/82 | |||||
Range of spindle speeds (rpm) | 100-1600 | |||||
Carriage | X axis screw Dia. x Pitch(mm) | ￠25x4 | ||||
Z axis screw dia. x Pitch(mm) | ￠40x6 | |||||
Number of tool post | 4 (optional:6) | |||||
Max.size of toolshank (m2) | 20*20 | 25*25 | ||||
Accuracy | Positioning accuracy (mm) | 0.005 | ||||
Repeat positioning accuracy X axis(mm) Z axis(mm) | ≤0.02 | |||||
Machining accuracy | IT6-IT7 | |||||
Tail Stock | Dia. of tailstock sleeve (mm) | 65 | ||||
Taper of tailstock sleeve | MT4 | |||||
Max.Tailstock travel (mm) | 130 | |||||
Motor | Power of main motor (kw) | 5.5(optional:7.5kw) | ||||
Voltage/ Hertz | According to customer requirement | |||||
N.W/G.W(kg) | Center distance 750mm | 1400/1600 | ||||
Center distance 1000mm | 1500/1700 | |||||
Center distance 1500mm | 1650/1850 | |||||
Packing (mm) | Center distance 750mm | 2180*1420*1660 | ||||
Center distance 1000mm | 2480*1420*1660 | |||||
Center distance 1500mm | 3000*1420*1660 | |||||
