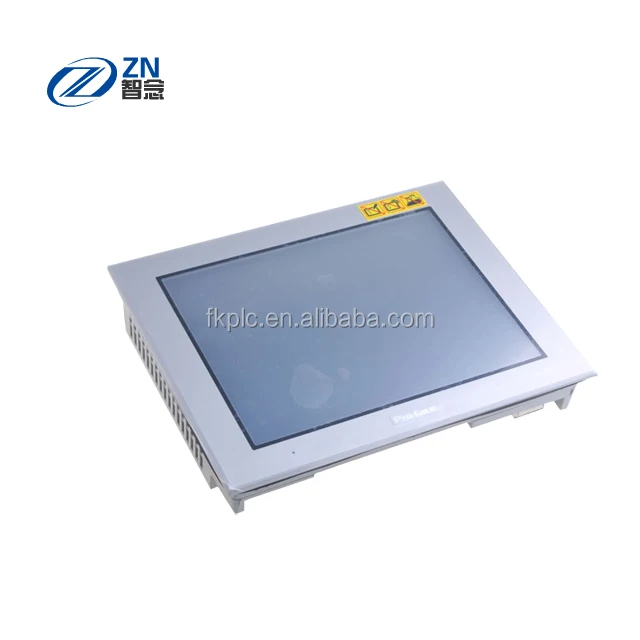

Proface PFXGP4601TAA HMI Touch Screen
- Category: >>>
- Supplier: Changsha Zhinian Automation Equipment Co. Ltd.
Share on (60805679663):
Product Overview
Description
Proface PFXGP4601TAA HMI Touch Screen
Feature
• 65,536 Colors, Clear, Bright, High-Resolution TFT Display
• Energy Effecient LED Display
• Choice of Matrix Touch Panel or No Grid Analog for Improved Visibility and Precise Part Placement
• Supports Up to Four Protocol Drivers Simultaneously
• High Speed Application Transfer, 10 Times Faster than Conventional Operator Interfaces
• 10/100 Base-T Ethernet, USB, Serial Communication and SD Card Interfaces
• High-Definition Part Images and Multi-Language Support
Specification
Specifications | ||
Model | PFXGP4601TAA, PFXGP4601TAD, PFXG- P4603TAD* | PFXGP4601TMA, PFXGP4601TMD |
Graphics Display Resolution | 800 x 600 pixels (SVGA) | |
Display Type and Size | TFT Color LCD (12.1 inch) | |
Display Colors | 65,536 Colors (no blink), 16,384 (blink) | |
Display Area | W246.0 x H184.5 mm [W9.69 x H7.26 in.] | |
Touch Screen | Resistive film analog 1024 x 1024 resolution | Resistive Film (matrix) |
USB | USB Type-A (2.0) x 1 , USB mini-B (2.0) x1 | |
SD Card | SD Card slot x 1 (maximum 32 GB SD/SDHC Card) | |
Serial | COM1: RS-232C Asynchronous Transmission Data Length: 7 or 8 bit, Parity: none, odd or even, Stop Bit: 1 or 2 bit, Data Transmission Speed: 2,400 bps to 115.2 kbps, Connector: D-Sub9 (plug)
GP-4601 COM 2: RS-422/485 Asynchronous Transmission Data Length: 7 or 8 bit Parity: None, Odd or Even Stop Bit: 1 or 2 bit Data Transmission Speed: 2,400 bps to 115.2 kbps, 187.5kbps (MPI) Connector: D-Sub9 (plug)
*GP-4603 COM 2: RS-485 (isolation) Asynchronous Transmission Data Length: 7 or 8 bit Parity: None,Odd or Even Stop Bit: 1 or 2 bit Data Transmission Speed: 2,400 bps to 115.2 kbps, 187.5 kbps (MPI) Connector: D-Sub9 (socket) | |
Ethernet | Ethernet IEEE802.3i/IEEE802.3u, 10BASE-T/100BASE-TX | |
Backlight | White LED (User nonreplaceable parts. When replacement is required, contact your local distributor. | |
Brightness and Contrast Controls | 16 levels of adjustment available via touch panel or the software | |
Programming Memory | 32MB FEPROM (GP-Pro EX V3.0 or later) | |
Backup Memory | 512kb SRAM with battery backup
| |
Odering Information

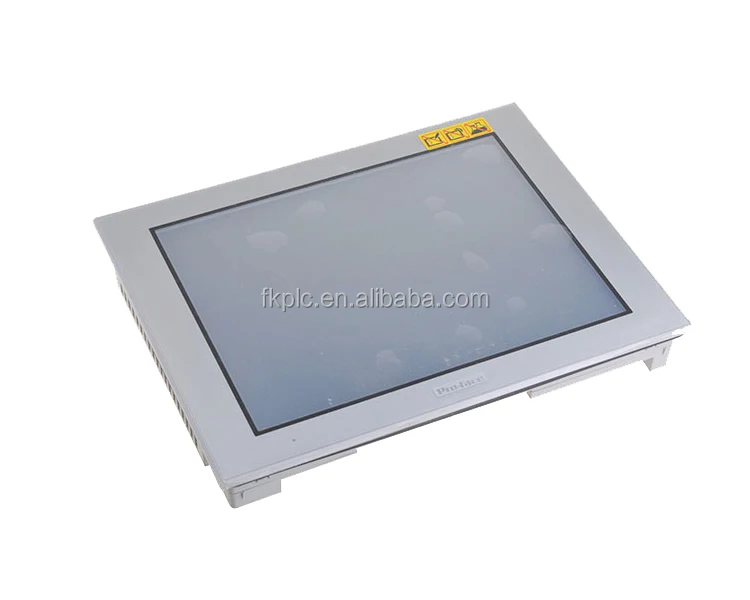

PFXGP4601TAA
GP-4601T: 12.1" TFT Color Touchscreen (Analog), SVGA, 2x Serial, Ethernet, 2x USB, SD, 100-240VAC, UL/CE
PFXGP4601TAD
GP-4601T: 12.1" TFT Color Touchscreen (Analog), SVGA, 2x Serial, Ethernet, 2x USB, SD, 24VDC, UL/CE

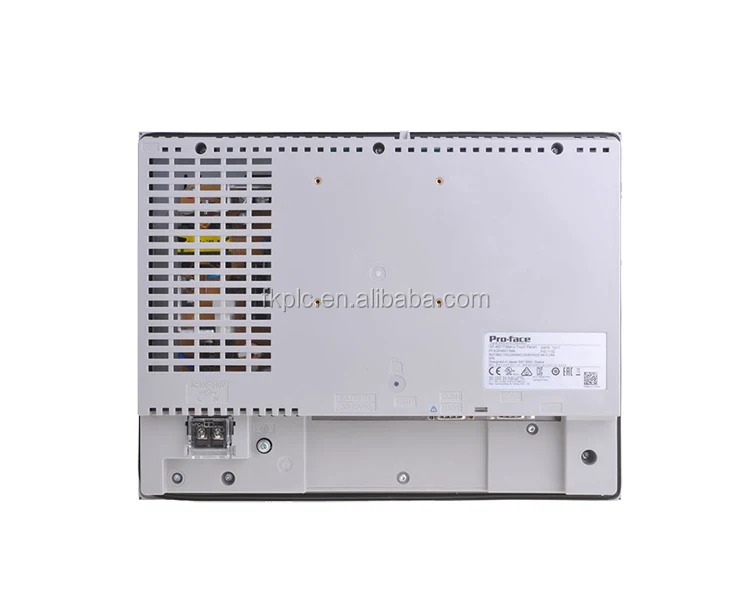

PFXGP4601TMA
GP-4601T: 12.1" TFT Color Touchscreen (Matrix), SVGA, 2x Serial, Ethernet, 2x USB, SD, 100-240VAC, UL/CE
PFXGP4601TMD
GP-4601T: 12.1" TFT Color Touchscreen (Matrix), SVGA, 2x Serial, Ethernet, 2x USB, SD, 24VDC, UL/CE
PFXGP4601TAAC
GP-4601T: 12.1" TFT Color Touchscreen (Analog), SVGA, 2x Serial, Ethernet, 2x USB, SD, 100-240VAC, UL/CE, Conformal Coating
PFXGP4601TADC
GP-4601T: 12.1" TFT Color Touchscreen (Analog), SVGA, 2x Serial, Ethernet, 2x USB, SD, 24VDC, UL/CE, Conformal Coating
PFXGP4603TAD
GP-4603T: 12.1" TFT Color Touchscreen (Analog), SVGA, 2x Serial (1-RS232, 1-RS485/MPI), Ethernet, 2x USB, SD,
24VDC, UL/CE
