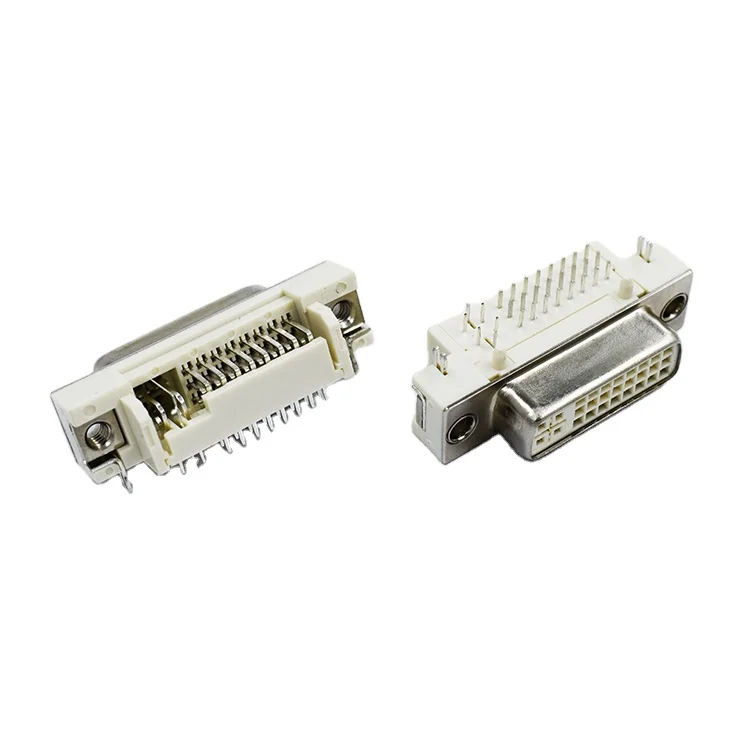

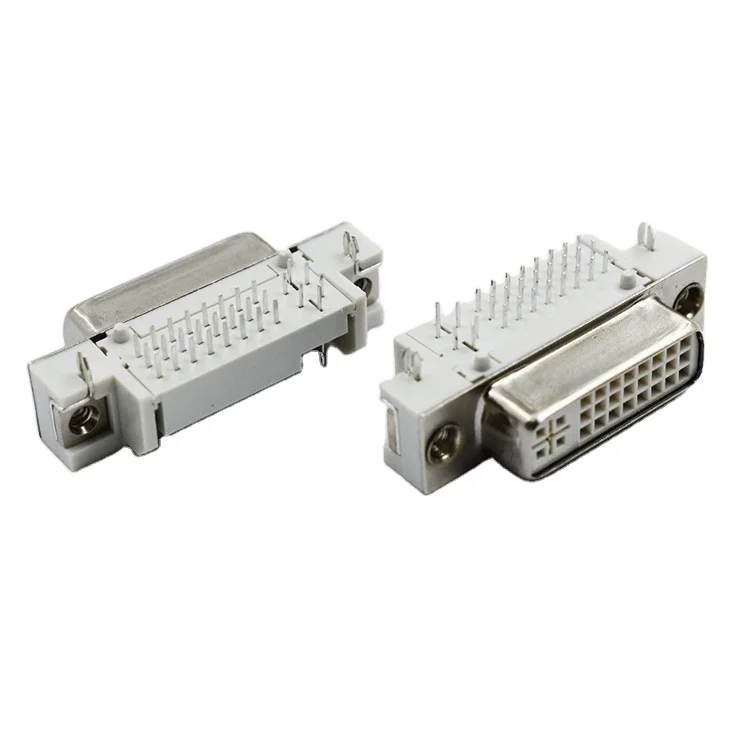

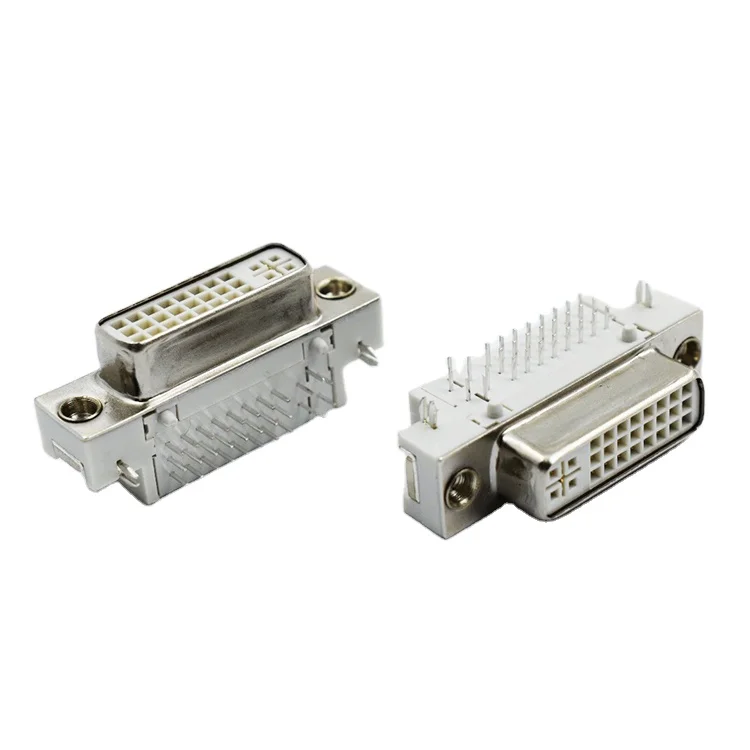

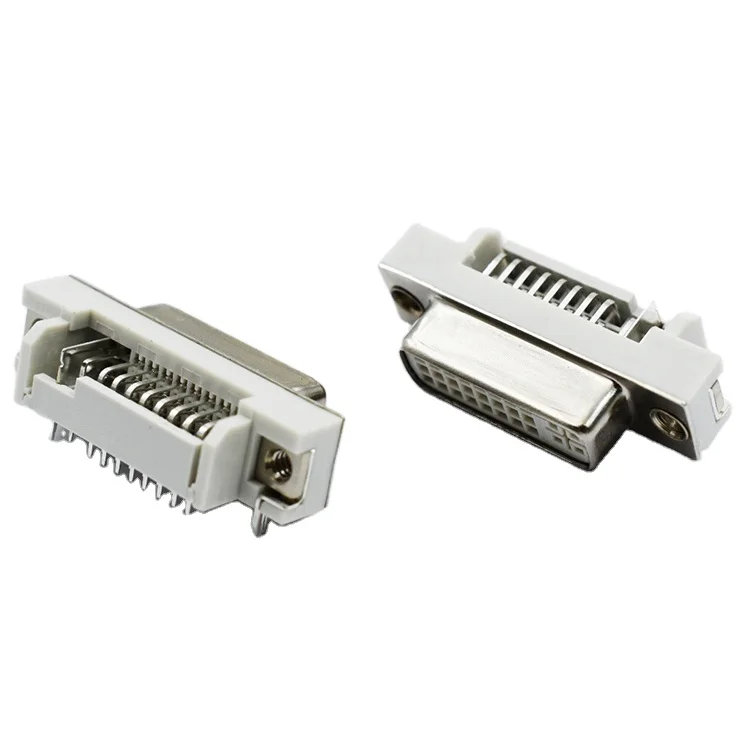

PCB Mount DVI24 5 Female DIP Connector Right Angle
- Category: >>>
- Supplier: Dongguan Bsc Electronics Technology Co. Ltd.
Share on (60805693576):
Product Overview
Description
Specification
PCB Mount DVI24+5 Female DIP Connector Right Angle | ||||||
Product Name | Right Angle DVI24+5 Female connector | |||||
SPQ | 100PCS/Tray | |||||
Free Samples | 10PCS | |||||
Housing | PA66 | |||||
Contact | Copper Alloy | |||||
Shell | SPCC | |||||
Current Rating | 1.5A | |||||
Voltage Rating | 40V | |||||
Operation Temperature | -20℃~60℃ | |||||
Insulation Resistance | 1000MΩMIN 500V DC | |||||
CONTACT Resistance | 30m OHM Max | |||||
Certification | SGS ROHS ISO9001 | |||||
Durability | 1500 Cycles | |||||

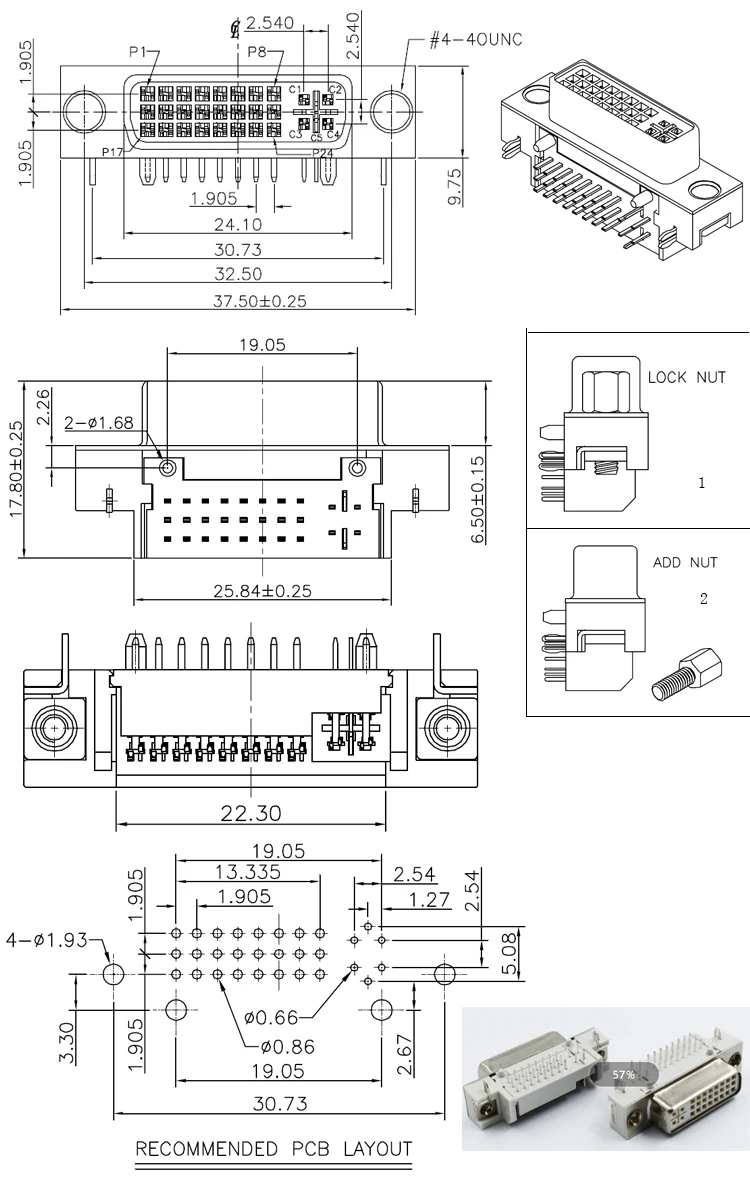

Contact me to get PDF and 3D Drawing.
