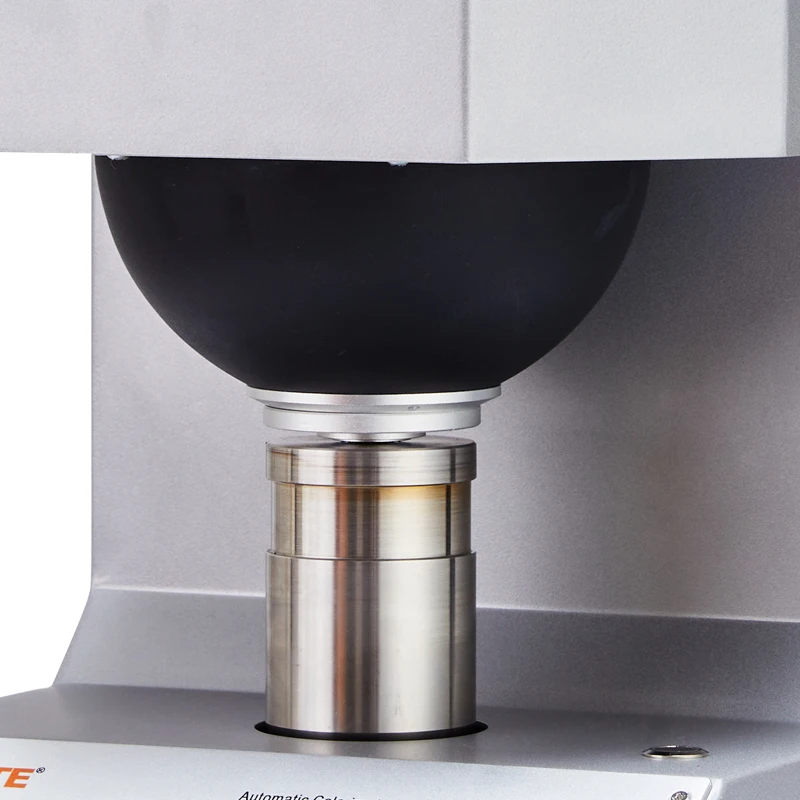

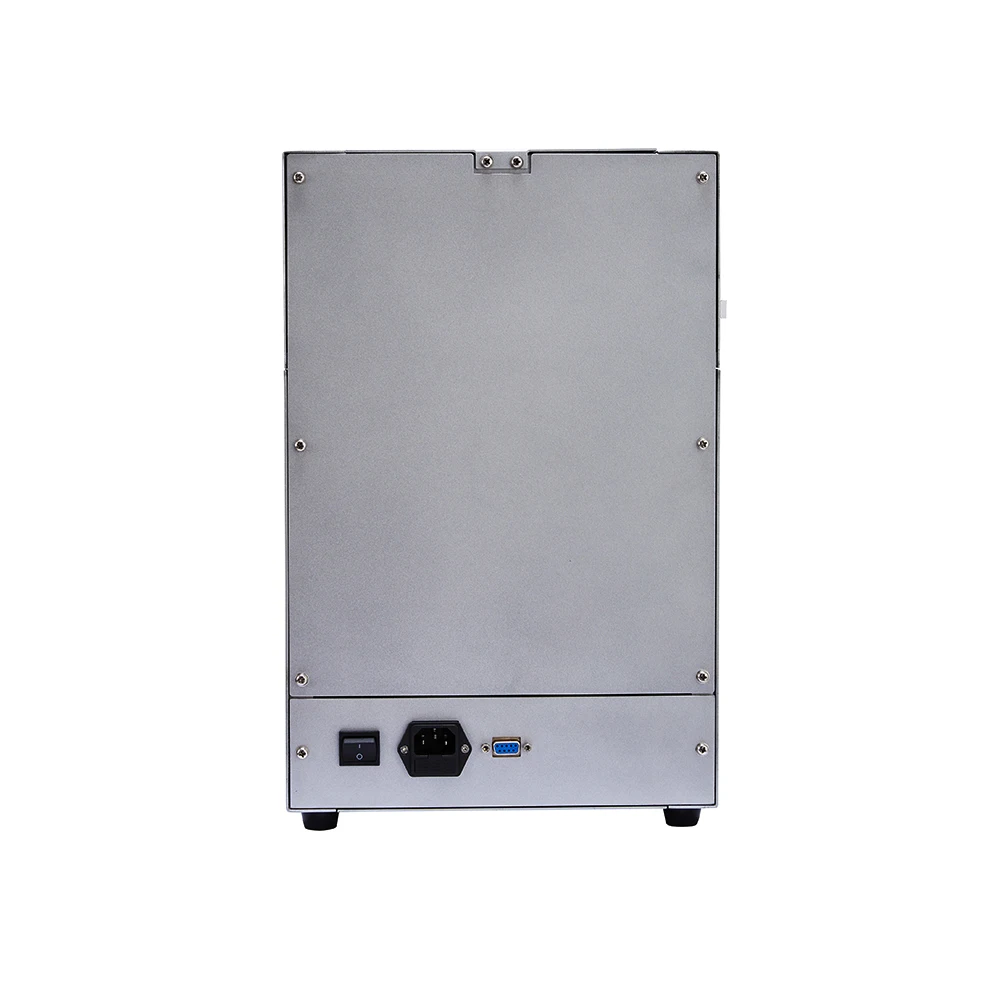

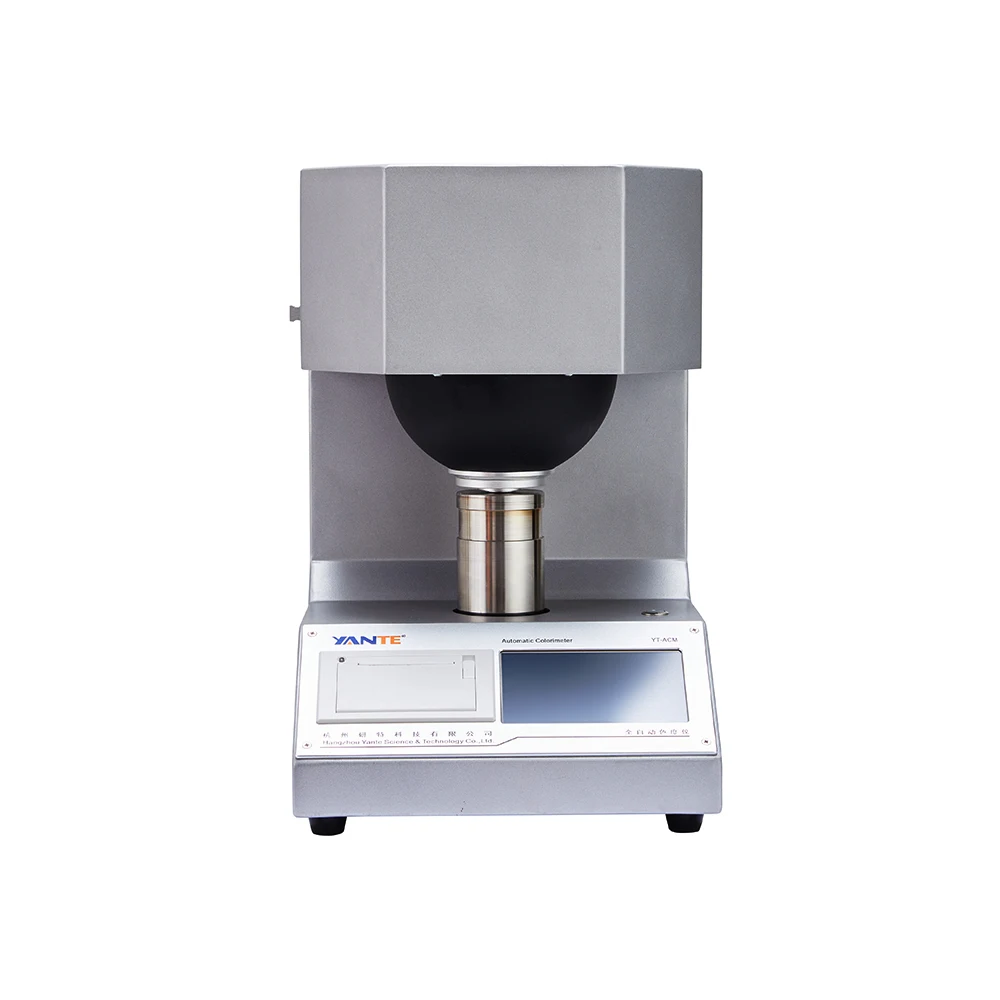

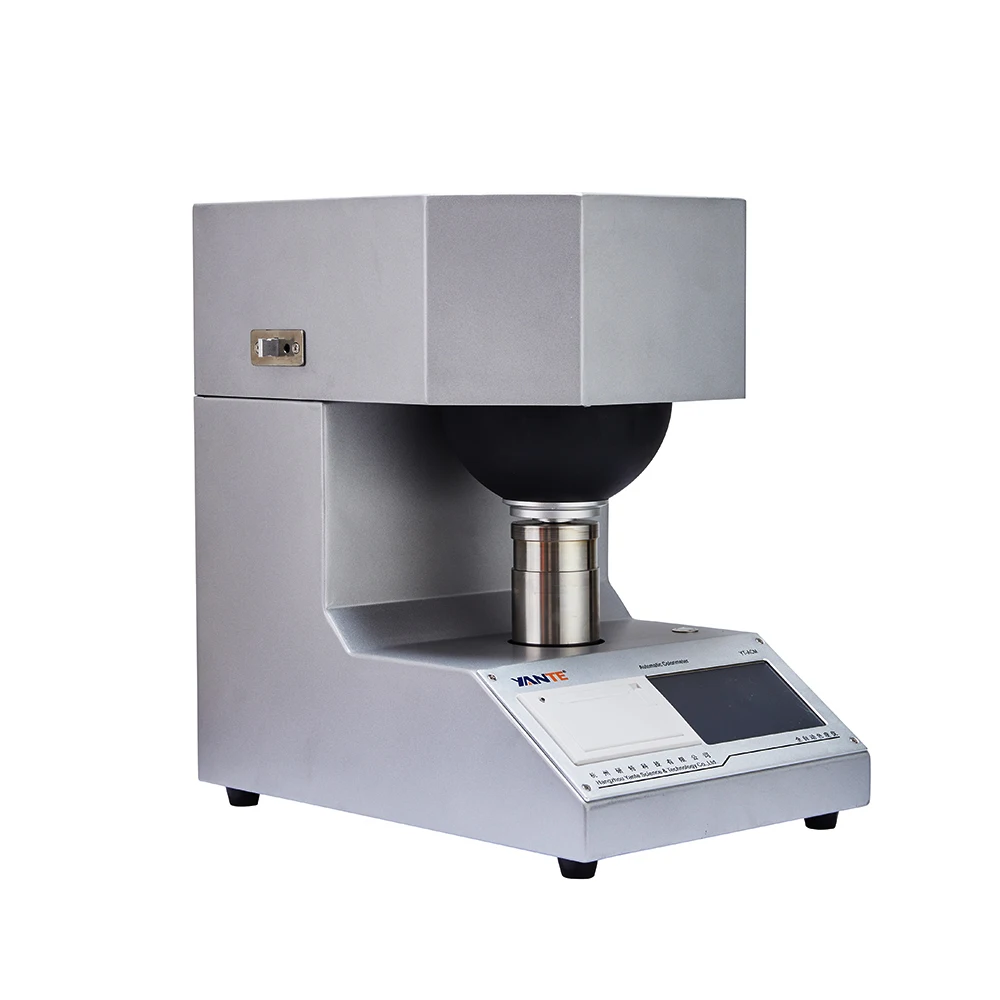

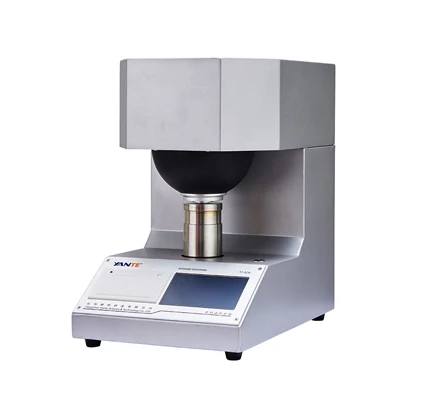

YT ACM colorimeter laboratory chroma brightness whiteness meter
- Category: >>>
- Supplier: Hangzhou Yante Science And Technology Co. Ltd.
Share on (60805705142):
Product Overview
Description
Product Overview
Automatic Colorimeter is a detection instrument for measuring the color, chromatic aberration and whiteness of objects based on the principle of light reflection.
Features At A Glance
Advanced mechatronics design, truly realize one-key testing of whiteness and chroma.
ARM processor improves the response speed of the instrument, and calculates data more accurately and quickly.
The reference sample can be in kind or data. The instrument can store and memorize up to ten reference sample information.
Can store 10 reference samples and have power-off protection, calibration data will not be lost after power-off.
Standard RS232 interface, with computer software for communication (Purchased separately)
The reference sample can be in kind or data. The instrument can store and memorize up to ten reference sample information.
Can store 10 reference samples and have power-off protection, calibration data will not be lost after power-off.
Standard RS232 interface, with computer software for communication (Purchased separately)

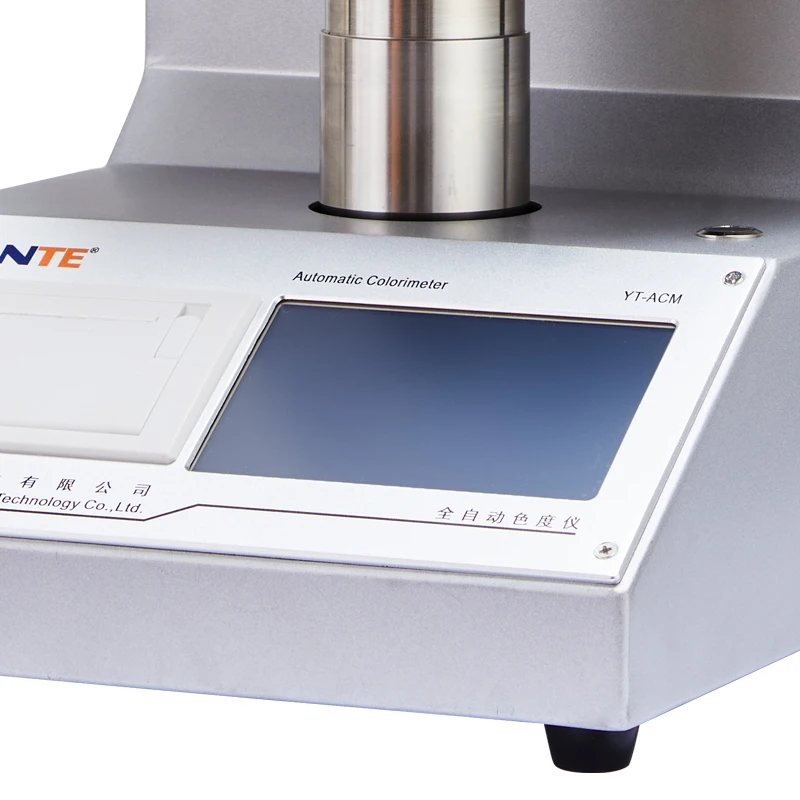

Details Images
Product Function
Measure the color and chromatic aberration reflected by the objectMeasure D65 brightness (R457 blue light whiteness)
Measure the degree of fluorescent whitening produced by the emission of fluorescent substances (the sample contains fluorescent whitening agent)
Measure CIE whiteness (Gantz whiteness W10 and color cast value TW10)
Measure the whiteness of ceramics, building materials and non-metallic mineral products
Measure Hunter System Lab and Hunter (Lab) whiteness
Measure yellowness, ink absorption value
Measure the opacity, transparency, light scattering coefficient and light absorption coefficient of the sample
Application Range
Paper, cardboard, pulp, ceramics; Cement, starch, calcium carbonate, talc and other powders.
Execute Standard
GB/T 7973、GB/T 7974、GB/T 7975、GB/T 8940.2、GB/T 1840、GB/T 13025、GB/T5950
GB/T 9338、GB/T 4739、GB/T 1543、GB/T 10339、GB/T 12911、ISO 2470、ISO 2471
GB/T 9338、GB/T 4739、GB/T 1543、GB/T 10339、GB/T 12911、ISO 2470、ISO 2471
Sales And Service Network
Product Paramenters
No. | Parameter item | Technical index |
1 | Power Supply | AC(100～240)V，(50/60)Hz，50W |
2 | Working Environment | Temperature(10~35)℃, Humidity≤ 85％ |
3 | Display | 480X272 dot matrix 5 inch color touch screen |
4 | Light source | Analog D65 |
5 | Integrating sphere | Diameter 150mm |
6 | Sample Size | Test plate diameter ≥φ30mm while sample thickness≤40mm |
7 | Indication Accuracy | Chromaticity Coordinate 0.0001,others 0.01 |
8 | Zero Drift | ≤0.1 |
9 | Indicating Drift | ≤0.5 |
10 | Repetitive Accuracy | ≤0.02（10 consecutive tests at intervals of 10 seconds） |
11 | Specular Reflectance Accuracy | ≤0.1 |
12 | Print | Built-in thermal printer |
13 | Communication Interface | RS232（optional） |
14 | Dimension | 385×280×410 mm |
15 | Net Weight | 12.5kg |
