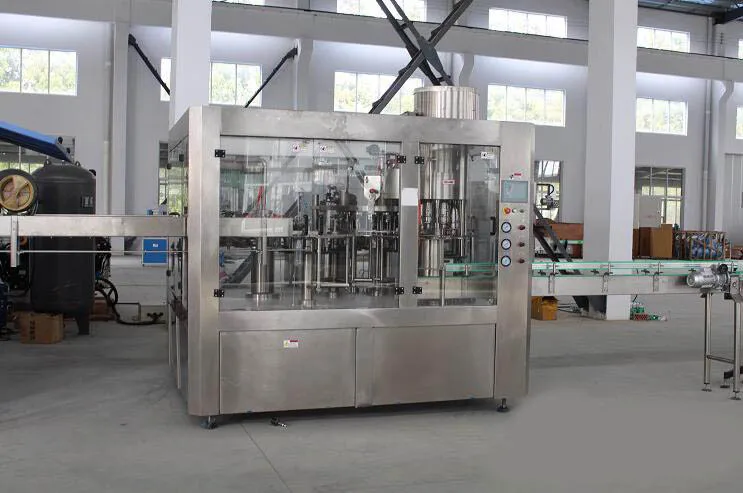

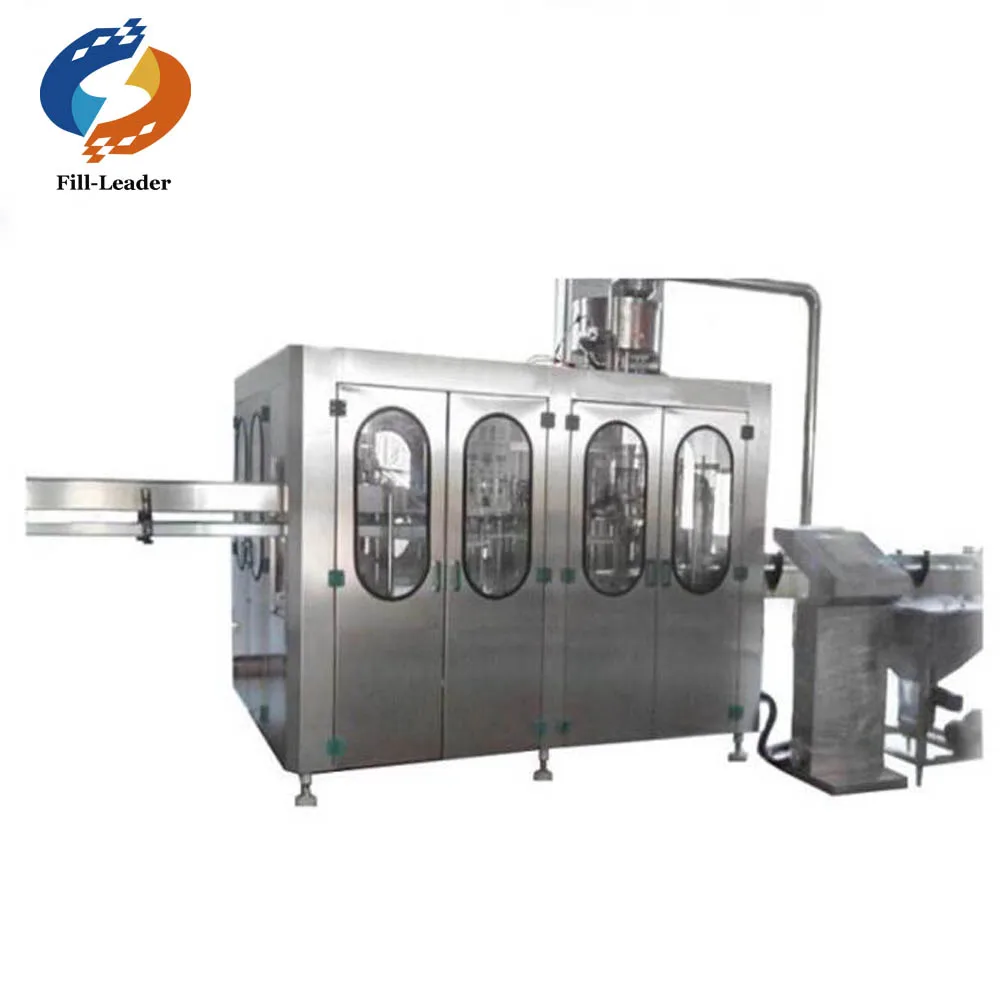

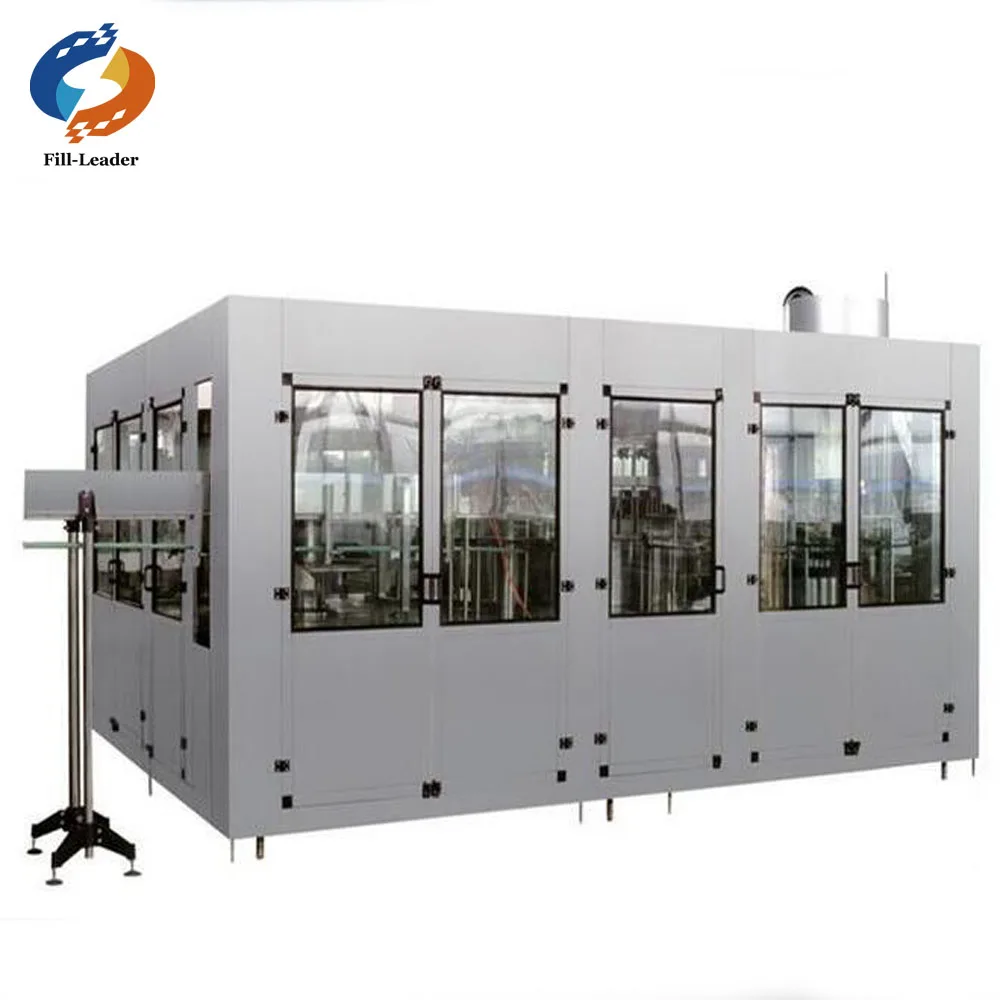

Automatic gas water filling machine

1. This series gas water filling machine is fully automatic rinsing, filling and rotary capping combined machine.whose main technique was imported from Italy, can realize to asepsis filling.Because it equipped with constant temperature controlling system.
2. It can apply to fill gas water, carbonated beveerage into thermal proof PET bottle by changing few parts.
3. The complete set of machine is more advanced in technique, smaller in space occupied, more compact in structure.

Model

Model	DCGF24-24-8	DCGF32-32-10	DCGF40-40-12
Capacity	10000BPH	12000BPH	15000BPH
Power(kw)	6.4	8	9.5
Diemnsion(mm)	3220/2300/ 2600	3450/2510/ 2710	3800/2800/ 2710
Weight(kg)	3000	4000	45000

Main Features

(1) Filling valve adopts high precision mechanical filling valve, with the character of no bottle no vacuum pumping.
(2) This machine has lubrication system in order to lubricated regularly in time.
(3) Wine jar and capping head are driven by electricity to fit different sizes of bottles.
(4) The material height in the tank is controlled by electric probe to assure the precise liquid level.

Certifications

Detailed Images

Machine Parts

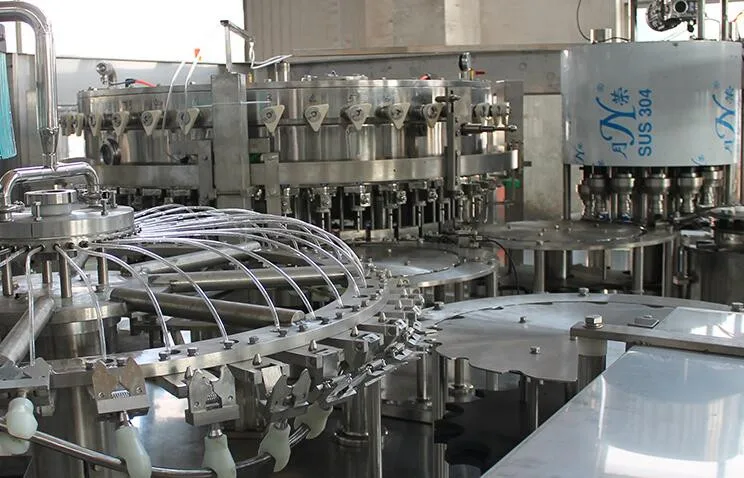

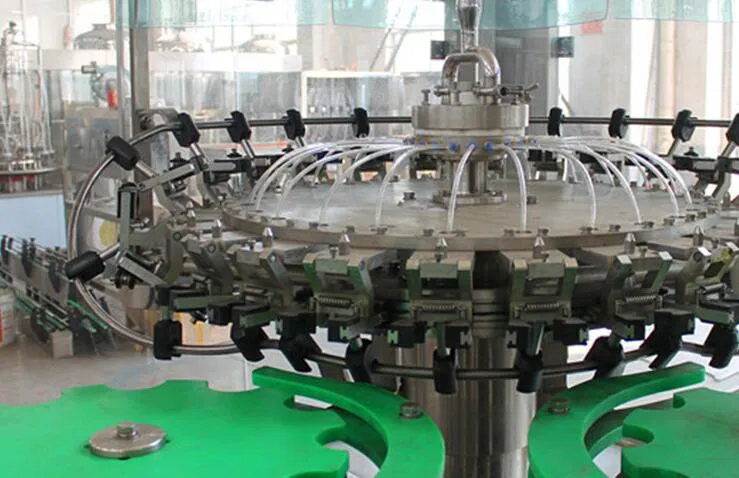

Washing heads.
<1>Into bottle way is air conveyor direct connection with Bottle dial .
<2>All 304/316 stainless steel rinse heads, water spray style inject design, more save water consumption and more clean
<3>304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing
<4> 304/316 stainless steel washing pump make the machine more durable .

Main Features

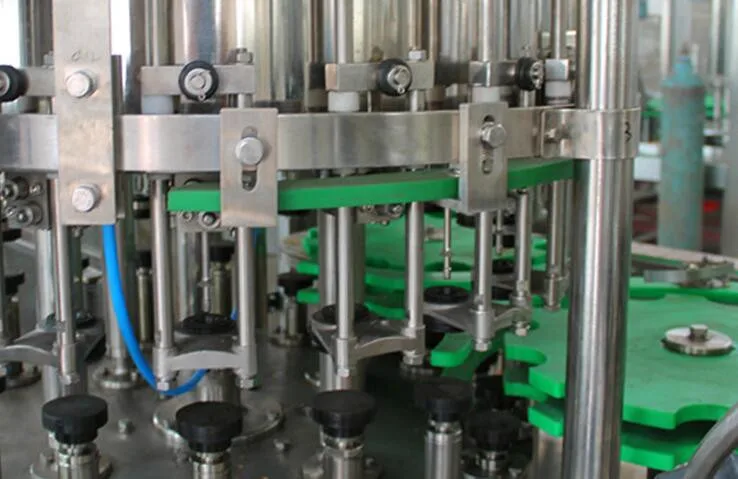

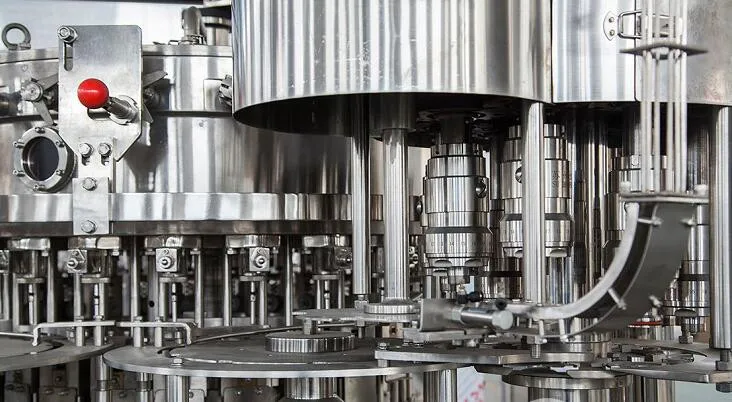

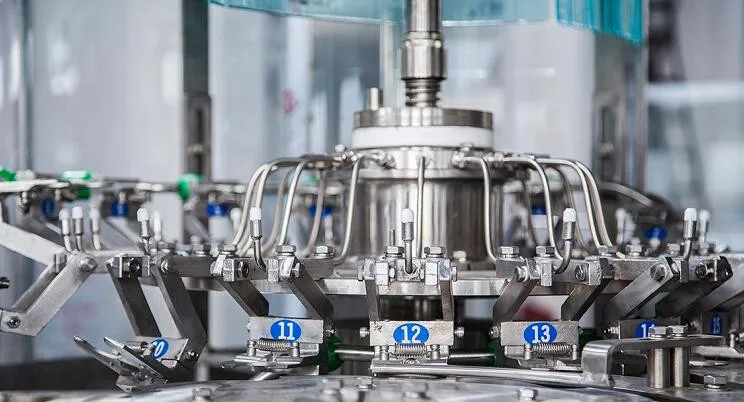

Filling heads.
<1> 304/316 Stainless steel high precision filling nozzle
<2> Filling volume adjustable in fine rank, same liquid level after filling
<3> All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
<4> 304/316 stainless steel filling pump
<5>Efficient spray nozzle rinse thoroughly and save water for flushing

Machine Parts

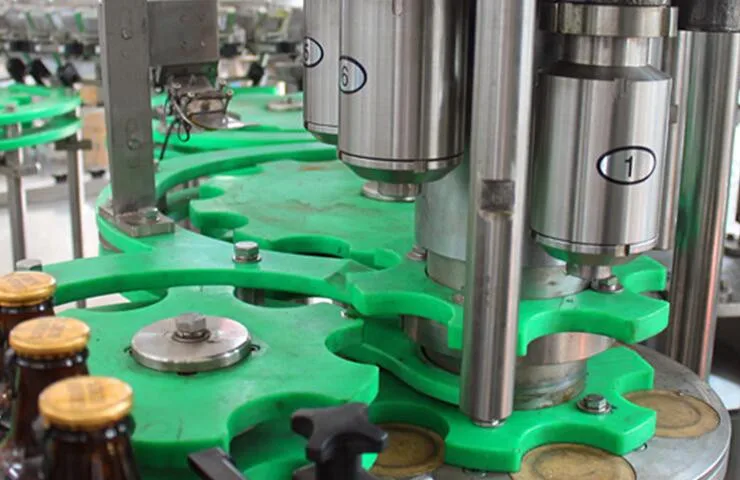

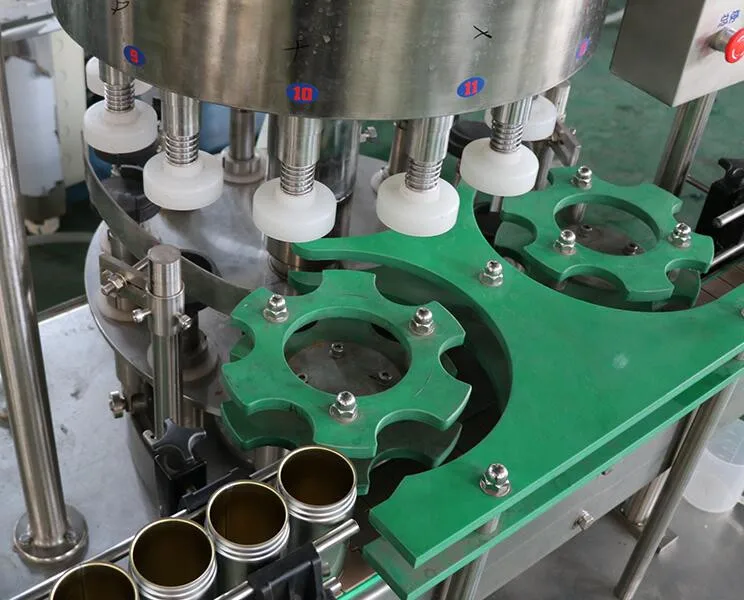

Capping heads.
<1> Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping
<2> All 304/316 stainless steel construction
<3> No bottle no capping
<4> Automatic stop when lack of bottle
<5>Capping effect is stable and reliable ,Defective rate ≤0.2% .

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

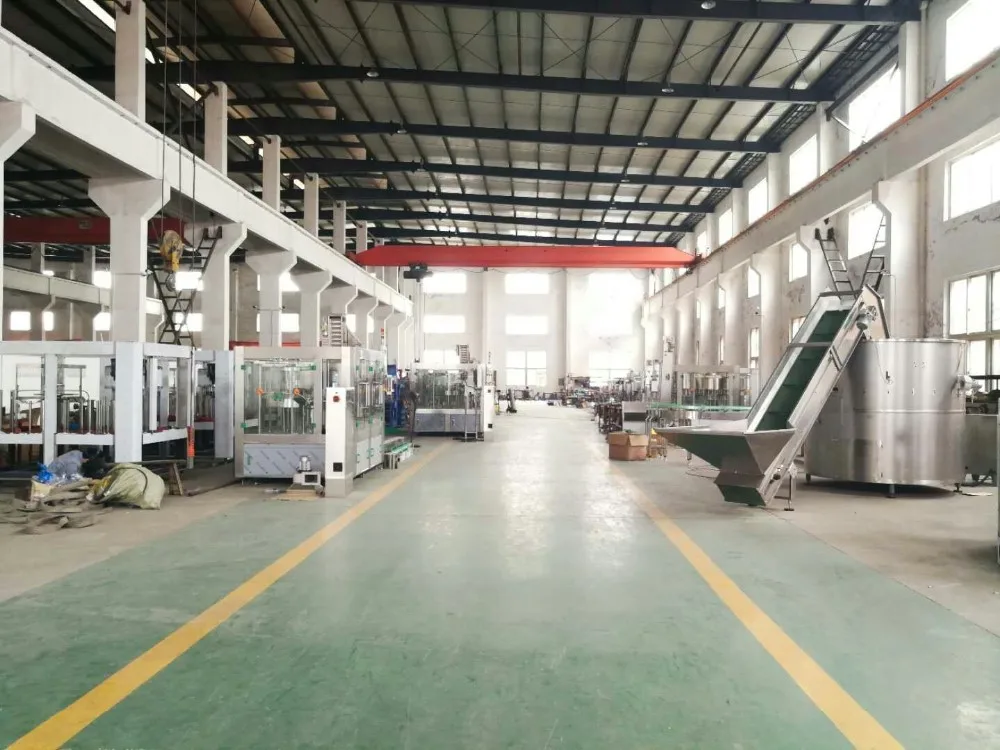

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery

Packaging
Size	2800(L) * 2150 (W) * 2100 (D)
Weight	2.5 T
Packaging Details	The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

Related Products

Cap making machine

91.8% Response Rate

Can filling machine

91.8% Response Rate

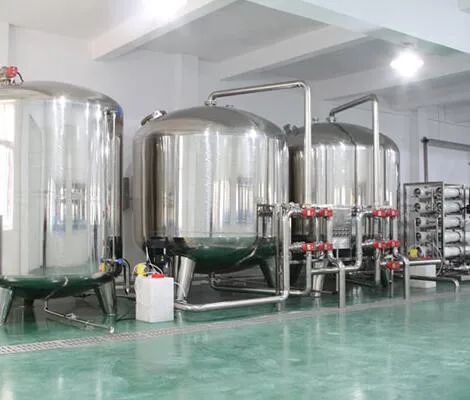

Water treatment plant
