Home use pure sine wave dc 24v 36v 48v ac 110v 220v 230v off grid solar inverter 5kw


WechatIMG60

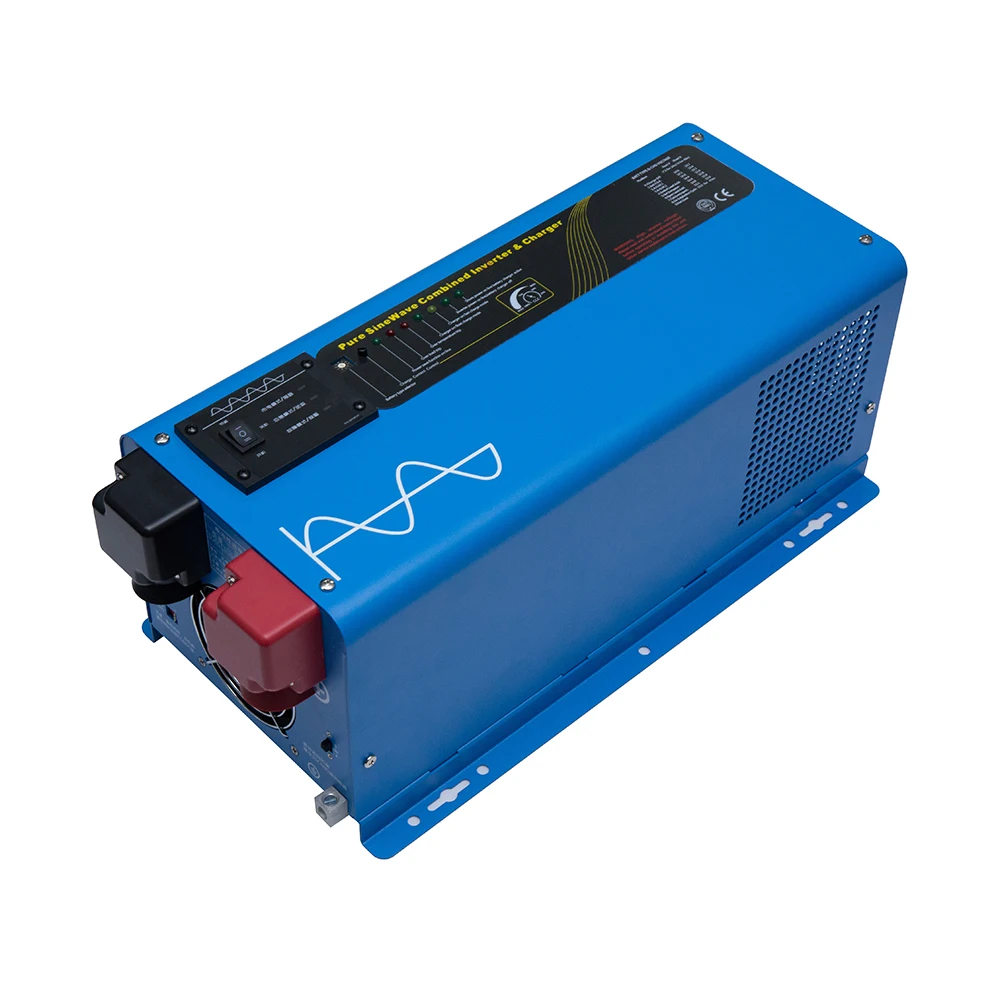

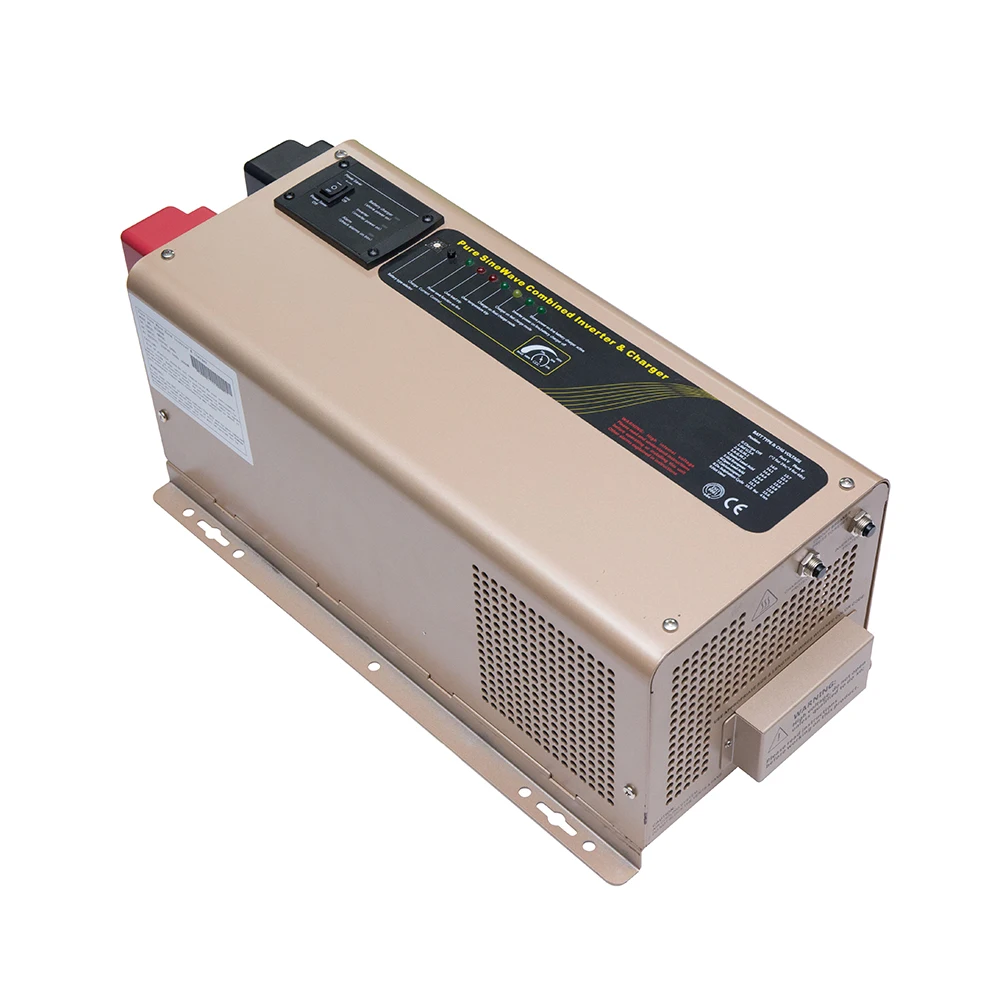

HC pure sine wave inverter is the latest model,developed on the base of our previous PSW 7 series, the HC charger has achieved significant improvements on battery charging, AC transfer, etc. By adopting DIP(dual in-line package) switch, and provides more smart options for users to customize the performance of the device.

Product Description
Feature

1. High overload ability, up to 300% rated power(20 sec.).
2. adopts low quiescent current, and power saver mode to reduce power consumption
3. Uses PFC(power factor correction) for charger, less power consumption .
4. It has 15s delay before transfer when it resumes, and overload protection when inverter equips with generator.
5. 10ms typical transfer time between battery and AC, which guarantees power continuity of HC charger.
6. Allows start up and through power with depleted batteries.charge rate up to 90Amp
7. It can offer 3-step intelligent battery charging, and equipped with 8 preset battery type selector for totally flat batteries.
8. LCD status display, battery/AC priority switch, USB communication port.(Optional)
9. Auto voltage rugulation optional(HS)
 Model(HC)1000W1500W2000W3000W4000W5000W6000W
Inverte
Output
Continuous Output Power1000W1500W2000W3000W4000W5000W6000W
Surge Rating(20s)3000W4500W6000W9000W12000W15000W18000W
Cpable of Starting Electric
Motor
1HP1.5HP2HP3HP4HP5HP6HP
Output Waveformpure sine wave/same as input(Bypass mode)
Nominal Efficiency>88%(Peak)
Line Mode Efficiency>95%
Power Factor0.9-1.0
Nominal Output
Voltage THD
100-110-120Vac/220-230-240Vac
<10%
DC InputNominal Input Voltage12.0Vdc 24Vdc,48Vdc
Minimum Start Voltage10.0Vdc
Idle Consumption-Search
Mode
< 25 W when Power Saver On
ChargeInput Voltage RangeWide:90~135Vac/164~243Vac;
Narraw:100-135Vac/194~243Vac;
Output VoltageDepends on battery type
Max Charge Rate35A/70-90A Max (Charger Current Control)
Remote ControlYes.Optional
Bypass &
Protection
Input Voltage WaveformSine Wave(Grid or Generator)
Nominal Voltage120Vac230Vac
Low Voltage Trip80V/90V±4%184V/154V±4%
High Voltage Trip140V±4%253V±4%
Max Input AC Voltage150VAC270VAC
Nominal Input Frequency50Hz or 60Hz(Auto detect)
Mechanical
Specification
MountingWall mount
Inverter
Dimensions(L*W*H)
382*218*179mm442*218*179mm598*218*179mm
Inverter Weight14KG16KG19KG24KG32KG34KG36KG
Shipping
Dimensions(L*W*H)
520*315*300mm580*315*300mm740*315*300mm
Shipping Weight16KG18KG21KG26KG35KG37KG39KG
Display(Optional)Status LEDs/Status LEDs+LCD
