Product Overview
Description

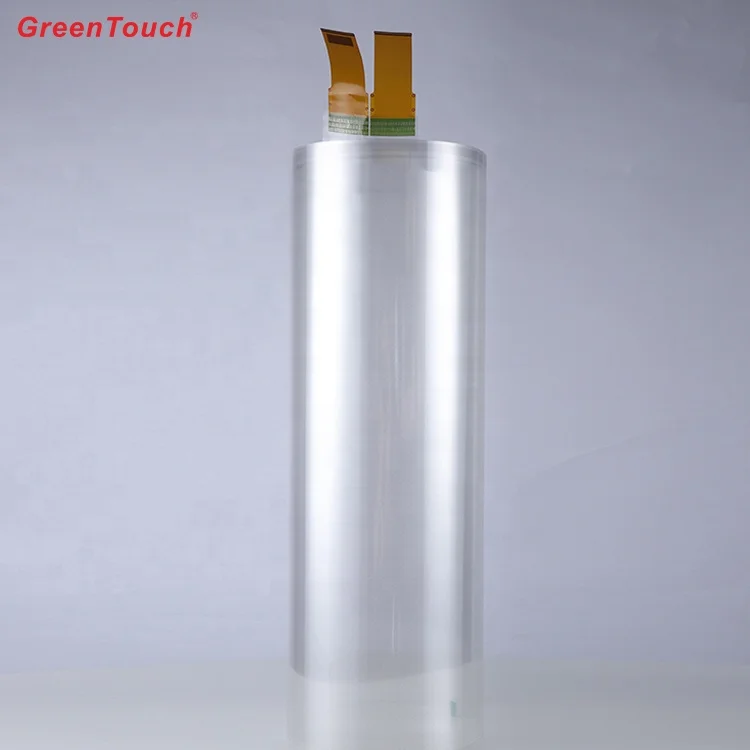

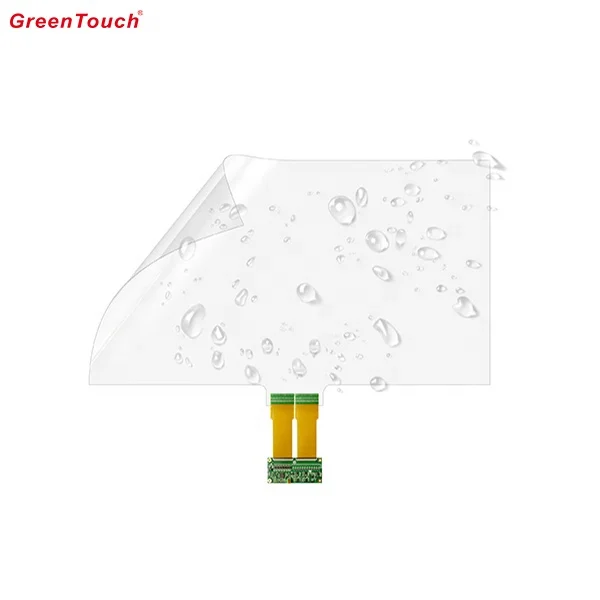

43 inch touch foil Multi touch glass film Interactive touch foil

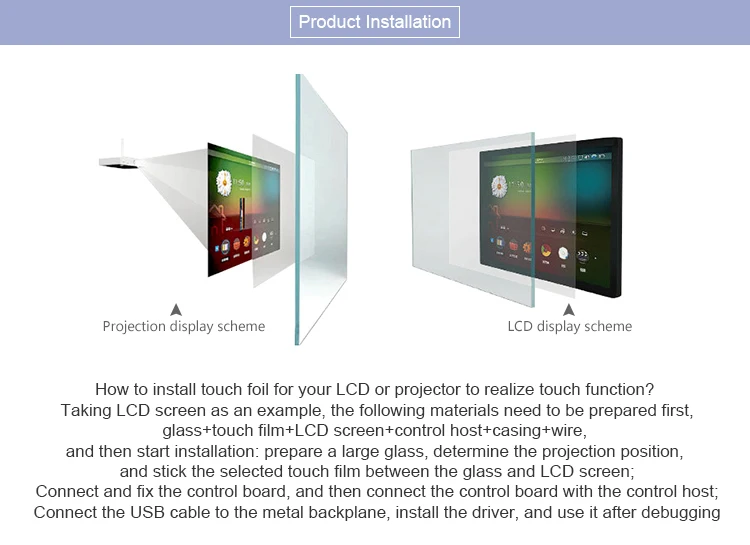

Capacitive touch foil, also known as "touch film", is a Nano-touch film. It consists of two thin films, which are sandwiched with a grid matrix layer of nano-wires crisscrossed by X and Y axes. Each matrix element can sense the touch of human hands. The touch signal of the hand is transmitted to the microchip controller connected with the nanowire. The microcontroller transmits the signal to the computer through the interface, and the computer recognizes the position of the touch on the screen. Capacitive touch foil is a new and transparent touch-sensitive film. By pasting the film inside the glass window and glass wall, the glass window/wall can be transformed into a large-scale touch screen. In touch film products, sensors, film substrates and other core components are all made of international advanced nano-materials.
Leader of Large Size Projective Capacitance Touch Technology
Our super-large capacitive touch technology has continuously penetrated into all aspects of the enterprise touch market. From digital new media, game entertainment, future education, smart city, smart home and a wide range of applications, it has become one of the key technologies for traditional enterprises to embrace the Internet.
| Technical Parameters | |||
| Product Name: | Capacitive Touch Foil | Model: | GT-TF-XTA43 |
| Regular Size: | 32"-65"(XTA Series) | Other Size: | 70"-300" |
| Touch Points: | 20 Points | Deviation: | ≤0.5mm |
| Sensor: | TX : 56, RX : 96 | Scanning Speed: | 8ms |
| FPS: | 120 | Power Consumption: | 1W |
| Power Supply: | USB(5V+/-5%DC) | Calibration: | Software Calibration |
| Thickness: | ≤200um | Transmittance: | >93% |
| Voltage: | 5V | Transmission: | USB2.0 |
| Transmit Distance: | ≤50m(Add USB Signal Amplifier) | Safe Distance: | 2mm |
| OperatingnTemperature: | -20℃ ~ 70℃ | Storage Temperature: | -20℃ ~ 80℃ |
| Touch Gesture: | Click,Drag,Zoom,Rotate | Warranty: | 1 Year |

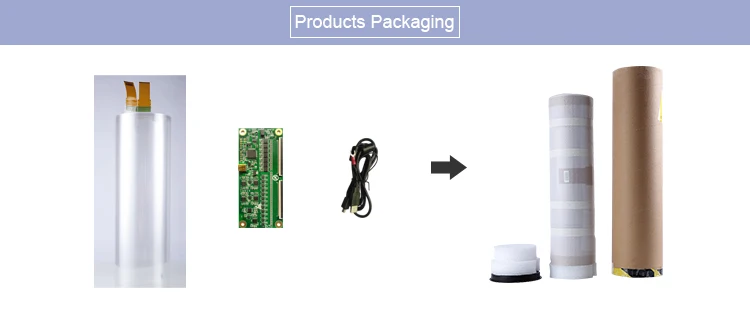

| Ambient Lightness: | Full-angle Anti-glare Illumination | Packing List: | Touch Foil*1 , Controller*1 , USB cable*1 |
| Support Systems: | Windows,Android,Linux | Certificates: | CE,FCC,RoHS,ISO |

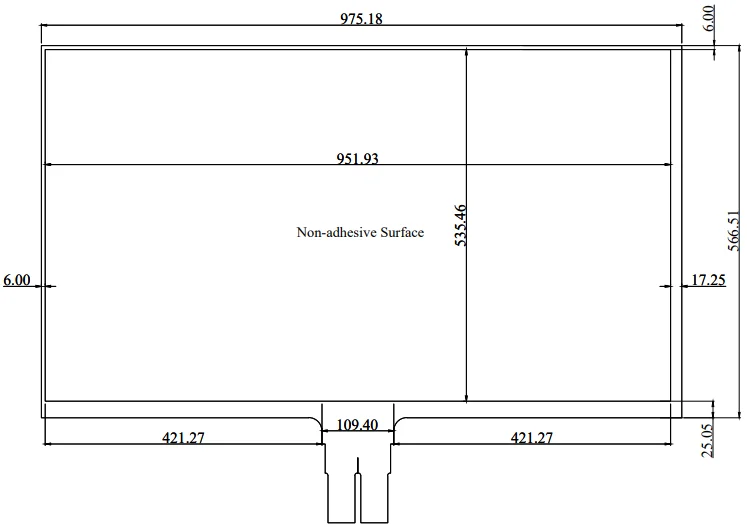

Engineer drawing :
If there is any other question , please kindly let me know !
