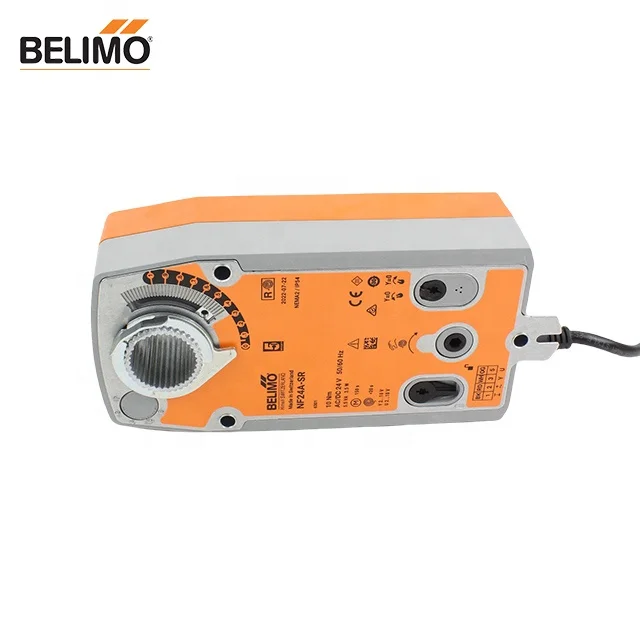

Switzerland BELIMO original NF24A SR Rotary actuator fail safe 10 Nm AC/DC 24 V 150 s IP54 Position feedback in stock CE
- Category: >>>
- Supplier: Beijing Ymer Technology Co. Ltd.
Share on (60805821184):
Product Overview
Description
Product Overview
Application places
Air handling units
Belimo devices enable the precise andefficient conditioning of air in buildings
Heating water plants
Belimo devices control the generation andthe flow of hot water in a building in anenergy-efficient way
Fire & smoke protection
Belimo safety actuators save lives and helpto minimise damage to buildings andtangible assets
Details Images
Products Description

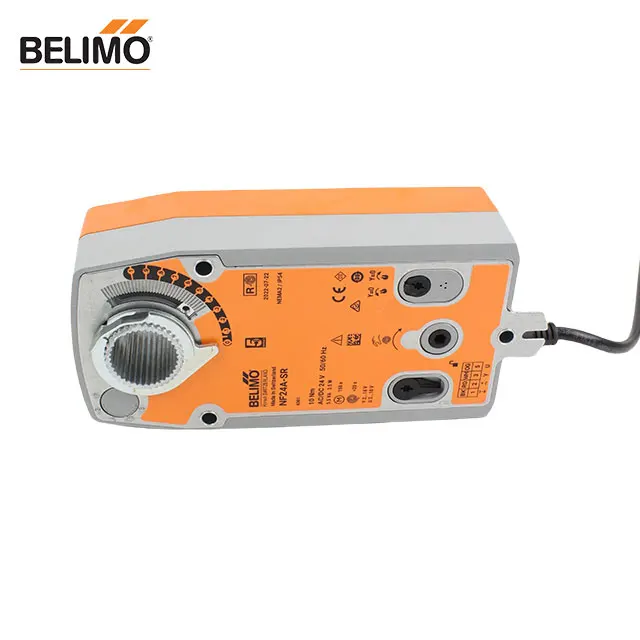

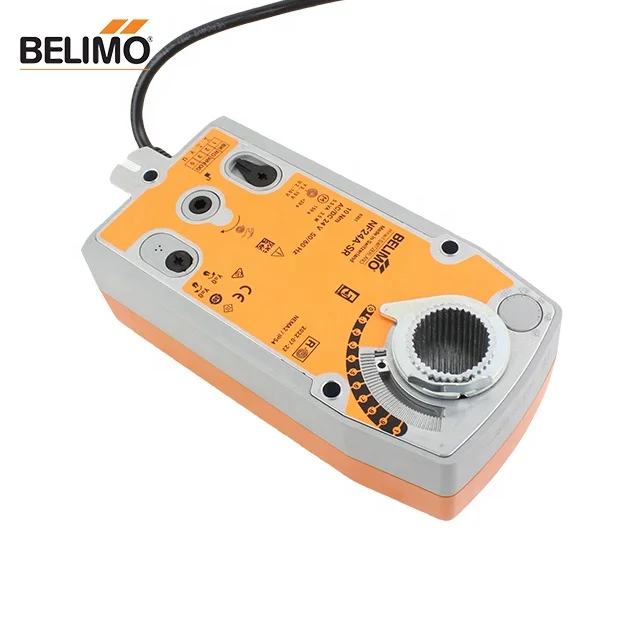

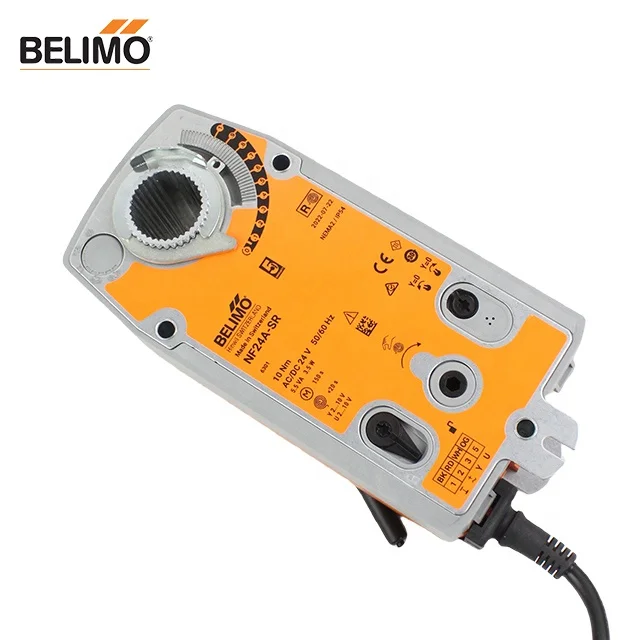

NF24A-SR
Modulating rotary actuator fail-safe for adjusting dampers in technical building installations
Modulating rotary actuator fail-safe for adjusting dampers in technical building installations
• Air damper size up to approx. 2 m²
• Torque motor 10 Nm
• Nominal voltage AC/DC 24 V
• Control modulating 2...10 V
• Position feedback 2...10 V
• Torque motor 10 Nm
• Nominal voltage AC/DC 24 V
• Control modulating 2...10 V
• Position feedback 2...10 V
1 | Voltage AC/DC | AC/DC 24 V |
2 | Power consumption (running) | 3.5 W |
3 | Power consumption (holding) | 2.5 W |
4 | Power Consumption For Wire Sizing | 5.5 VA |
5 | Connection Supply Control | Cable 1 m, 4x 0.75 mm² |
6 | Torque | 10 Nm |
7 | Control type | DC 2...10 V |
8 | Direction Of Motion Motor | selectable with switch L/R |
9 | Direction of rotation (fail-safe | Selectable by mounting L/R |

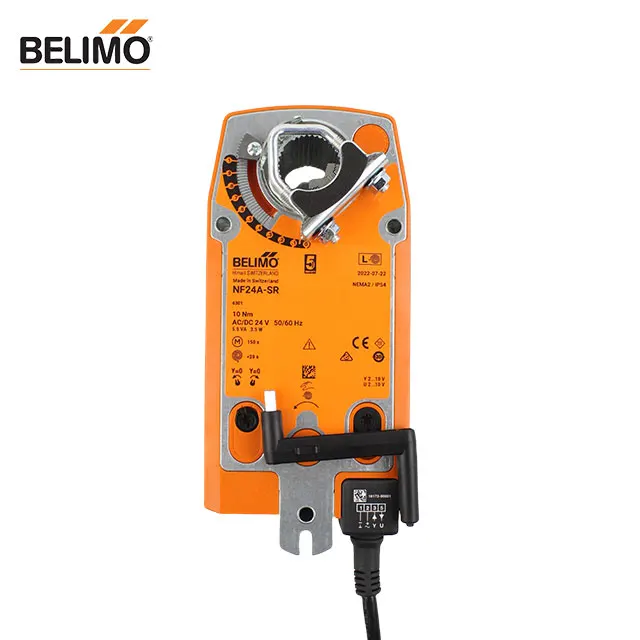

10 | Manual override | By means of hand crank and locking switch |
11 | Angle of rotation | 95 |
12 | Running time (motor) | 150 s / 90° |
13 | Running time (fail-safe) | <20 s |

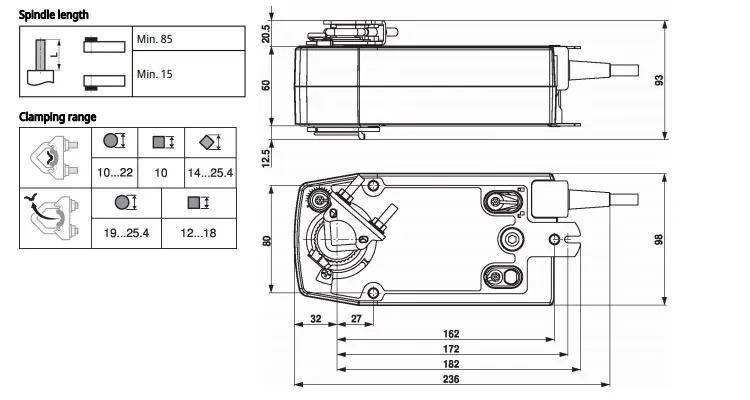

14 | Mechanical interface | Universal shaft clamp 10...25.4 mm |
15 | Protection category | IP54 |
16 | Degree Of Protection NEMA | NEMA 2 |
17 | Enclosure Type | UL Enclosure Type 2 |
18 | Ambient Temperature | -30...50°C [-22...122°F] |

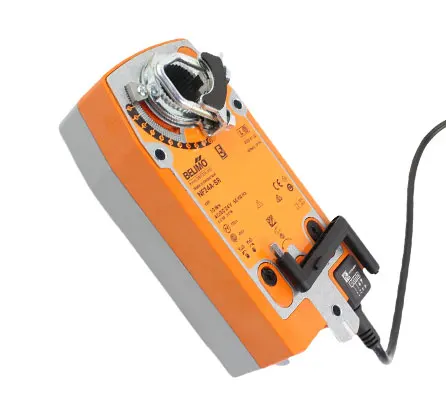

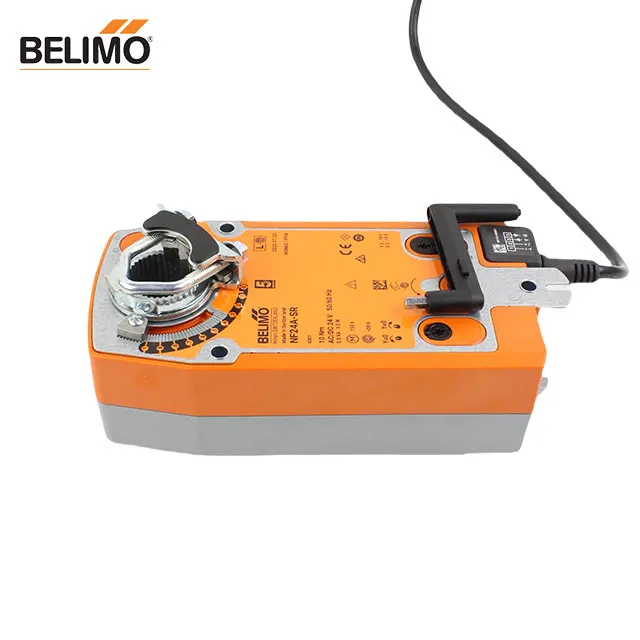

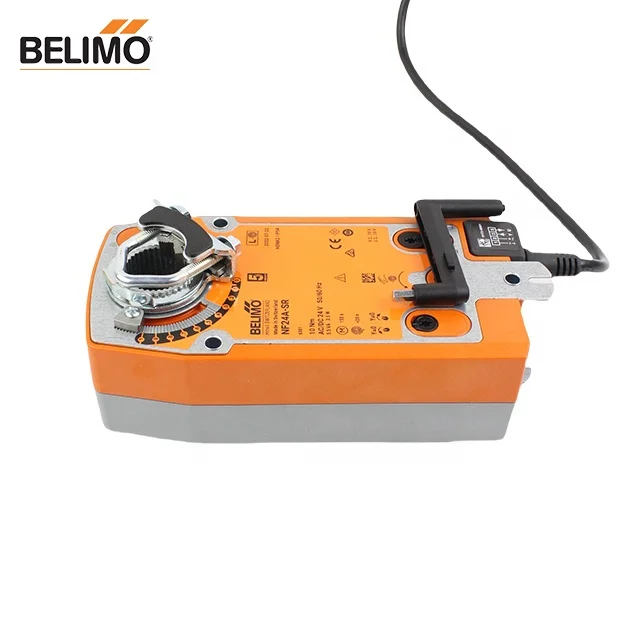

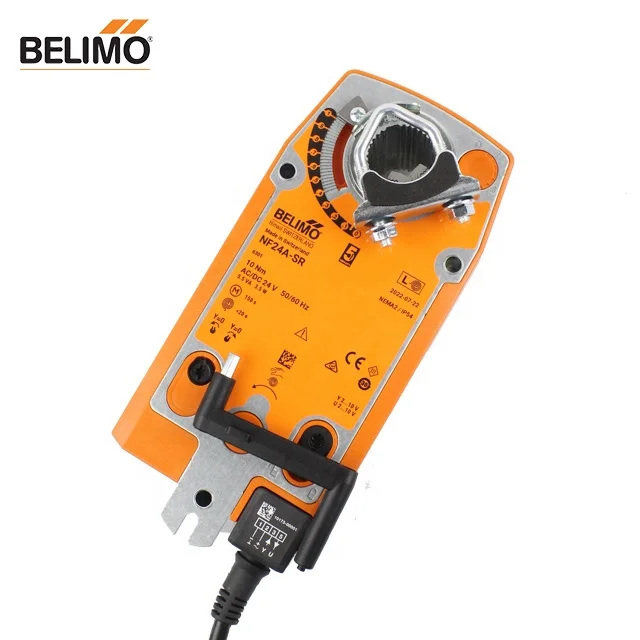

Product Photos
Successful Project
End-customer seaments
Belimo products in every third commercial building.
FAQ
Q1：Do you have your products in stock ?
A1：Yes . We have a large warehouse in Beijing
Q2：What is your mode of transportation ?
A2：You can choose any mode of transportation you want . For example , express airand shipping.
Q3：What's the minimum quantity ?
A3：According to the product , the quantity is different.
Q4：Are your products guaranteed ?
A4：All our products have a one-year warranty period.
Q5：How long will the product be ordered ?
A5：Spot products can be shipped at any time . Futures products can be orderedording to different products and different relatives . You can send an email for detailed inquiries.
