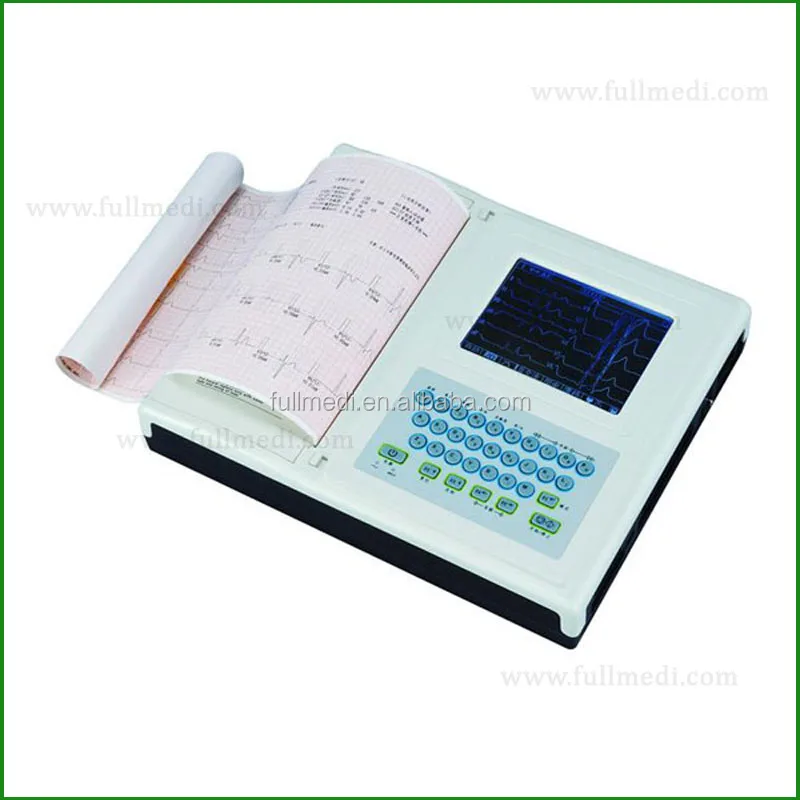

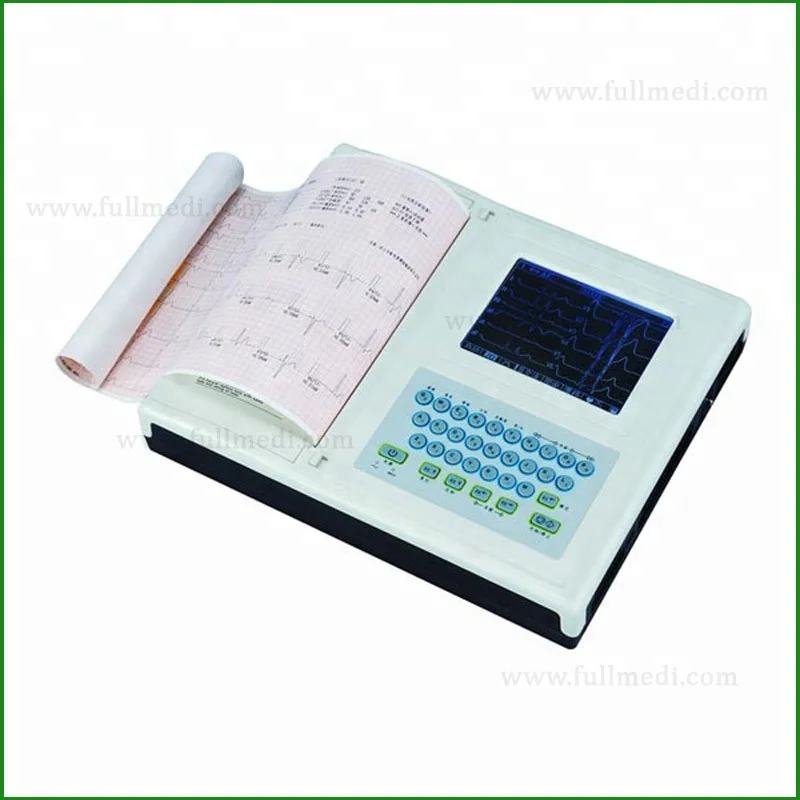

Wholesales price Medical equipment portable 12 channel ICU ECG/EKG electrocardiogram machines

Feature

Simultaneously acquisition of 12-lead ECG data, IEC Class I, type CF safety standard

Delectable four modes of leads

Function of ECG parameters measurement and distinguish point printing under automatic mode

LCD display of operation menu, ECG waveform, AMP menu and parameter setting

Powerful filter for AC, EMG and DFT interference

AC and DC power supply, rechargeable built-in battery

High resolution and multiple print formats ensure best print quality of ECG waveforms

Capability of the input & output for analog signal

Specification

Lead: Standard 12 leads

Acquisition: Simultaneous 12 leads

Resolution: 18 bit/1000Hz

Operation mode: Manual mode, 3 auto modes (with interpretive report)

Filter: AC, EMG filter

Drift filter: Anti-Drift System

CMMR: >60dB, >100dB (with AC filter)

Input Circuit: Floating, protection circuit against defibrillator effect

Input Circuit: ≤0.1µ A

Input Impedance: >50MΩ

Patient current leakage: <10μA

Calibrating Voltage: 1mV±2%

Voltage Tolerance: ±500mV

Time Constant:≥3.2s

Frequency response: 0.05Hz~150Hz

Noise level: ≤15µ Vp-p

Threshold: ≤20µ V

Paper Speed: 25, 50mm/s(±3%)

Sensitivity: Auto, 2.5, 5, 10, 20mm/mV

Recorder: High resolution thermal printer

Paper Specification: 216mmx20/30m, roll

LCD Display: LCD displays status & 12 leads waveform

Safety Level: IEC60601-1 class I, type CF

Power Supply: AC: 110V/220V/86-265V, 50/60Hz±1Hz, 45VA

         DC: 14.4V(2000mAh) rechargeable battery

Dimensions: 376mmx300mmx96mm
