Product Overview
Description
Cheap Energy-Efficient Xps Granulator With High Quality

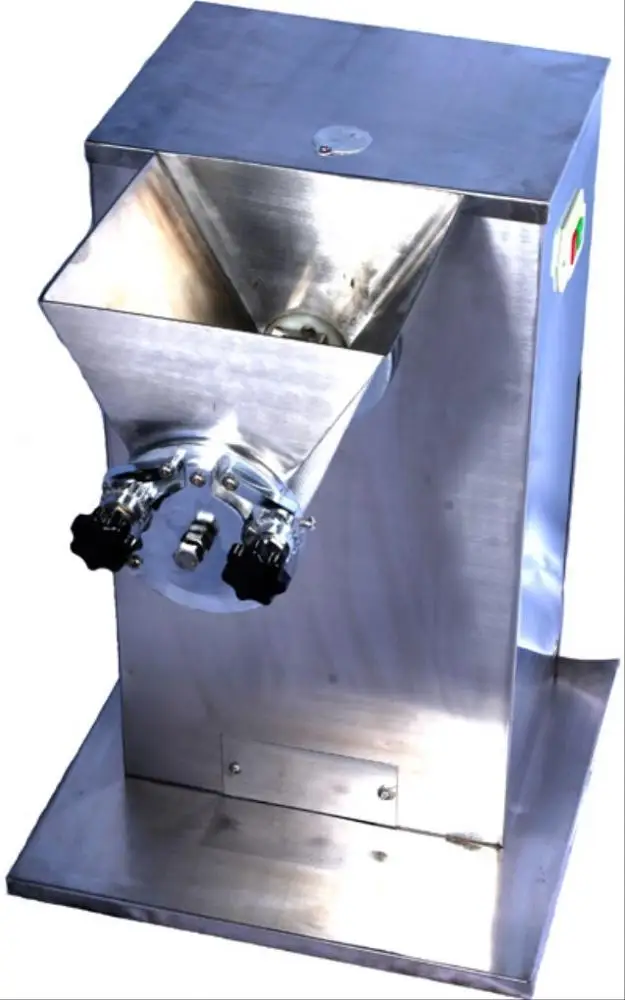

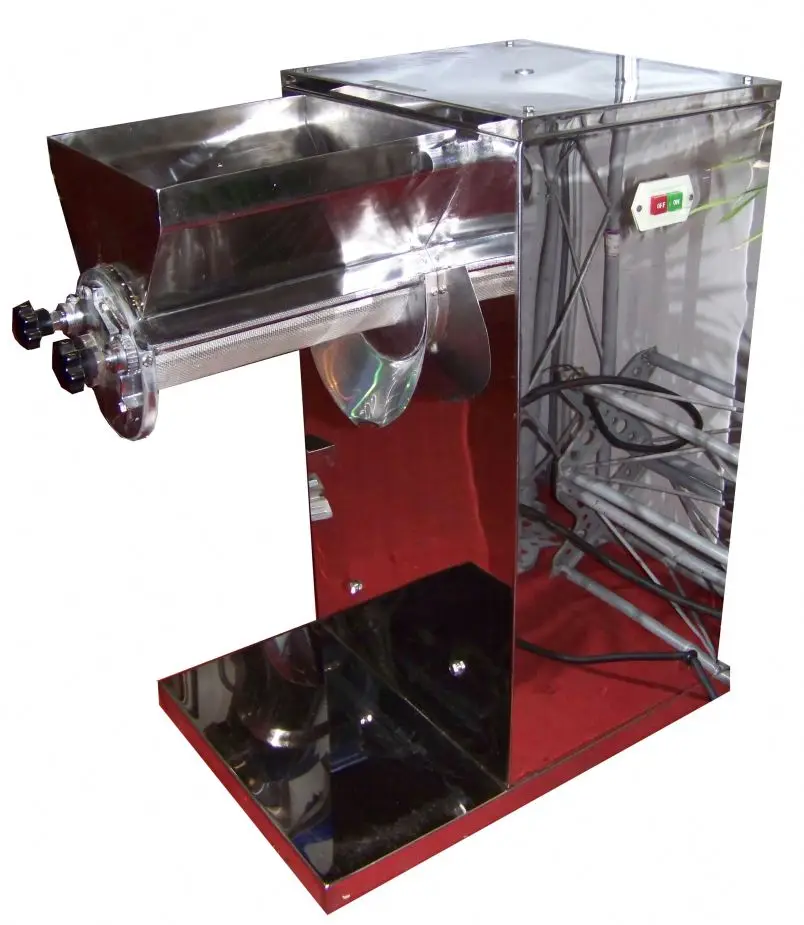

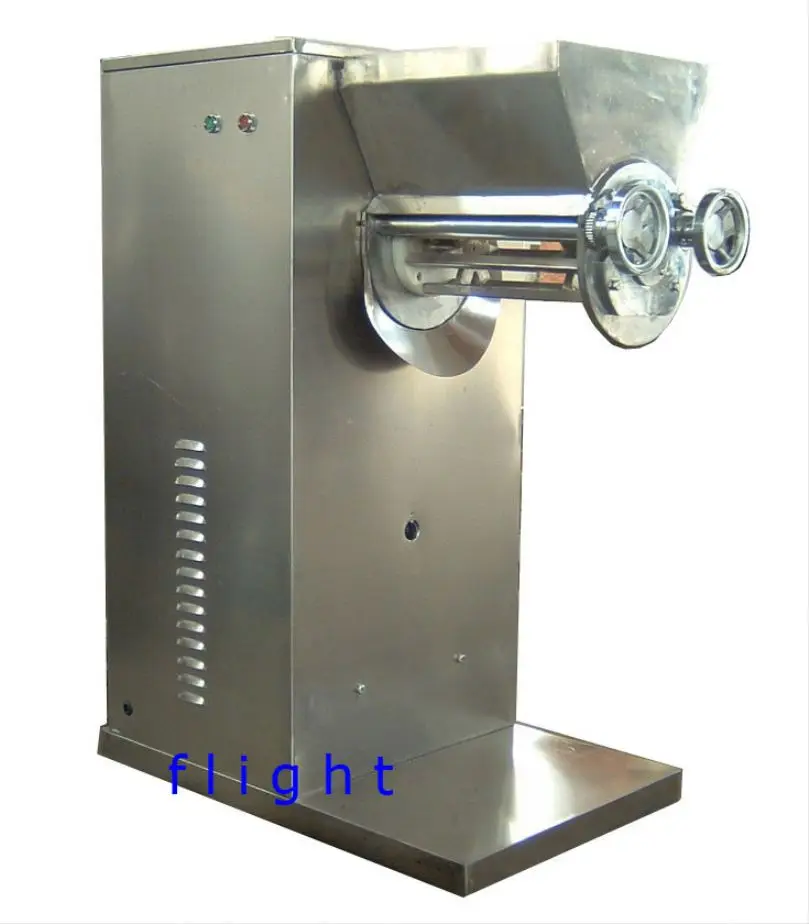

Swing granulator YK series
This machine is not suitable for solid, fluid medium, paste or pulverizing.
The mesh size of meshed sieve should be based on the requirements of the size of granule, decided by the users.
In chemical medicine field, it can be used to granulate the mixed powder into granule, and compressed granule into tablet after being dried. It also can be used to granulate the coagulated material that was formed during storage or during chemical processing. In food industry, it can be used to deal with the candy and sugar mixture as well as barley milk products. In other industries, it can be used to granulate such as porcelain and plastic mixtures into forming granules.
—Principle of work —

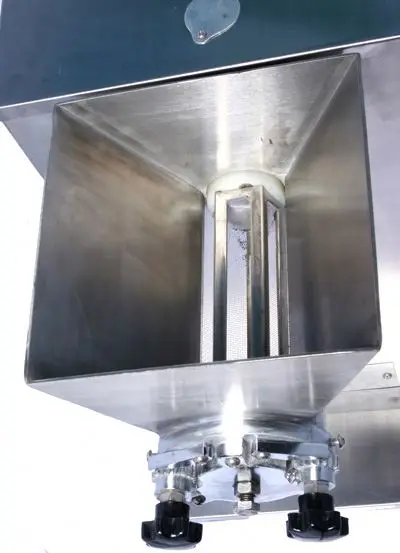

This machine is special equipment, under the action of clockwise and counter clockwise
Rotation of roller, wet powdery materials or dry agglomerate materials will be forced to pass
Through sieve, and then become granule.
The rotating speed of the roller can be adjusted during operation.
The sieve can be removed and remounted easily; its tension is also adjustable.
Operation is simply, low noise.
All parts are made of stainless steel, meet the GMP standard.
The driving mechanism is totally enclosed in the machine body and its lubrication system
Improves the useful time of the mechanical components, easy cleaning and operation.
model
 |
— Technical parameters—
Model | YK-60B | YK-90B |
Production capacity(kg/h) | 20~30 | 50-100 |
Power of motor(KW) | (Y06324 ) 0.25 | (Y07124 ) 0.55 |
Rotating speed of roller(r/min) | 46 | 50 |
Swing angle(degree) | >360 | >360 |
Diameter of roller(mm) | Φ60 | Φ90 |
Feed port (mm) | 210 x 209 | 300 x 310 |
Overall dimensions(L x W x H)(mm) | 460x550x570 | 750x460x840 |
Weight(kg) | 55 | 150 |
Model | YK-160B |
Production capacity(kg/h) | 200-300 |
Power of motor(KW) | (Y90L-4) 2.2 |
Revolution of roller(r/min) | 55 |
Swing angle(degree) | >360 |
Diameter of roller(mm) | Φ160 |
Food port (mm) | 410 x 430 |
Overall dimensions(L x W x H)(mm) | 560x970x1240 |
Weight(kg) | 360 |
Hot sale
——Hot Sale Products——
Our advantages
Company Introduction
——Our Company—
Flight Pharmaceutical Machinery CO., Ltd is the professional manufacturer and export of
various pharmaceutical machineries in China. Our company has profuse designs with series
quality grade, and expressly, our price is very competitive, because we are manufactory.
Our factory developed about forty types of machines in over ten varieties. By ISO9001:2000
quality system attestation, accord with GMP attestation request. All tasks from casting to
metal machining, and general assembly are accomplished ourselves.
We produce and export various pharmaceutical machineries, relevant medicament detecting
instruments and packing machinery, such as Rotary tablet press, Single punch tablet
press, Pulverizer, Mixer,Coating machine, Granulator, Labeling machine, Liquid filling
machine, Capsule filing machine, Blister packing machine, and so on.
We have professional export office, with an experienced and professional team, they will
service in whole business. By excellent quality, reasonable price and perfect after-service,our
products have been sold in many countries and regions all over the world, Such as United
States, Canada, Australia, United Kingdom, Bulgaria, Russia, Indonesia, Pakistan, Thailand
and Vietnam etc, these products are very popular with the customers there.
Try to do everything, let customer satisfaction, this is our company’s service tenet.
Buying Guides
——Our Customer——
Certificate
Packing & Shipping
——Packing & Shipping——
Delivery time | Within 30 days after receiving the payment. |
Payment methods | T/T or Western Union payment, and full payment before shipping |
Guarantee | One year quality guarantees and free with spare parts for one year. |
After sales service | The English user manual Circuit diagram |
