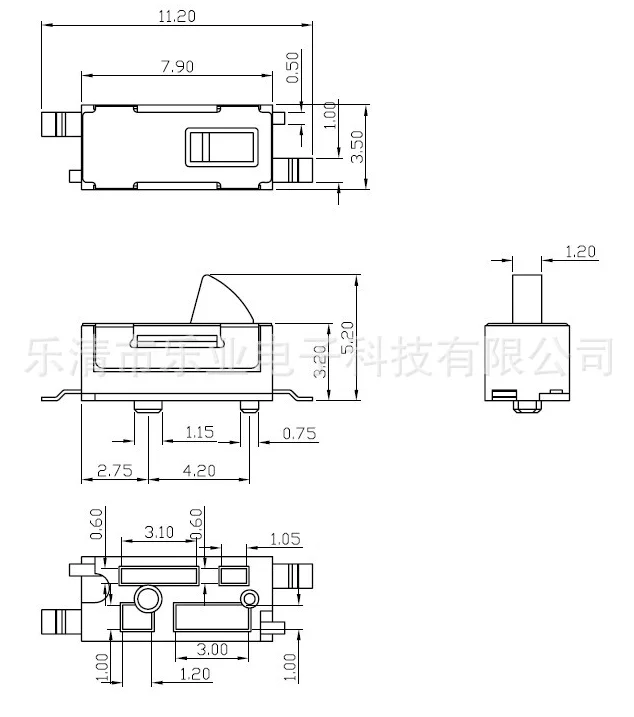

detective tact switch restoration type micro mini SMD SMT switches LY TS11

Product Overview

Description

Specification:



Items	standard	Items	Standard
Rating	50MA 12V DC	Operating temerature rage	-30℃ to +85℃
Insulation resistance	100MΩ min.100V DC	Lifetime	100,000Cycles min.
Dielectric strength	250V AC for 1min	Operating force	B:30+_20gf
Contact resistance	150mΩ max	Travel	0.30+0.3mm





Features:



• improve mounting density of compopents on PC board.
• Reflow solerable
• Contact are completely sealed,enhancing reliablity
• Packaged with a 12mm wide embossed taping



Applications:



For operating various electronic devices such as audio devices,video recorders,communication devies,cameras,home appliance etc.





others:



Please kindly inform us which items  you are interested,and the best price will be provided you unpon receipt of your inquiry.

Any questions about more items,pleas kindly feel free to contact us .

We are sincerely looking forward to establish cooperate relationship with you .

Free samples are available!

If you need any parts,please kindly send your dawing or samples to us,we also can provied customized service.

















PACKING DETAIL :

WHY CHOOSE US ?

1.Since 1989,more than 20years’experience of manufacture .



2.Variety of type.provide professional products with more than 2000 types .



3.High standard management for quality control.



4.Small order acceptable:1000pcs



5.Safe payment terms:T/T and paypal are available .



6.Prompt delivery and lowest shipping cost:we can get low discount from DHL,Fedex,UPS,TNT,EMS,etc.



7.OEM,ODM available.



8.Got good reputation both at home and abroad.longterm supplier for

customers reference.



9.Excellent After-sales service.when you found promblem about the products ,contact us and we will respond in the first time.



10.We cherish and respect every each client ,so give us a chance to cooperation ,we will try our best to satisfy you .

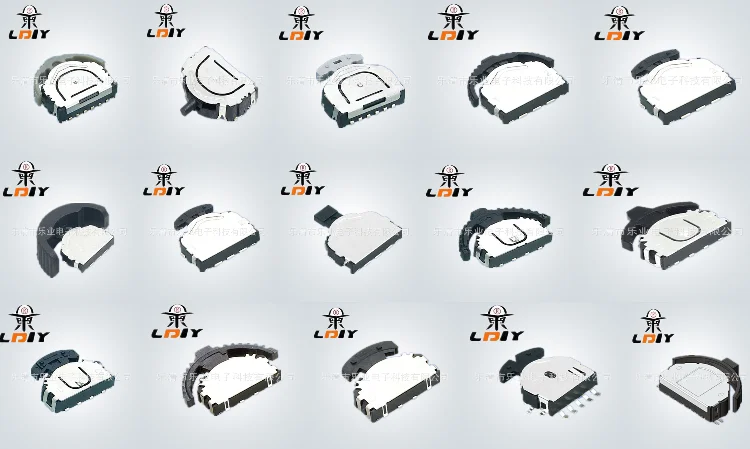

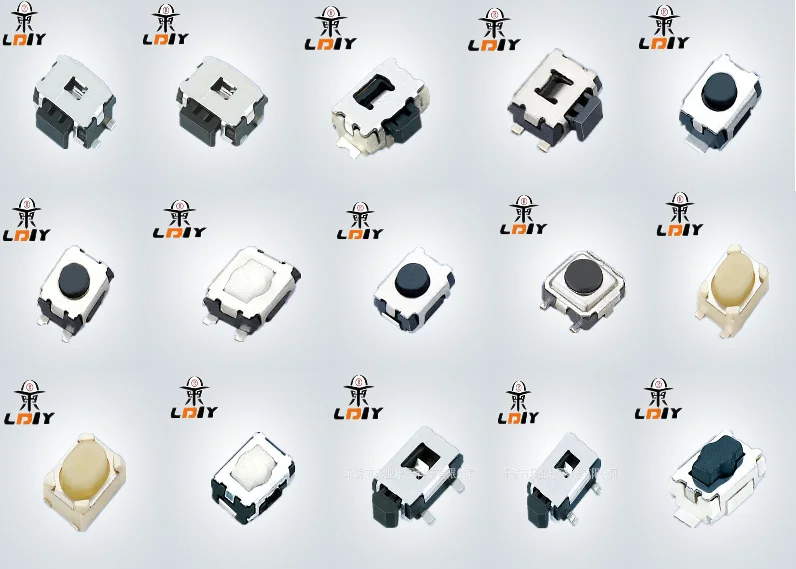

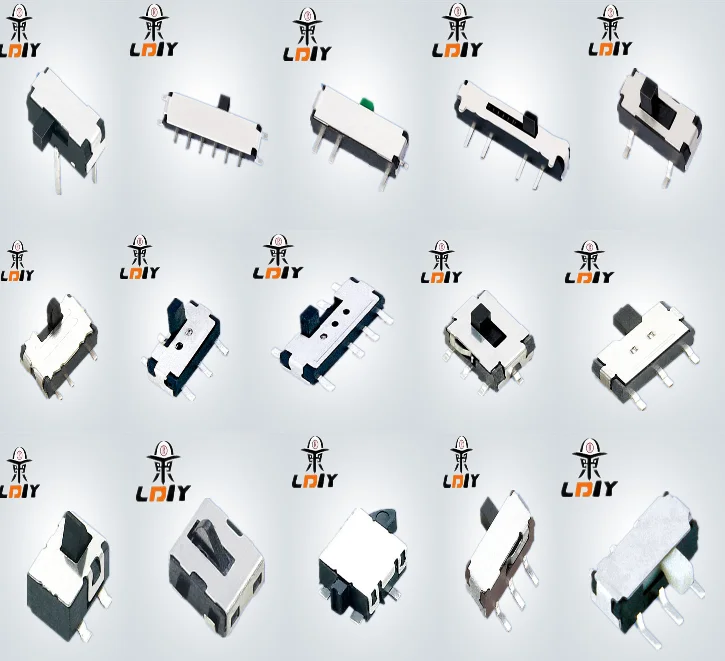

 OTHER TYPES
