high speed full stainless steel paper straw /tube making machine with automatic feeder collection device

Product Overview

Description

high speed full stainless steel paper straw /tube making machine with automatic feeder collection device

1.Introduction

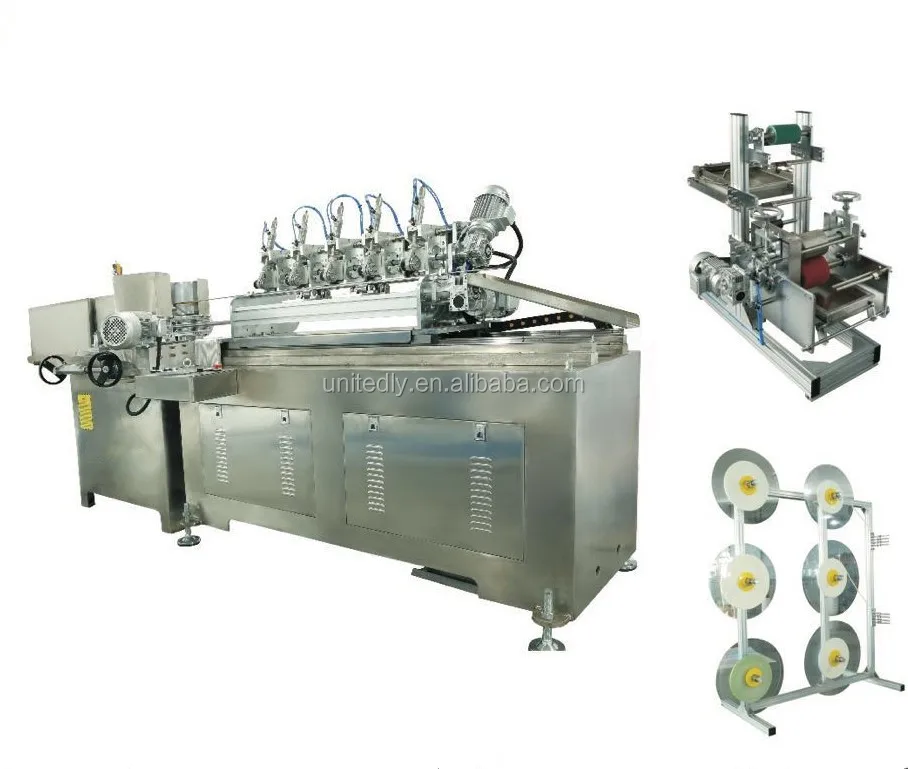

    Model UNL-XG50 full automatic paper drinking straw maker  is a hot sale equipment ,which is suitable for making straw size from 5mm to 12mm (diameter) and straw length from 120mm to 820mm . the maximum running speed can up to 46 meters per min .

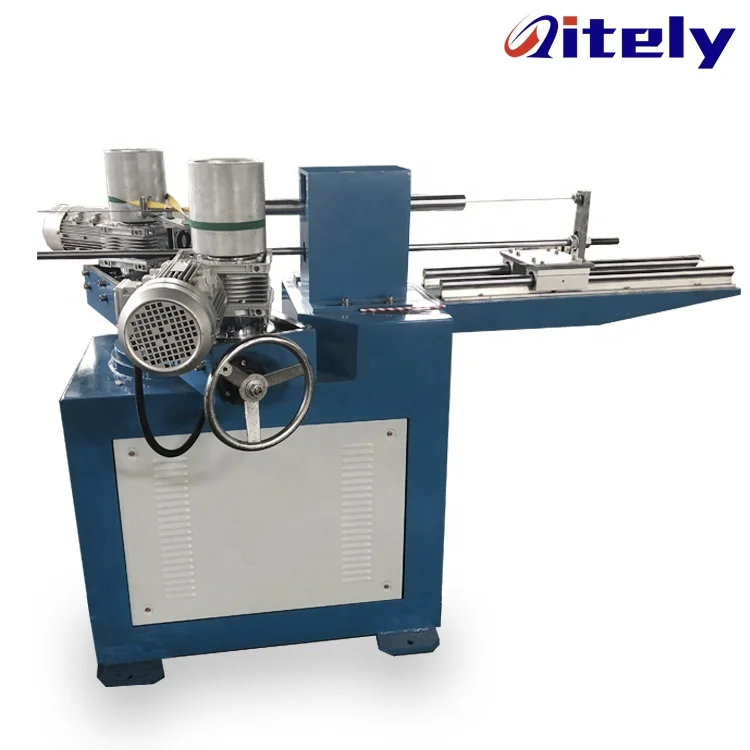

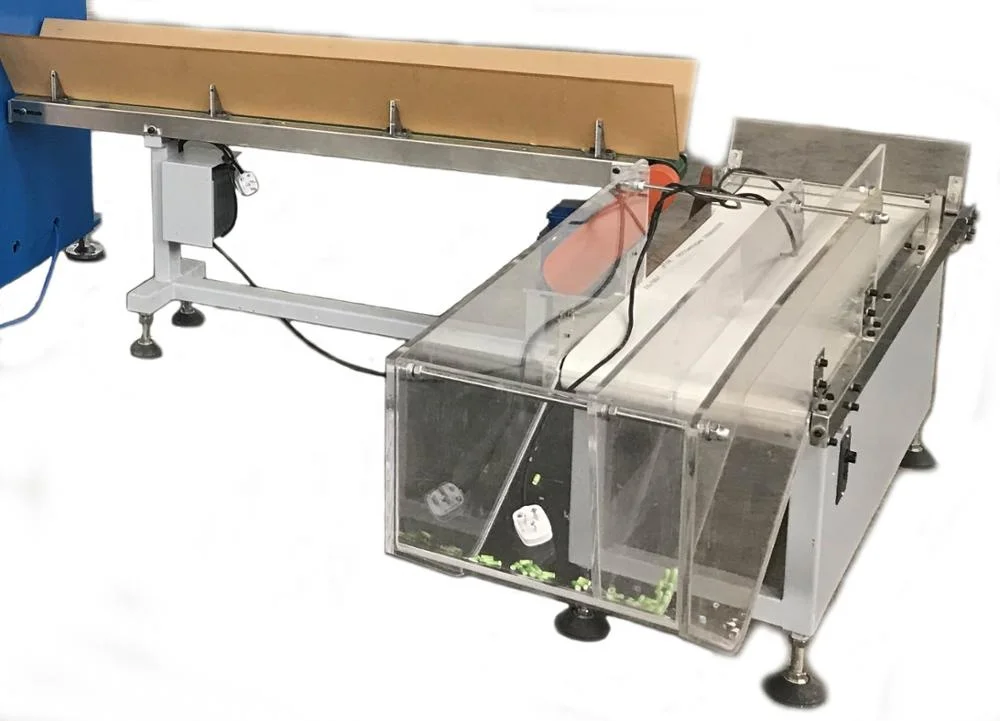

    it include 1set paper holder , 1set glue holder , 1 set straw former . and extra 1 set automatic feeding collection device as option .

2. Main technical datas

Number of roller	2-5 layers
Tube diameter	5mm --12mm
Tube wall-thickness	0.3-2 mm
Cutting Length	120-820mm
Winding head	2
Power	5.9 KW

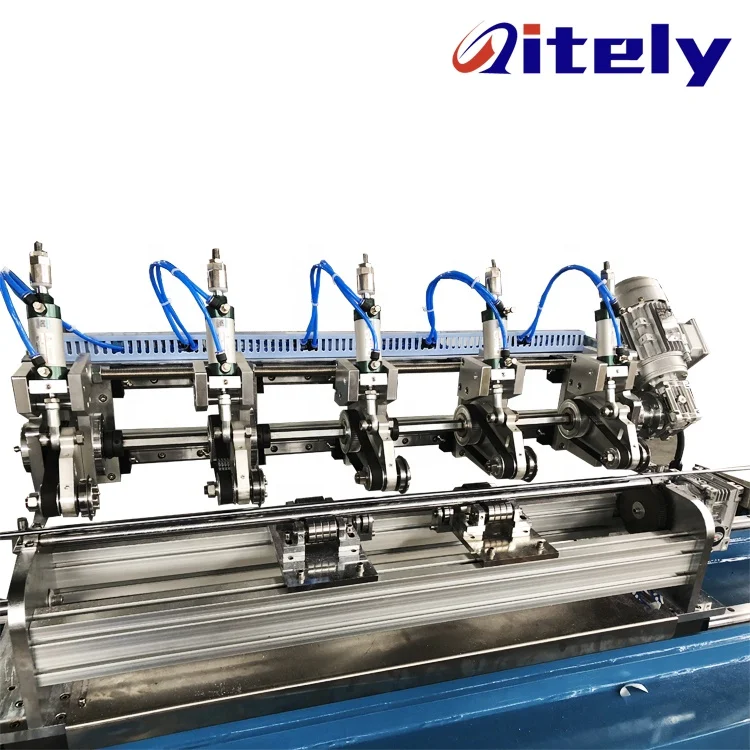

Cutter system	Multi-blades 5 sets
Gluing system	Single /Double sides
Operator	1-2 person
Winding speed	0-45 m/min
Speed control	Frequency
Working Air Pressure	0.6Mpa
Power Supply	380V/3Phase/50Hz
Measurement	5600*1600*1750mm
Working Space	11000mm * 6000mm*2000mm
Weight	1500kgs

Driving system
Main motor	3 KW
Servo motor	1 KW (Schneider )
Control system
PLC controller	Schneider ,French
Touch screen	Schneider, French
Inverter	Schneider, French
Bearing	Haerbin
Screw Rod	ABBA from Taiwan
Slider	ABBA from Taiwan
Equipment device
Paper shelf type	Integral reel stand
Auto fall tube shelf	Have

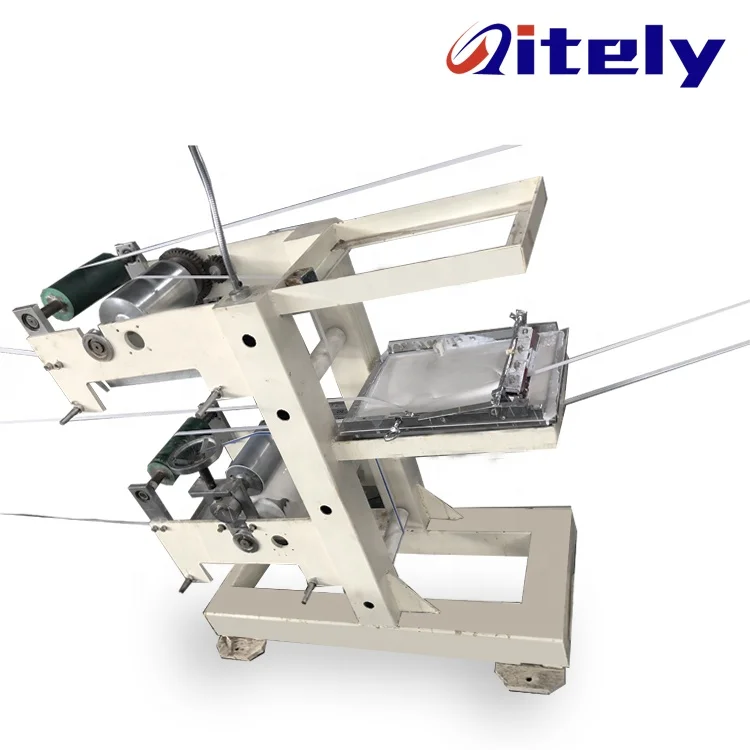

Glue shelf	Have
Belts	1
Core mould	1
Tool box	1
Spare Knife	10 pcs

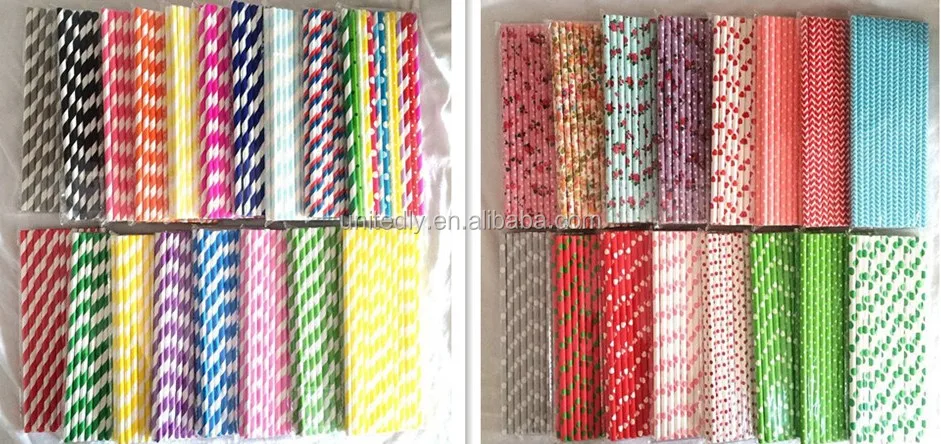

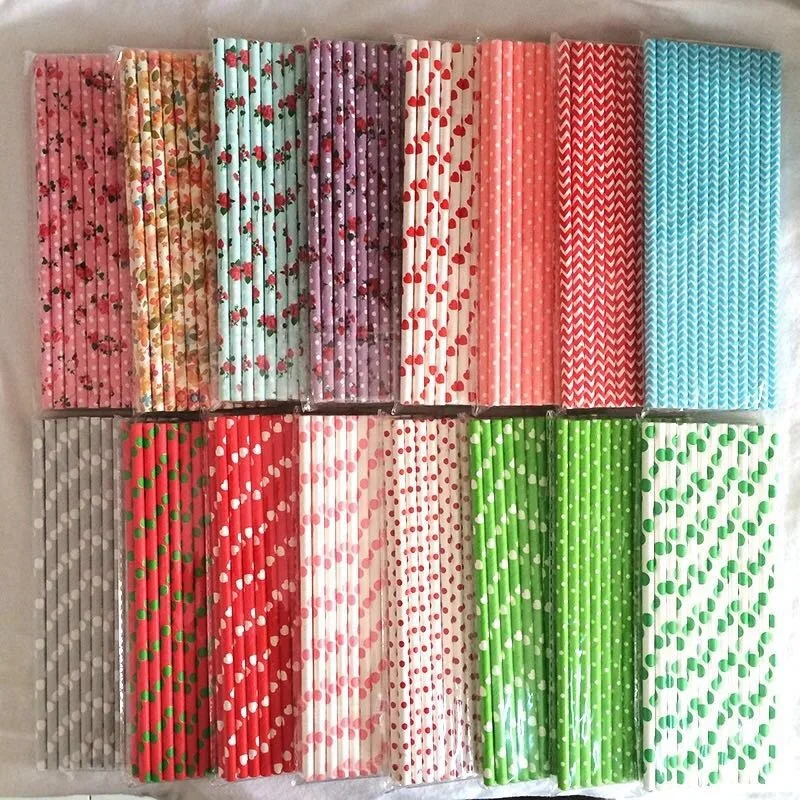

3. Straw samples

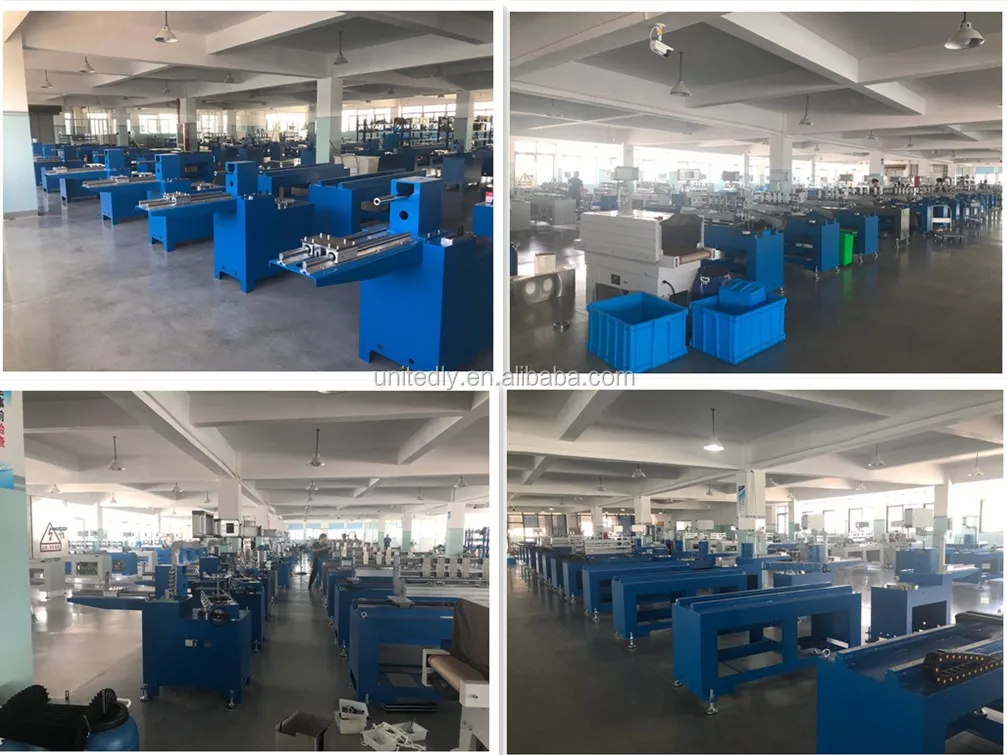

4. Workshops



5. Delivery time

    as usual. the shippment date will be 25-35 days after get your deposits.



6.Payment term

   we accept 100% T/T or L/C at sight .



7.Guarantee

    one year .during this period , in case of any troubles of the machine being discovered is not due to bad operation, and caused by machineself, the seller will repair/replace/send the spare parts as free.  after one year,the seller will supply the spare parts to buyers as the cost. Customer pay the courier costs by himself .



8.Installation and testing running of machine

   we will send our technician to install and test run the machine and train operation ,according to customer’s requirements. all expense abroad including getting visa,2-way air tickets,food .hotel.local traffic ,translator ,worker salary (usd90/day) etc should be covered by buyer.
