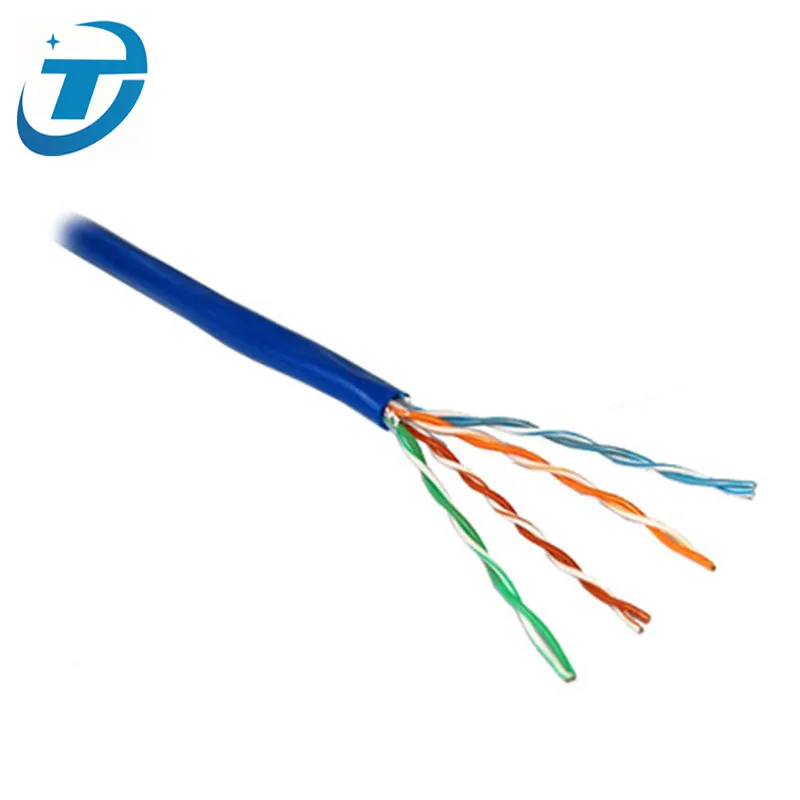

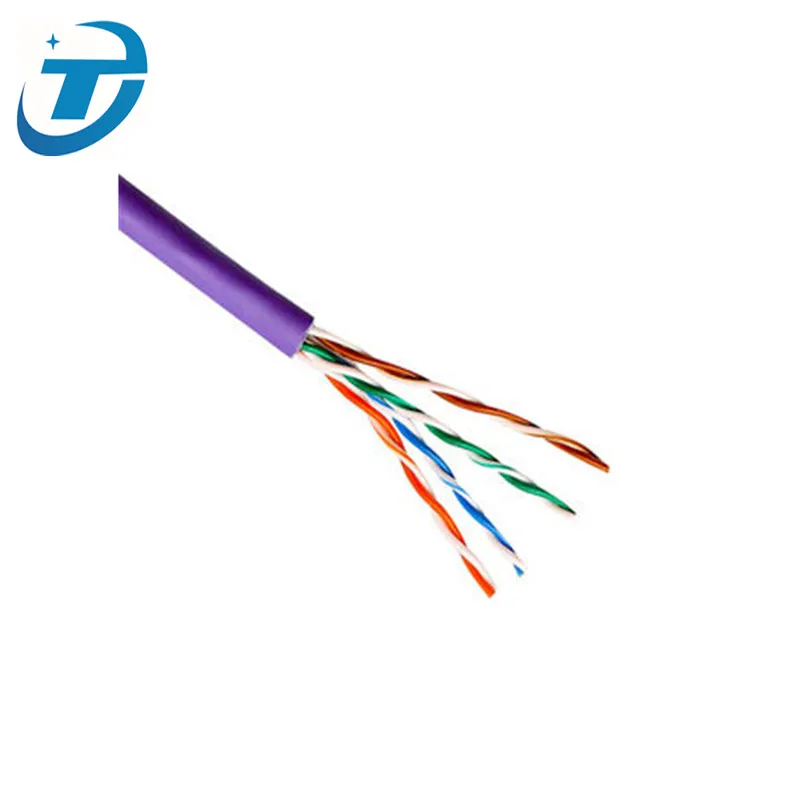

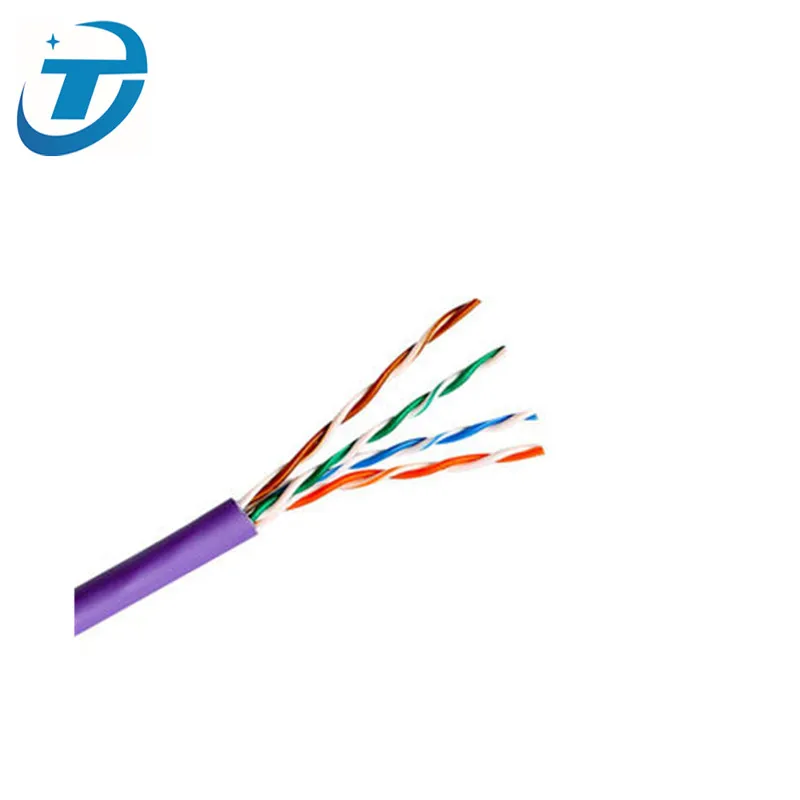

outdoor splitter utp 4p cat5e 305 utp data cable

Product Overview

Description

outdoor splitter utp 4p cat5e 305 utp data cable

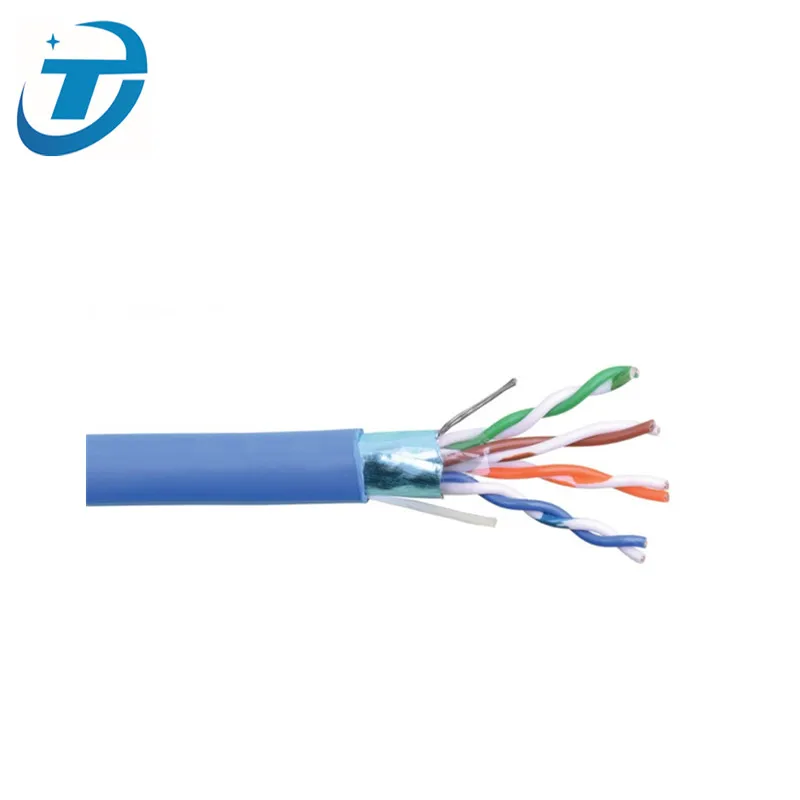

Outdoor cat 5e cable is 24 AWG with 4 pairs (8 conductors). The overall aluminum (AL) foil shield helps eliminate cross-talk noise and can prevent electromagnetic interference (EMI). Suitable for Fast and Gigabit Ethernet. Supports bandwidth of up to 350 MHz.



Features

Cat5e lan cable/Cat6 lan cable,network cable,ethenet cable

1)Tranmission frequency:100-350MHZ

2)Transmission speed:100-1000mbps

3)Transmission range:100-250m

4)Compliance:ETL verified ANSI TIA/EIA568-2,UL Subject 444.(UL) c(UL) type CMR/CMG.Type CM/CMH.Type CM/CMH,NEC Srticle 800 Type CMP or CM.ISO/IEC 11801.ROHS Compliant.

5)Application: 100 Base-TX, 100VG-AnyLAN, 1000Base-T, ATM, Noisy Environment

6)Electrical characteristics:

 *Impedance: 100 ± 15Ω

*Static electric capacity: 17.1nf/kF (maximum)

*Resistance: 28.6/kF (maximum)

*Unbalance resistance: 5% (maximum)

*Unbalance capacity: 330pF/100m (maximum)

*Communicate rate: 65%



CHARACTERISTICS

UTP FTP SFTP Cat5e   Lan  Cable,Network Cable
Conductor material	CCA25%, Copper100%,CCAG40%
Conductor diameter	Solid one: 0.4mm, 0.45mm, 0.5mm
	Stranded one: 24 AWG, 26 AWG, 28 AWG

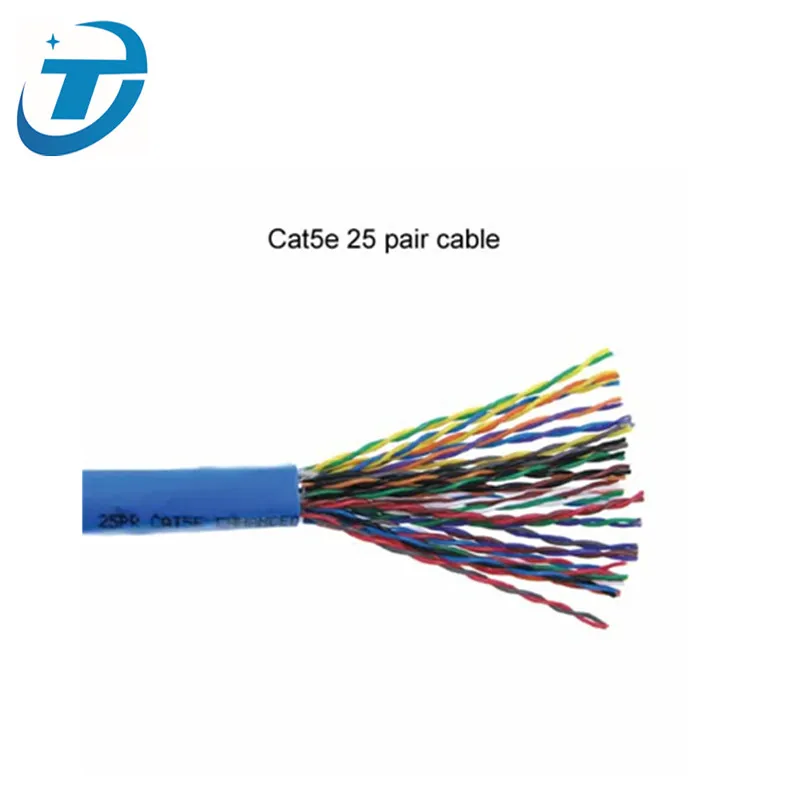

Num of Conductor	2P, 4P, 5P,10P,20P,50P
Insulation material	HDPE
Insulation diameter	0.9±0.02mm
Jacket material	PVC, ROHS PVC, LSZH
Print words on Cable	CAT5E 4PR/24AWG VERIFIED TO EIA/TIA 568B.2 ISO/IEC 11801 EN501
UTP FTP SFTP Cat6 Lan Cable,Network Cable
Conductor material	CCA25%, Copper100%,CCAG40%
Conductor diameter	Solid one: 0.5mm, 0.56mm, 0.57mm
	Stranded one: 23AWG, 24 AWG,28AWG
Num of Conductor	2P,4P,5P,10P,20P,50P
Insulation material	PE , HDPE
Insulation diameter	0.9±0.02mm
Jacket material	PVC, ROHS PVC, LSZH
Print words on Cable	CAT6 4PR/24AWG VERIFIED TO EIA/TIA 568B.2 ISO/IEC 11801 EN501



Package:

1.Cat5e lan  cable/network cable:(305m) packed in 34.5*34.5*19.5cm small colored box. And two small colored boxes packed in an 41.5*36.5*36.5cm outer box



2.Cat6 lan  cable/network cable:(305m) packed in 39*39*20cm small colored box. And two small colored boxes packed in an 42*40.5*41cm outer box

1).Lead time
With more than 200 employees in my company,at least 10,000 connectors can be produced.
2).Research Department
With our separate research team,so we are albe to have products made according to your requirements.
3).Qulity assurance
Every product will be tested to be of good quality.Meanwhile free samples can be supplied for your test.
The guarantee period is 10 years.So if there are problems with the goods,replacement will be available.



Certificates supported,ISO9001:2008,ROHS

Foclink Communications Co., Ltd. is a Hi-Tech enterprise having its own brand and specializing in R&D, manufacture and sales of fiber optical communications equipments. The main products of Foclink include fiber optic patch cord, connector, adapter, optical coupler, attenuator, optic media converter, optic splice closure, optic terminal box, ODF etc, which are widely used in telecommunications, broadband, broadcast, CATV and network industry
