HENT GERMAN TECHNOLOGY Pneumatic actuator globe valve for cement 4 inch slide gate valve
- Category: >>>
- Supplier: Hangzhou Fuyang Hent Electromechanical Engineering Co. Ltd.
Share on (60806004544):
Product Overview
Description

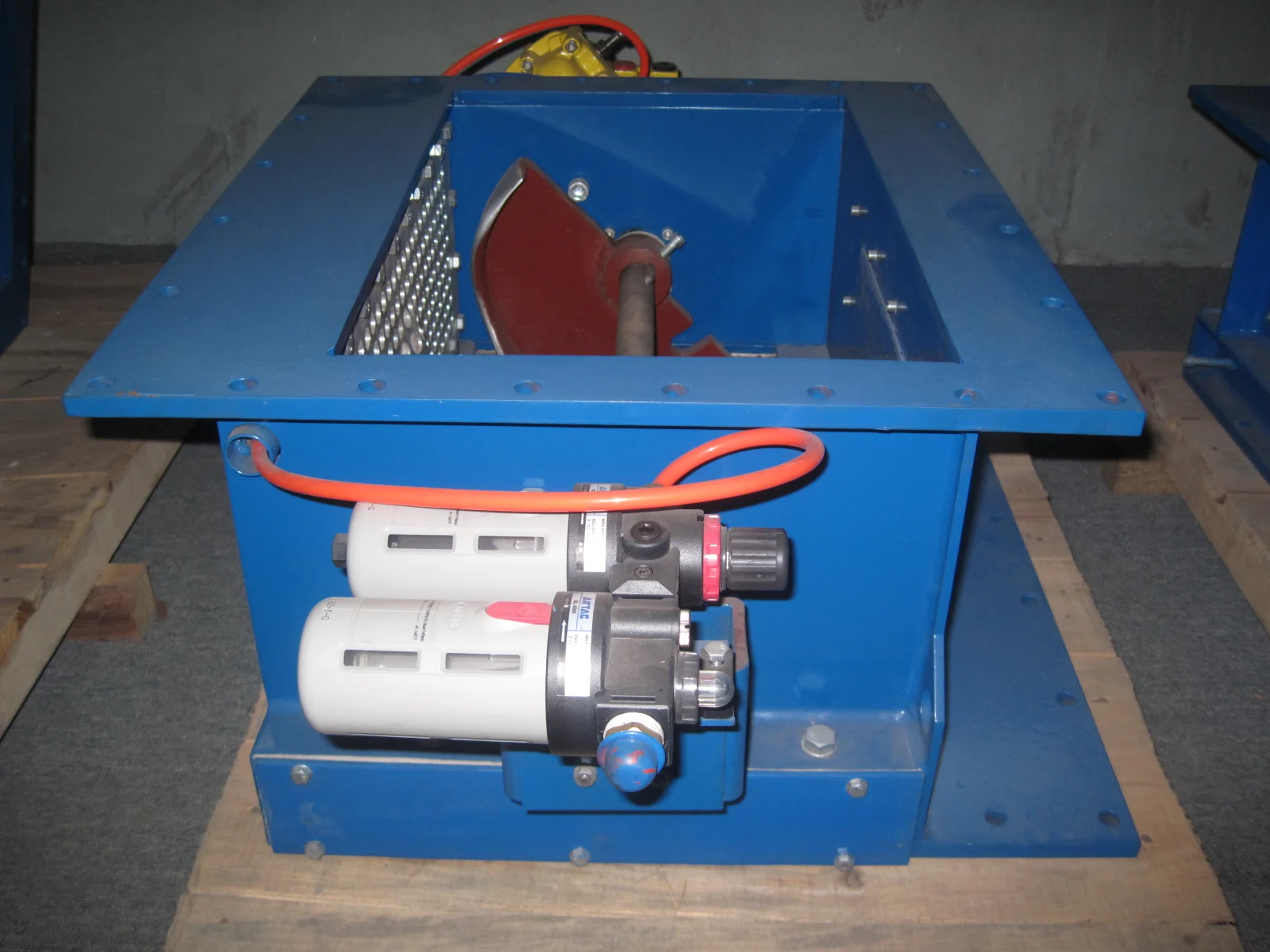

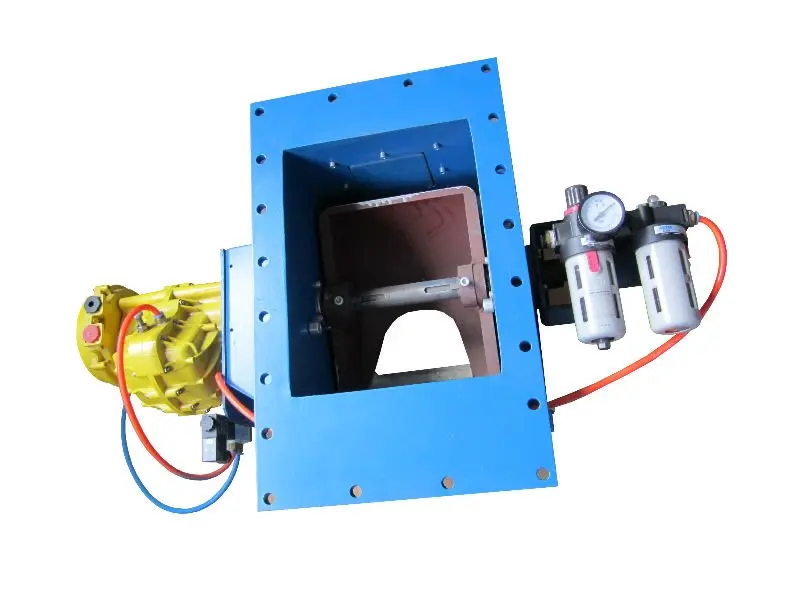

Pneumatic actuator globe valve for cement 4 inch gate valve
ABOUT US
China Pneumatic Globe Valves
Easy open & close
High sealing,no leaking
Hot resistance, wear resistant
Excellent control
China Pneumatic Globe Valves
Drived by rotating cylinder, pneumatic globe valve opens and cloes promptly to control the flow of power, crystalline grain or other samll grain. In normal conditions, this valve is for use with electric flow control valve.

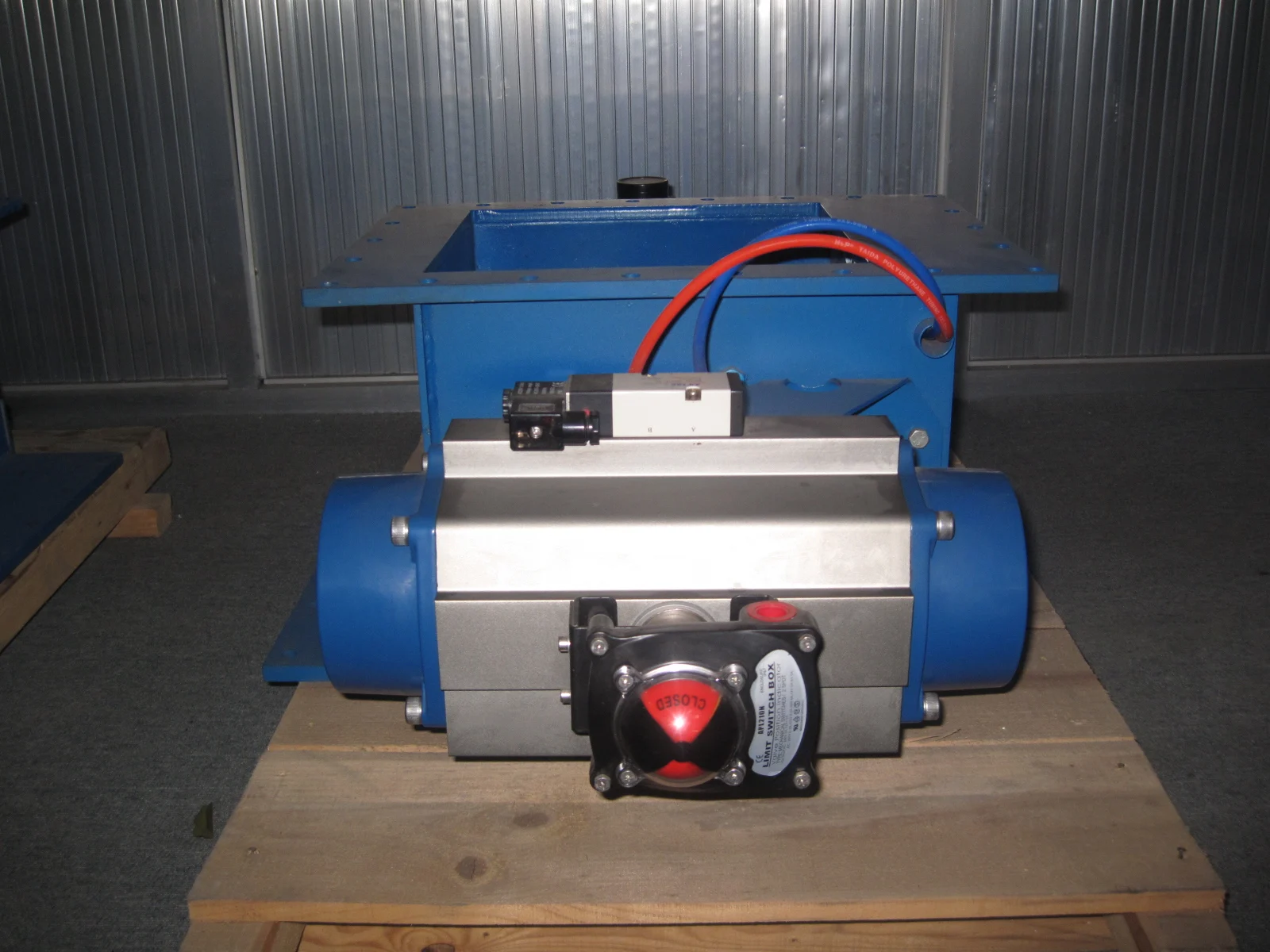

Rotary cylinder: KINETROL (England), excellent control accuracy
Solenoid valve & oil-water separator : AIRTAC (Taiwan China)
ZGMn13-2 materila for ventileinheit: hot resistance, wear resistant
Low noise & vibration
Product Description

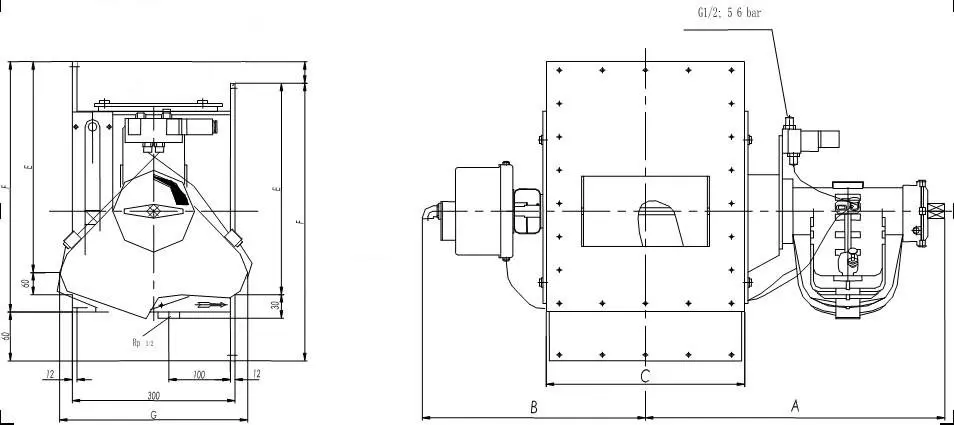

Outline Dimension Drawing
| SIZE | A | B | C | D | F | G |
| 200 | 460 | 385 | 290 | 375 | 484 | 300 |
| 250 | 485 | 410 | 340 | 398 | 520 | |
| 300 | 585 | 435 | 390 | 355 | ||
| 350 | 610 | 460 | 440 | |||
| 400 | 635 | 485 | 490 | |||
| 500 | 685 | 535 | 590 | |||
| 630 | 750 | 600 | 730 | 575 | 730 |
Technical Parameters
| Spec | Units | B200 | B250 | B300 | B400 | B500 | B630 | |
| Items | ||||||||
| Valve Body | Flow Control Scope | m3/h | 40-260 | 60-360 | 70-480 | 90-650 | 110-820 | 140-1450 |
| Angle | ° | 71 | 71 | 71 | 71 | 71 | 71 | |
| Diameter Width | mm | 200 | 250 | 300 | 346 | 346 | 346 | |
| Diameter Length | mm | 346 | 346 | 346 | 400 | 500 | 600 | |
| Circulation Area | m2 | 0.012 | 0.014 | 0.017 | 0.026 | 0.032 | 0.051 | |
| Rotary Cylinder | Model KINETROL | 090-100 | 101-100 | 101-100 | 120-100 | 140-100 | 140-100 | |
| Maximum torque Nm | 220 | 355 | 355 | 355 | 1275 | 1375 | 1375 | |
| Angle | ° | 80100 | 78100 | 78102 | 80102 | 7893 | 7893 | |
| Gas Supply | MPa | 0.40.7 | ||||||
| Electro-magnetic valve | Power supply | V | 380V 50Hz | |||||
| Air Supply | MPa | 0.6drycleanoil less gas | ||||||
| Action time | s | 2 | ||||||
| Working temperature | °C | 180 | ||||||
| Flow properties | Linear or percentage | |||||||
| Permeable layer | Material | PET5-6 | ||||||
| Ventilation Area | m2 | 0.057 | 0.064 | 0.07 | 0.09 | 0.09 | ||
| Consumption | m3/min | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | ||
