BOJIN excavator weighing system for mini excavator Bobcat
- Category: >>>
- Supplier: Breezem Gifts (Shanghai) Co. Ltd.
Share on (60806007869):
Product Overview
Description
BOJIN excavato/mini Bobcat excavator weighing system
1. summary
This system through the man-machine interaction interface and various signal sensors,can real-time reflect the arm angle, height, working amplitude, lifting weight, load and other information of the excavator to the operator,make the operating capacity of the excavator is safe and effective in the range of design parameters. When the excavator operation is close to or beyond the safe range.The host will send sound and light alarm to remind the operator to stop the illegal operation,so as to avoid the safety accident of excavator and operator effectively.

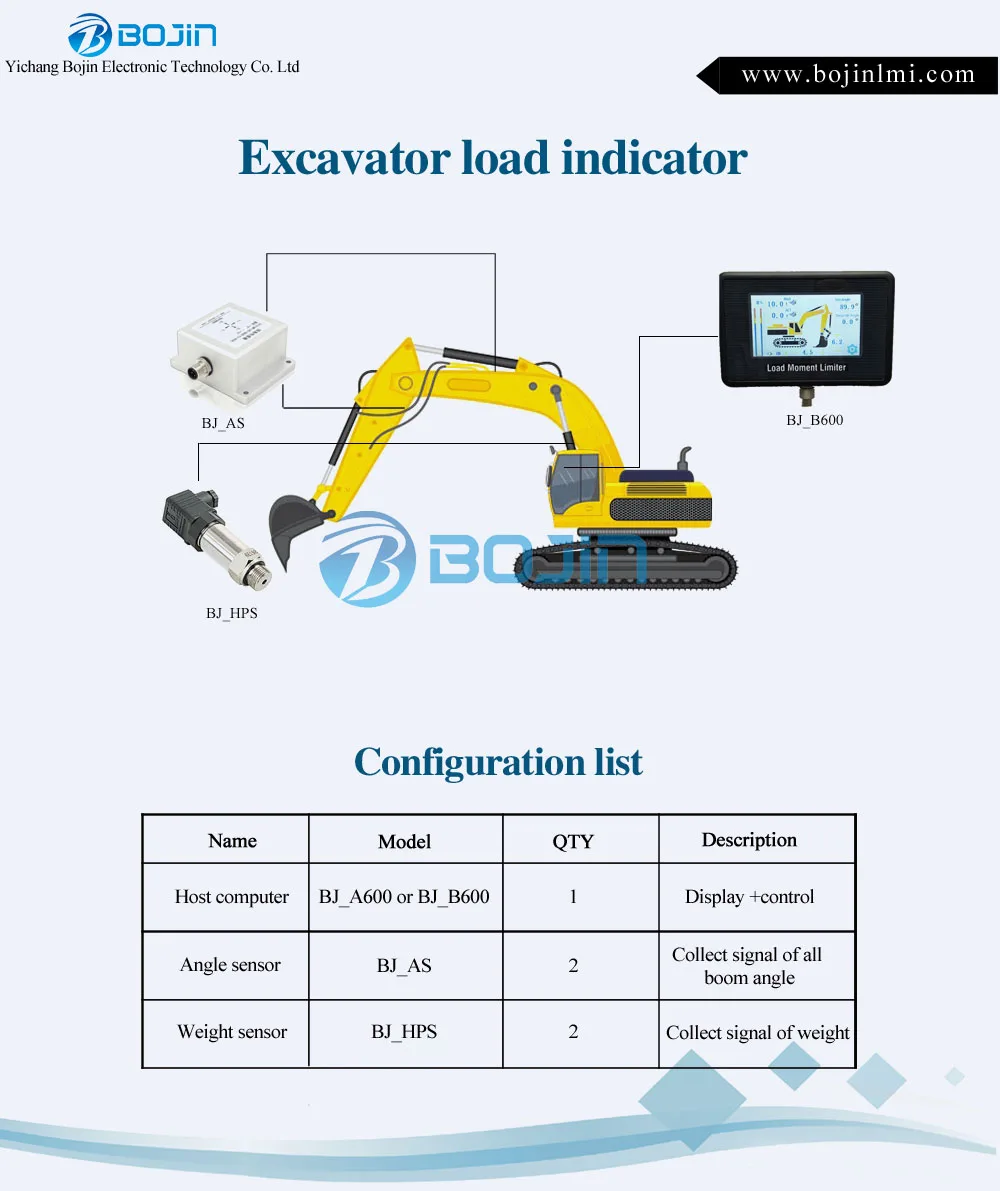

2.System constitute

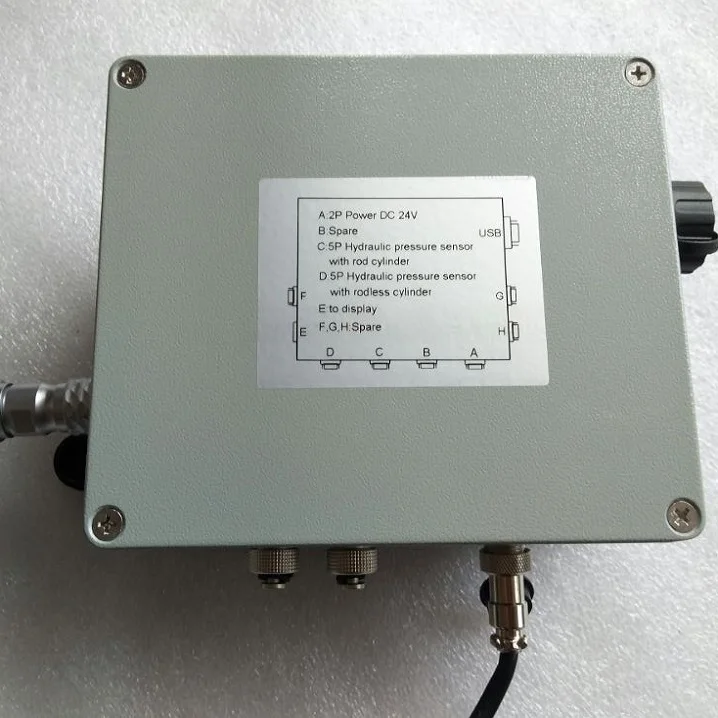

The system consist of two hydrualic pressure sensor,two angle sensors,display and host computer,and mounting bracket.
3. System parameter
Power input:DC 24V
Weight precision:+_10%

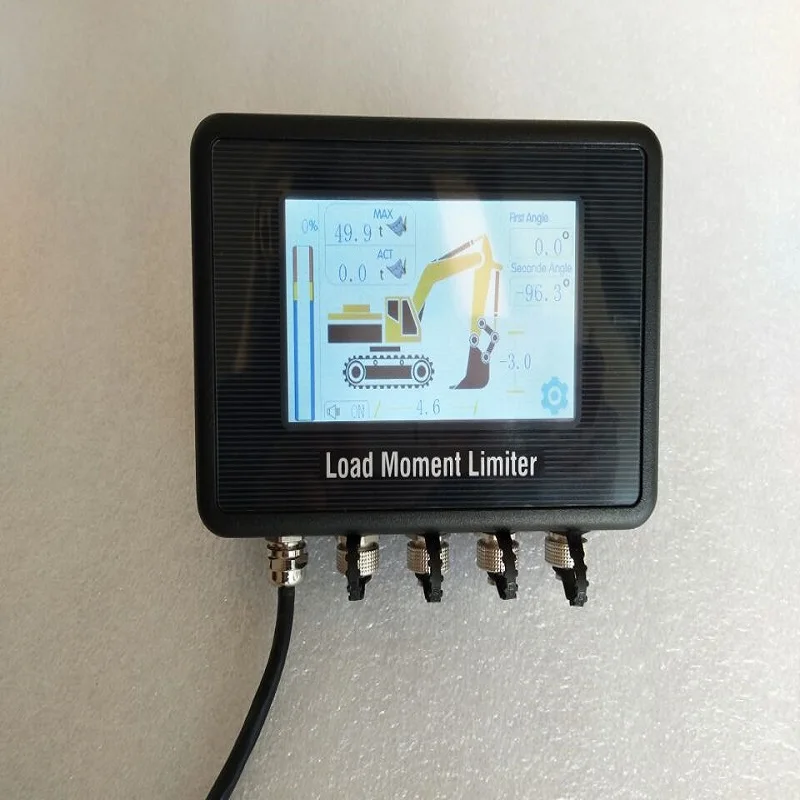

Display:4.3 inches colored touch screen 480*272
Installation method:Cardan joints
Weight caculation precision:10%

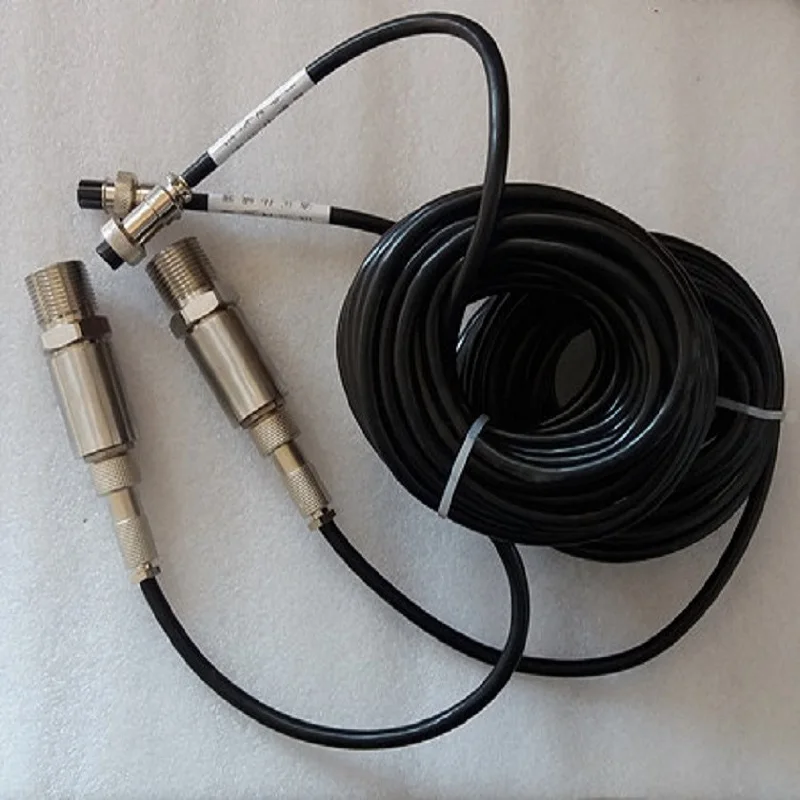

3.1 Weight sensor
Power input:5V
Range:35MP
Output:0.5~4.5V

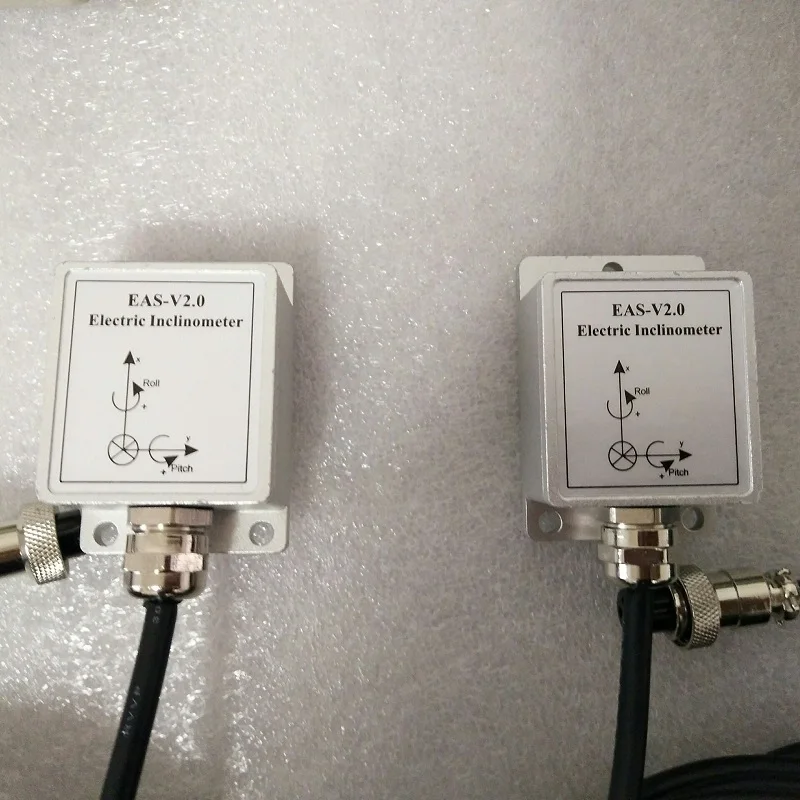

3.2 Angle sensor
Power input:12V
Range:+_90
Output:0.5~4.5V
4.Data storage and download
System can storage real-time data automatically.the content of storaged data include:time,the first boom angle,the second boom angle,amplitude,rated weight,actual weight and the load ratio of rated weight,status and so on.

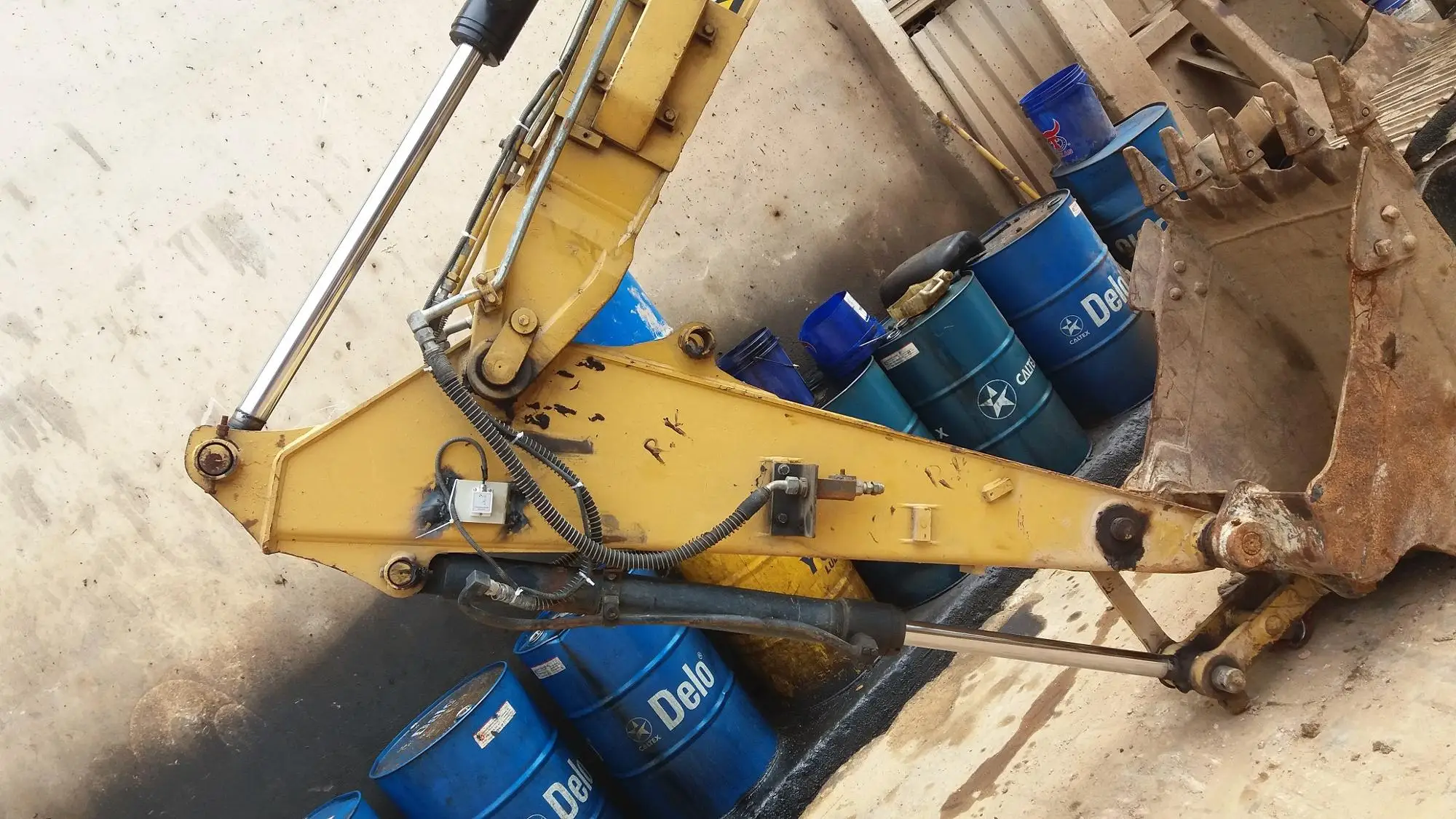

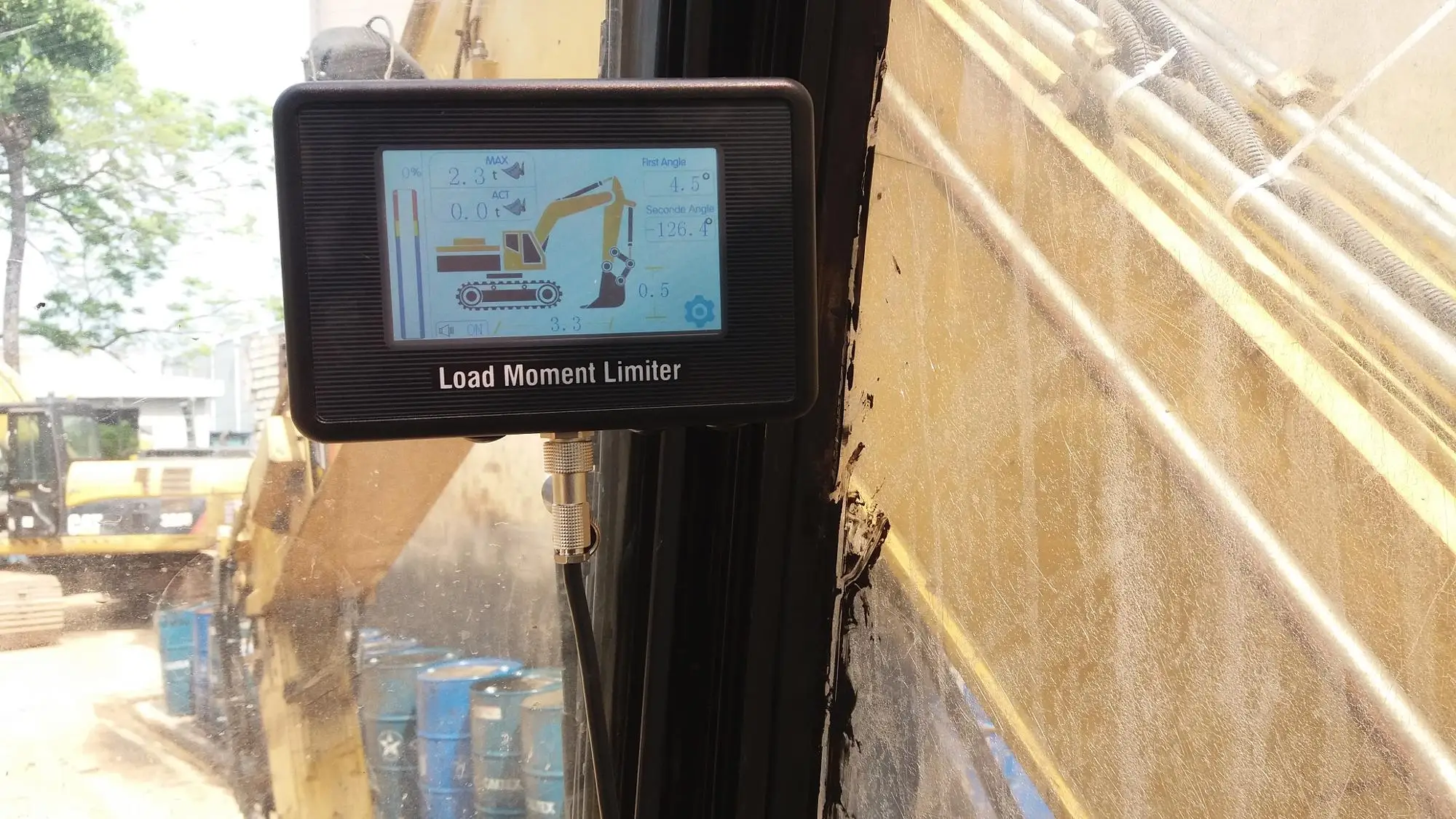

Installation pictures:
