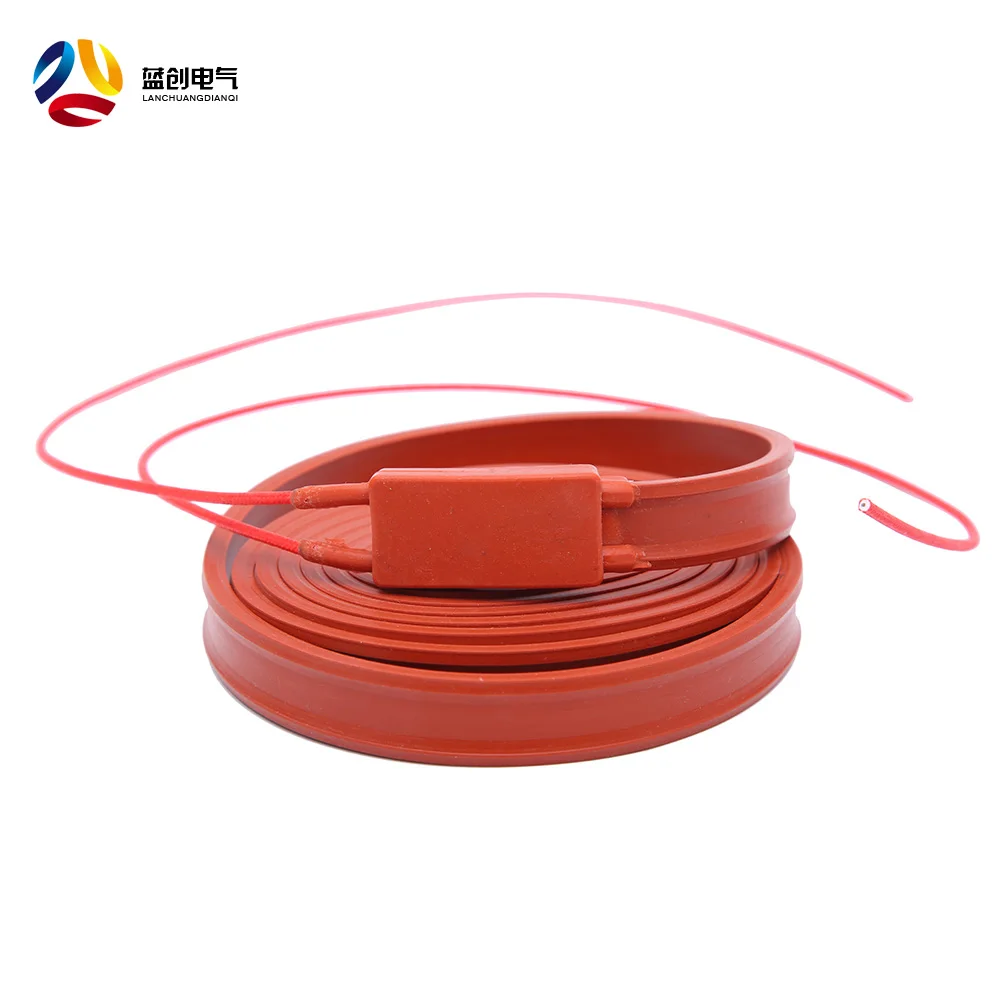

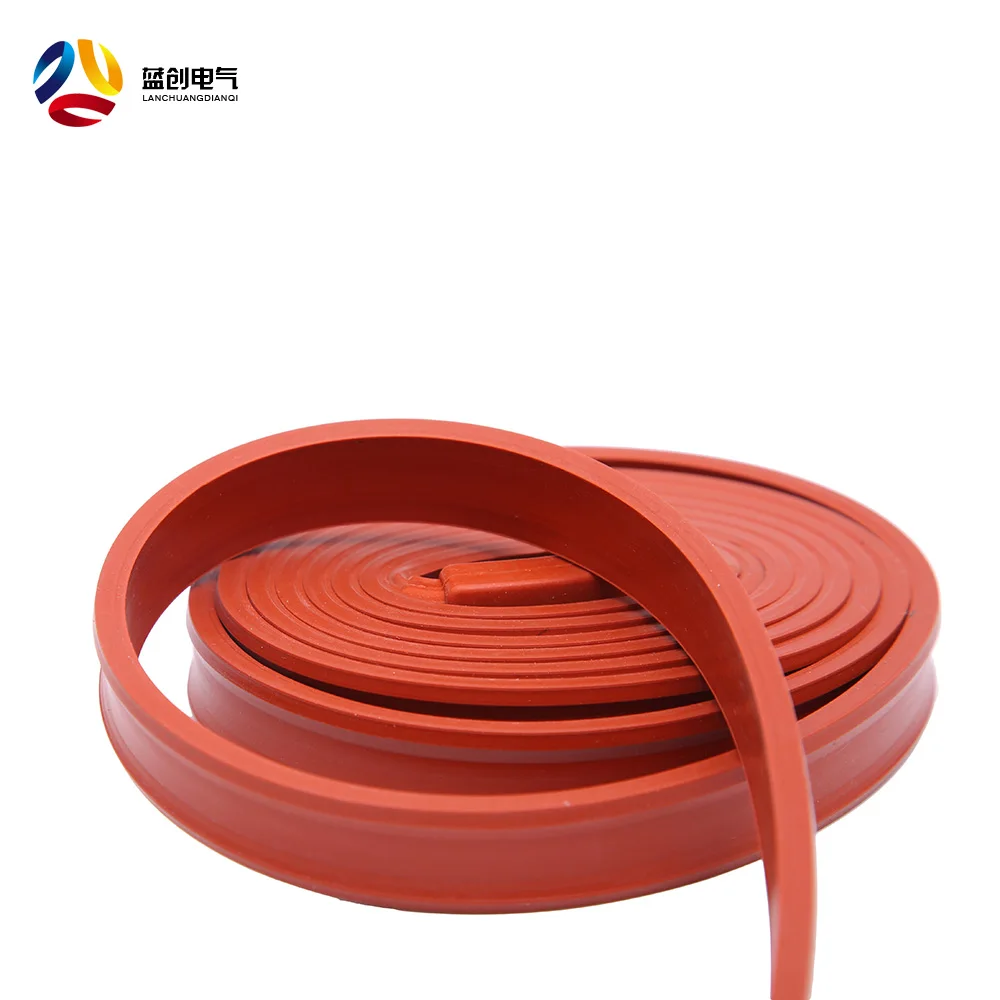

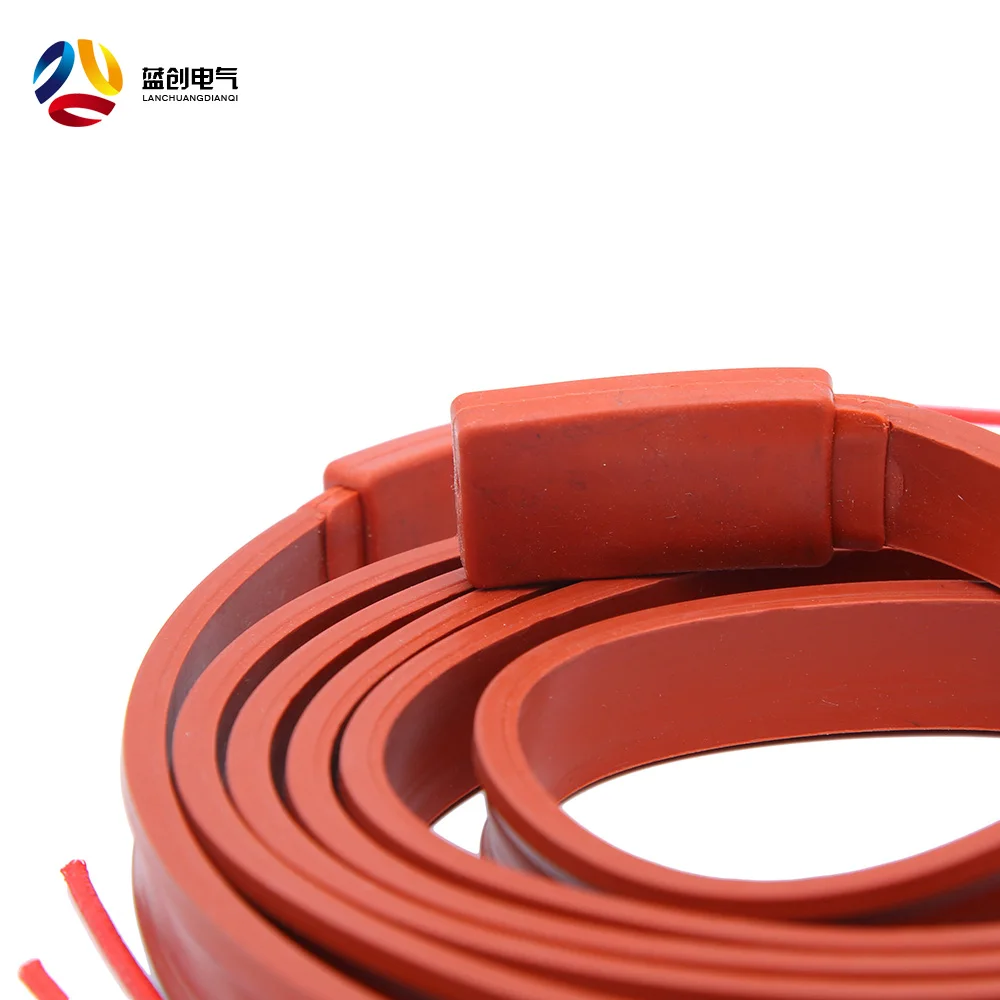

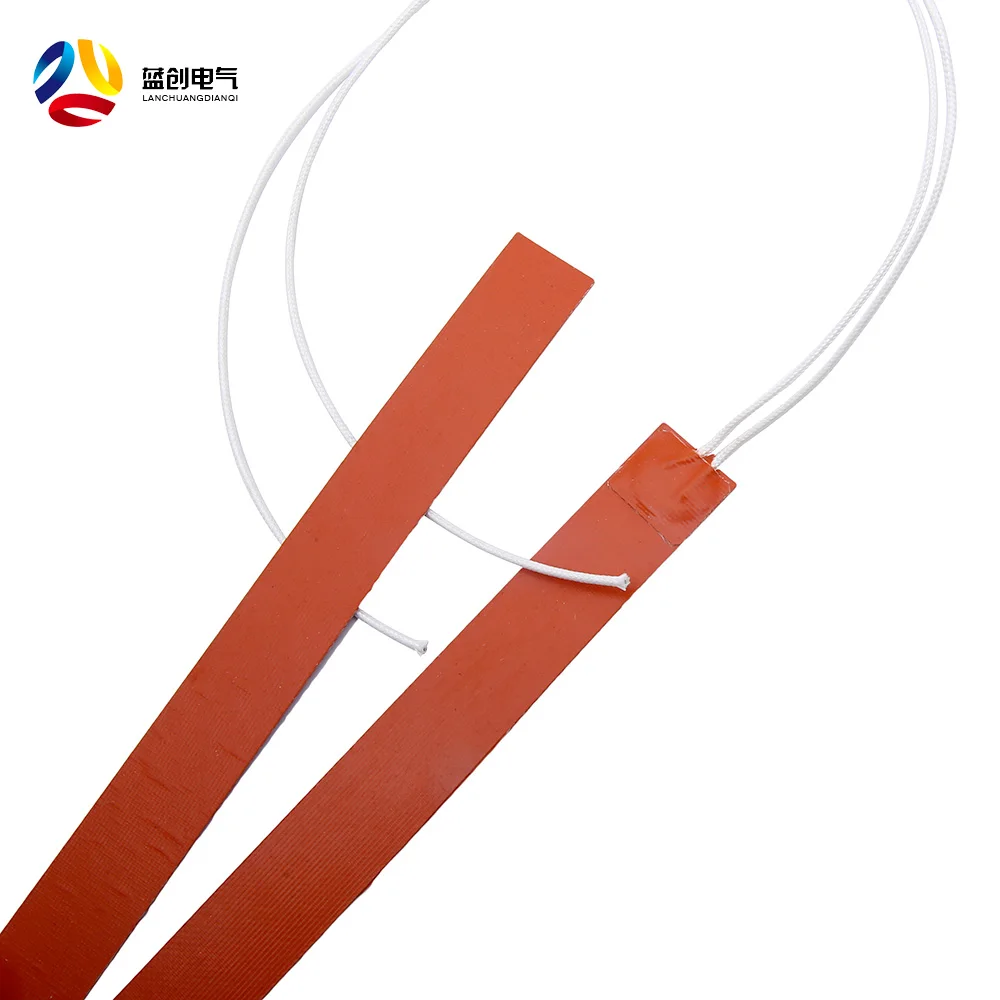

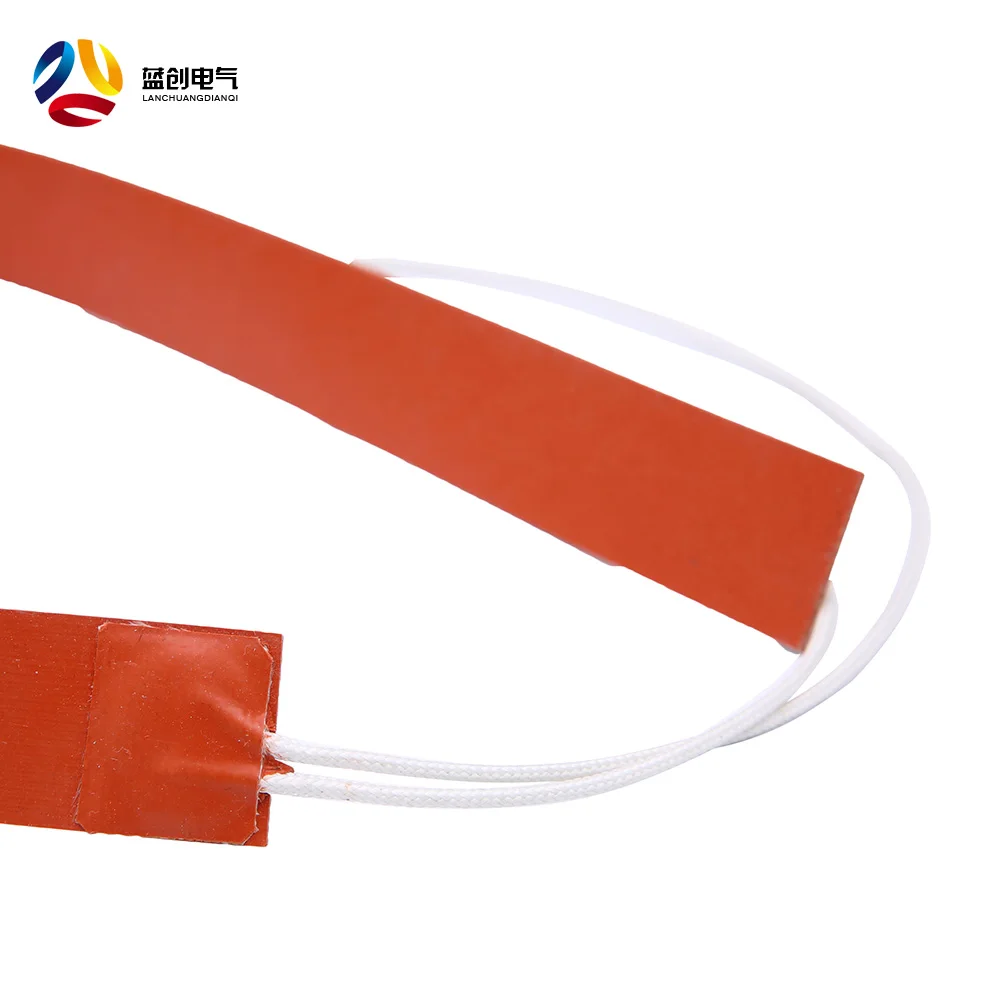

Air conditioning compressor crankcase silicone heater cook heating pad

Share on (60806040285):


Price:

Quantity:


Product Overview

Description


1


Dear Sir or Madam





Because the products are customized products, the products are different in size, voltage and power, so the price is different. Please contact us before ordering. We will give you a favorable price according to the specifications of the products.





Pls kindly contact us for exact quotation









Customized Size / Voltage / Watt / Shape

 E49H0235-
Features:

1. Maximum temperature resistantof insulation : 200 C degree

2. Best continuous working temperature as 150C degree, max temperature as 230C degree momentarily.

3. Power deviation : 8% insulation resistance : >= 5MΩ

4. Compressive strength : 1500V/5s

5. Standard dimension : width: 20mm-1000mm ; Length : 25mm-1000mm; lead wire length : 200mm.

6. Fast heat diffusion , uniform heat transfer , directly heat objects on ; high thermal efficiency , high strength , long service life ,work safe , uneasy for ageing.


 Applications:


1. Silicone rubber band heater can be used in damp , no explosive gas atmosphere, industrial equipment pipelines, heat preservation for can and barrel .


2. It can be used as a frozen prevention, air conditioner compressor ,assisting heating of elctrical equipment .


3. Also it can be used as medical equipmentand medical care (such as blood  tube heater, blood analyzer, heat supplementary for corset and waistband












Oil-Drum silicone rubber heater specification














































Oil Drum



Size



Voltage



Power



Gross Weight



Temperature controller



200L



250*1740mm



220V



2000W



1.6kgs



30-150


Switch temperature controller


Or Digital show temperature controller



200L



125*1740mm



220V



1000W



1.1kgs



20L



200*860mm



220V



800W



0.9kgs



20L



120*860mm



220V



500W



0.7kgs






Ammonia Gas bottle heating plate













































Model



Size



Heating area



Voltage



Power



Thermocouple



Temperature switch



47L



1100*690mm



1000*600mm



220v



3000w



K type 2pcs



2Pcs



470L



1600*800mm



1400*700mm



220v



4000w



K type 3pcs



3Pcs



930L



2000*1000mm



1600*900mm



220v



6000w



K type 3pcs



3Pcs






All the above specification only for reference,the products can be made as customers designs,shapes and power.













































Maximum temperature resistant of insulate



300℃






Maximum operating temperature






250-300



Withstanding voltage






1500V/5s






Power Tolerance






±8%






Electric voltage






>5KV






Max Width






1170mm






Thickness






1.5mm (Min:0.8mm,Max:4mm)






Lead wire






25cm (as requirements)






3M Glue



As requirements
