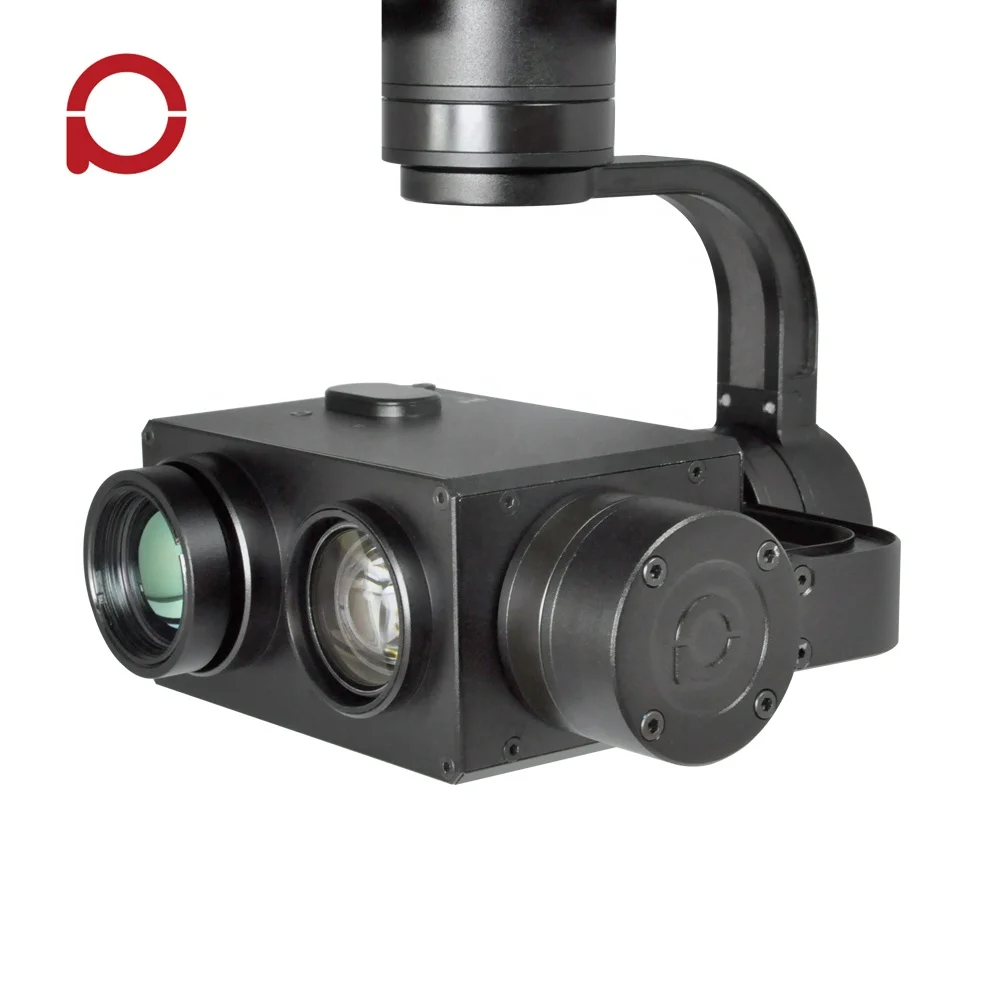

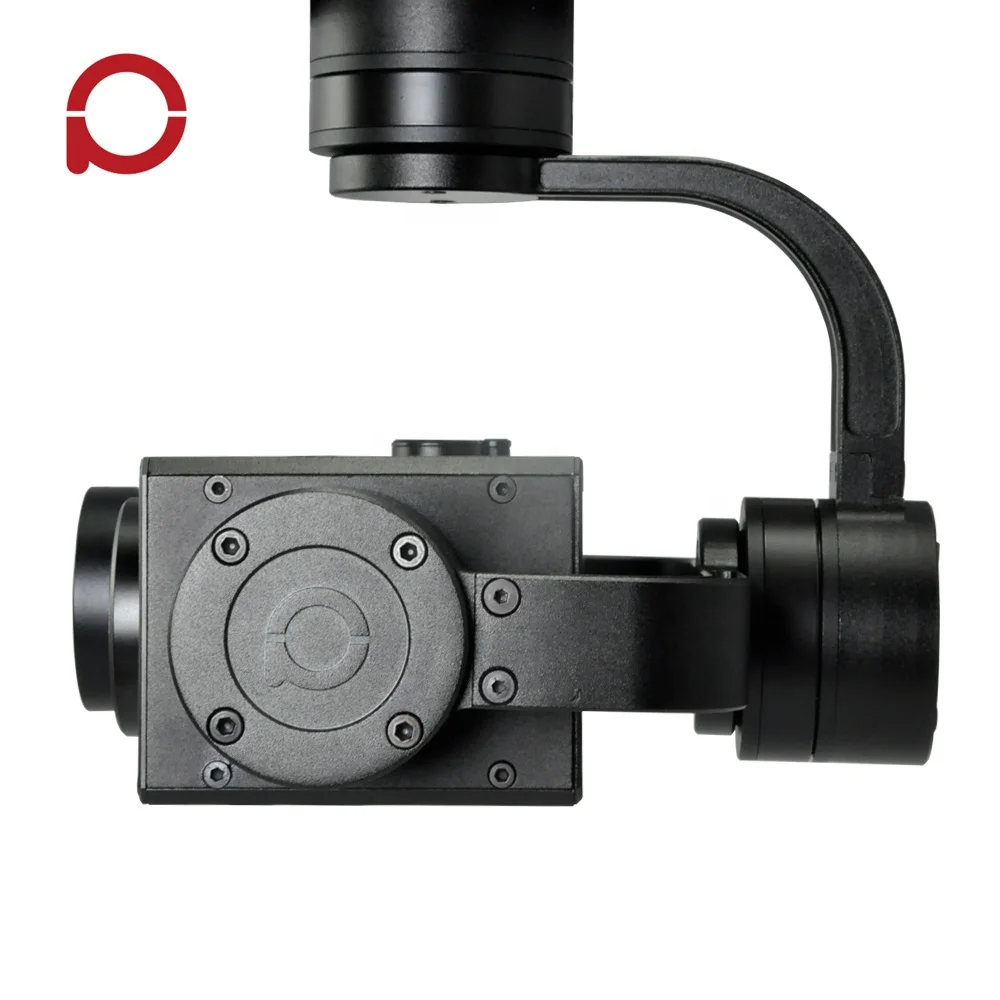

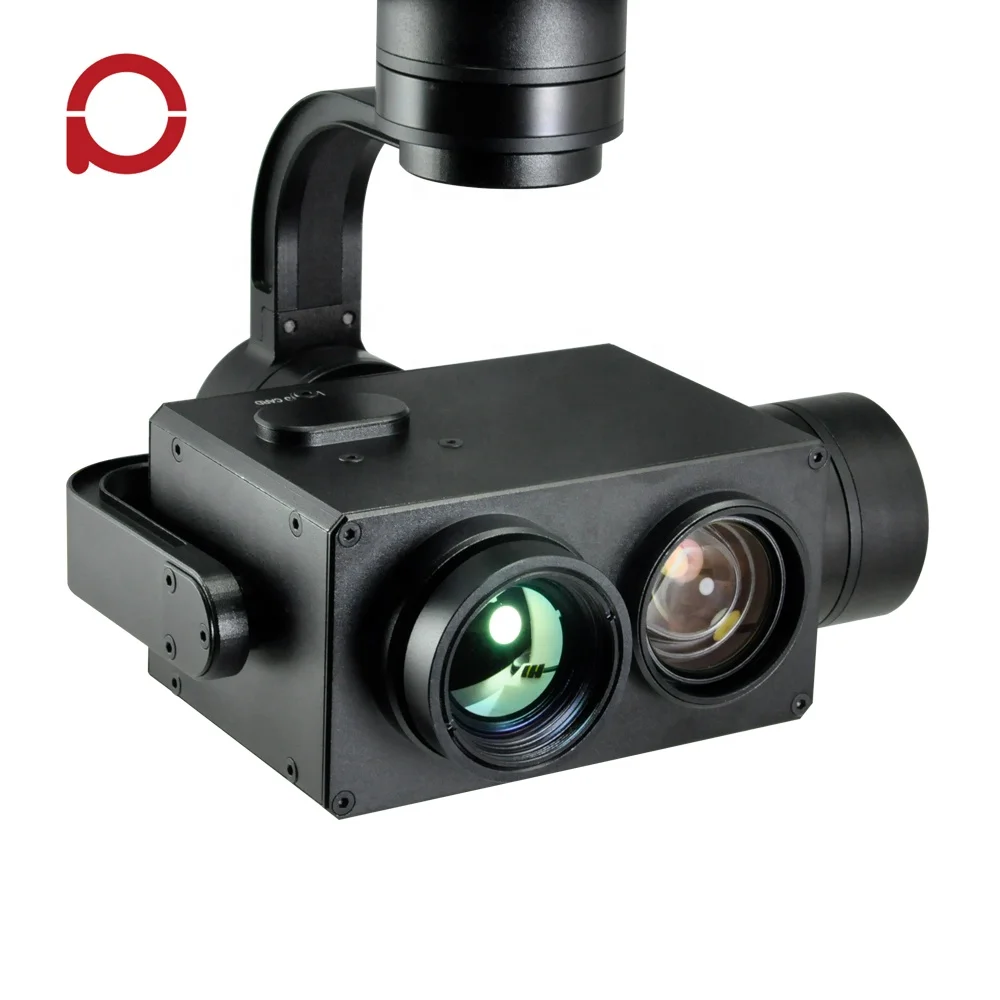

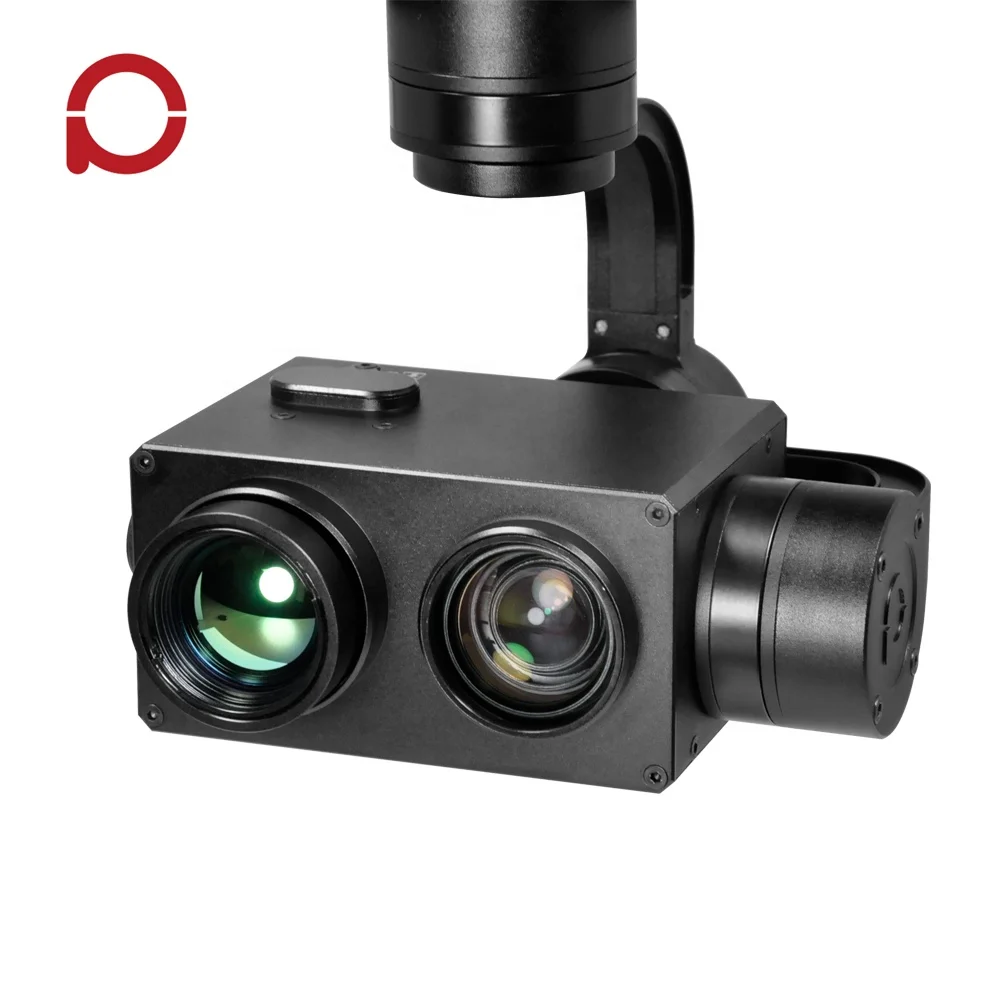

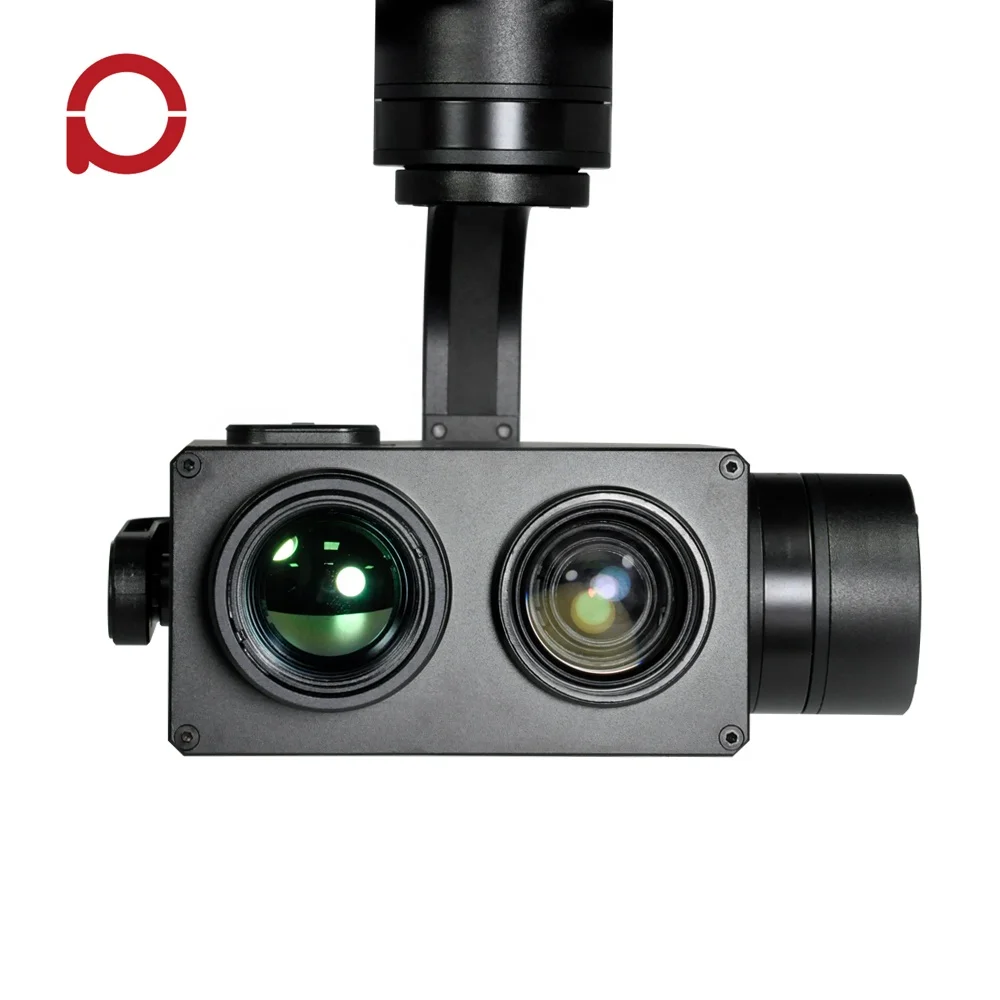

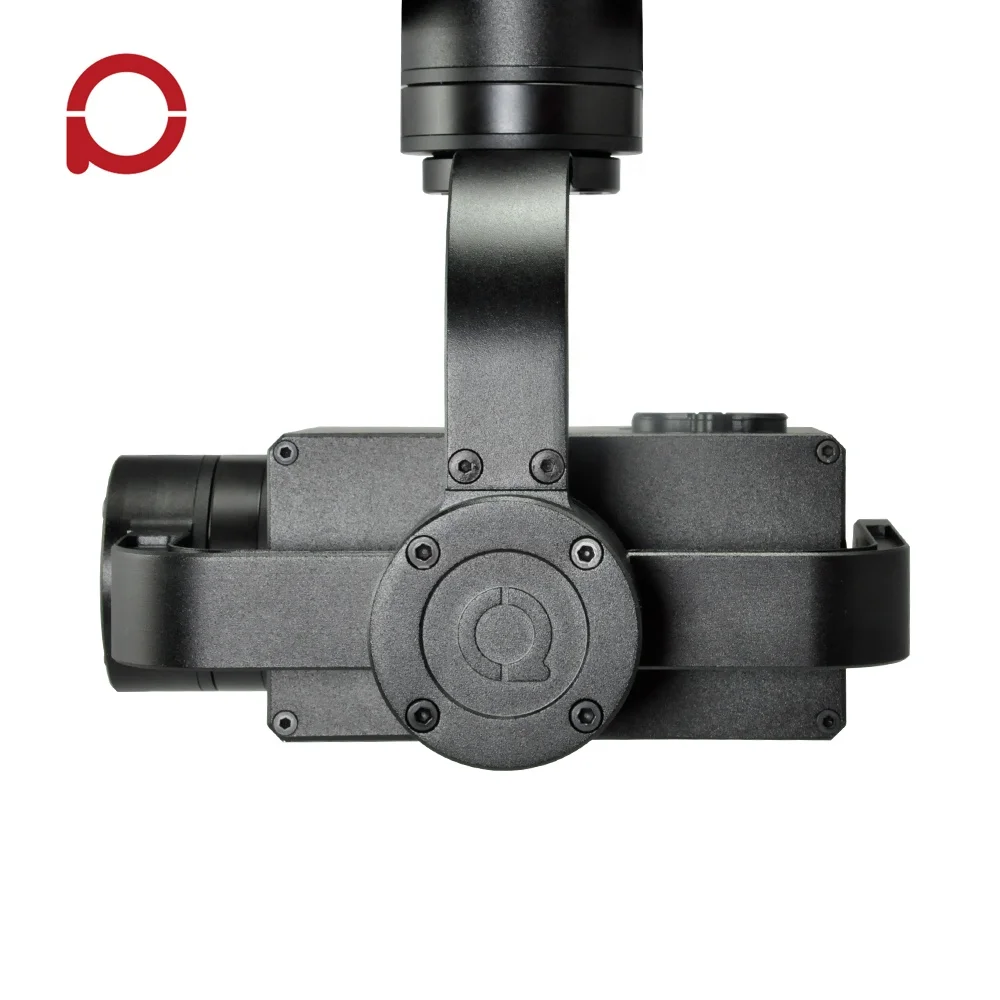

Dual Sensor EO IR UAV Camera Gimbal 10x Zoom with Infrared Thermal Image and Object Tracking for Surveillance / Search / Rescue

Product Overview

Description

Features high stability, small size, light weight and low power consumption suitable forfor UAV, helicopter, fixed wing plane and rotary wing aircraft, ect. Can be applied in various fields like military reconnaissance, public security surveillance, traffic monitoring, fire fighting, wildlife spotting, power tower / pipeline / solar inspection, search and rescue etc.









Gimbal spec
Pitch	±90°
Roll/Tilt	±85°
Yaw/Pan	±170°
Vibration angle	Picth/Roll: ±0.01°, Yaw:±0.01°
Camera spec
Imager Sensor	1/2.9 CMOS
Picture quality	Full HD 1080 (1920*1080)
Effective pixel	2.13MP
Lens optical zoom	10x, F=4.7~47mm
Min object distance	10mm(wide end) to 1200mm(tele end). Default 300mm
Field of View	H: Wide 61.11° ± 5% Tele 7.65° ± 5%
	V: Wide 35.2° ± 5%, Tele 4.12° ± 5%
Shutter speed	1/1s to 1/10,000s, 22 steps
Defog	Yes
OSD	Yes
Camera Object Tracking
Update rate of deviation pixel	50Hz
Output delay of deviation pixel	<10ms
Minimum object contrast	5%
SNR	4
Object size range	16*16 pixel ~ 160*160 pixel
Tracking speed	±32 pixel/frame
Object memory time	100 frames (4s)
Thermal imager spec
Lens size	19mm
Working mode	Uncooled long wave (8μm~14μm) thermal imager
Detector pixel	640*480
Pixel size	17μm
Color palette	Black, white, pseudo color
Auto Non-uniform correction	Yes (no shutter)
Digital zoom	1x, 3x
Thermal Object Tracking
Update rate of deviation pixel	25Hz
Output delay of deviation pixel	<3ms
Object size range	16*16 pixel ~ 128*128 pixel
Tracking speed	±32 pixel/frame
Object memory time	100 frames (4s)



Please feel free to contact with us for any further information.
