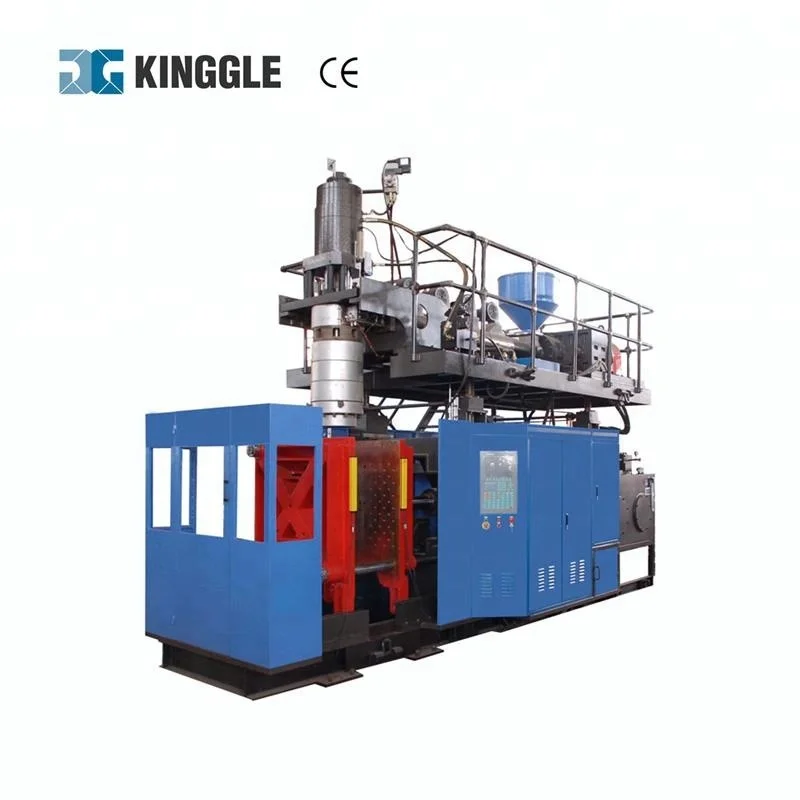

plastic blow molding toy slider making machine
- Category: >>>
- Supplier: Ningbo Kinggle Machinery Co. Ltd.
Share on (60806095244):
Product Overview
Description
Product Description

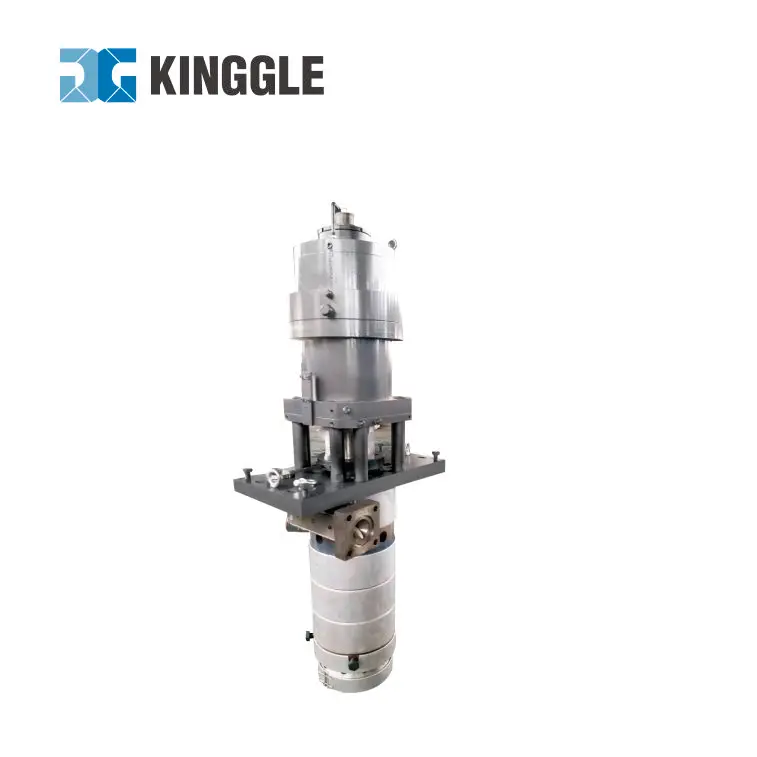

Die head: verticality first-in first-out system;
Extruder unit: adopt automatic temperature control unit of import,the screw united by hard tooth surface gear box and frequency motorto achieve stepless speed regulation;

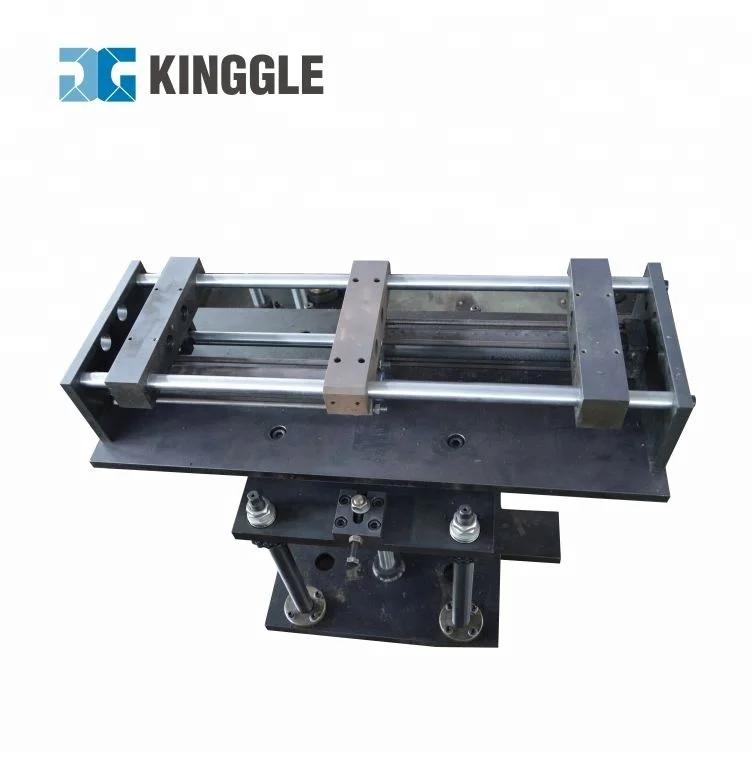

Clamping device: the clamping device of double draw bar is a type of hydraumatic and fixed , draw bar of new type through template,this type is accommodate large size of mould,smooth action,high stability,clamping mould force is uniformly,template is not distortional;
Hydraulic system: whole system adopt imported components,proportional pressure,flow,pressure feedback,system response is faster,action is more smoothly,lowest power loss,and the output of torque is big.
Electric controlling system: it adopts Japan programmable controller,touch screen,the characteristic of it has direct manipulation and large information on board.

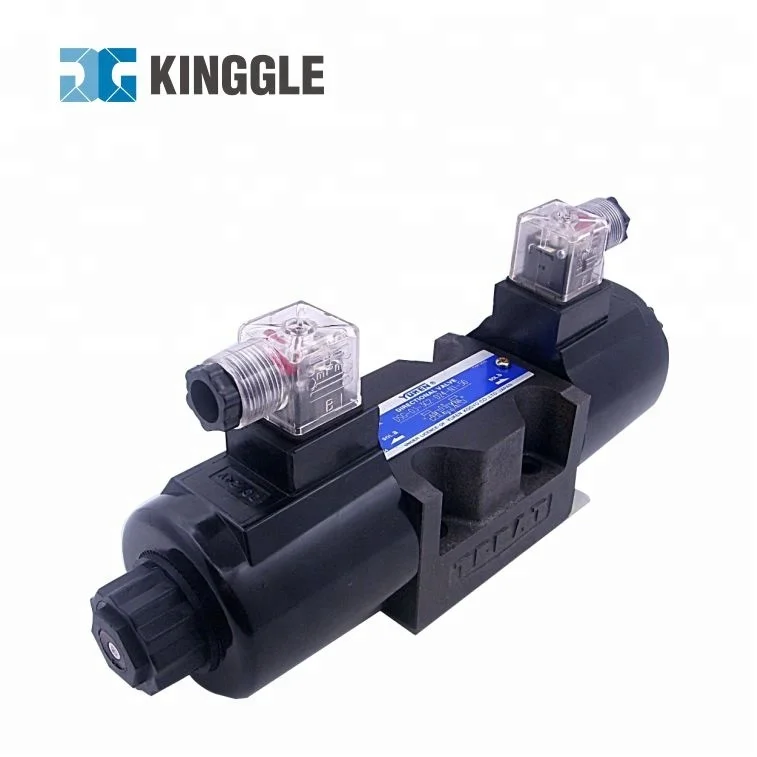

Main component brand
Technology
| Specifications | Unit | Fixed open-closing type | |
| Machiner model | PXB100A | PXB100B | |
| Material | PE,PP,ABS etc. | ||
| Max container capacity | L | 90 | 120 |
| Machine dimension ( L×W×H ) | M | 5.9×3.8×4.5 | 6.2×3.8×4.6 |
| Machine Weight | T | 16 | 18 |
| Clamping unit | |||
| Mold platen size ( W×H ) | MM | 1080×1000 | 1200×1200 |
| Max mold size ( W×H ) | MM | 800×1000 | 920×1200 |
| Power | |||
| Servo oil pump motor power | KW | 18.5 | 18.5 |
| Average energy consumption | KW | 43-50 | 52-60 |
| Blow pressure | Mpa | 0.8 | 1 |
| Extruder unit | |||
| Screw diameter | MM | 100 | 100 |
| Screw L/D ratio | L/D | 24:1 | |
| Melting capacit for HDPE | KG/HR | 160-200 | 160-200 |
| Extruder power | KW | 45 | 55 |
| Die head | |||
| Max die-pin diameter | MM | 520 | 520 |
| Accumulator capacity | L | 12 | 12 |
| Accumulator weight ( HDPE ) | KG | 9 | 9 |

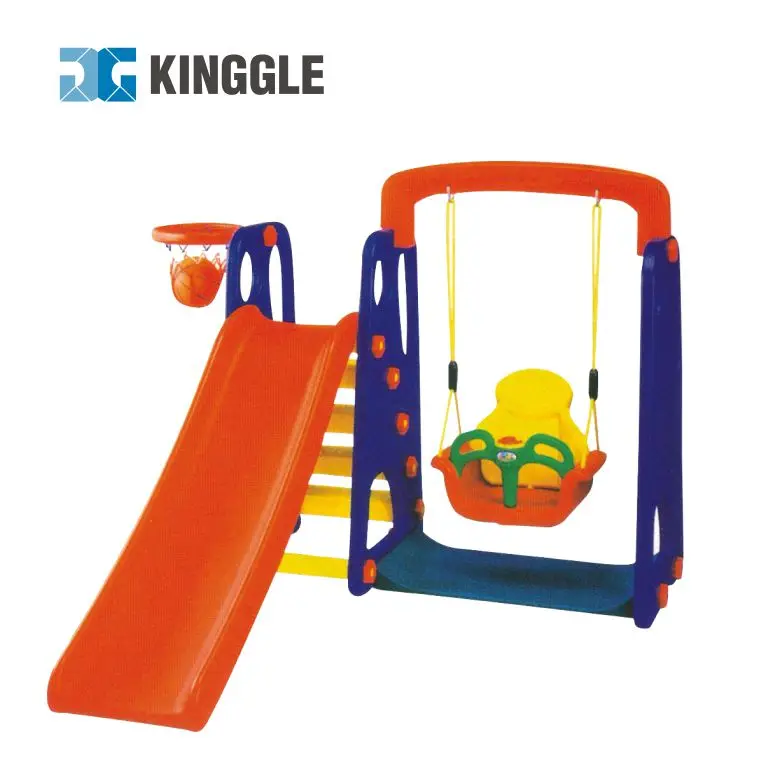

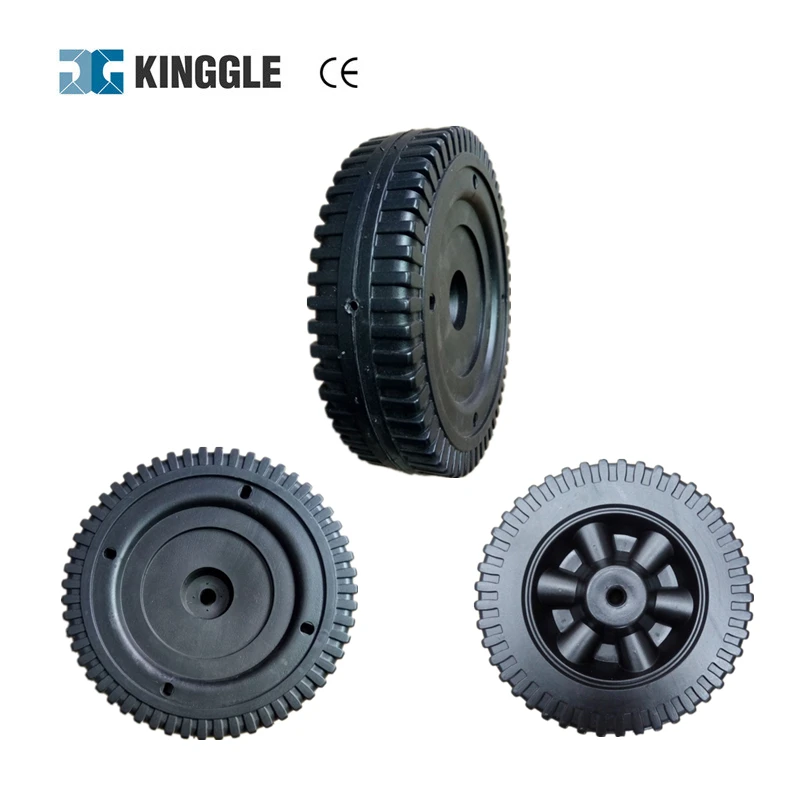

Suit product

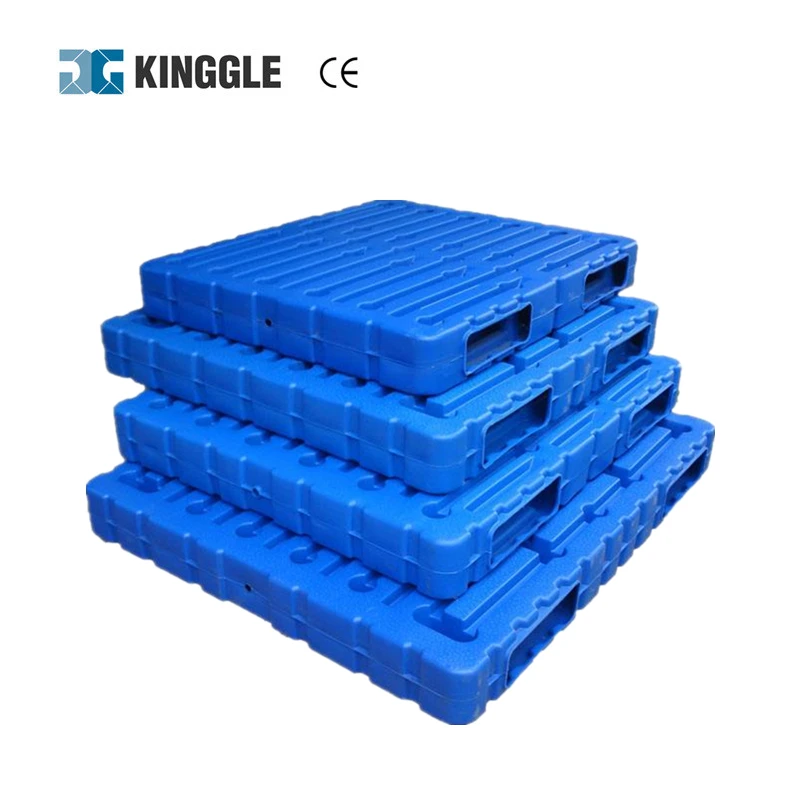

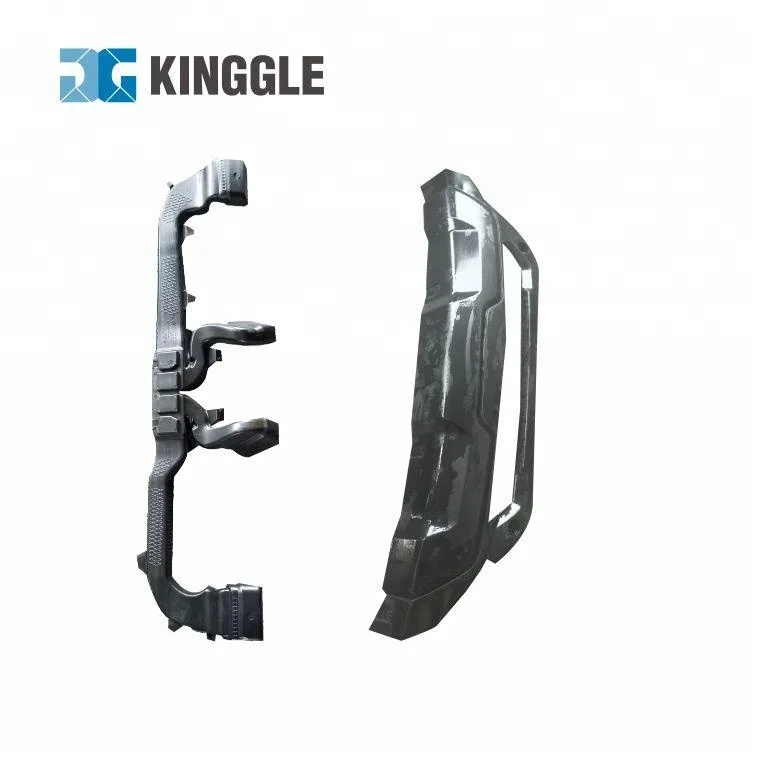

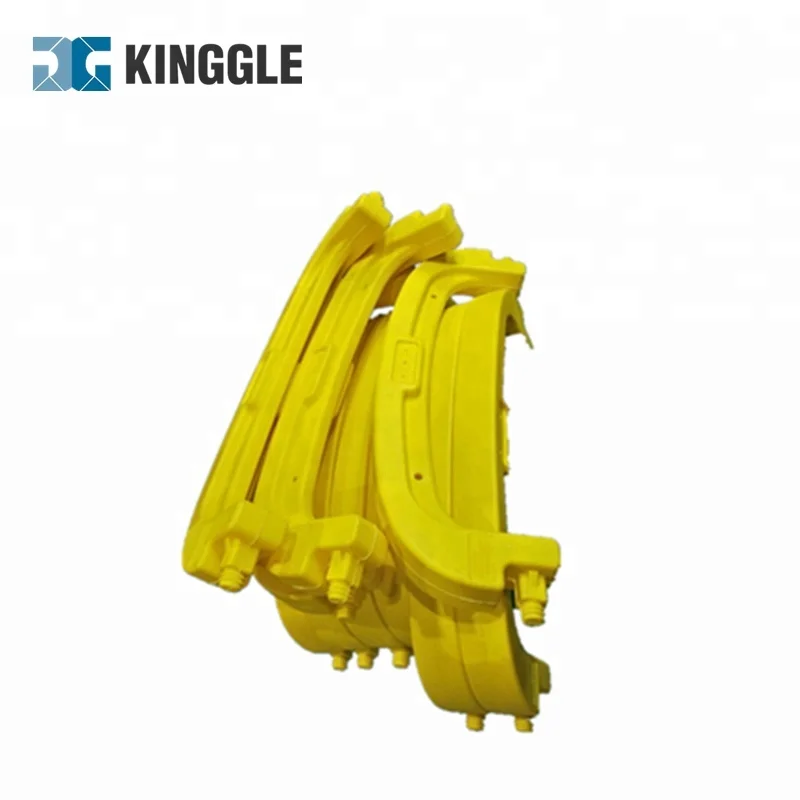

Other Product types
 |  |  |
|  |  |
Our Services
The warranty period for Kinggle machine is one year with a life long maintenance.
If the user requires special quality guarantee, other stipulated warranty period may be made after
mutual agreement.
1. Reply the email and take action in 24 hours; |
2. 100% Quality inspection before the shipment; |
3. Can trainning clients operator for free in seller`s factory |
4. Engineer overseas is avilable |
5. Blowing mould and injection mould made orginal |
6. Auxiliary machines for complate line. |
7.Custimized design as requirements. |
8. Introduce our engineer come to customer’s factory working! |
Packaging & Shipping
Customer/ Exhibiton
Certifications
FAQ
[1] Q: Are you a factory or trading company?
A: We are a factory.
[2] Q: Where is your factory located?
A: Our factory,near Shanghai & Ningbo port, Ningbo ,zhejiang .
[3] Q: How about quality control in your factory?
A: “ Quality is the key point, do what customers need”
Kinggle machinery factory focuses on quality,quality control from beginning to the end. Every piece of goods
is tested strictly before packing and delivery.
[4] Q: How about guarantee ?
A: One year guarantee.
[5] Q: Do you provide blow molding machine ,mold and auxiliaries equipments?
A: Yes , we can provide full blow molding machine line ,before and after sales service
[6] Q: What is the language of the PLC and touch panel?
A: Don’t worry, we will translate the language in English,or other languages to make sure you will have an easy operation .
[7] Q: Can you offer big size blow molding machine? Can you make multilayers and multi-colors?
A: Yes,we can offer you up to 2000L blow molding machine,our factory have patent for the multilayers and multi-colors!
