Chinese Wheel Loader 3 Ton Front End FOTON LOVOL FL938F-II

Guided by the goal of "providing optimum value to the customer", Lovol wheel loaders are equipped with well-known engines like Cummins and Deutz, which are finaly matched with powe train and hydraulic system to improve the performance. The optimized ergonomic designs, 360° full view cab, etc. ensures safe and comfortable operating environment. The reliability of crucial components are extended while reducing the operating cost with the use of new materials and CAD.


FL936F-II/FL938G-II is designed for wide application purpose. The engine features high power reserve, large torque and strong power, which makes it easy to break and lift hard materials. All the features make it competent to handle harsh applications and guarantee quick and efficient work.


FL936F-II/FL938G-II creates the perfect working space by giving priority to the demand of operator. The fashionable appearance design and instant response dynamic performance make the operator feel happy. With better visibility, air conditioning, a very comfortable seat, sufficient storage space, etc., all these elements ensure that the operator can work for hours in excellent conditions.


\t
SPECIFICATIONS FOR FL938F-II WHEEL LOADER
\t

Engine
\t
Engine model
\t
-
\t
Weichai P6G125E22
\t
Rated power
\t
kW/rpm
\t
92/2200
\t
No. of cylinders
\t
-
\t
6 in line, turbo charged
\t
Max. torque
\t
N.m
\t
500/1400-1600
\t
Displacement
\t
L
\t
6.754
\t

Main performance parameters
\t
Rated load
\t
kg
\t
3000
\t
Operating weight
\t
kg
\t
10650
\t
Bucket capacity
\t
\t
2.0
\t

Hydraulic system
\t
Working system
\t
MPa
\t
16
\t
Steering system
\t
MPa
\t
14
\t
Hydraulic oil capacity
\t
L
\t
110

Main Features

1) Designed for wide application purpose.

2)Strong and reliable power and lift system.

3) More comfortable for operator.

4) Easy maintenance.

5)More choice on optional attachments.

Detailed Images

Machine Parts

Name: Engine

Brand: Weichai P6G125E22

Original: China

Featuring high fuel efficiency and well matched with torque convertor , this engine runs with highest output to fullfill fuel consumption.

Machine Parts

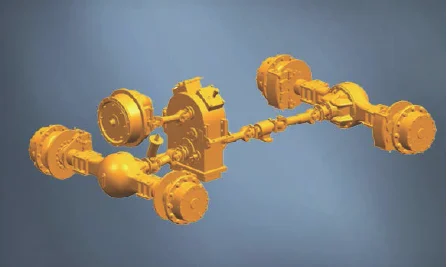

Name: Power Train
Brand: SHANTUI
Original: China
Shantui torque convertor, Hangzhou transmission and Lovol heavy duty Axle -- all contribute to the high reliablity.

Machine Parts

Name: Operator station
Original: China

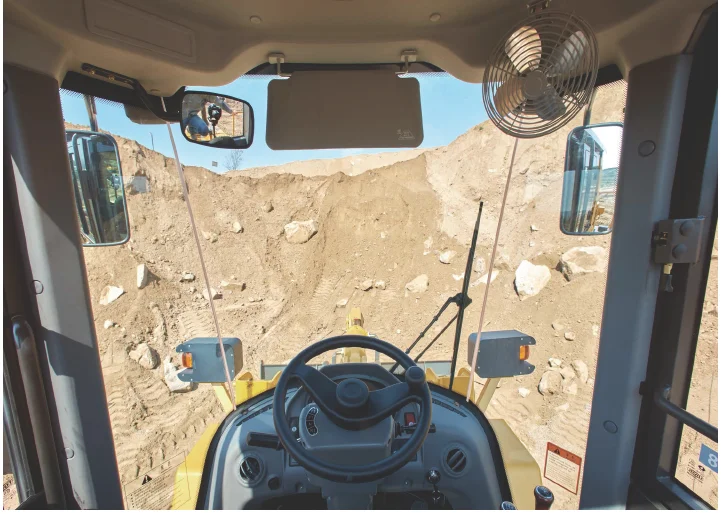

The 360° full view cabin with flat glass provide the operator with a comfortable operating environment;

Optional ROPS&FOPS cabin can be equipped to ensure the safty of operators;

Main Features

Name: Side opening hood
Original: China
The side opening hood provides larger space for maintenance, and also make the rediator more efficiency.

Our Company
Certifications
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Fully testing before delivery.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
\t
Packaging
\t
Size
\t
7090 (L) * 2520 (W) * 3200 (D)
\t
Weight
\t
10.65 T
\t

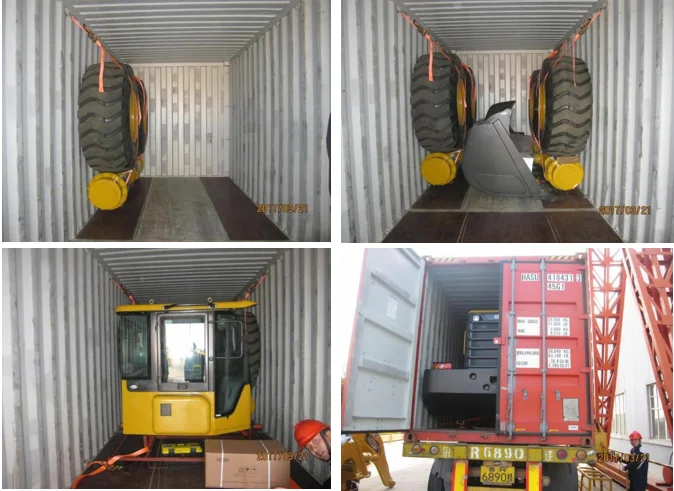

Packaging Details
\t

1 unit in 1*40 HQ, still have some spare   space;
2 units in 1*40HQ plus 1*20GP;

3 units in 2*40HQ;

The more units will follow the up package plans.
