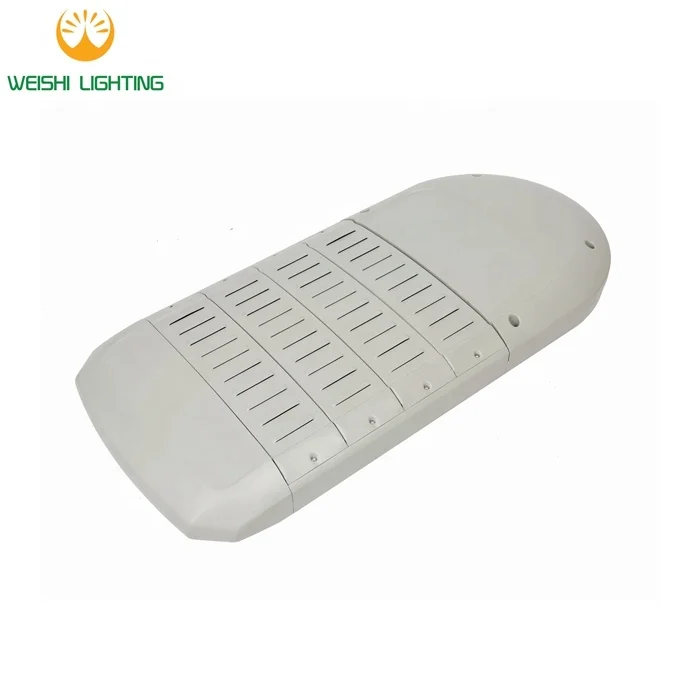

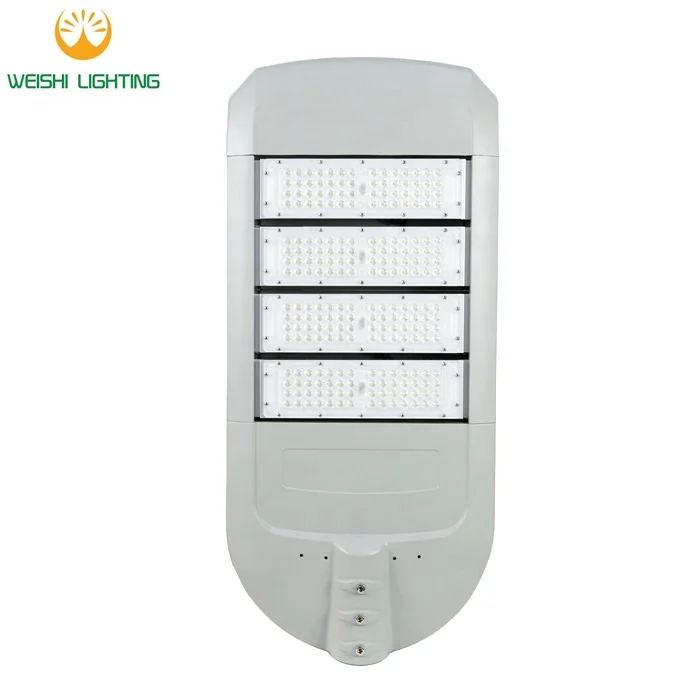

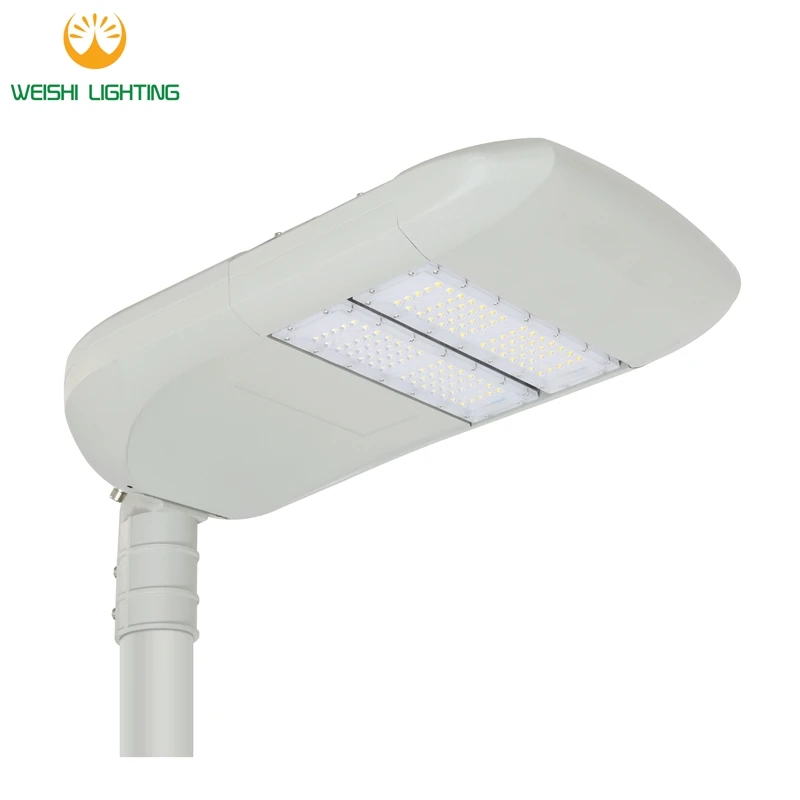

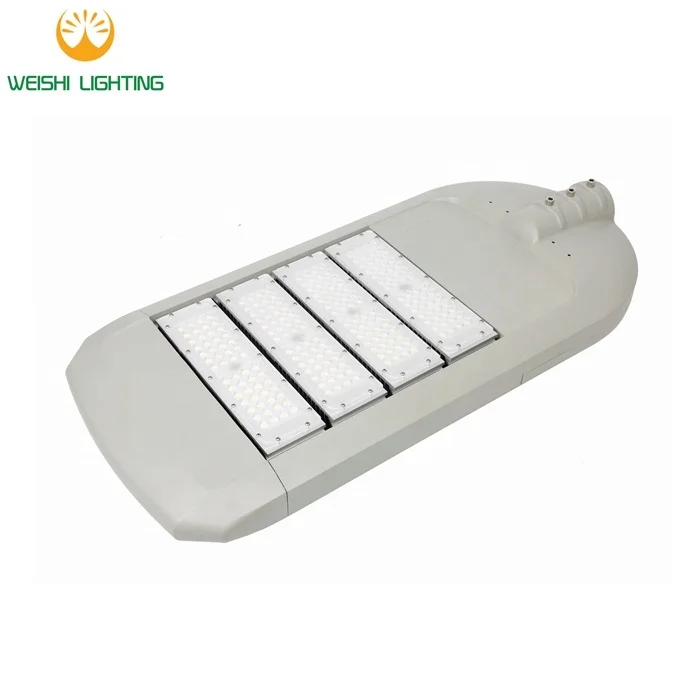

10 Years Factory Hot Selling bajaj 200w LED Street Light 100 watt Light Adjustable Angle Street LED Lamp
- Category: >>>
- Supplier: Shandong Weishi Lighting Technology Co. Ltd.
Share on (60806166512):
Product Overview
Description
WSFL07
PRODUCT INTRODUCTION
Advanced LED Street Light ● High Brightness ● 5 Years Warranty ● Low Temperature
MODEL SERIES
FEATURES
TOP STANDARD CREE / LUMILEDS LEDS
• > 160lm/W
• 125,000 hours life
• > 75Ra
• High Temperature Tolerance
• Better Light Maintenance
• Better Light Maintenance
• Better Color Consistency
• Better Outdoor Stability
HIGH THICKNESS ALUMINUM HEAT SINKS
• Fast Heat Dissipation Rate Compared with Die casting Aluminum
• High Thickness Materials
• Modular Design with Air Flow to Reduce Temperature
POLY-CARBONATE OPTICAL LENSES
• PC Material with High UV and Impact Resistance
• Multi Beam Angle Options
• High Transparency and High Efficiency
BACK BOARD WITH AIR VENTILATION
• Better Dust Proof and UV Protection• Air Ventilation Design to Reduce the Fixture Temperature
• Higher Impact Resistent Rate
HIGH STANDARD OUTDOOR CABLE AND IP67 CONNECTORS
• Easy Connection IP67 Waterproof Connectors
• Top Standard TUV Approved Anti-aging Rubber Cable Especially for Outdoor Usage
• Rubber Material for Higher Temperature Performance
• Top Standard Isolation Performance
- Junction temperature below 40°C
- High thickness aluminum modules help to maintain a low working temperature in order for the LEDs to have long life and low light decay
- Waterproof LED Modules
- Waterproof LED Driver
- IP67 Waterproof Cable Connectors
SMOOTH SURFACE TREATMENT
• Smooth Treatment and Compact Design
• Powder Coating Fixtures and Oxidized Heat Sinks for High Corrosion Resistance
• Water Leakage Design to Withstand Heavy Rainfall
TOP QUALITY LED DRIVERS
- Long Life
- Advanced Electrical Parameters
- 10KV Surge Protection
- Waterproof
- 10KV Surge Protection
- Waterproof
BACK-OPEN DRIVER COMPARTMENT
• Driver compartment open from the back, easier for future maintenance
• Easier for installation and wiring
- 90° adjustable to adopt in both pole top and side arm installation
- Φ50 - 60mm installation
MULTI-CONTROL OPTIONS
• Intellectural Control | Zigbee | Lora
• Photocell and Motion Sensor Options
• On-site Technical Instructions
HIGH SECURITY PACKAGING
• Foam Protection to Withstand Harsh Transportation and Impact
• Carton and Pallet with Foam and Cling Wrap to Withstand Impact, High Humidity in Containers, and Rainy Weather
• To Guarantee an Intact Condition when Receiving the Goods
SPECIFICATIONS
LED Efficacy: >160lm/W
CCT: 2700K, 3000K, 3500K, 4000K, 5000K, 5700K, 6500K
CCT: 2700K, 3000K, 3500K, 4000K, 5000K, 5700K, 6500K
CRI: ≥75Ra
LED Life: >125,000hrs
Beam Angle: 30°/60°/90°/Type I/Type III/Type III
PF: >0.97
Power Supply Efficiency: >92%
Power Supply Efficiency: >92%
THDi: ≤10%
Surge Protection: 10KV
Control: 0-10V Dimming , Photocell, Dali Dimming , Intellectual Control Optional
Material: Aluminum and PC Optical Lens
Color / Finish: Light Grey / Power Coating and Oxidization
Protection Grade: IP66
IK Grade: IK10
Warranty: 5 years
MODEL NO. | WSST18-2 | WSST18-3 | WSST18-4 | WSST18-5 | WSST18-6 | WSST18-7 | |||||
WATTAGE | 100W | 150W | 200W | 240W | 300W | 350W | |||||
ALTERNATIVE POWER RANGE | 80-100W | 120-150W | 160W-200W | 200-240W | 240-300W | 280-350W | |||||
INPUT VOLTAGE | 100 - 305V AC | ||||||||||
LEDs | CREE or Lumileds 3030 LEDs | ||||||||||
LED QTY | 128pcs | 192pcs | 256pcs | 320pcs | 384pcs | 448pcs | |||||
DIMENSIONS | 610*350*140 | 695*350*140 | 780*350*140 | 865*350*140 | 950*350*140 | 1035*350*140 | |||||
NET WEIGHT | 4.8kg | 6.2kg | 7.5kg | 8.8kg | 9.9kg | 11.0kg | |||||
PROTECTION GRADE | IP66 | ||||||||||
LIGHT DISTRIBUTION
