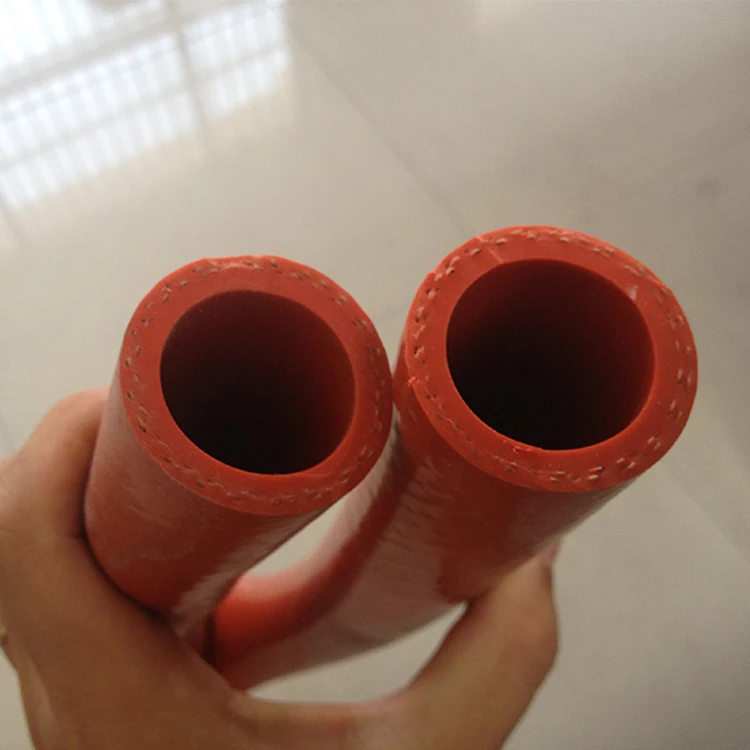

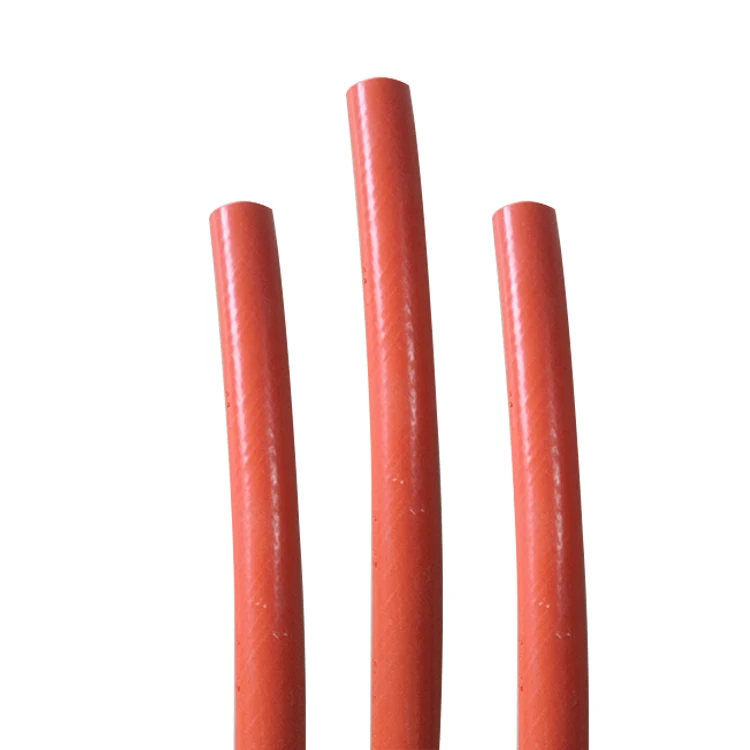

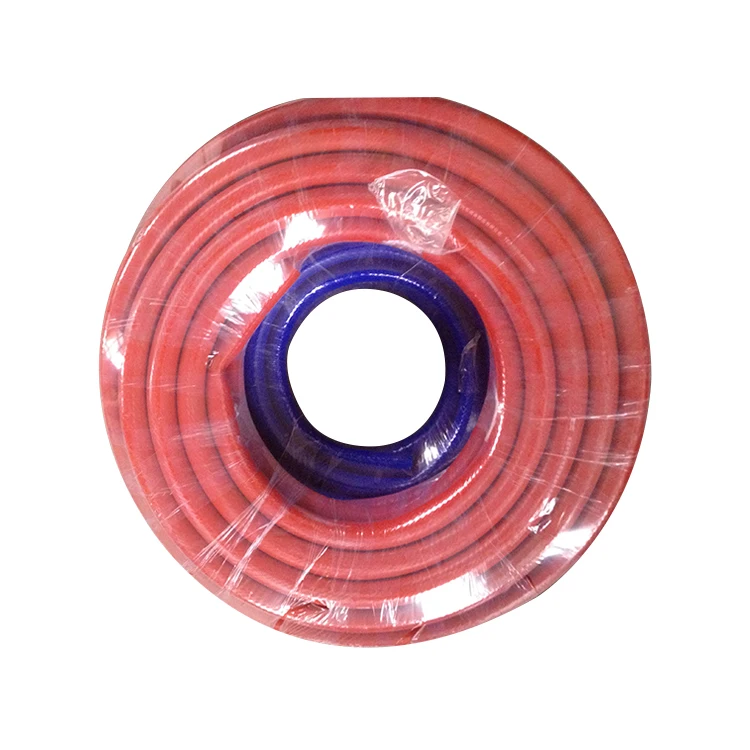

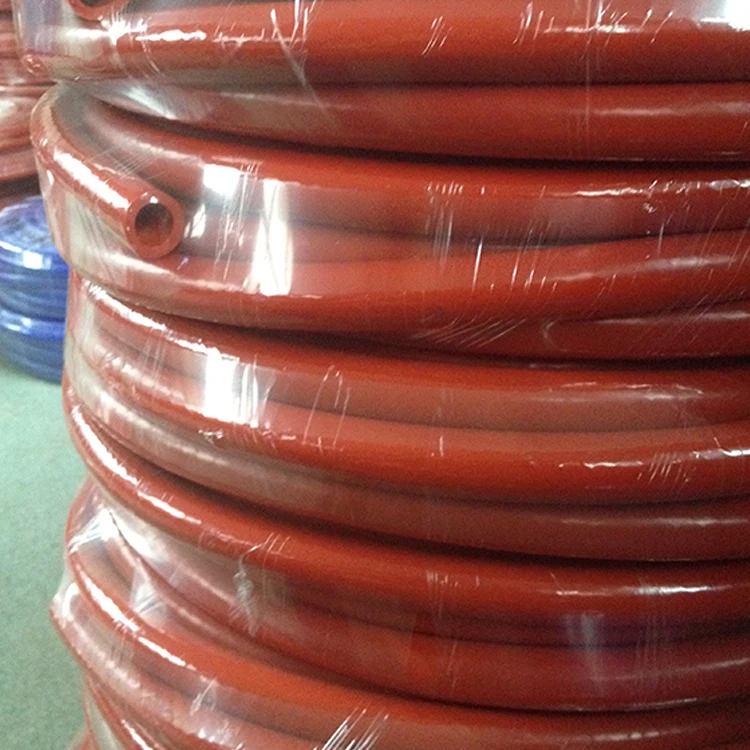

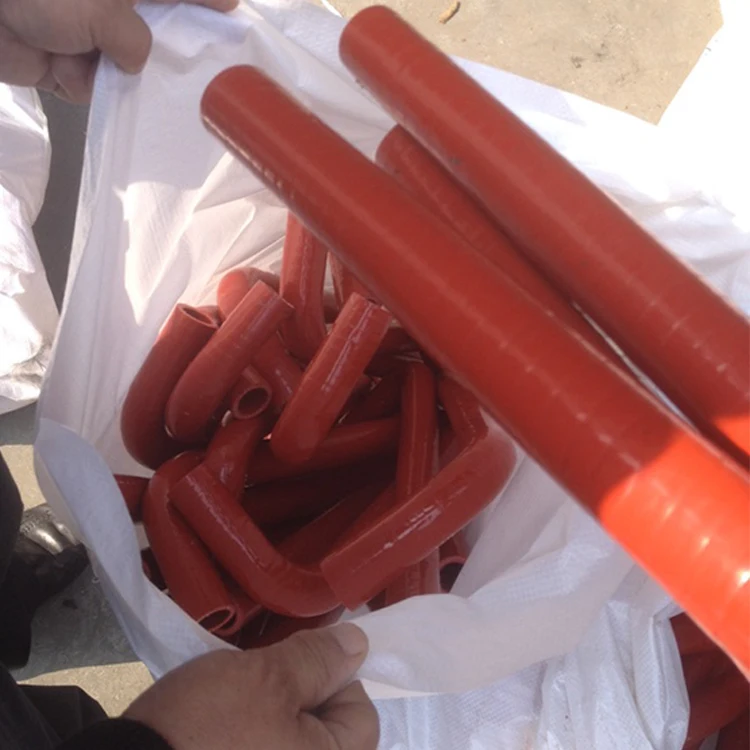

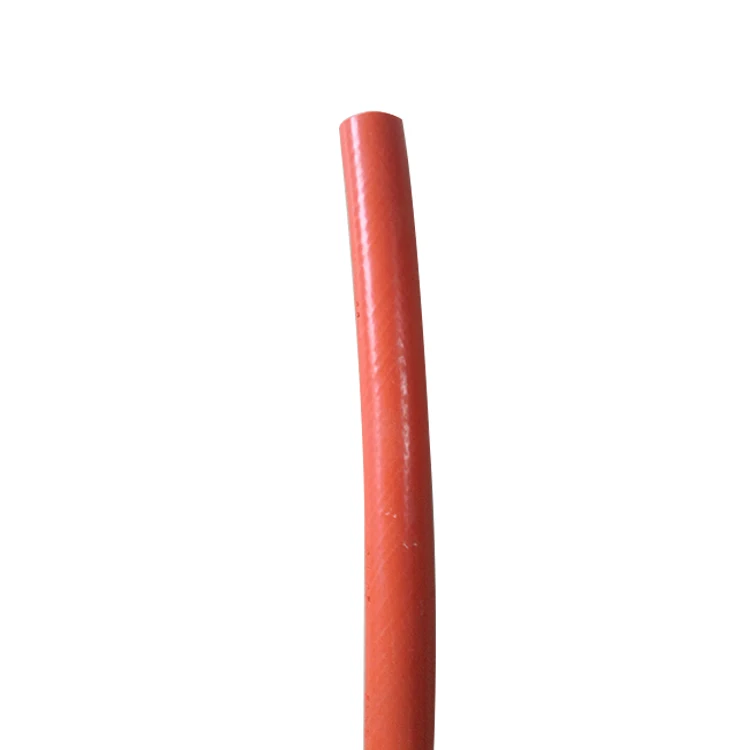

Flexible Silicone Rubber Air Hose Silicone Rubber Tube

Product Overview

Description



Product:	High Quality Silicone Rubber Hose
DESCRIPTION
Executive standard	International standard
Material	Silicone Hose
Working temperature	-40℃ ~ +250℃ (482℉)
Working Pressure	3~9 bar
Warranty	3~5 years
Surface	Smooth or Wrapped
Thickness	4mm, 4.5mm, 5mm  with reinforcement 3~4 ply, or as requirement
Color options	Blue, Black, Red, Brown, Green, etc.
Characteristics	Environmentally friendly, beautiful, high temperature resistant (220°),   anti-aging, anti-ozone
Note	Standard silicone hoses are not suitable for use with pressurized oil or fuel.   However, we can offer special fluorosilicone liners for oil resistance.



SIZE AND PERFORMANCE PARAMETERS

Inner diameter (mm)	size (mm)	tolerance range (mm)	working pressure (mpa)	burst pressure (mpa)
16	100*100	±0.3	0.3	≥1.4
16	150*400	±0.3	0.3	≥1.4
16/25	100*100	±0.3	0.3	≥1.4
16/25	100*200	±0.3	0.3	≥1.4
25	150*150	±0.5	0.4	≥1.4
25	125*125	±0.5	0.4	≥1.4
25	150*400	±0.5	0.4	≥1.4
25/38	80*200	±0.5	0.4	≥1.4
25/38	200*200	±0.5	0.4	≥1.4
16/25	125	±0.5	0.4	≥1.4
25/38	125	±0.5	0.4	≥1.4
38	120*120	±0.5	0.4	≥1.4
38	160*160	±0.5	0.4	≥1.4
38	200*200	±0.5	0.4	≥1.4
38	65	±0.5	0.4	≥1.4









Q: Are you a factory or trading company?
A: We are a factory.

Q: Where is your factory located? How can I visit there?
A: Our factory is located in Xingtai City, Hebei Province, China. We warmly welcome customers at home and abroad to visit us!

Q: How can I get some samples?
A: We are honored to offer you samples.

Q: How does your factory do regarding quality control?
A: Quality is priority. Paishun people always attach great importance to quality controlling from the beginning to the end. Our factory has gained CE, ISO, SGS, TUV authentication.

Q: How long will it take for shipping and delivery time generally?
A: Generally 15-30 days after your order, according to the quantity.

If you have any other questions, please feel free to contact me with the following ways.
