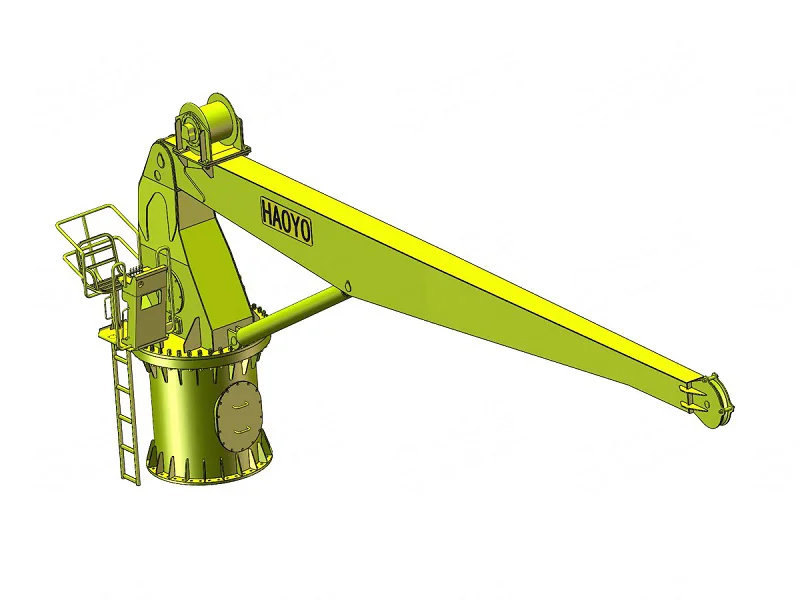

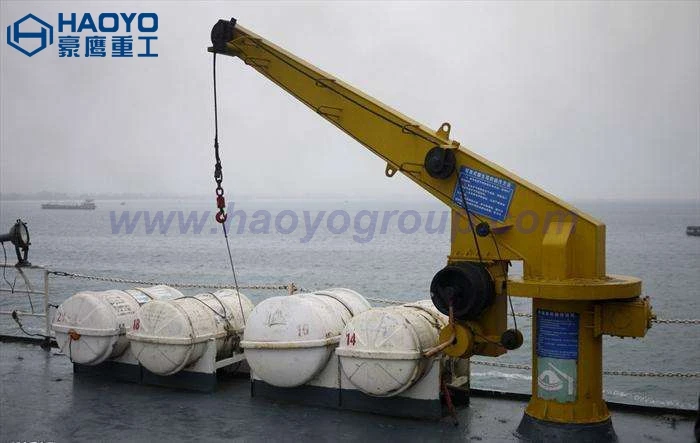

Deck Crane Hydraulic Stiff Boom Marine Crane For Sale

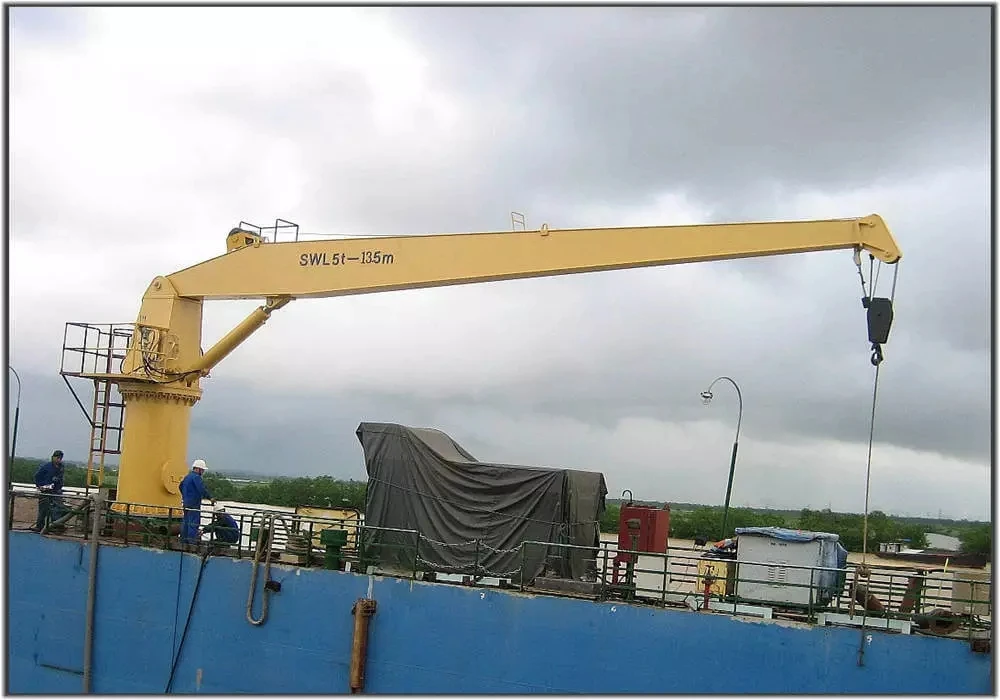

HAOYO stiff boom cranes are suitable equipped on the deck for bulk cargo ships or offshore or dock with enough free space. Compare to the knuckle boom crane and telescopic crane, it's price and maintenance cost is the lowest.And it work reliable with the heavy weight.If you need other type crane pls contact me let's talk details.
Model Sheet
MODEL
Outreach(M)
Safety Load(kN)
Lifting Moment(kNm)
Toal Moment (r/min)
Pedestal Diameter (mm)
Dead Weight (t)
CS130
2.0-8.0
1500-400
32-120
130
500
1000-2800
CS300
2.5-10.0
2600-500
50-260
300
800
2400-3500
CS650
2.5-12.0
5200-1000
120-624
650
900
2600-5000
CS900
3.0-14.0
6000-1200
168-840
900
1250
2800-6500
CS1250
3.5-15.0
8000-1500
225-1200
1250
1550
6800-8500
CS2000
3.5-16.0
12000-1500
240-1920
2000
1550
9000-10500
CS2400
4.5-18.0
13000-1500
270-2340
2400
1800
11000-13500
CS3200
5.0-20.0
15000-2000
400-3000
3200
2060
12000-15000
CS4000
5.5-24.0
15000-2000
480-3600
4000
2060
13500-17500
CS4500
5.5-25.0
16000-2000
625-4000
4500
2250
18000-30000
CS6000
7.0-30
18000-2500
750-5400
6000
2250
25000-40000
Crane Details
Motor
SIEMENS or ABB motor has IP56 level
Electric
Schneider/Muller for safety IP56 level
Self-Lubricating Bearing
Wear-resistant copper &Antiseptic
Control Valve Group(Italy)
Danfoss/HC smooth&precise control
Hydraulic Tube
Surface chrome, Eaton hose
Rotary Motor
Quality Rotary motor with reducer
STANDARDS
OPTIONS
Manual
Radio remote control
Continuous rotation system
Customized angle
Seat
Operator's cabin with fan, heater, wiper and chair etc.
Cooling system for hydraulic oil
Heating system for hydraulic oil
Overload protection
Torque limiter
Double primer coat and two layers painting
Customized painting
Winch
Emergency stop protection and alarm device
Why Choose Us
ABOUT US
Focus marine crane for 15 years
CERTIFICATION
Meet almost all certification
PARTNER
Use best parts and materials
24 HOUR RESPONSE
Respond to customer any time
WELDING CERTIFICATION
All workers have welding certificates
MACHINING
Machining that other suppliers can't

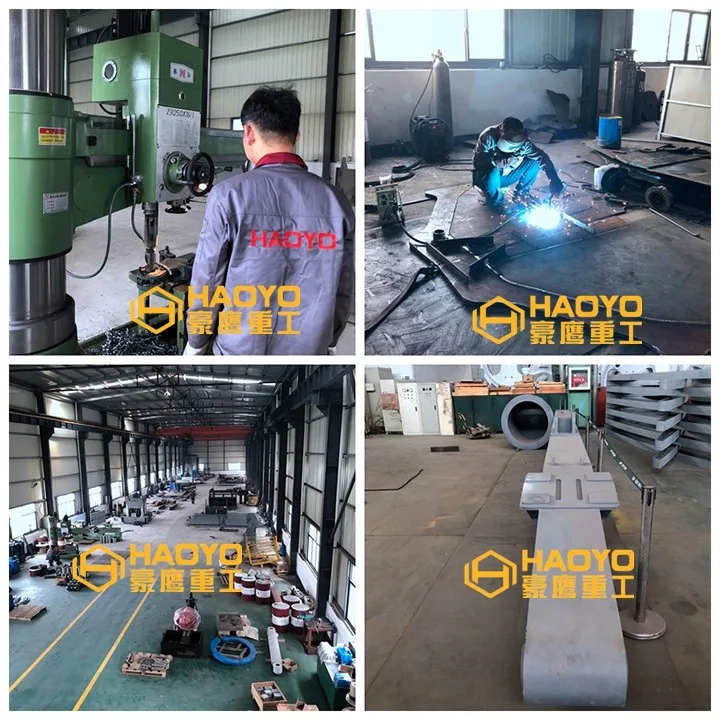

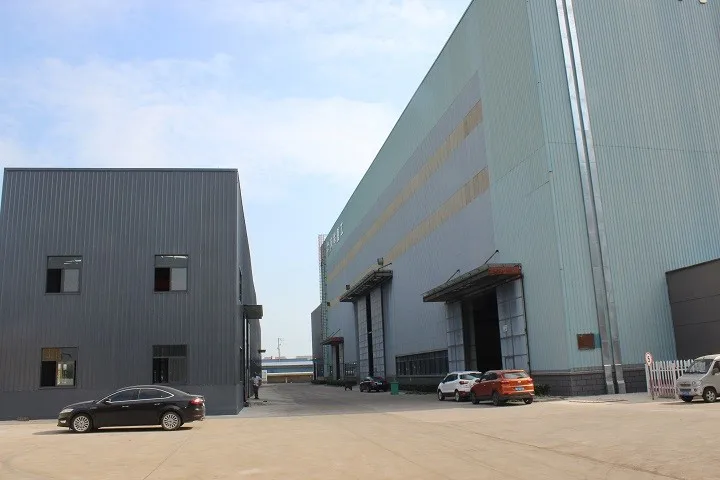

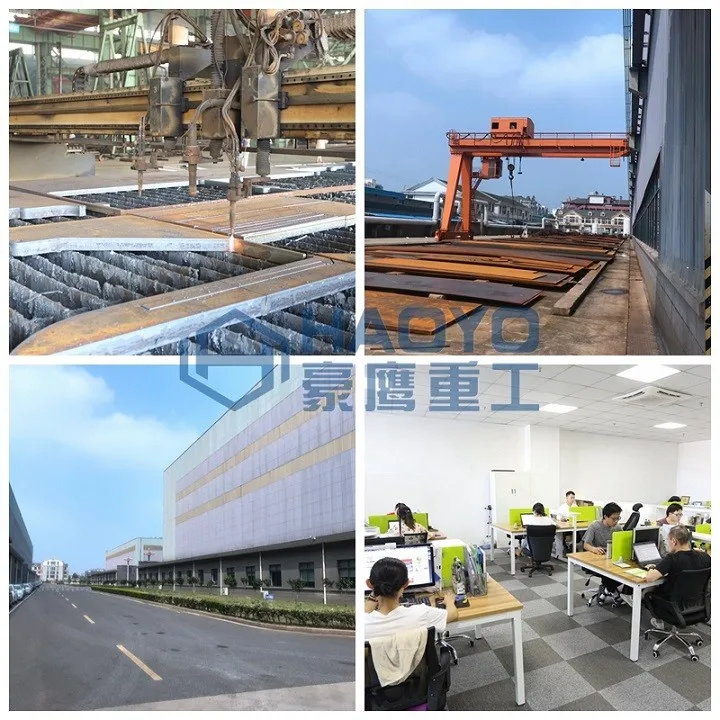

Factory View
FAQ
Please provide following necessary information,so we can quote right Model crane.
1. What kind of marine crane do you need(stiff boom crane, telescopic boom crane knuckle boom crane knuckle telescopic crane or folding boom crane )
2. Crane SWL requested(___ T/___M)
3. Max. working radius of the crane(___M)
4. The crane will be used on ship, offshore platform or fixed platform (motor 380V or 440V)
5. If you have any other special request for the crane, please advise us, we will design the suitable model for you.
