Textile Air Turning machine, Tubular Fabric Reversing machine, Tubular Fabric Blowing and Balloon machine

Air Turning machine Introduction

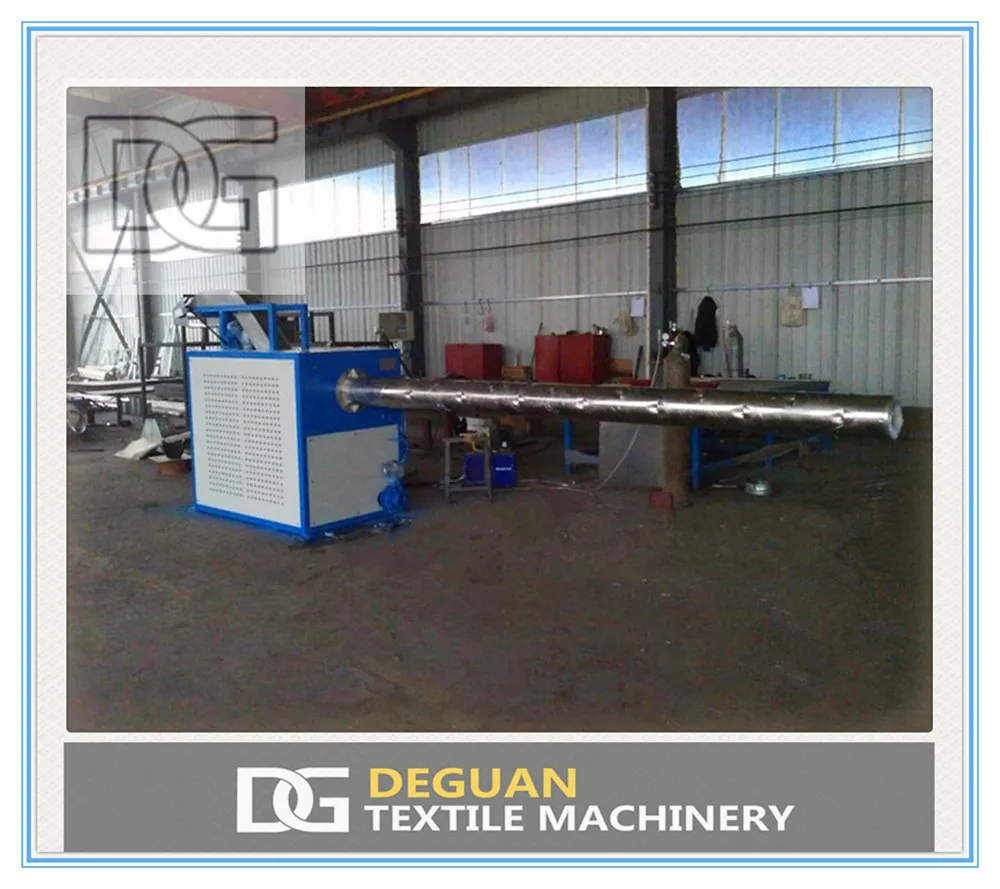

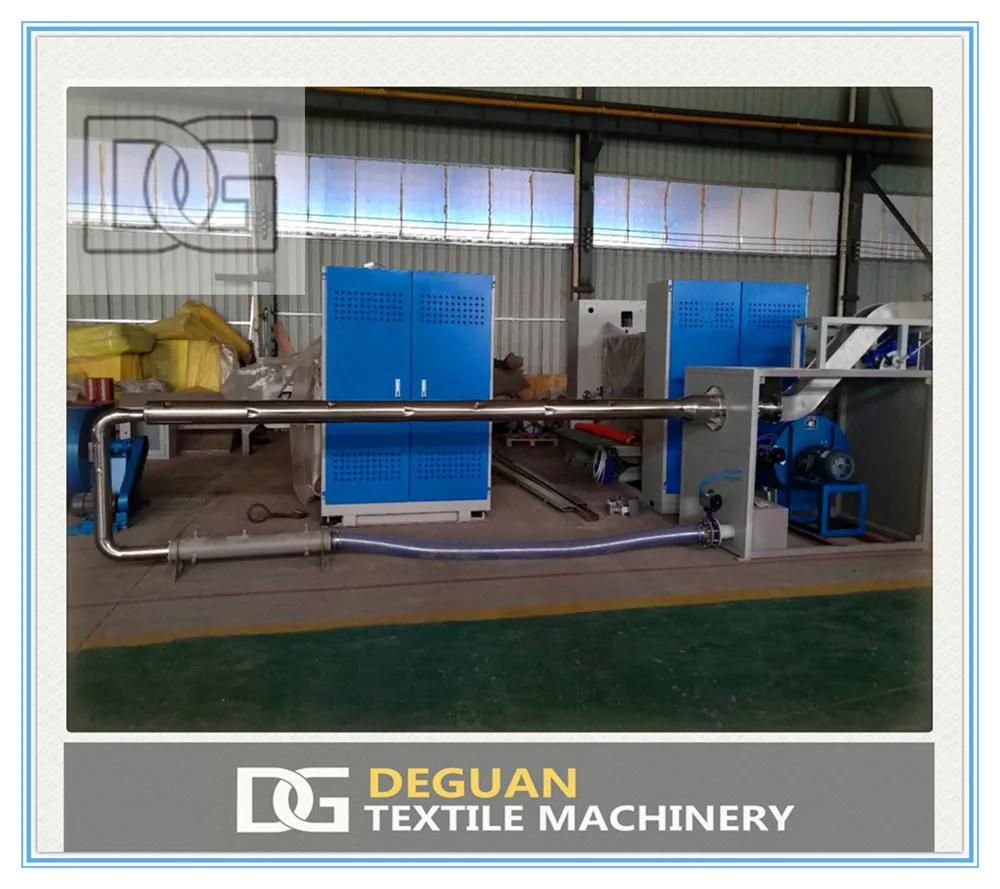

DGFB200S Air Turning Machine is mainly used for overturning of the tubular fabrics. It has the simple figuration, easy to operate and high efficient.

Technical Parameters

1 Infeeding Speed:   300M/MIN

2 Exit Speed    330M/MIN

3 Diameter of the Air Cylinder   219MM

4 Dimension   5800mmX1100mmX1400mm

5 Total Weight   0.5ton

6 Power   9Kw

 Standard Equipment Blower Section

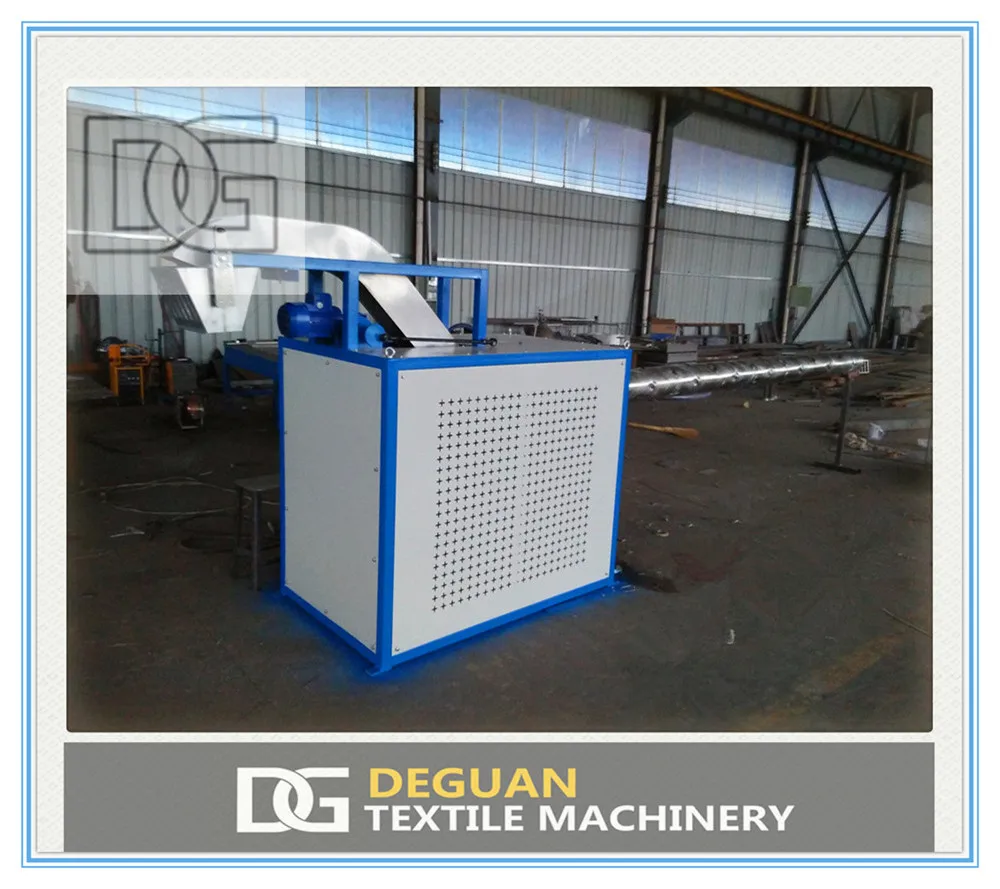

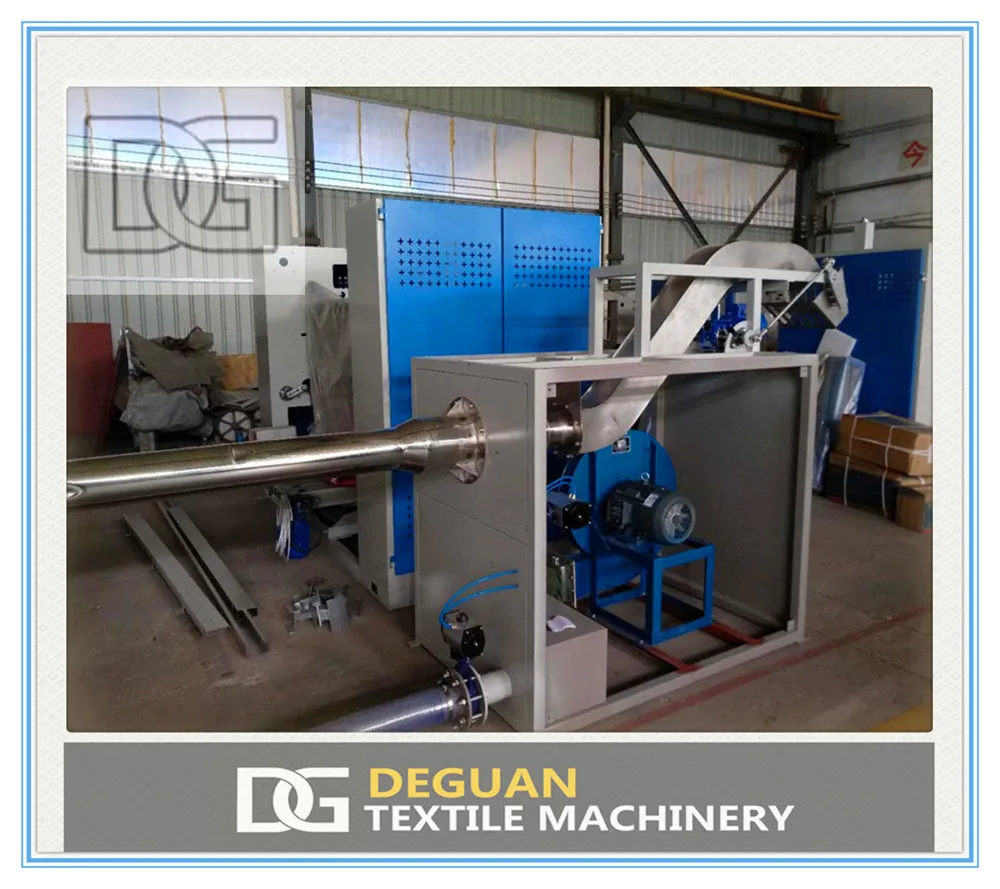

1  The blower consists of double layers stainless steel air cylinder, high pressure centrifugal blower, double circulation air path and direction changing device.

2  Exit section

A. The exit section adopts V type belt driven, low noisy, steady in movement, easy to maintain.

B. The exit device will stops automatically when the fabric is covered and it will restart when the fabric turns again.

3  Electric control

A. The electric control adopts relay-contactor control mode, driven by manual and auto methods.

B. The electric component adopts famous brand of Zhengtai or Schneider on their low voltage apparatus.
