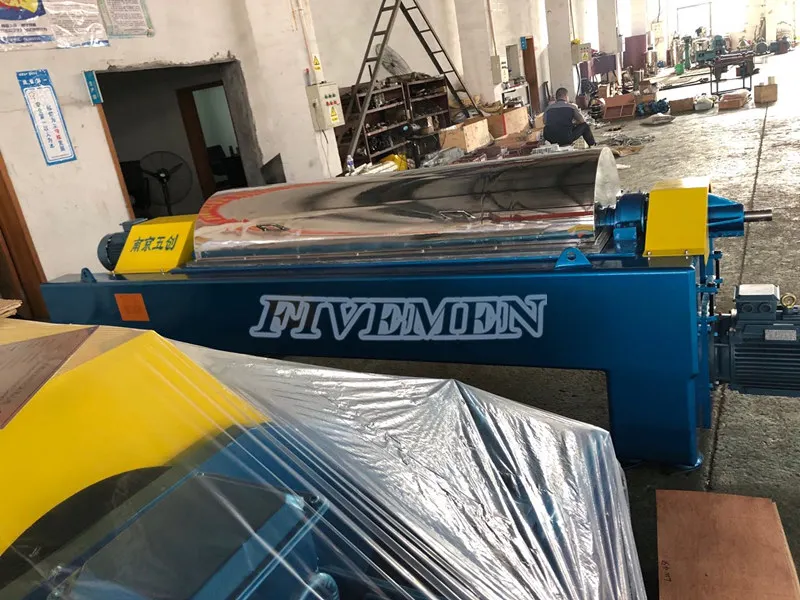

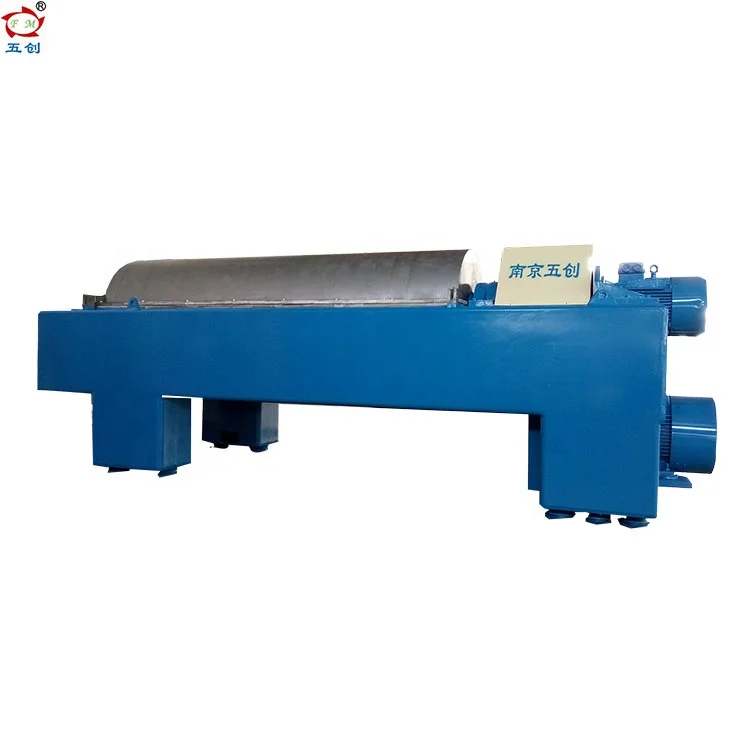

Factory price LWS 3 phase decanter centrifuge vegetable and animal oil extraction
- Category: >>>
- Supplier: Nanjing FiveMen Machine Co. Ltd.
Share on (60806293947):
Product Overview
Description
Product Description
Main Features:
1, Low noise, its vibration intensity is less than 4.5, and the running noise of the machine is less than 85dB (A).
2 High Speed up to 3600RPM & Variable Speed by frequency converter
3 The main body of the decanter centrifuge made from stainless stee: SS304/SS316/Titanium Alloy
4 The screw propeller made from stainless steel (SS304/SS316) protected by Tungsten carbide alloy or Ceramic
5 Solids discharge stainless steel protected by high-chromium iron
6 Solids Liquid separation system package available
7 Germany FAG/SKF brand bearings
8 Eletrical Components: SIEMENS/Schneider/ABB
9 All the seals of the machine are imported , adopting the Taiwan TTK brand
Product Application
The LWS decanter separator is suitable for plant oil,( such as palm oil, coconut oil, olive oil separation ,) animal oil(such as fish oil, restaurant garbage ect) fish meal, coal tar dehydration and slag, adapted to the different viscosity and water content in coal tar separation (emulsion), after separating the tar reach national standard.
Food: Fruit and Vegetable juices, Starch, Protein, Molasses, Stillage
Oils and Fats: Fish oil, Gelatine
Environmental protection/Recycling: Drilling mud, Industrial wastewater, Municipal wastewater
Minerals: Graphite, Kaolin, Bentonite
SPECIFICATIONS FOR 25 TON CRAWLER EXCAVATOR | ||||||
Engine | Main motor Power | KW | 22 | |||
Aux. Motor Power | KW | 7.5 | ||||
Main performance parameters | Differential | r/min | 0-3600 | |||
Rotary Speed of Bowl | r/min | 1-35 | ||||
Ratio of L/D | 4.1 | |||||
Length of Bowl | mm | 1720 | ||||
Bowl Dia | mm | 420 | ||||
Electric control box | PLC double frequency conversion touch screen control box | |||||

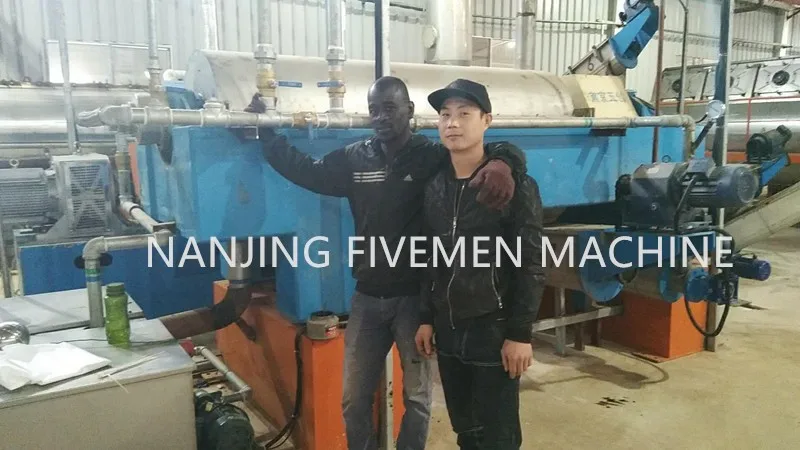

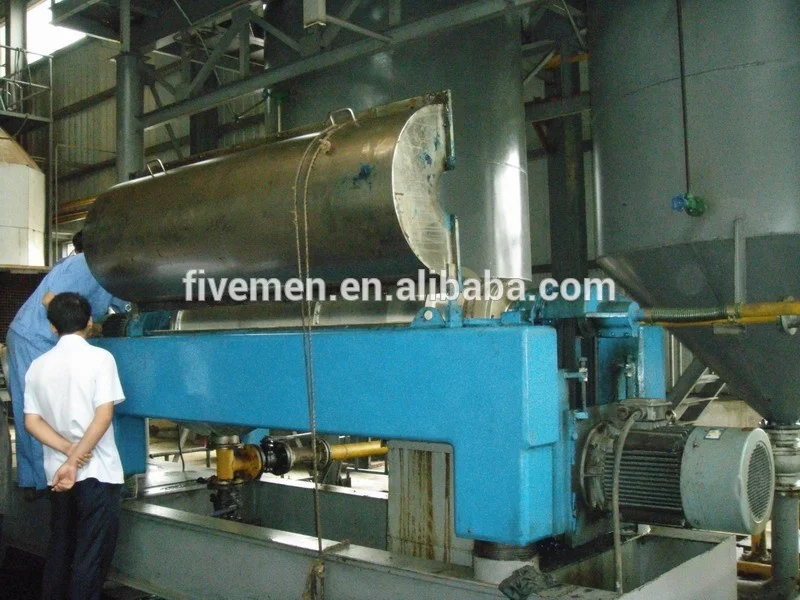

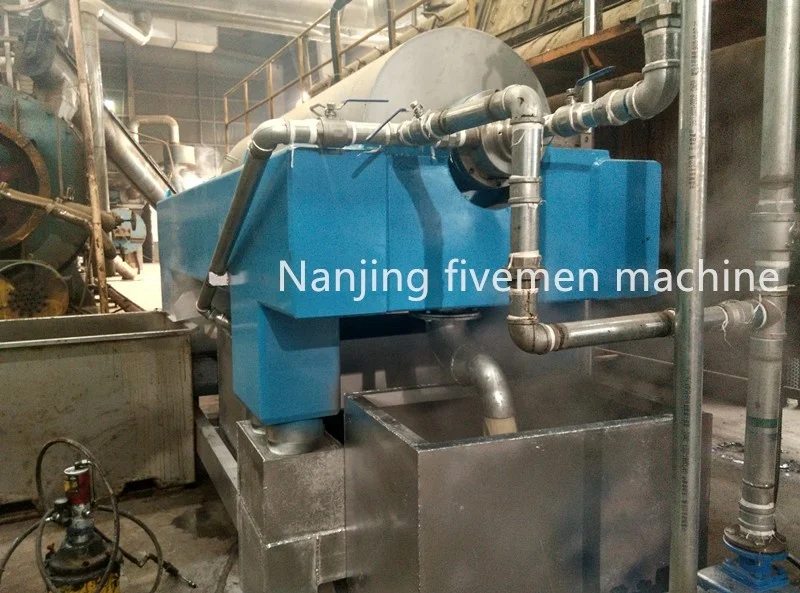

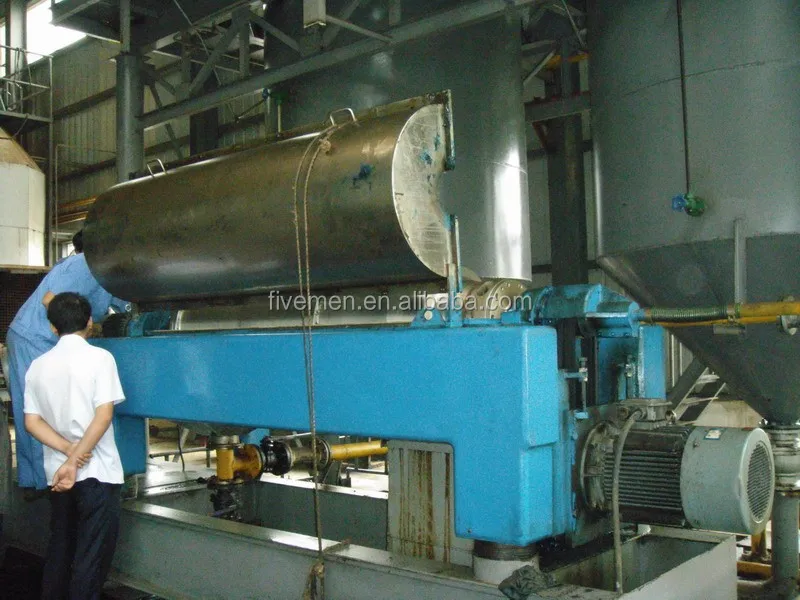

Appication site in fish oil extraction machine
The fish oil after separation by LWS decanter fish oil extraction

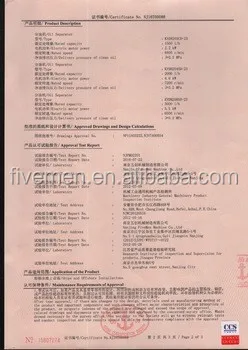

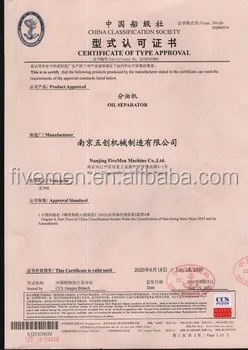

Certifications
Kindly reminder:
All our Certification are REAL ONE.
NOT FAKE, NOT FAKE, NOT FAKE !!!
PLEASE CONTACT US TO SHOW YOU!!!
Detailed Images

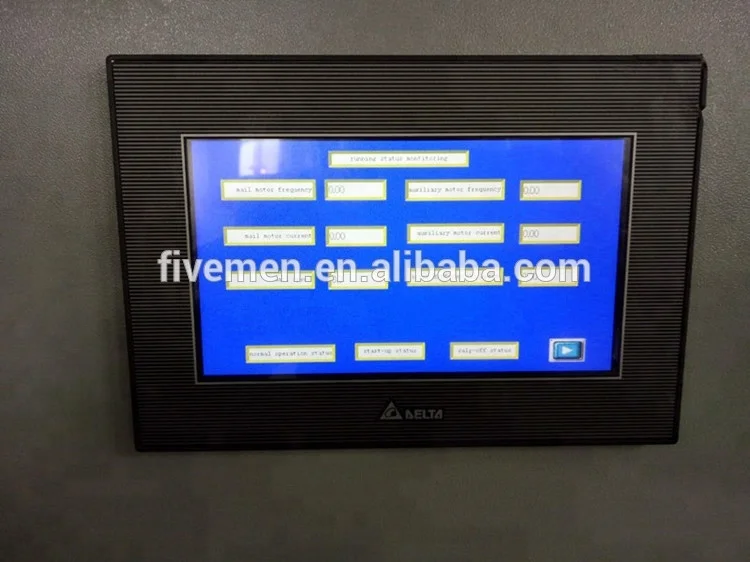

PLC CONTROL PANEL
The electrical control adopts the double conversion auto control system, which can display the parameters such as frequency, rotation speed, differential speed and current of operating major and auxiliary electrical engine.
Eletrical Components: SIEMENS/Schneider/ABB

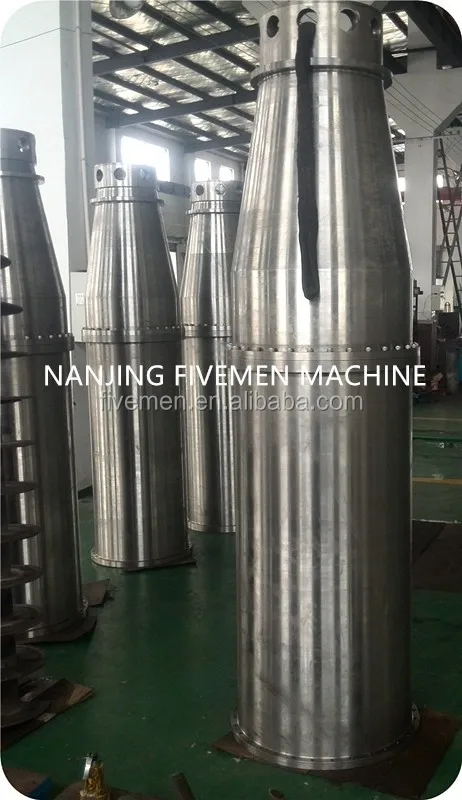

Drum
The drum is cast by 304 stainless steel in centrifugal casting, the forging process is adopted , which can enhance its corrosion resistance, The replaceable alloy sleeve is installed in the solid state outlet, so that the mother material of the drum's outlet is not worn, and the wear-resistant bar is installed in the drum to make the drum inside not worn.
Spiral feeder
The spiral feeder is made of 304 stainless steel, and the forging process is adopted , which can enhance its corrosion resistance. BD structure, spraying hard alloy powder on the surface of the blade. The thickness is over 3mm .The spiral outlet is equipped with a replacement hard alloy sleeve, which greatly prolongs the service life of the machine blade. Because of this technology, the maintenance cost of the machine is greatly reduced. Other parts in contact with the material are 304 stainless steel.
Large end cap shaft
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery
Packaging | ||
Size | 3700 (L) * 1500 (W) * 1700 (D) | |
Weight | 4500 kg | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
Packaging | ||
Packaging Details | Machine freight by truck or container. Container machine be fixed by steel wire, to make sure all of them not be damage by transport jolt. | |
