Plastic pellet cutter gantry strand pelletizer

Product Overview

Description

Plastic pellet cutter gantry strand pelletizer

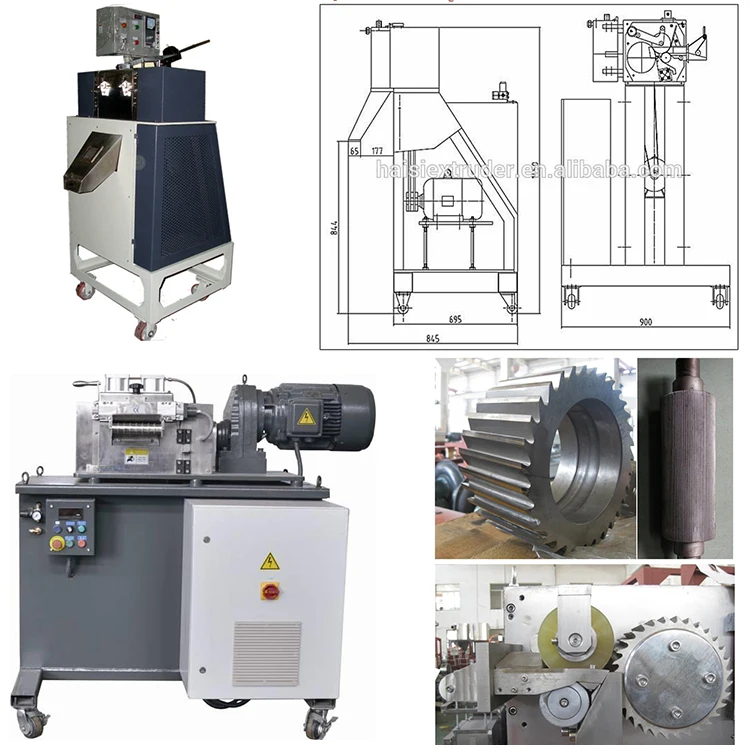

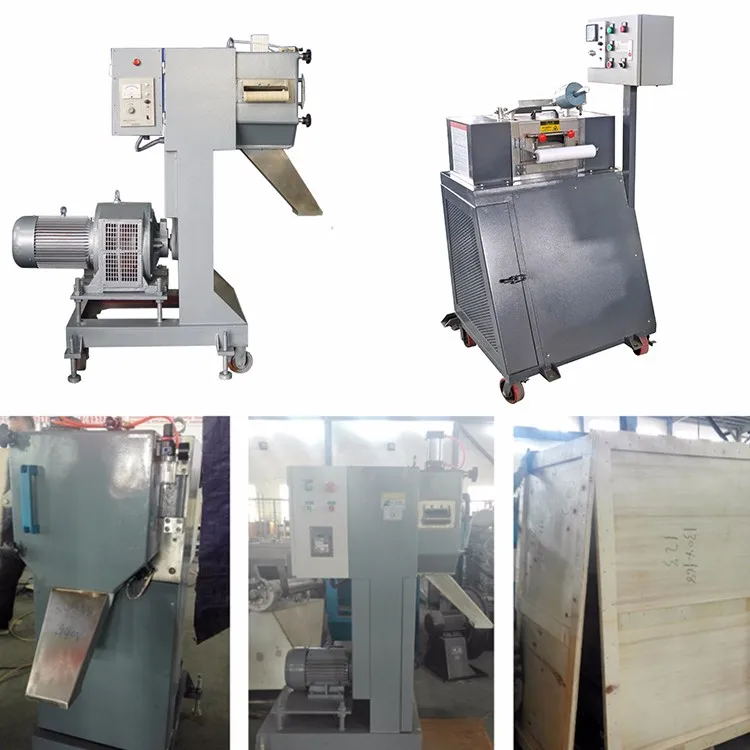

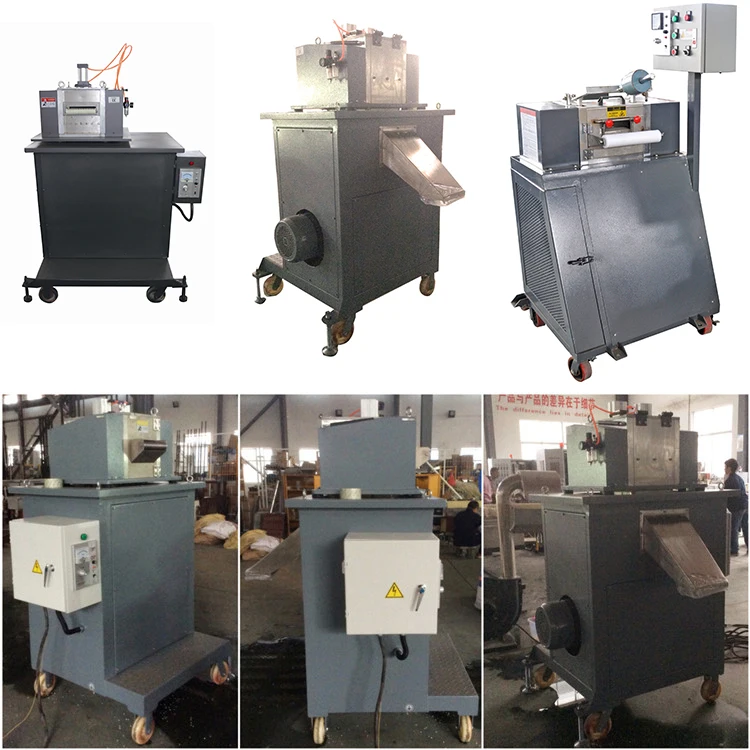

1.Cantilever Pelletizer

Parameter:

Model	HS-LQ 60	HS-LQ 300	HS-LQ 500	HS-LQ 900
Max output	60kg/hr	300kg/hr	500kg/hr	900kg/hr
No. of strand	6	15	625	42
Standard pellet	3x3mm	3x3mm	3x3mm	3x3mm
Cutter dimension	120x60mm	120x100mm	200x200mm	200x300mm
(L*W*H)	14 tooth	32 tooth	32 tooth	32 tooth
Effective rotation speed	350-1000rpm	350-1000rpm	350-1000rpm	350-1000rpm
Haul off speed	0-36m/min	0-96m/min	0-96m/min	0-96m/min
Motor power	1.5kw	3kw	5.5kw	11kw
Rotated cutter   clearance	0.06-0.12mm	0.08-0.12mm	0.08-0.12mm	0.08-0.12mm
Leading roller	PU	PU	PU	PU
Driver control	Frequency inverter
AC motor	3 Phase / 380 V / 50 Hz
Material of cutter	High-speed Steel / Hard Alloy











































Advantages:

• High quality & reasonable price
• Low noise
• Easy operation
• Available for various plastic raw material, like PP, PA, PBT , ABS, AS, PC, POM, PPS, PET, etc.
• Produced as customer required
• Motor can be controlled by Frequent Inverter control to meet customer productivity demand.

Application:

The Cantilever Pelletizer is designed to produce uniform pellets in wide varieties of size for most of any plastic material.

Design:

The Cantilever pelletizer is supplied with high speed steel and hard alloy steel cutting blades for reliable performance. Compact structure allows less maintenance. Production platform is well designed and strong enough for operation. Cutting assembly is featured with quick clean and change over.



Control

Motor can be controlled by Frequent Inverter control to meet customer productivity demand



2.Gantry type grabulator specially for soft rubber











Parameter:



Machine Model	Motor Power	Speed Control	Number of Strand	Maximum hauling speed(m/min)	Particle size(mm)	Maximum output (kg/h)	Rotating knife dia.×L (mm)	Rotating knife teeth	Rubber diameter L(mm)	Dimension (mm) (L×W×H)
LQ-2000 gantry	15~22	Slip/Inverter	≤60	96	φ3×3	≤2000	φ200×400	32	φ120×400	1200×1180×1860



Advantages:

LQ-2000 gantry type pelletizer is the machine with highest output by far with capacity around 800~2000kg/h .Suggested cutting noodle number is 30~60.
1.Large and steady stucture,good for safe production
2.Convenien cleaning and maintenance
3.High-endurance knife and roller,good for continuous work
4.Safe and reliadle operation,equipped with safety control switch
5.High accuracy,smooth and even pellet cutting
6.Can add noise-proof cover to lower noise
7.High Accuracy,can cut soft materials
8.The highest capacity can reach aroud 2000kg/h
