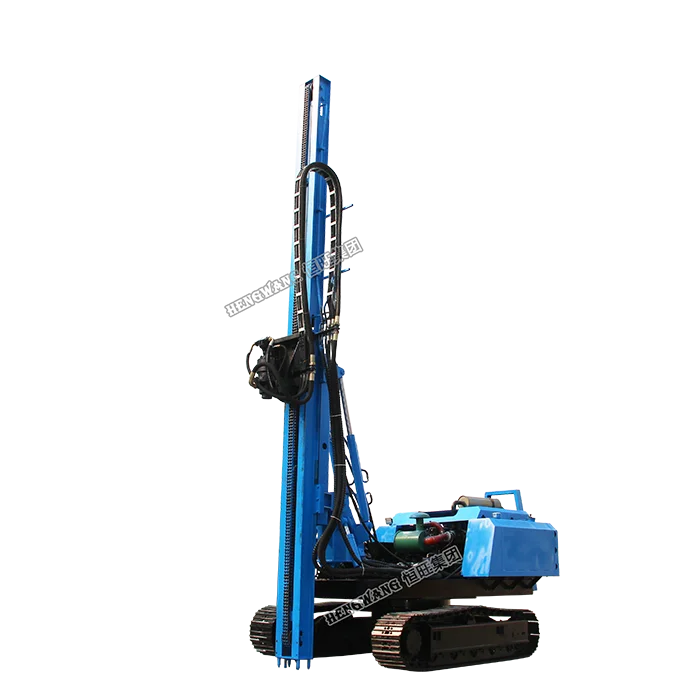

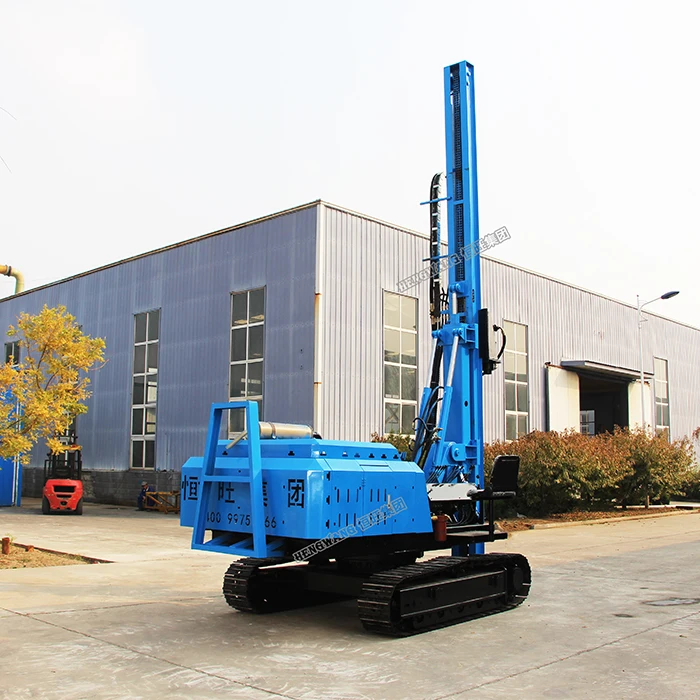

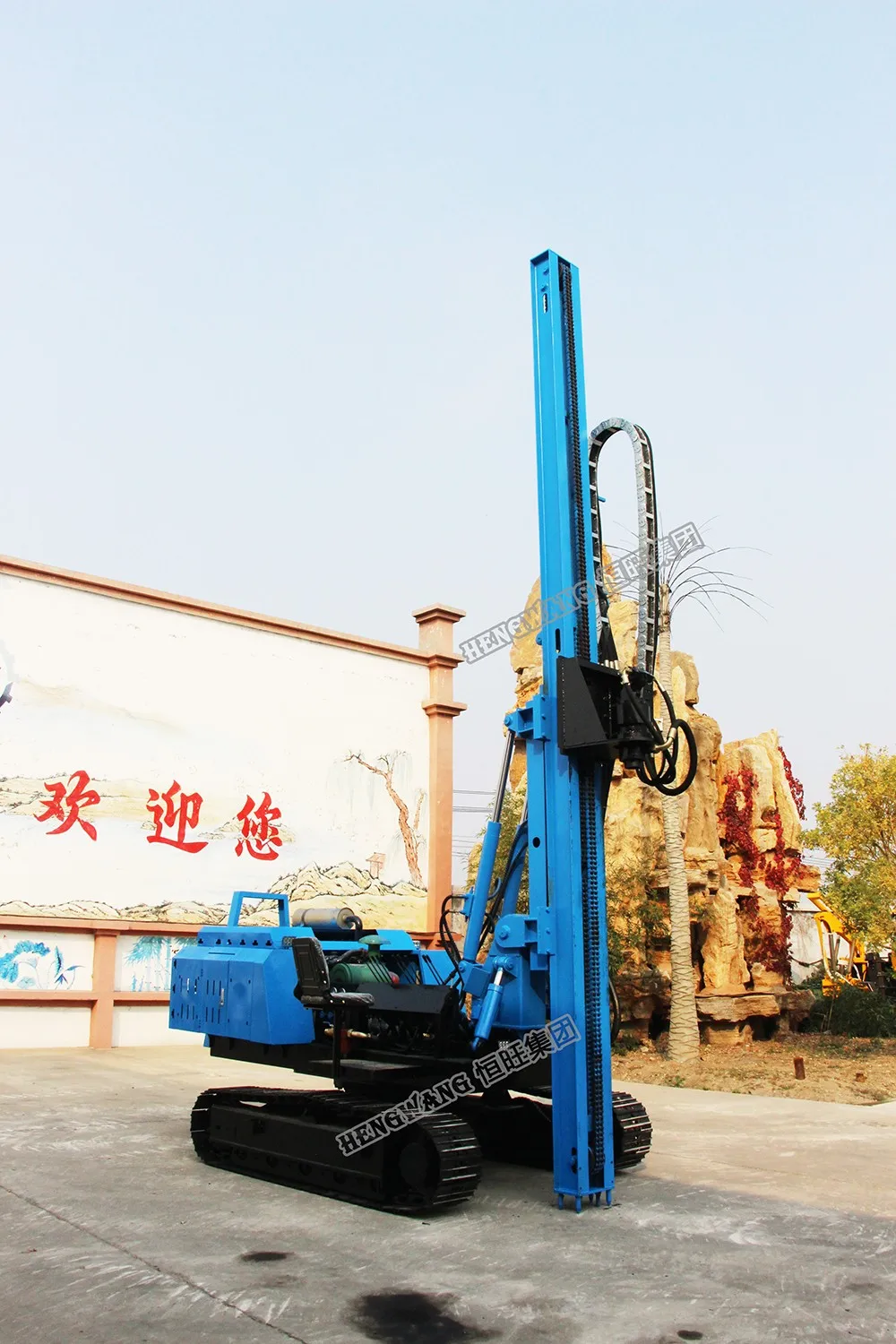

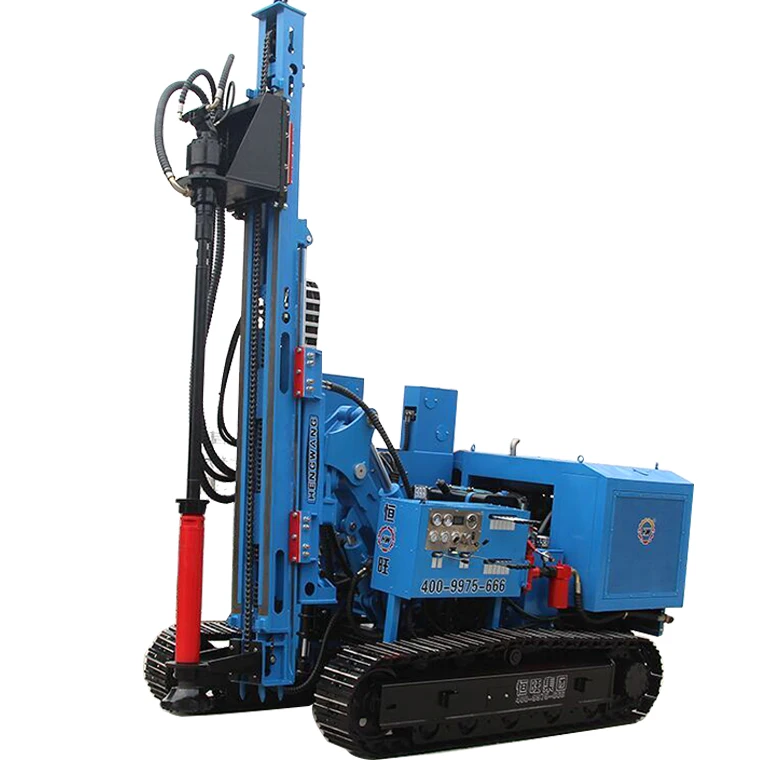

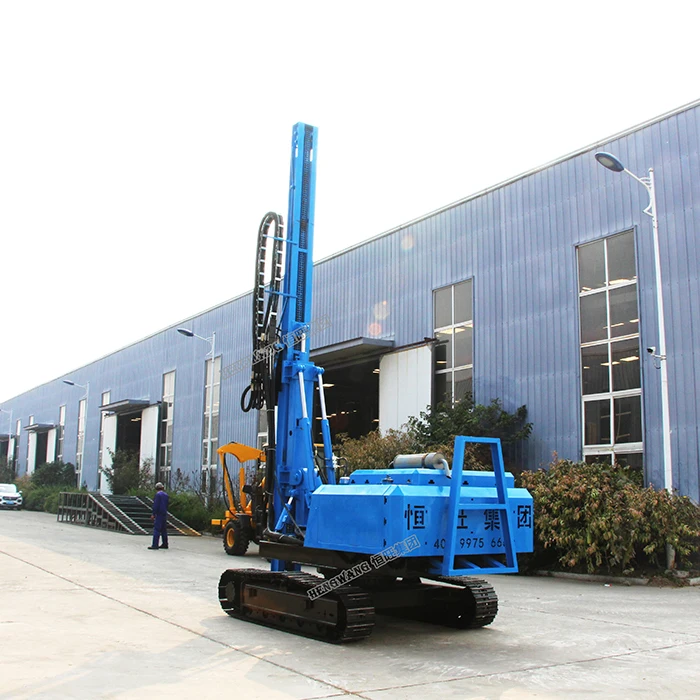

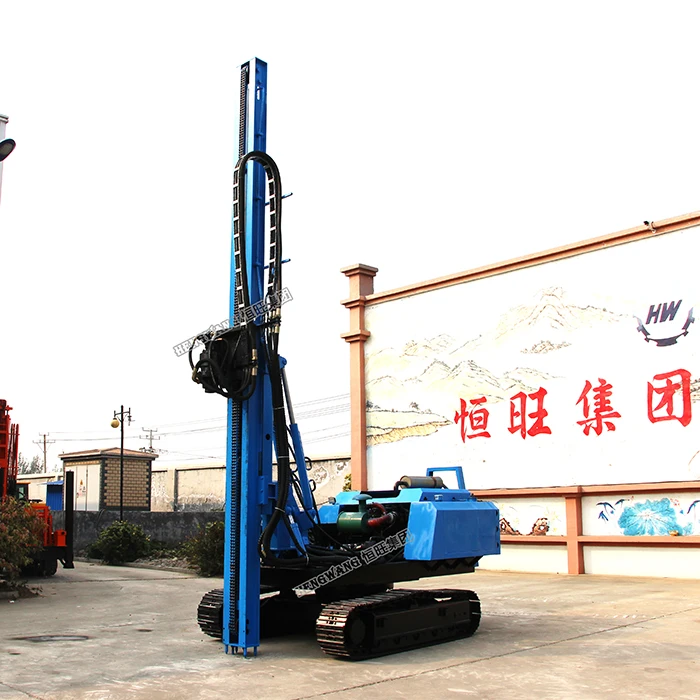

Solar pile driver for tractor ramming machine
Solar pile driver for tractor ramming machine
Solar pile driver for tractor ramming machine
Solar pile driver for tractor ramming machine
Solar pile driver for tractor ramming machine
Solar pile driver for tractor ramming machine
Solar pile driver for tractor ramming machine

Solar pile driver for tractor ramming machine

Share on (60806325582):


Price:$15,000.00 - $25,000.00

Quantity:


Product Overview

Description



Product Description


Multifunction full hydraulic solar pile driver Introductions



1. Multifunction full hydraulic solar pile driver , using a new hydraulic technology, low consumption, large rotary torque,move the hole and shift the position is convenient.
2. The drilling rig structure is compact, it has a telescopic compensation function when promoting the slide carriage, the slide carriage supported on the ground when drilling, the drilling stability is very good.
3. The drilling rig is mainly used for piling anchoring, well ,photovoltaic solar rotating pile and water conservancy, power plants, open-air mining, road construction and other stonework blast hole drilling and so on.





SPECIFICATIONS FOR HAMMER PILE DRIVER
Model
HWZGX-600L
Hammer impact
780J
Pile length
0-6000mm
Duplex gear pump pressure
20Mpa
Duplex gear pump displacement
40ml/r
Hydraulic system pressure
20Mpa
Main valve flow
120L/Min
Overall Machine weight
6T
Diesel engine power
80kw
Rated Speed
2400R/min
Starting Voltage
24V
Rotation angle
360o
Rotation semi diameter(rotating shaft to Pod distance)
1925mm
Effective press pile stroke
0-3000mm
Dimension(LXWXH)
6200×2200×2850mm
Track shoe
350mm
Walking motor total displacement
1575ml/m
Walking motor rated pressure
18Mpa
Walking motor output torque
4300N.M
Walking motor rotate speed
50r/min
Press Pile Diameter
0-600mm
Drilling Depth
0-6000mm
Operating Speed (m/min)
1.590s/per pile
Number of impacts / strokes per 1 minute
900times/min
Maximum lengh of Piles to be rammed
6M
Walking speed
5-10Km/hr
Gradeability
0-35o
Oil tank capacity
200L












Advantages

1.the machine can 360 degree rotary , it is very convenient for working.
2.the working speed is fast, it only takes 90s can finish one pile.
3.our machine can work on the big gradient.


Detailed Images




Packing and Delivery






After-Sales Services


Engineer in Customer Working Site
1. we machine warranty is one year;

2. Free Spare Parts are available;

3. Engineers are available for site teaching and debugging;

4. Strong after-sales service, no worry about machine using and working;


Our company














Working Case






FAQ


Q1.What is the main function of our pile driver?



Ans.: It has different models used for all kinds of PV post install, it is the best choice forsolar power station

construction.



Q2. What is your terms of payment?

Ans.: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and

packages before you pay the balance.



Q3. What is your terms of delivery?

Ans.: EXW, FOB, CFR, CIF.



Q4. How about your delivery time?

Ans.: Generally, it will take 7 -10 working days after receiving your advance payment.

The specific delivery time depends on the items and the quantity of your order.



Q5. What is the warranty of our machine?

Ans.:Our main machine enjoys a 1 year warranty(except for the hammer), during this time all accessories

broken can be changed for a new one.And we provide videos for machine install and operation.


Q6. What is your terms of packing?

Ans.: Generally, we use standard exported wooden case for LCL goods, and fixed well for FCL goods.



Q7. Do you test all your goods before delivery?

Ans.: Yes, we have 100% test before delivery.And we will attach our inspect report for every machine.


Q8.Do you Preferred provide wear parts for transacted clients?

Ans.: Yes, we have recor d s for your clients, and will  prefer  provid ing  accessories to clients.



Q9: How do you make our business long-term and good relationship?

Ans.: 1. We keep good quality and competitive price to ensure our customers benefits;                                            2. We respect every customer as our friend and we sincerely do business and make friends with them,

no matter where they come from.



Q10.Do you have any certificates for your machine?

Ans.: All of our products coming with the certificates of CE, ISO9001.
