IBEST M12 PNP NPN 3 Wires 5V dc 12V 24V Waterproof Metal Position Detector Inductive Proximity Limit Switch Sensor

Product Overview

Description

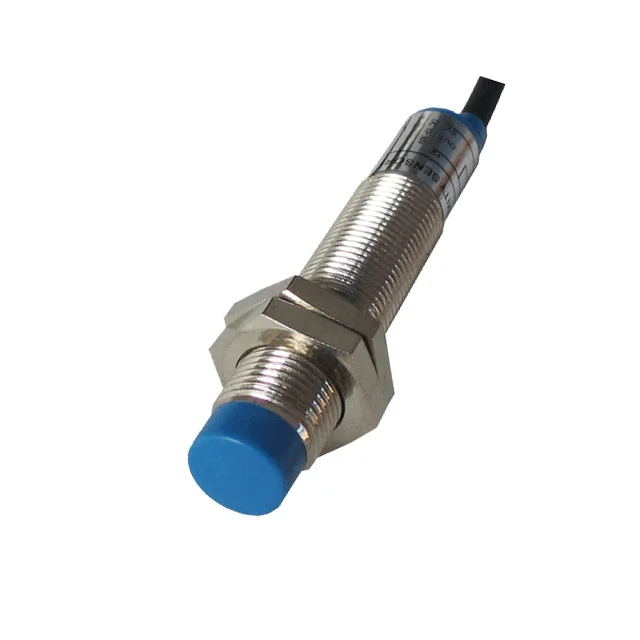

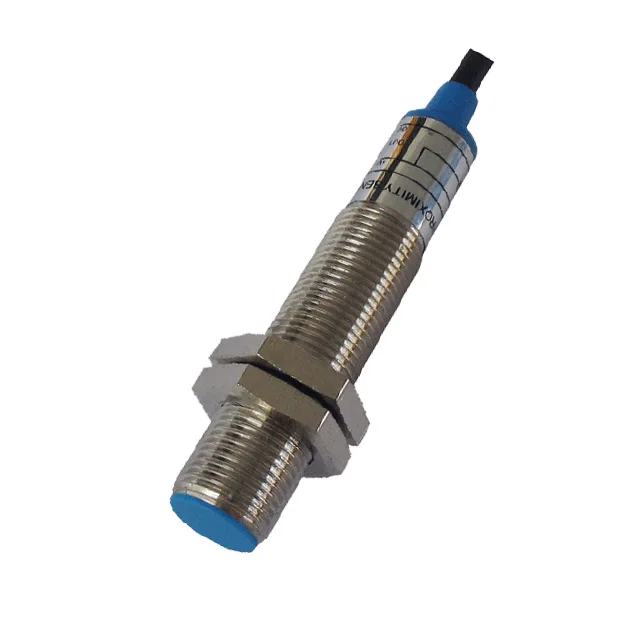

IBEST M12 Cable Type Inductive Proximity Sensor Switch

PNP or NPN NO or NC Output 3 Wires/Flush 2mm or Non-Flush 4mm





1. Features :

--     Inductive proximity sensor, style: cylinder, diameter: 12mm
--     Detect Distance: Unshielded 2mm or shielded 4mm type . (Extended distance is available, Flush 4mm or non-flush 6mm)
--     DC 2-wire (10-30V DC), DC 3-wire(10-30V DC), DC 4-wire(10-30V DC),AC 2-wire (90-250 AC) type

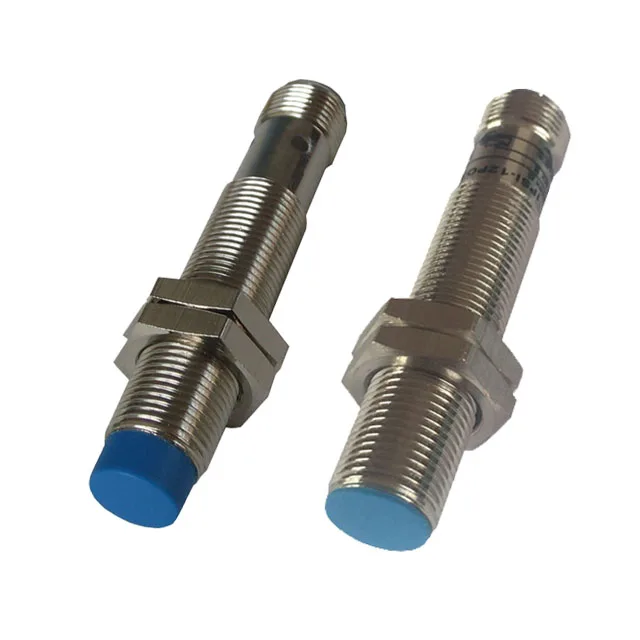

--     Connection mode: with 2 meter PVC cable. (M12 connector type is available also)

--     With LED operation indicate lamp, easily identifiable
--     Brass chrome plated, proof of oil, water acid, alkaline
--     Standard sensing object: iferrous metals;
--     Over load, short circuit protection , against polarity reversal
--      IP ratings: IP67

--      Various other shapes: M5/M6/M8/M18/M30, square types and pancake types.
--      Widely applied in measuring, Counting, Rpm measuring in mechanism, chemical, paper manufacture light industry, etc . --      Reliable quality to replace famous brands .

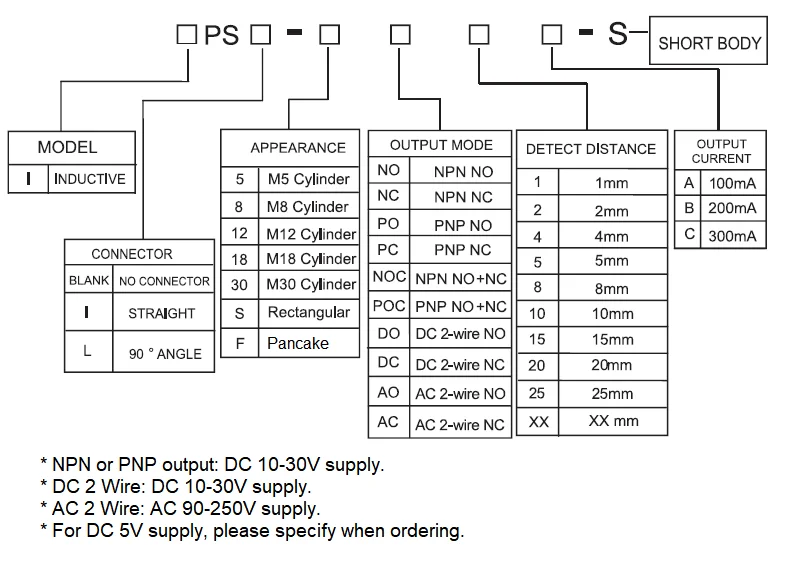

2.Ordering code:

3. Technical Specifications:

Property project Specific parameter Mounting distance shielded: 2mm / unshielded : 4mm (Or  special extended distance) Sensing distance shielded: 0-1.8mm / unshielded : 0-3.6mm Power supply DC 10-30V / AC 90-250V Frequency DC:  ≤800Hz / AC:≤20Hz Current output DC:≤ 200mA / AC: ≤ 300mA Ambient temperture -15-+65 C Protection DC:Over-Load & short circuit protection. IP rating IP67 Water Spray Resistant



4. Sensor dimensions, Specs & Wires Connection:
