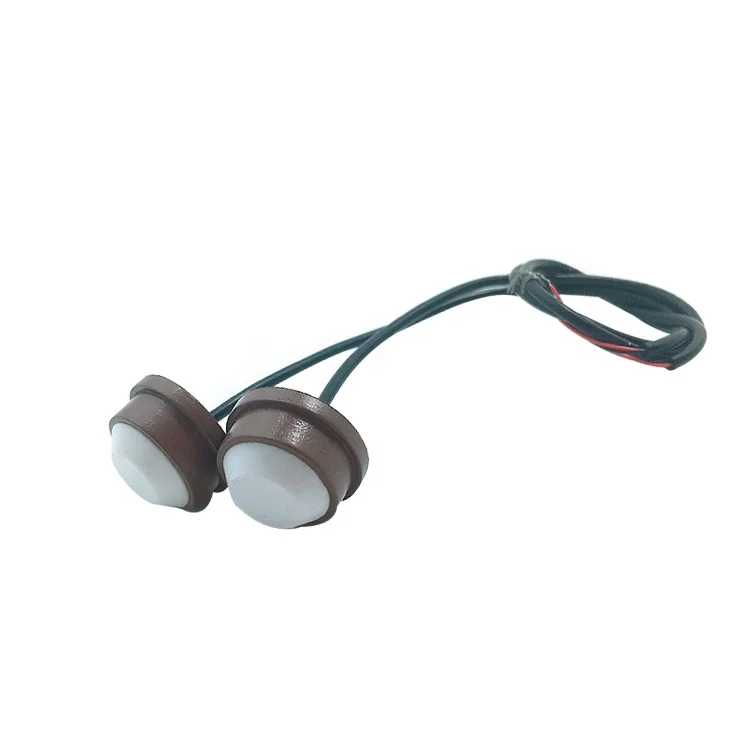

JIAKANG Piezo 200KHz UltrasonicTransducer for Air Flow Meter

ELECTRICAL SPECIFICATIONS

  Items

Unit

Content

Nominal Frequency(Fn)

kHz

200±10

Static Capacitance(CP)

pF

2000±20%

Signal Sensitivity

mv

≥20

Operating temperature range

-40~85

Appearance: No visible damage and dirt.

The products conform to the RoHS directive and national environment protection law.

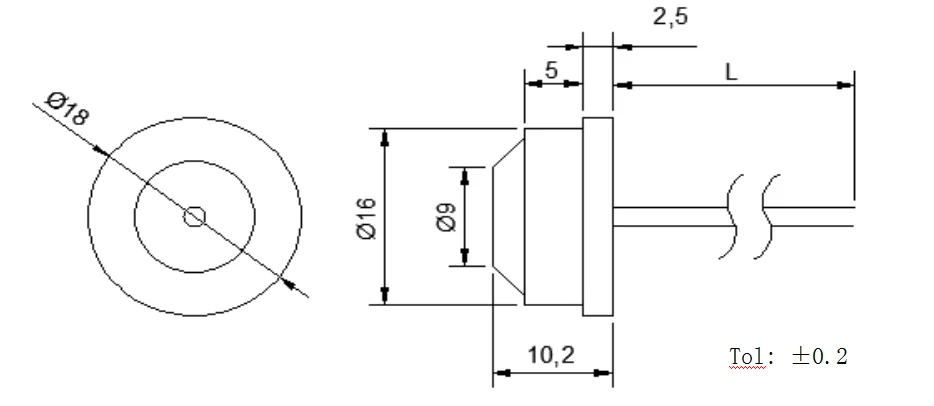

Dimensions (Unit: mm)

TEST

 Test Conditions

Parts shall be measured under a condition (Temp.:20℃±15℃, Humidity: 45%~85% R.H, Temperature: 40±5℃.).

 Test Methods

  Ceramic ultrasonic transducer, the core element of ultrasonic flow meters, is a liquid-medium sensor. It can be used in liquid flow meter, or as liquid level sensor. Products are made from the piezoelectric ceramic developed by ourselves, has the advantages of better temperature stability and superior piezoelectric effect.

  We have been in the research and development of PZT materials and products nearly 30 years.We are director of Piezoelectric Ceramic Device Specialized Committee, in charge of drawing China’s “The 11th Five-year Plan” and “The 12th Five-year Plan” for development of piezoceramics. Chooosing us will make your developping process earlier and faster.
