Liitokala 24V 4000mAh rechargeable 10A lithium battery discharge 7S2P 18650 29.4V 4ah lithium ion bms scooter battery pack

Product Overview

Description

The last British liitokala brand label.
24V 4ah lithium ion battery 24V 4ah 4000mAh 15A BMS 250W 24V 350W battery kit Motor Scooter Motor power + 2A charger
We offer a variety of lithium battery packs, OEM services, contact us if you have any questions!

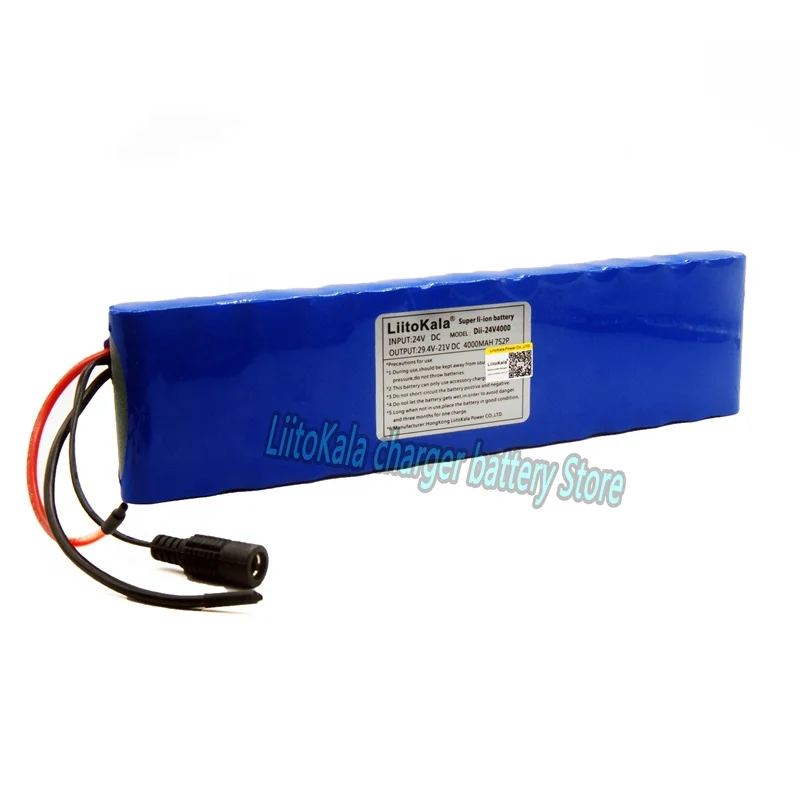

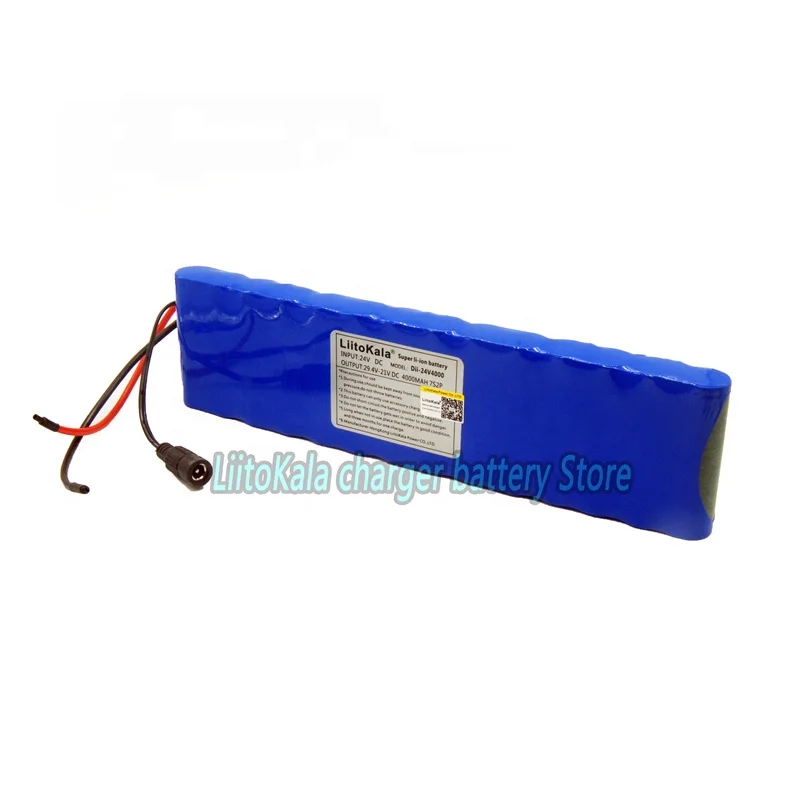

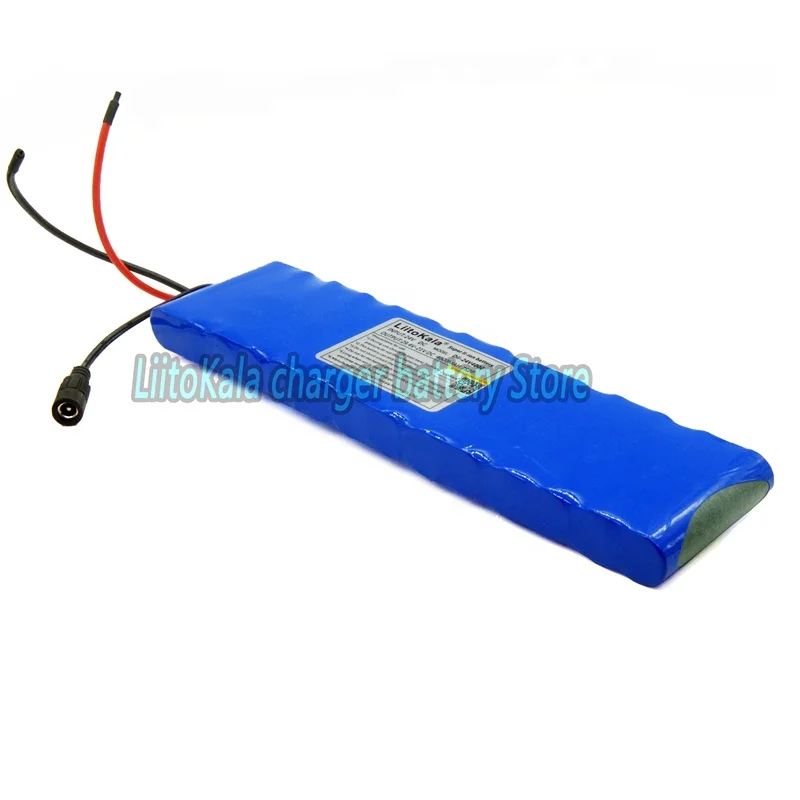

Lithium ion battery 24 V 4 Ah with PVC housing, BMS built-in, high quality charger.
Specification:
Battery type 24V4Ah
Nominal Capacity (AH) 4ah
Nominal Voltage (V) 24 V
Cutting voltage (V) 20 +/- 1 V
Load cut-off voltage (V) 29.4 V
Rated discharge current (A) 15A
Maximum instantaneous discharge current (A) 36A
Direct discharge continuous discharge (A) 18A
Direct current continuous load (A) 5A
Charge mode CC / CV
Standard charging current (A) 2A
Charging time under the standard charging current (h) 6
Fast charging current (A) 3A
Charging time in fast charging current 3
Load temperature range -20-60 ° C
Discharge temperature range -20-60 ° C

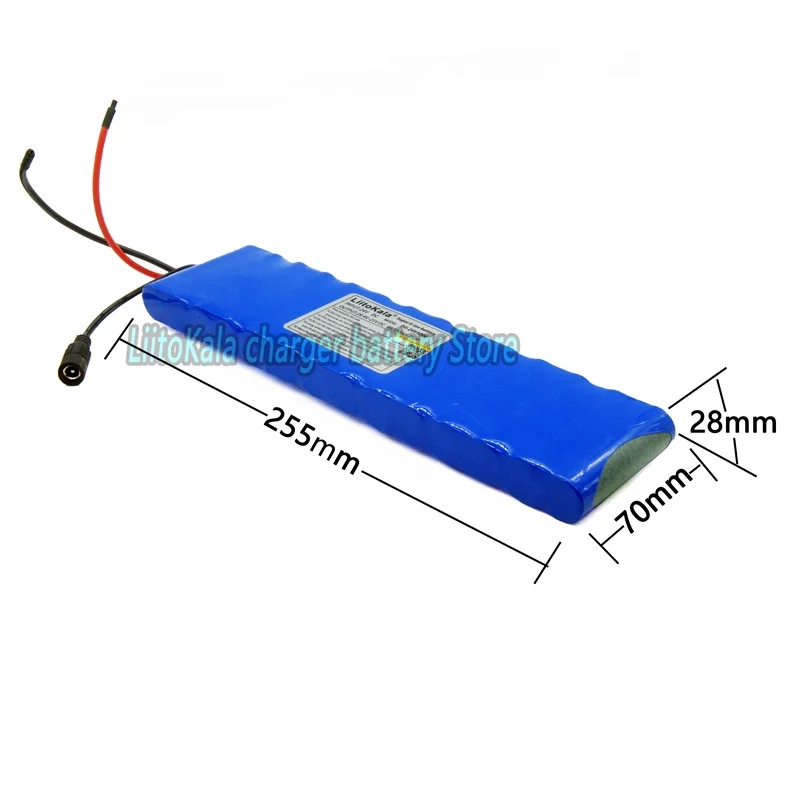

Battery size 255 * 70 * 28mm (can be customized)
The battery weighs about 1 kg
Note: The image is for reference only, the final size may not be very different.
Life Cycle: more than 1000 times

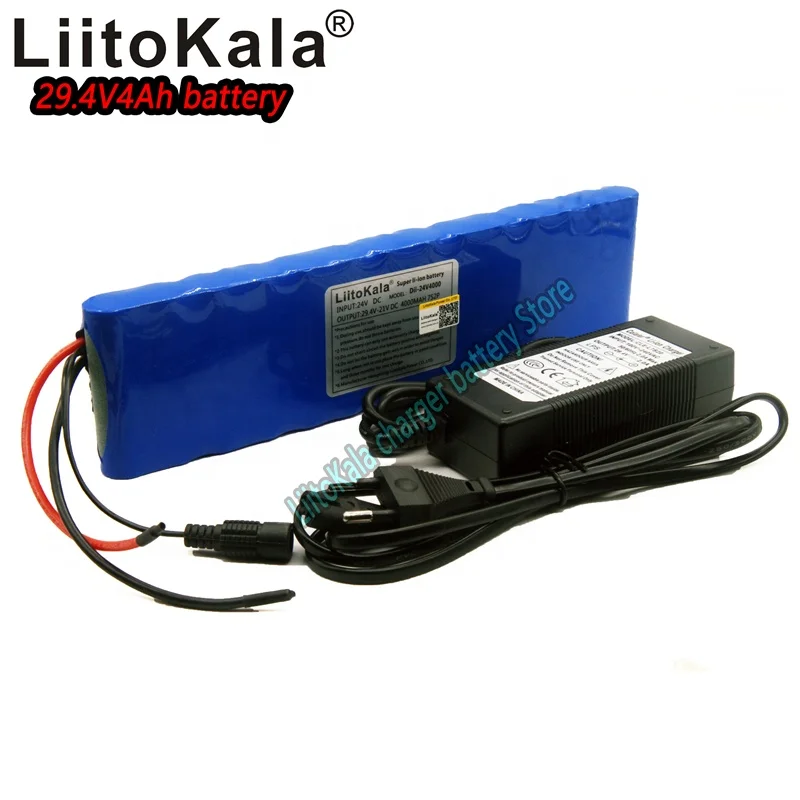

Packing list:
1. One 24V4Ah battery pack (7S2P) with intelligent BMS protection plate
2.1 29.4 V 2A mps lithium ion battery charger.
Specifications of the lithium ion charger:
1. AC input voltage: 100-240 V.
2. load voltage: 29.4 v.
3. Charging current: 2 amps.
4. AC charger plug: EU / US / UK / Australian Standards, you can leave a message
