Mining Stone Industry Ceramic Industry Membrane Filter Press Plate
US $20.00-$80.00
Plate and Frame Filter Press Machine
- Category: Filter Press Equipment >>>
- Supplier: Dezhou Daohang Machinery Co. Ltd.
Share on (60806436253):
Product Overview
Description
Product Description

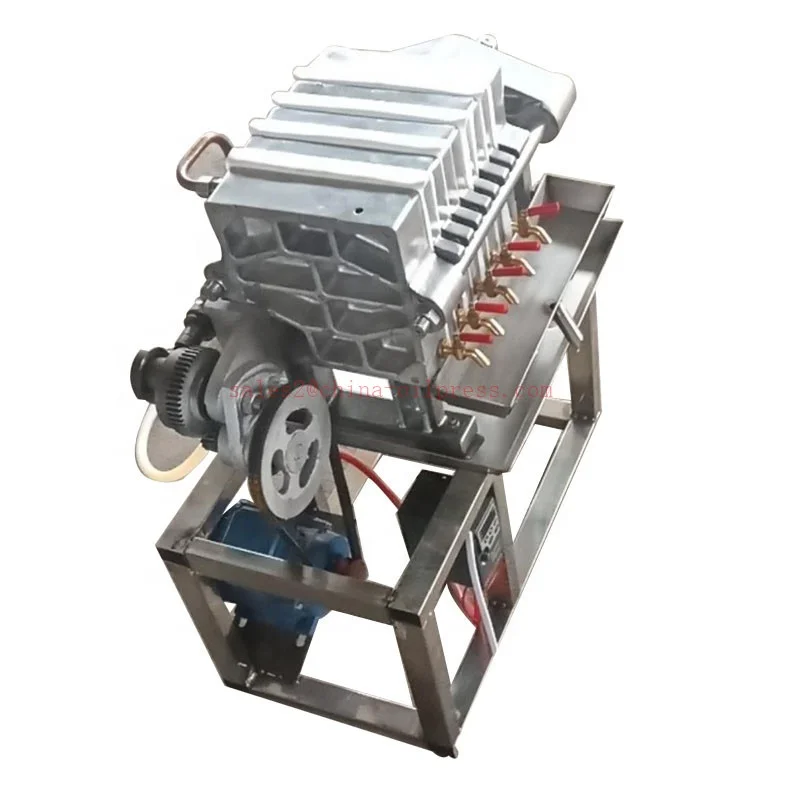

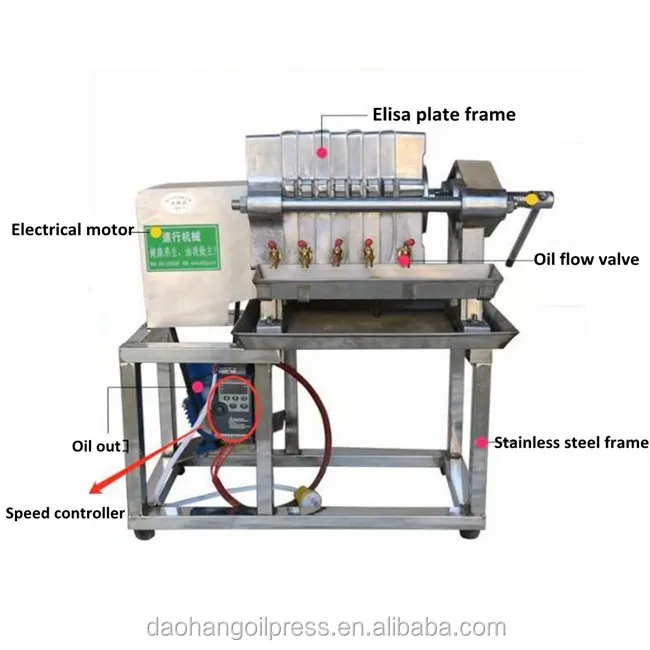

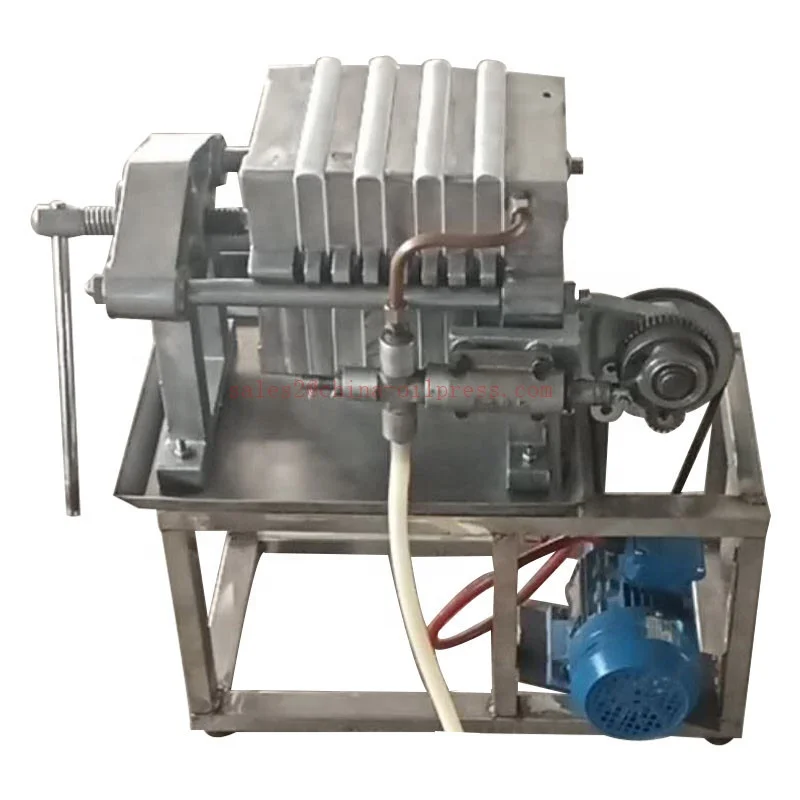

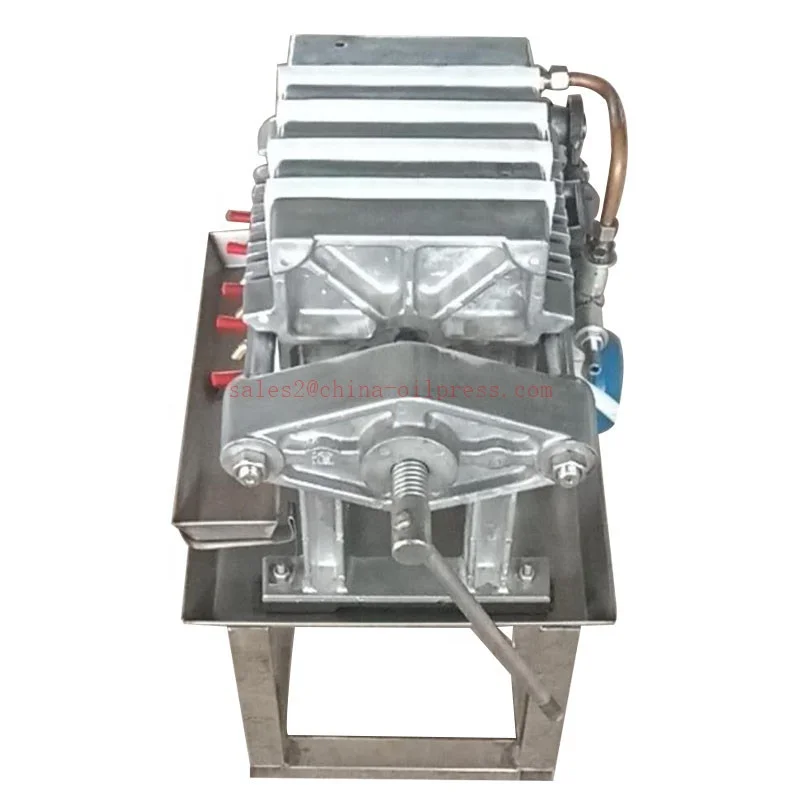

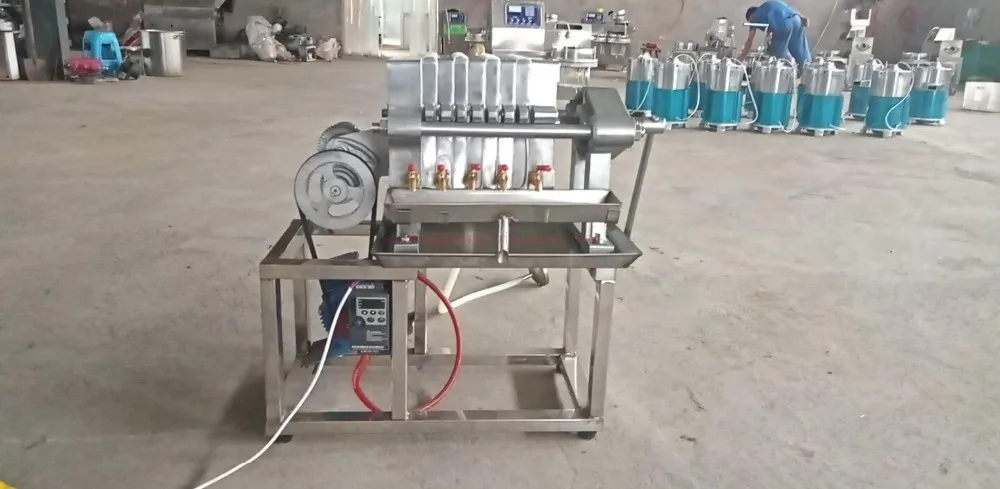

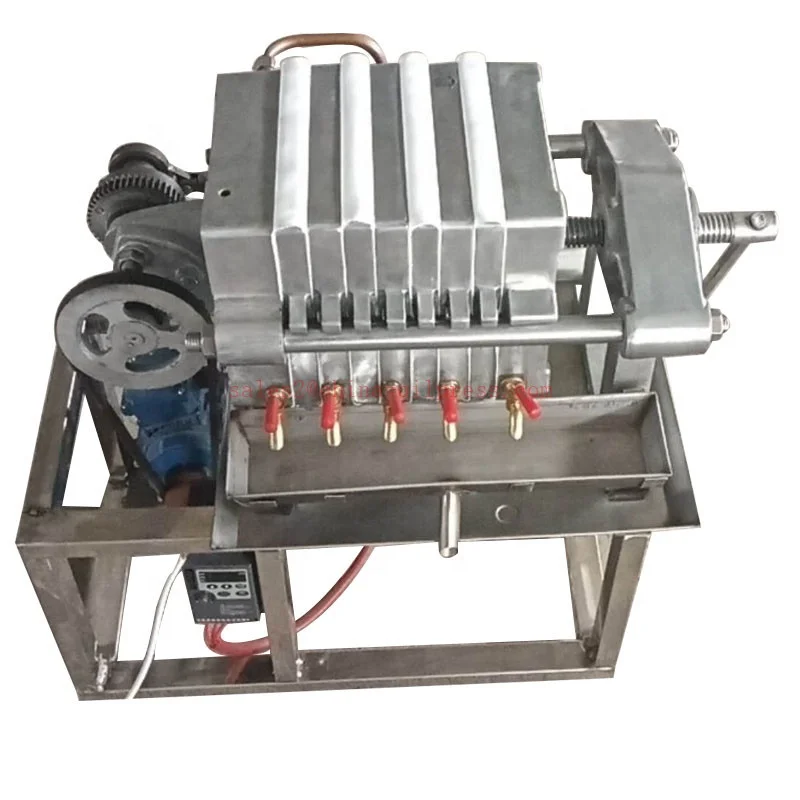

This frame oil filter is composed of filter plates, filter frames, plunger piston pump and filter cloth, etc. When the crude oil is pumped into the filtering machine, under the different pressure in and outside the machine, the crude oil go through the filtering cloth and come out from the pipe under the filter plate, while the oil dregs remains on the surface of the filtering cloth,thus realizing the filtering process.
Product Features
1.It have 5 filter nipple,the pumping speed can be adjusted by itself
2.Light-weight ,convenient flow, rustless
3.Rapid filtration
4.Plate-and-frame material:aluminium alloy;Frame material:stainless steel
5.Pump Type:Plunger Piston
Parameters
Model | DH Plate-and-Frame Oil Filter Machine |
Voltage v | 220 |
Total Power w | 0.55 |
Capacity kg/h | 50 |
Dimension mm | 730*490*680 |
Net Weight kg | 50 |
Applications
Mainly used for filtering series kinds of plant crude oil, such as peanut/sesames/rape-seeds/sunflowers,etc.
