Textile Lab Small Semi automatic Fabric Rapier Sample Weaving Loom DW298

Product Overview

Description

MODEL NO.

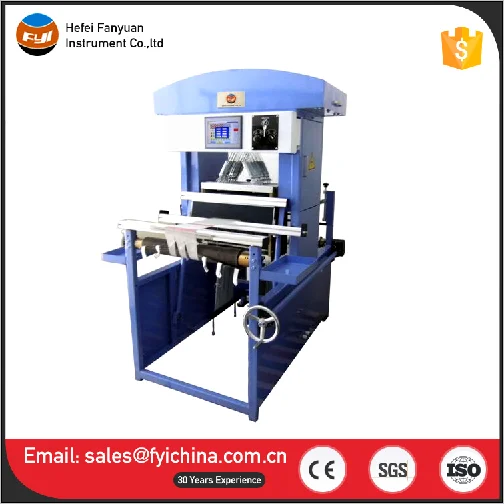

DW298  Textile Lab Small Semi-automatic Fabric Rapier Sample Weaving Loom



Application:

Textile Lab Small Semi-automatic Fabric Rapier Sample Weaving Loom is used for sample weaving of all kinds of fabrics, such as cotton, hair, jute, silk, chemical fiber, blending, etc. It consists of shedding mechanism, weft insertion mechanism, beating-up mechanism, take-up mechanism, let-off mechanism, weft selection mechanism, electrical control mechanism, etc. It is widely used in weaving mills, scientific research units, textile institutes and foreign trade companies, etc.



Features of Lab Semi-automatic Rapier Sample Loom:

1. Integrally welded by seamless rectangular steel pipe, reasonable construction and good rigidity;

2. Outer surface treated by baking varnish, good brightness and nice appearance;

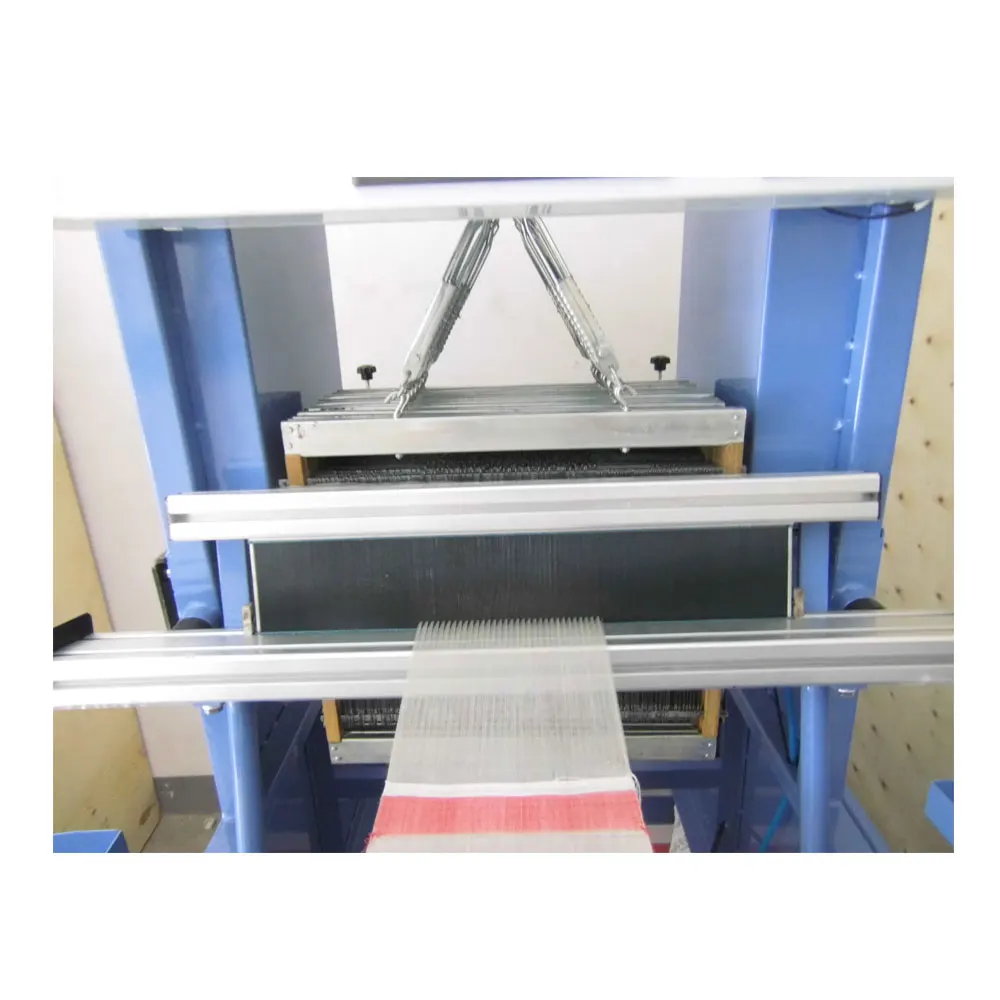

3. Adopting pneumatic shedding mechanism to avoid the disadvantage of easy to wear for traditional peg mechanical structure;

4. Stable operation, low noise and high reliability;

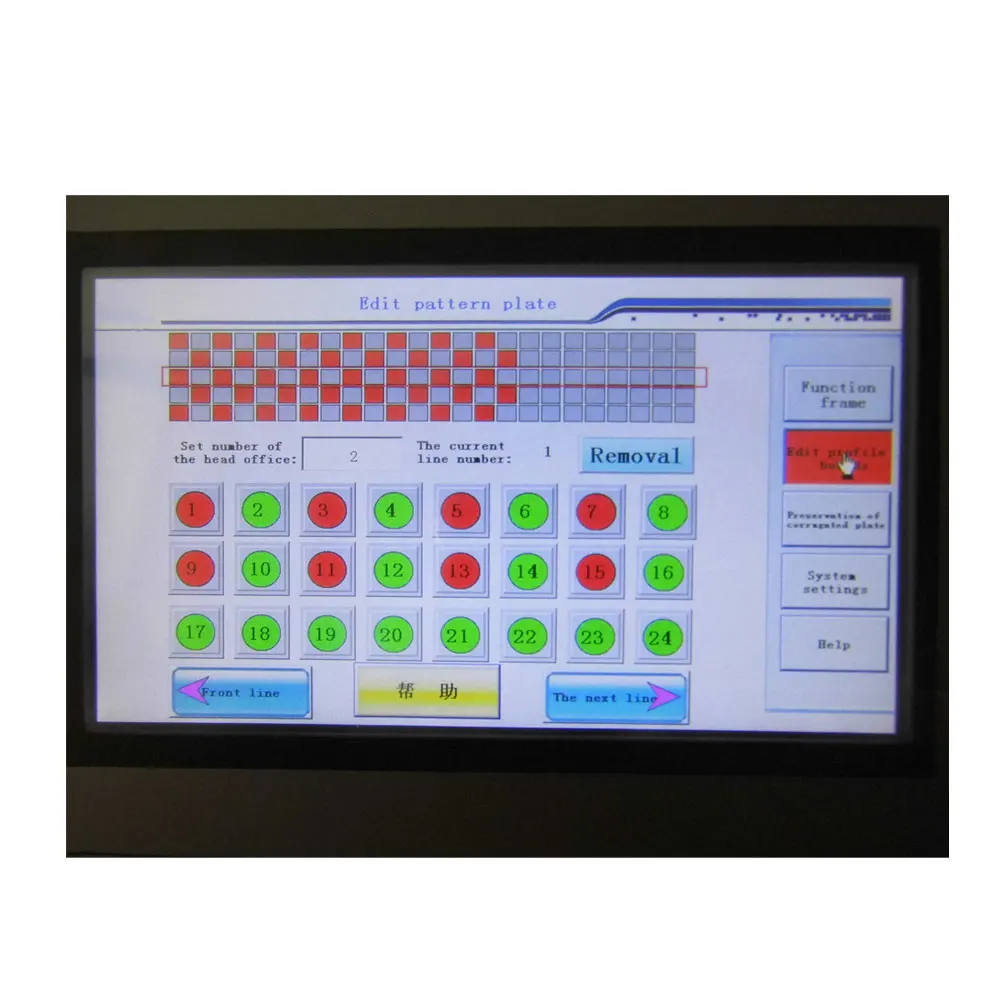

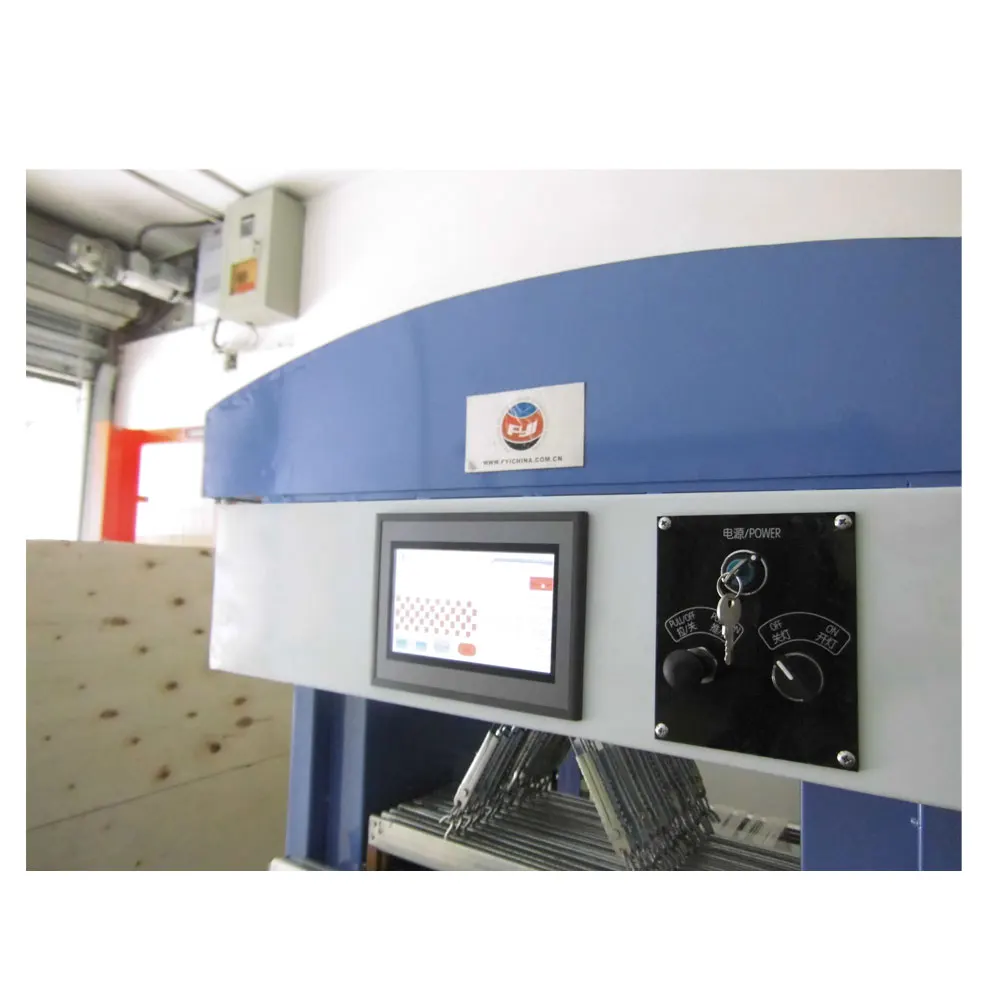

5. PLC control touch screen, storing 6pcs of pattern cards and 1000 lines reachable for each pattern card;





Key Specification small sample weaving loom:

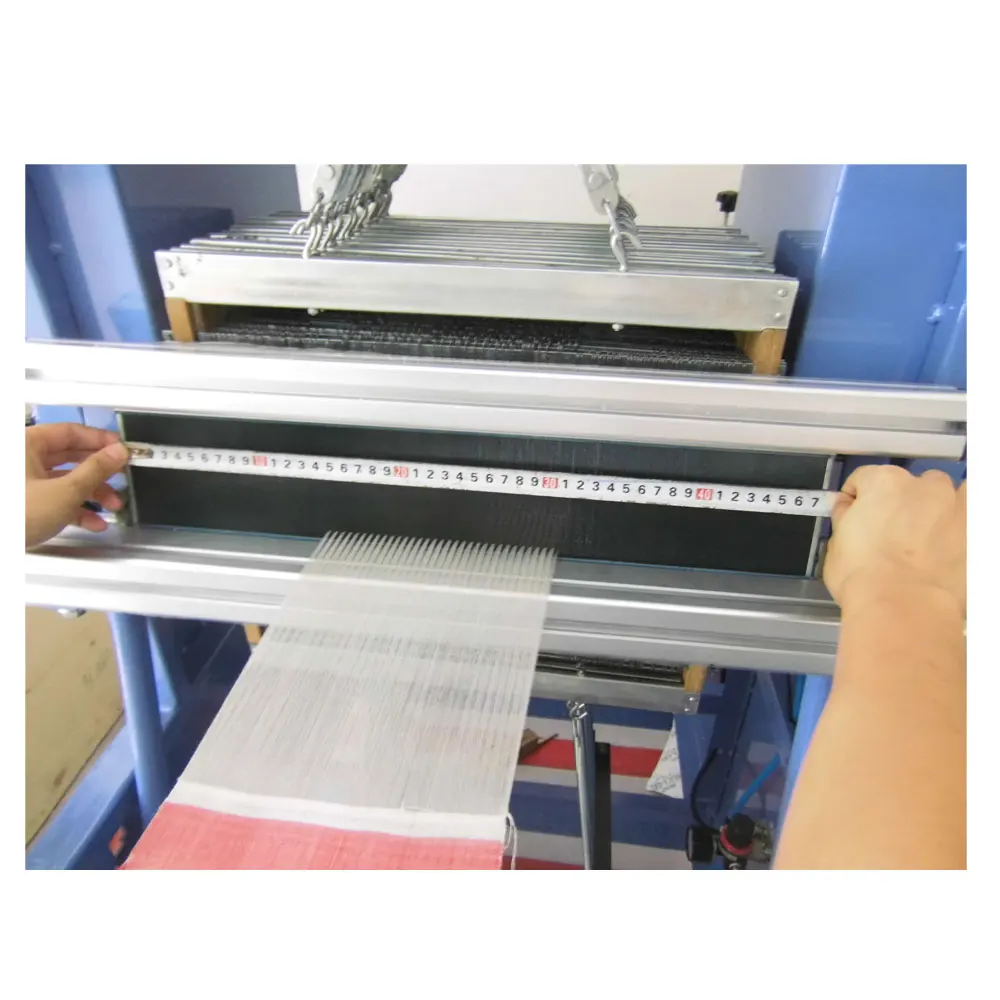

Reed width	20inch
Color selection	Manual
Number of heald frame	16 (20 or 24 optional)
Take-up	Manual
Beat-up	Manual
Shedding	PLC control, pneumatic
Air source pressure	0.45~0.8Mpa
Air consumption	200L/min (max.)
Power supply	AC220V 50Hz
Dimensions	1300×980×1510mm
