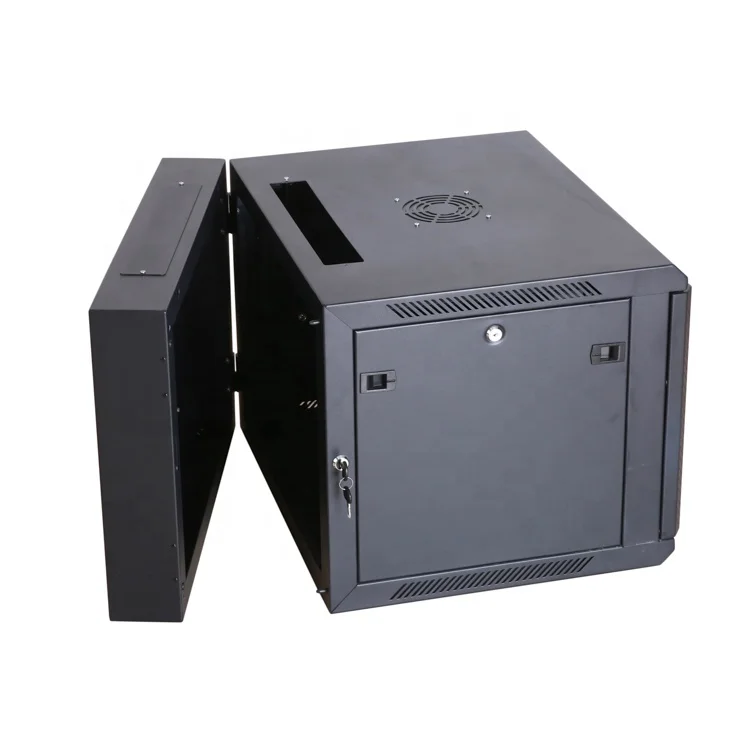

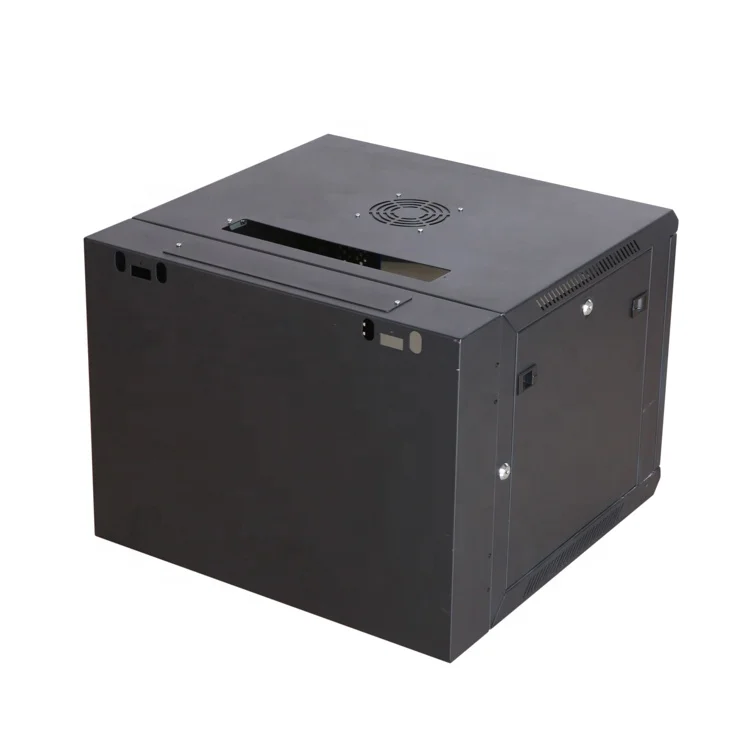

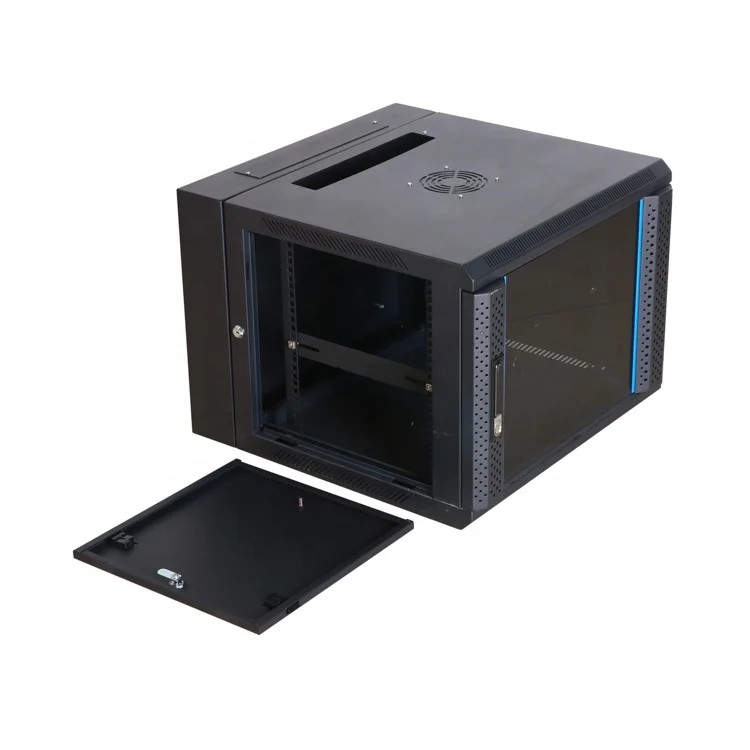

wall mounted server cabinet for telecommunication equipment

Features:

Wall Mount Cabinet
*Two Section/ Double Section Wall Mount Cabinet
*Can be Disassembled, Flat Packing, Save the Shipping Cost.
*Standing or wall mounting installation
*Adjustable feet and heavy duty castors are optional
*Easy mounting installation
*Removable side panels, side locks optional
*Cable entry on both of top cover and bottom panel
*120mm fan available (220V or 110V)
*Turning angle of front door is over 180 degrees.

These 2 section 600mm deep wall mount data cabinets are designed with versatility in mind. When mounted on the wall, the cabinet can swing open, providing access to the rear of the cabinet for easy installation and maintenance of equipment. Lockable and removable side panels also provide easy access to the cabinet.



Cable entry is provided top and bottom of the cabinet and also in the rear swing section.


Standard:

Comply with ANSI/EIA RS-310-D, IEC297-2, DIN41494; PART1, DIN41494; PART7, ETSI Standard

Material:

High grade cold rolled steel.

Thickness:

Mounting profile: 2.00mm others: 1.2--1.5mm

Loading Capacity:

Static Loading: 60kgs

Surface finish:

Degrease, acid pickling, rust prevention and Parkerizing, pure water cleaning, static electricity plastic painting.

Degree of Protection: IP20

Body Color:

RAL7035, RAL9004 etc.

Optional Accessory:

Fixed/cantilever shelf, sliding shelf, for 600mm, 800mm, 900mm, 1000mm depth cabinet

19'' keyboard frame (350mm, 550mm, 650mm, 730mm)

1U, 2U support board

Vertical Cable manager

19'' Power distribution unit(PDU)

19'' Blanking plate 1U, 2U, 4U

Heavy duty castor, Heavy duty castor with braker

Optional lock for side panels

Earth kit

And so on...

Related Products

Our Company

With years of export experience along with excellent quality, advanced services and competitive prices, Longtu has won numerous customers' trust and support.

Certifications

Delivery

Applications of Our Cabinets

Rack cabinets for Information Technology and telecommunication appliances use:

• Small, Medium and Large Servers
• DVR, Security Equipment and Routers
• Patch Panels and Switches
• Telephone Systems and PABX
• Network and Communications Equipment
• UPS Equipment
• Other Rack Mount Equipment
