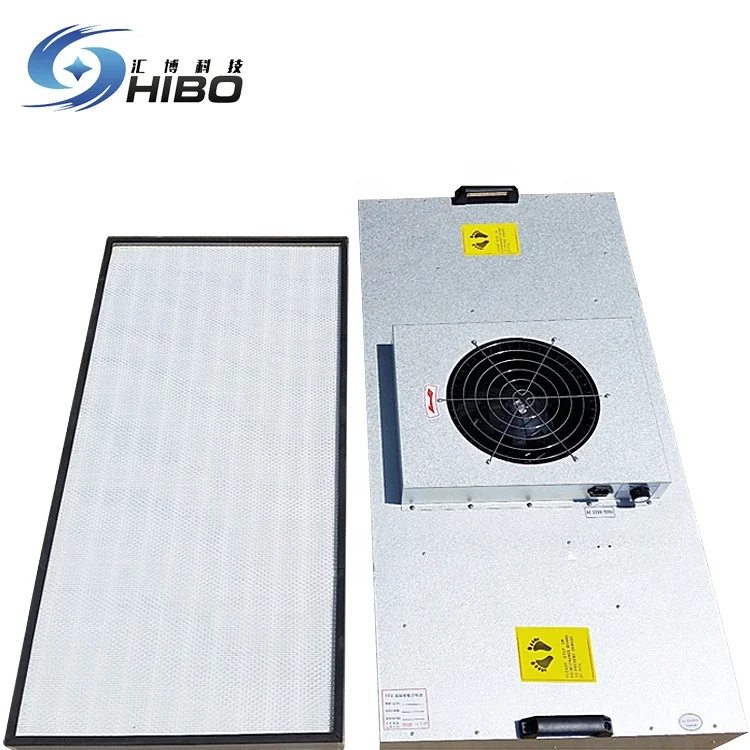

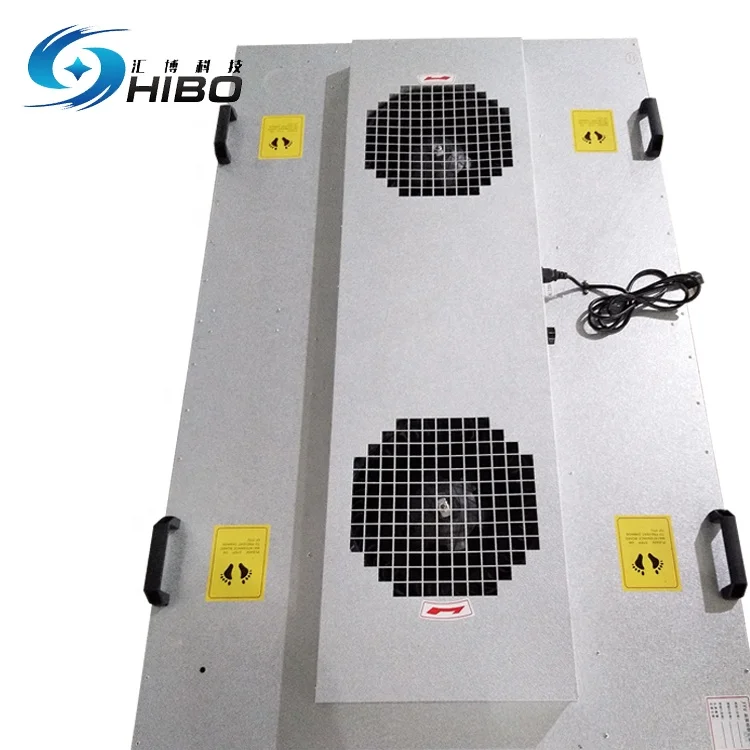

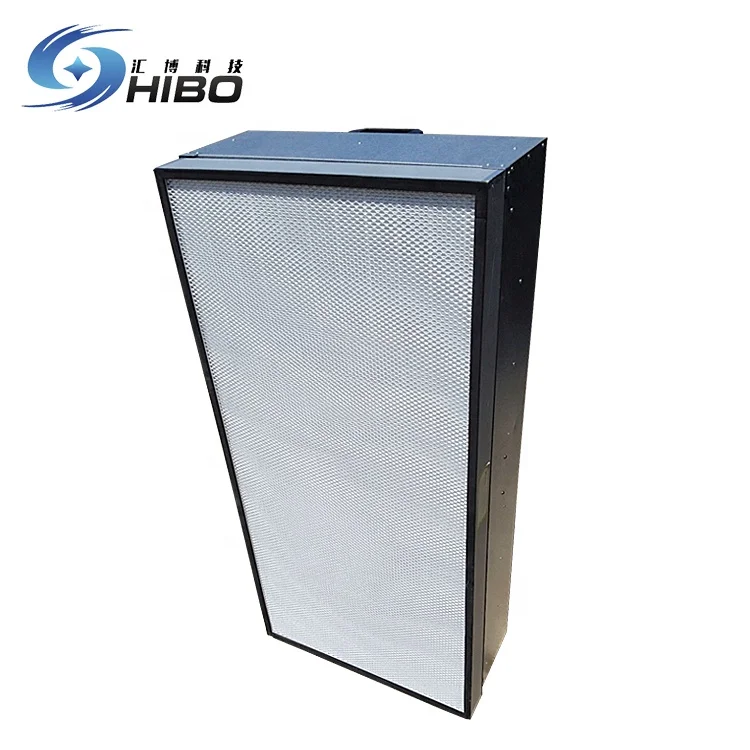

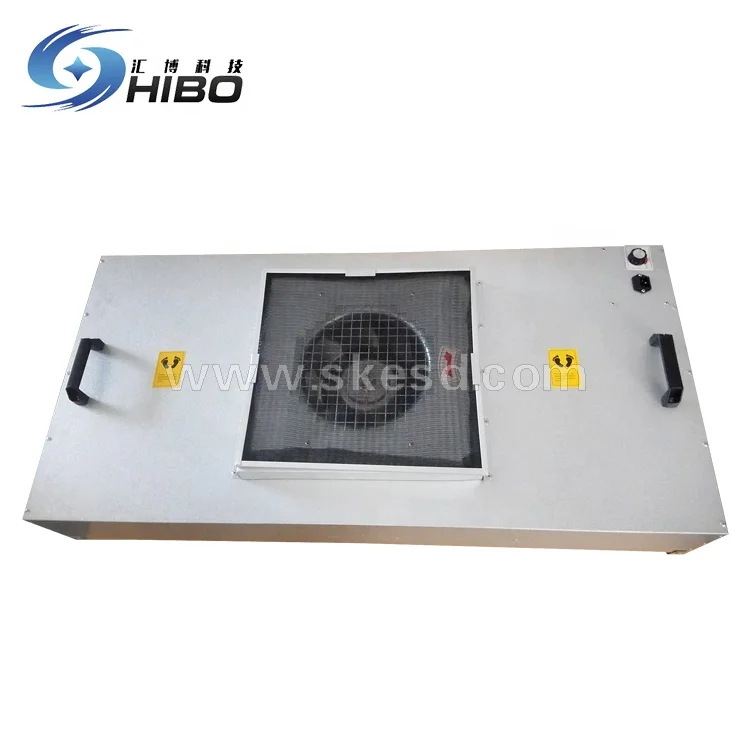

High Efficiency Clean Room HEPA FFU Fan Filter Unite

Product Overview

Description

High Efficiency Clean Room HEPA FFU Fan Filter Unite





Product Description

Fan filter unit (FFU) is air cleaning equipment to supply purified air to the clean room for manufacturing semiconductor, liquid crystal, etc. The installation space is the system ceiling grid. For a large clean room, the number of required FFU is from several hundreds to several thousands.



Specification and Data





Module Dimension(mm)	575X575X250		1175X575X250		1175X1175X350
Surface wind speed(m/s)	Low	High	Low	High	Low	High
	0.55	1.2	0.55	1.2	0.55	1.2
Noise dB(A)	≤46	≤52	≤48	≤54	≤46	≤52
Power source	AC Single phase,220C/50Hz
Power consumption(W)	80~160		80~160		160~290
Body weight(Kg)	15		25		45
HEPA filtration efficiency	≥99.99~99.999%@0.3um

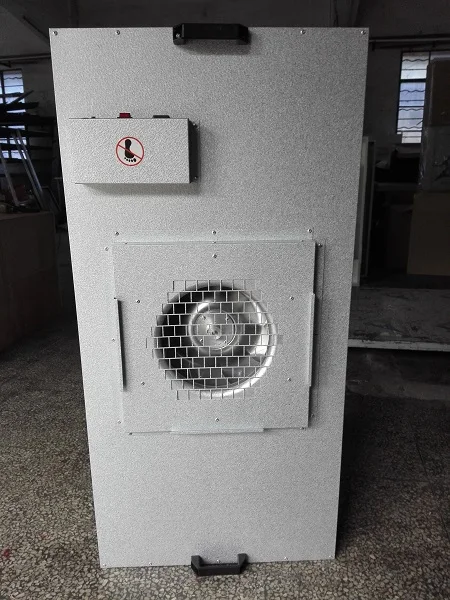

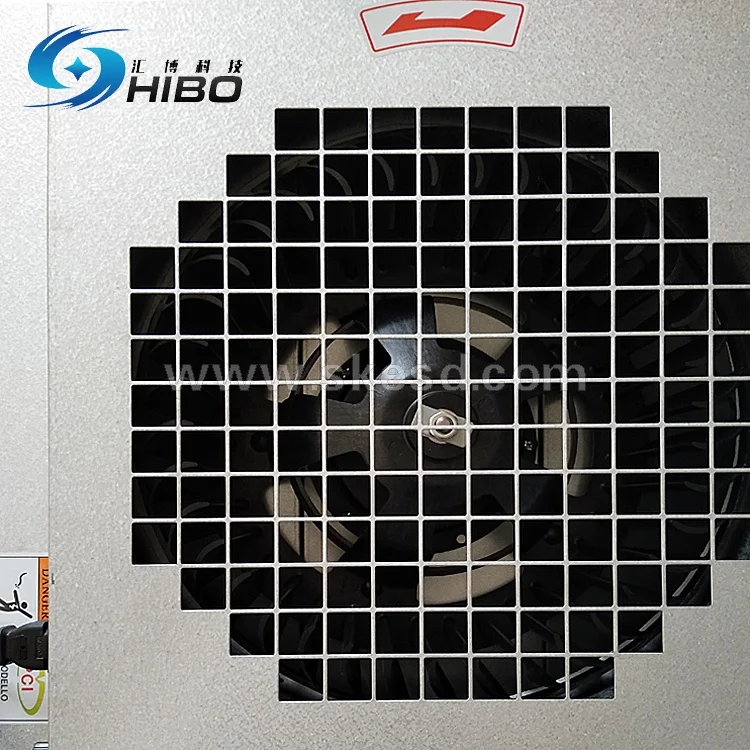

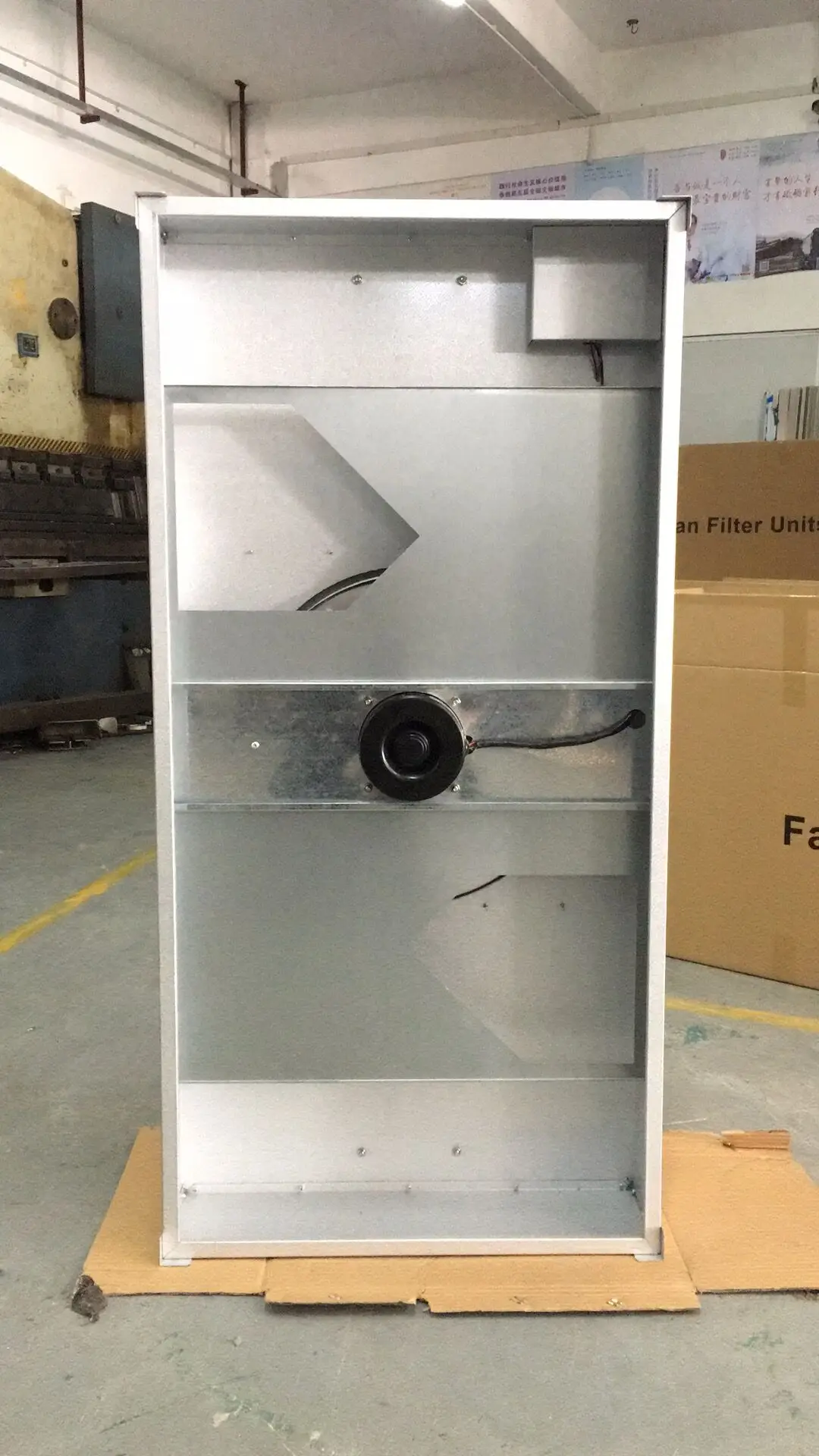

 Product details













































Our Services

1. We are a leading manufacturer which have specialized in this field for many years,with good quality and competitive price of ESD Products, Cleanroom Products.

2. We supply a wide range of products and provide one stop service for Electronic Assembly Industry.

3. We keep a lot of stock for regular products and we can support small orders. Usually, our lead time is just 3 days.

4. We can also customize the products to fulfill different requirements.

5.Our customers are located all over the world.



7.Professional:  We have been in this business for many years. We have a strong professional team with various experiences.

8. We keep doing new product development. Our goal is to enhance our competitive capacity constantly.

9. Price: we always offer competitive prices and help our customers to cost down.

10. Quality: we do 100% inspection before the shipment.
