1.It's a standard ISO 16028 coupling. Worldwide interchange with other manufacturer . If there is a special size requirement, don't hesitate to ask me
2. Male coupler(nipple) and female coupler(socket) can be sold separately
3.Marking your logo(word) according customer's authorization, also package
4.No MOQ for the first cooperation.
5.Size range from 1/4 inch to 2 inch. You can send an inquiry directly to me
6. About logistics cost: Please contact me for more options, Like by sea.
7.Any other question feel free to ask. 24 hours service online.
Feature:

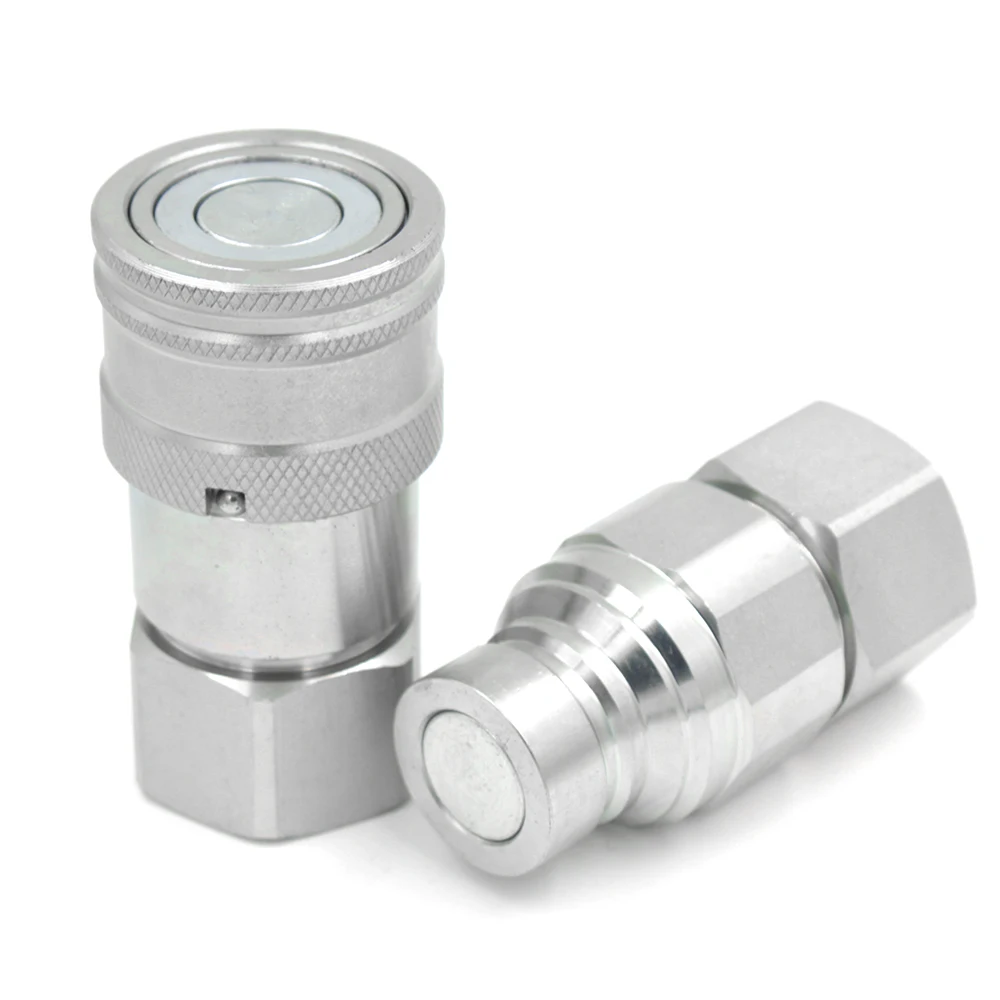

GT-FF flat face Series, the original ISO 16028 interchangeable coupling. GT-FF provide rugged-flush-face valving for non-spill dry breaks, and allow one-hand push-toconnect with safety sleeve-lock standard.
4.Surface treatment:Chrome 3 Plus, zinc coated. Zinc-Nickel plating available for superior corrosion resistance .
5.Disconnect and Connect under pressure: not allowed
6.Material of construction:Machined components are manufactured using solid steel bar stock.
7.Seals: standard NBR, on request FKM. Antiextrusion rings: PTFE
8.Easy to clean due to flush face valving.
Specifications:
Body Size
ISO Size
Rated Pressure
Rated Flow
Temperature Range(NBR)
Temperature Range(FKM)
1/2"
DN12.5
5000 PSI
45.5 L/min
-20℃~100℃
-20℃~180℃
ISO
PART NO
LS
D
HEX1
A
T
12.5
GT-FF-04SF
75
38
32
18
BSP1/2 NPT1/2
ISO
PART NO
LP
d
C
HEX2
A
T
12.5
GT-FF-04PF
72
24.5
21.6
32
18
BSP1/2 NPT1/2
Applications:
GT-FF Series are ideal for use across a variety of hydraulic applications where fluid lines require fast and easy connection and disconnection with minimal spillage and limited air inclusion. Like Bobcat Skid Steer Loaders, Quickjack,Liquid transport line, Hydraulic power unit, Hydraulic tools etc.
Packaging & Shipping
Company Information
Hydraulic Quick Coupling Manufacturer Since 1992.
Gute was found in 1992 by Mr. Baiyin Zou. The company is located in Ningbo City. we had one of the largest export port-the Ningbo Port . We just now start to export directly by ourselves in 2013. Company occupies 10 acres,workshop area is 20,000 square meters. Equipped with special equipment more than 100 units / sets of CNC machine from Japan. Gute has good management experience and many well-skilled workers. With the philosophy of Quality first and Customer supremacy,our products are selling well both at domestic and oversea. GUTE have got the ISO9001:2008 certification in 2014.
GUTE is one of the leading manufacturer for quick release coupling in China. GUTE's components can be find in fields of Construction machinery, Automobile manufacturing, Industrial pipe,Marine,Energy, Defence and Automation. We produce products according to international standards.In addition,customization and OEM are also available here.
Our goal is to become a strategic and long-term partner supplier of hydraulic products to each of our customers.
Certifications
FAQ
Q1:Why we choose you ?
a. We are real factory, we can control delivery by ourself.
b. We are real factory, our price is more Competitive.
c. We have a professional sales team, all enquiry can be reply within 12 hours.
you can contact us in any time without time difference.
d. Our sales team members has been in import and export at lease 3 years.
Q2:What's your process to place order ?
Confirm Design → lead time → artwork →Sign PI →customer sign pI and pay Deposit
Q3:What's your payment terms ?
T/T. 30% Deposit and 70% balance before shipment.
Q4:What's your service to us ?
a. Before place order, We could help you to check the shipping cost, Also we can arrange shipping as we have coorperated cargo company.
b. Durning Production, we would update your production anytime if you need. Normally we would send you email with production photos every 3days.
c. Doc.for custom clearance would sent asap.
Q5: What’s your product life cycle?
About 500, 000 times connection and disconnection.
