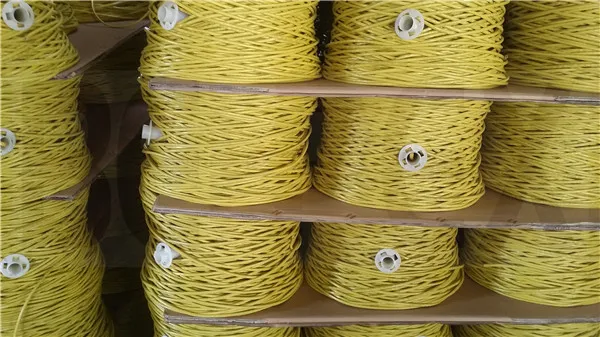

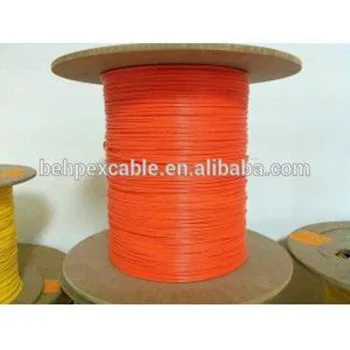

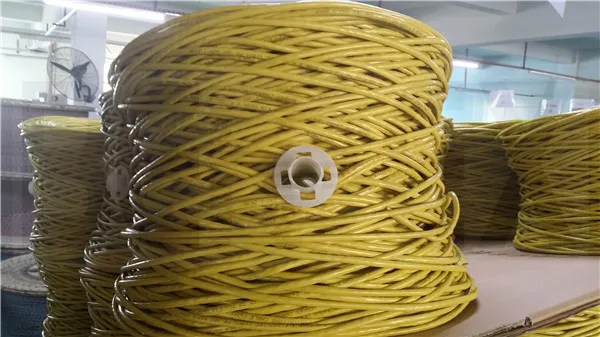

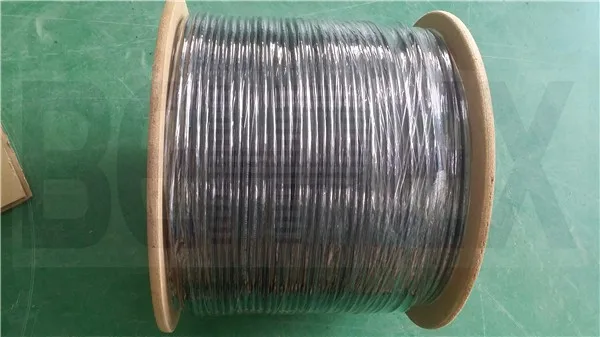

1000ft CAT6 Bulk Cable FTP Shielded Direct Burial Solid Copper Ethernet Cable 23AWG Wire HDPE Insulated 550Mhz LAN Cable

 Features

TIA/EIA-568B.2-1;ISO/IEO 11801;NEC/CEC

Fire protection – IEC60332-1 (CM)

Application: Horizontal communication cable; for outdoor installation

Construction

Conductor: Bare Solid Copper                                  Pair Identification: Pair1= Blue/White    Pair2= Orange/White

Conductor Dia.:0.57mm+0.05mm (23AWG)                                           Pair 3= Green/White  Pair4= Brown/White

Pair Indulation: Polyethylene

Drain Wire:0.50mm

Outer Cable Diameter:7.2 ± 0.2mm

Outer Jacket: PVC/LSZH/CM/CMR/CMP Jacket

TECHNICAL MECHANICAL

Installation Temperature: 0°C to +60°C                                         Pulling strength: 90 N

Operating temperature: -20°C to +75°C                                        Minimum bend radius: 4 outer cable diameters

DC Resistance Unbalance :5%                                                      Dielectric Breakdown:1000 Volts DC Conductor to Conductor

Pair-to-Ground Capacitance Unbalance :330 pF/100 m            Velocity of Propagation:PE=65%

Frequency Range:1-500HMZ                                                         Maximum Skew:45ns@100 meters

PACKAGING

305m/1000ft/roll; 500m/wooden reel;1000m/wooden reel
