20ft 40ft customized outdoor fiberglass swimming container pool and Circulating Filtration
- Category: >>>
- Supplier: Chengdu Keruijiesi Technology Co. Ltd.
Share on (60806616702):
Product Overview
Description
Product Description
Magic Container Pool
Transform any space into your personal oasis with the Magic Container Swimming Pool. Dive into relaxation, entertain guests, and enjoy the countless benefits of having a swimming pool without the traditional limitations. Embrace the freedom to swim anytime,anywhere!
SPECIFICATION | 20ft Container Pool | ||||
Basic Configuration(Mandatory) | Note | ||||
Size | 20ft Model: Length: 5.8m; Width: 2.2m; Height: 1.8m; 40ft Model: Length: 11.8m; Width: 2.2m; Height: 1.8m; | Self-build Container | |||
Liner | Fiberglass Reinforced Plastic (FRP) Liner | ||||
Structure | Galvanized steel structure welding (keel + column + square tube + steel shim + exterior waves steel sheet,) + painting; Sports Rubber Mat | ||||

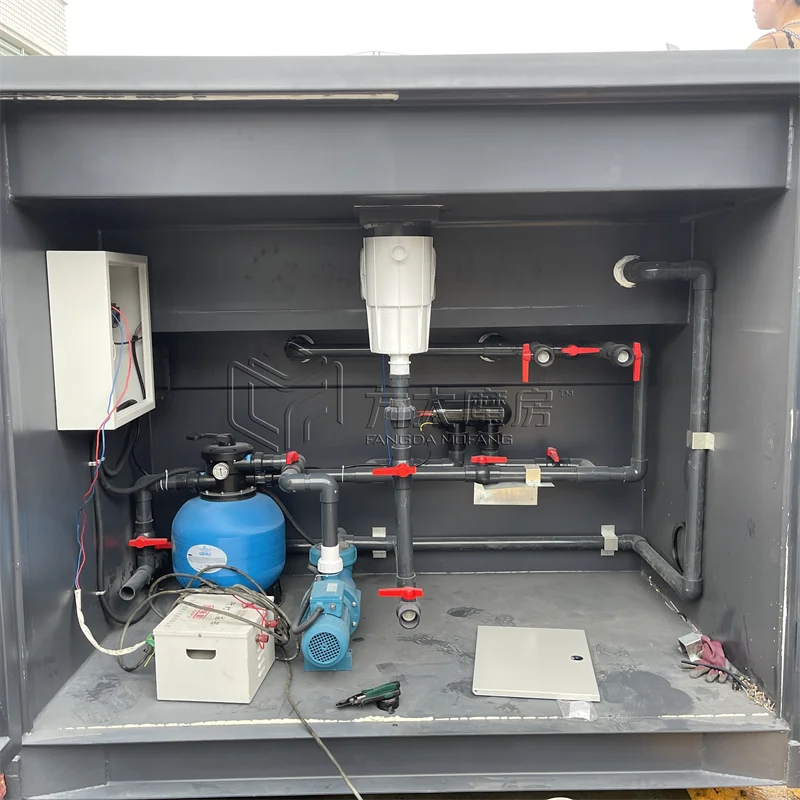

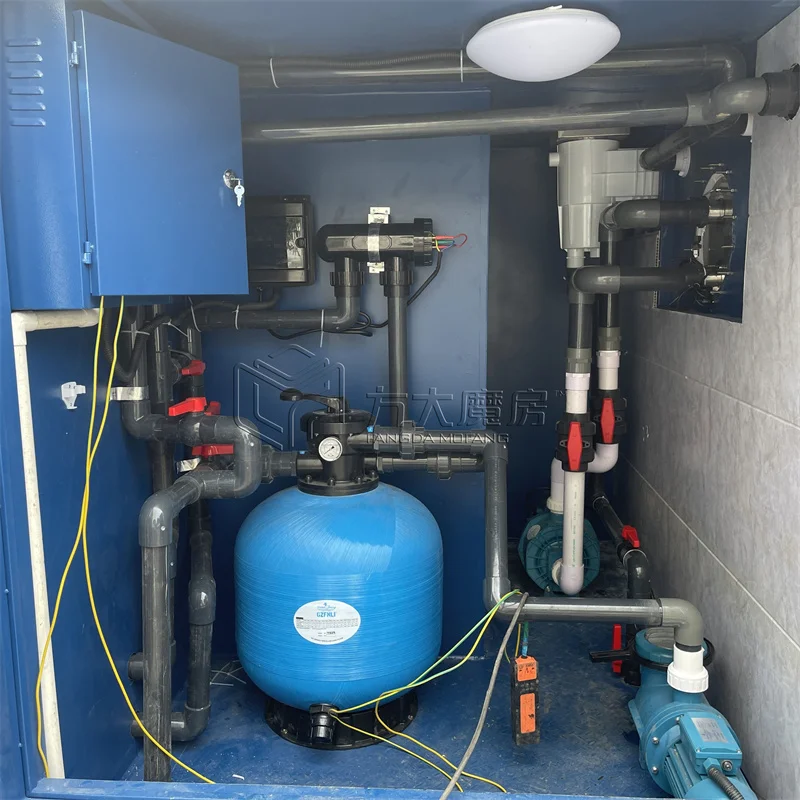

Circulating Water Treatment System | Ultra-silent Circulating Pump | 1. Power: 1.1KW/1.5 HP 2. Voltage: 220V, 50hz(110V,60hz for NA) /Single phase 3. Flow: 21 m³/H 4. Port Size (inch/mm):1.5"/50mm | |||
Polymer Filter | 1. Diameter: 650mm 2. Flow: 17 m³/h 3. Port Size: DN 50mm 4. Filter Material: Quartz Sand 5. Grain diameter： 16-26mm (50KG/bag) - Fine filter | ||||
Circuit Control System | Electrical distribution box,leakage protection , wire and other electrical control | ||||
Water Inlet and Outlet | 100%Made by ABS, uv protection, high corrosion resistance. Including: Inlet 1 batch / outlet 1 batch / drainage 1 batch/skimmer 1pc | ||||
Pipeline system | PVC pipe, PPR pipe | ||||
Optional Pack | |||||
Exterior Upgrade Pack | Pool Ladder | 1. Stainless steel anti-slip step pool ladder; 2. Material: SS304; 3. Step:5 ； 4. Thickness:1.2mm； | |||
Glass Window | 40mm thickness arcylic window | ||||
Stairs | Build-in Staircase,WPC Flooring | ||||
External Staircase Galvanized steel tube+WPC Flooring | |||||
Guardrail | Galvanized steel tube | ||||
Patio & Deck | WPC Flooring / Bamboo Flooring | ||||
Paint Job | Sand the bottom paint and apply new required paint. | ||||
Pool Cover and Reel | 1. Input Voltage : 24V Input;2. Power : 300W/50Hz; 3. Torgue : 250N.M. 4. IP Grade : IP68; 5. Voltage Supply : 220V with transformer ; 6. Material Stand: Stainless Steel Pool; 7. Slat Material : polycarbonate | ||||
Cleaning Pack | Dosing Pumps Chlorine Feeder | Weight 2.95kg , Max pressure 4 bar | |||
Salt Chlorinator | Emaux salt chlorinator Standard version Cell output:15g/h | ||||
Ultraviolet Disinfection System | 1. Power supply: AC220V/60HZ. 2. Germicidal ultraviolet lamps: 3pcs, 80w/pc, 3. Total Power: 240W 4. Rated Flowrate:20m3/hr. 5. Max. Compression Resistance: 8Kgs/cm2 6. Inlet and Outlet water pipe connector: DN65/2.5” 7. Equipment Dimension: Reactor: #304 stainless steel , size: 920mm(length) X 159mm(width) X380mm(height) | ||||
Manuel Cleaning Tools | 1. 2HP water pump,220v,50hz, 2. Flow rate:25m3/hr 3. 14inch vacuum head 4. 5m Telescopic pole 5. 1.5inch check valve Stainless steel handcart 6. 15m vacuum hose 10m electric cable 7. 2m soft drain pipe 8. Vacuum suction pipe fitting | ||||
Robot Pool Cleaner | Auto cleaing robot Model:HJ-2042 Input:220v Power:450w Wire length:18m | ||||
Heat System | Water Heater | 1. Size: L550*W330*H470mm, 2. Power: 380V voltage, 24KW | |||
Pool Heat Pump | 5HPB , L1100*W440*H700mm,3KW | ||||
Accessories | Wall Mounted Pool Light | 1. Power:12*1W 2. Voltage:AC12V 3. Color:RGB+Small controller | |||
Swim Jet | SS304,2.2KW pump, 220V,50hz(110V,60hz for NA) | ||||
Jacuzzi | 1. Product Dimension: 1770*1570*750mm; 2. For 4 people: 4 seats; 3. 1x2KW heater; 4. Ozone; 5. 1*2HP double speed pump; 6. Total 32 water jet; 7. Capacity: 900L; | ||||
Pool Structure
Design Skills
One of our strengths is to customize products for customers. We will put forward reasonable suggestions according to your customized needs, mainly in order to consider avoiding or reducing freight damage during the transportation process.
Software
We have our own design department. We usually use the following software to produce design drawings and effects renderings for our clients:
1. Auto CAD ---- Drawings
2. 3D Max --------3D Renderings
3. Sketch Up Pro -------- 3D Models
2. 3D Max --------3D Renderings
3. Sketch Up Pro -------- 3D Models
A Wide Variety Options of Pool Equipment and Accessories
1. In the product design stage, we can provide customers with a variety of materials and equipment, and also be able to customize liner layout for customers.
2. In the production stage, we will install all the materials and equipment for customers, and make video communication and confirmation with customers before the pool leave the factory.
3. At the shipping stage, we will disassemble the fragile equipment (such as guardrails) , pack it up again, and finally install
it at the destination by the customers themselves.
2. In the production stage, we will install all the materials and equipment for customers, and make video communication and confirmation with customers before the pool leave the factory.
3. At the shipping stage, we will disassemble the fragile equipment (such as guardrails) , pack it up again, and finally install
it at the destination by the customers themselves.
Details Images

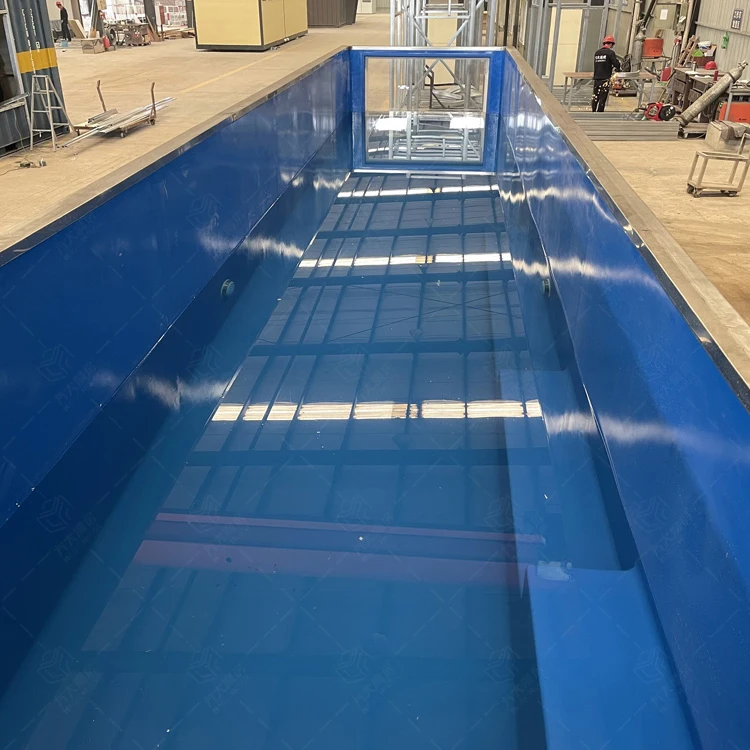

Customizable Liner
Our container pool features a durable and reliable liner made of Fiberglass Reinforced Plastic (FRP). The FRP liner is expertly
molded to fit the container's interior, ensuring a perfect and secure fit that maintains structural integrity and water tightness.
Its standardized design guarantees consistency and ensures a high-quality swimming experience for all users. The use of FRP in the liner construction provides exceptional resistance to environmental factors such as UV rays, chemicals, and weathering. This results in a long-lasting container pool that requires minimal maintenance, allowing you to enjoy worry-free swimming for years to come.
molded to fit the container's interior, ensuring a perfect and secure fit that maintains structural integrity and water tightness.
Its standardized design guarantees consistency and ensures a high-quality swimming experience for all users. The use of FRP in the liner construction provides exceptional resistance to environmental factors such as UV rays, chemicals, and weathering. This results in a long-lasting container pool that requires minimal maintenance, allowing you to enjoy worry-free swimming for years to come.
Eco-Friendly
We contribute to sustainable practices and reduce waste. Additionally, the Container Swimming Pool can be equipped with eco-friendly heating and filtration systems, minimizing environmental impact.
Quick Installation
No need to wait for weeks or months for your pool to be built. The Container Swimming Pool can be installed within a short period,saving you time and minimizing disruption to your daily routine.
Premium Surface Finish
FRP liner is carefully designed with smooth surfaces, providing a comfortable and enjoyable swimming environment. Its non-porous nature makes cleaning and maintenance a breeze, promoting hygienic conditions and optimal water quality.
Heat Insulation

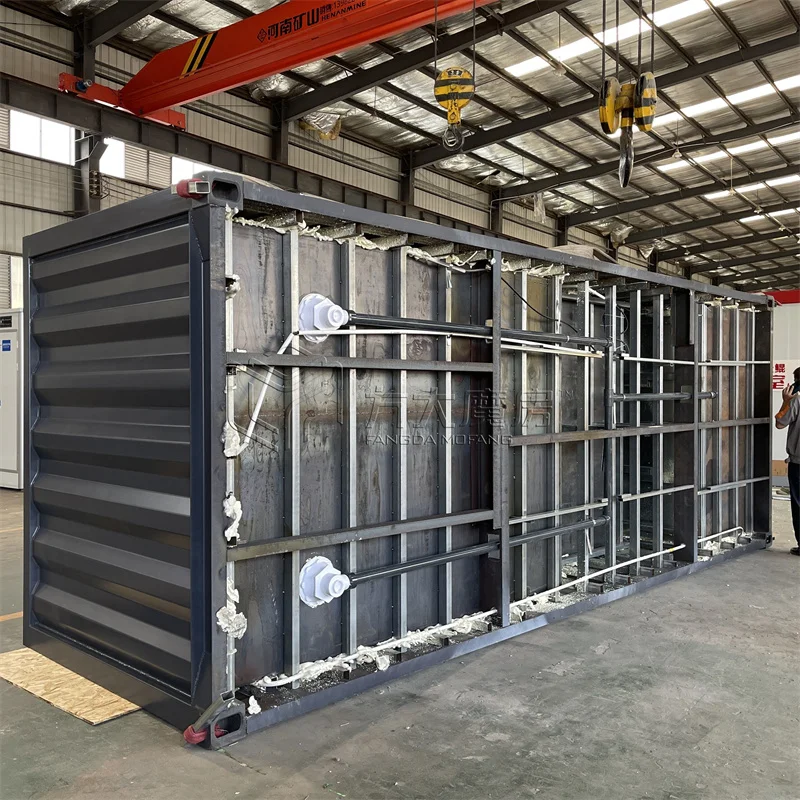

We apply a comprehensive layer of PU foam to insulate all five sides of the pool, including the walls and the base of the container. By providing superior heat retention and insulation, our container pool ensures an energy-efficient and comfortable swimming experience, regardless of external temperatures.
Portability
Whether you're moving to a new home, going on a vacation, or simply want to change the location of your pool, the Container Swimming Pool can easily be transported and set up wherever you desire. Its compact size and structure allow for hassle-free relocation.
We have two payment methods to start the project:
1. Pay US$500 design fee, we will design the drawings for you, finalize the details, and finally lock the price. If the project goes into production, 50% of the advance payment is required, and the design fee can be deducted from the payment.
2. Direct payment of 50% advance, including design fee. After the completion of the project (including the installation of all household appliances and lamps), we will confirm every detail with the customer on video, then remove the fragile furniture, pack and fix it again, and finally collect the remaining 50% payment before the goods leave the factory.
2. Direct payment of 50% advance, including design fee. After the completion of the project (including the installation of all household appliances and lamps), we will confirm every detail with the customer on video, then remove the fragile furniture, pack and fix it again, and finally collect the remaining 50% payment before the goods leave the factory.
Pool System Solution
Packing & Delivery
We usually export by sea. we use FOB as international trade term mostly. we can ship the goods to any Chinese port, and then your forwarder could take care of the rest of the shipment.
Certifications
Conduct Certification for Customers
If necessary, we can also conduct product certification for customers at their expense. The above is the CE certification we have done for an European customer.
Company Profile
About Us
Fangda Magic House is a China-based manufacturer of upgraded and luxurious prefab houses since 2011. We are specialized in customizing and manufacturing high-quality prefab houses at a competitive price. Our product range includes:
1. Container House for multipurpose: Housing, Hotels, Café, Gym, Swimming Pool, Bitcoin Miner Placements, Office, Shop etc.;
2. Tiny House on Wheels;
3. Triangular House;
4. Portable Toilet;
2. Tiny House on Wheels;
3. Triangular House;
4. Portable Toilet;
FAQ
Q: Are you a factory or trading company?
A: We are a factory. Our factory’s address is NO.87 Jinchuan Road, Jintang County, Chengdu, Sichuan, China.
A: We are a factory. Our factory’s address is NO.87 Jinchuan Road, Jintang County, Chengdu, Sichuan, China.
Q: What's your supply capacity?
A:Annual Production: container house 72000 sets, prefab house 564000 square meters; portable toilet 24000 sets; steel structure 360000 square meters.
Q: What should we do if we have no professional worker to install?
A: Our container design is perfect, you can do that DIY as per our drawing easily, We will provide the detailed assembled construction and install video; We can send our engineer to give the guide service on you site if necessary.
Q: How long is your delivery time?
A: Generally it is within 2-30 days, specific time depends on the order.
Q: How do you guarantee the quality of the products?
A: Strict product quality control, quality makes the future. This is the tenet of our factory. Each product from our factory has strict testing procedures and must be 100% quality before delivery.
Q: How can I get the quotation of the project?
A: If you have drawing, we can offer you our quotation according to your drawing. If you have no design, Our engineer will design some drawings for you to confirm and then offer you a quotation.
A:Annual Production: container house 72000 sets, prefab house 564000 square meters; portable toilet 24000 sets; steel structure 360000 square meters.
Q: What should we do if we have no professional worker to install?
A: Our container design is perfect, you can do that DIY as per our drawing easily, We will provide the detailed assembled construction and install video; We can send our engineer to give the guide service on you site if necessary.
Q: How long is your delivery time?
A: Generally it is within 2-30 days, specific time depends on the order.
Q: How do you guarantee the quality of the products?
A: Strict product quality control, quality makes the future. This is the tenet of our factory. Each product from our factory has strict testing procedures and must be 100% quality before delivery.
Q: How can I get the quotation of the project?
A: If you have drawing, we can offer you our quotation according to your drawing. If you have no design, Our engineer will design some drawings for you to confirm and then offer you a quotation.
