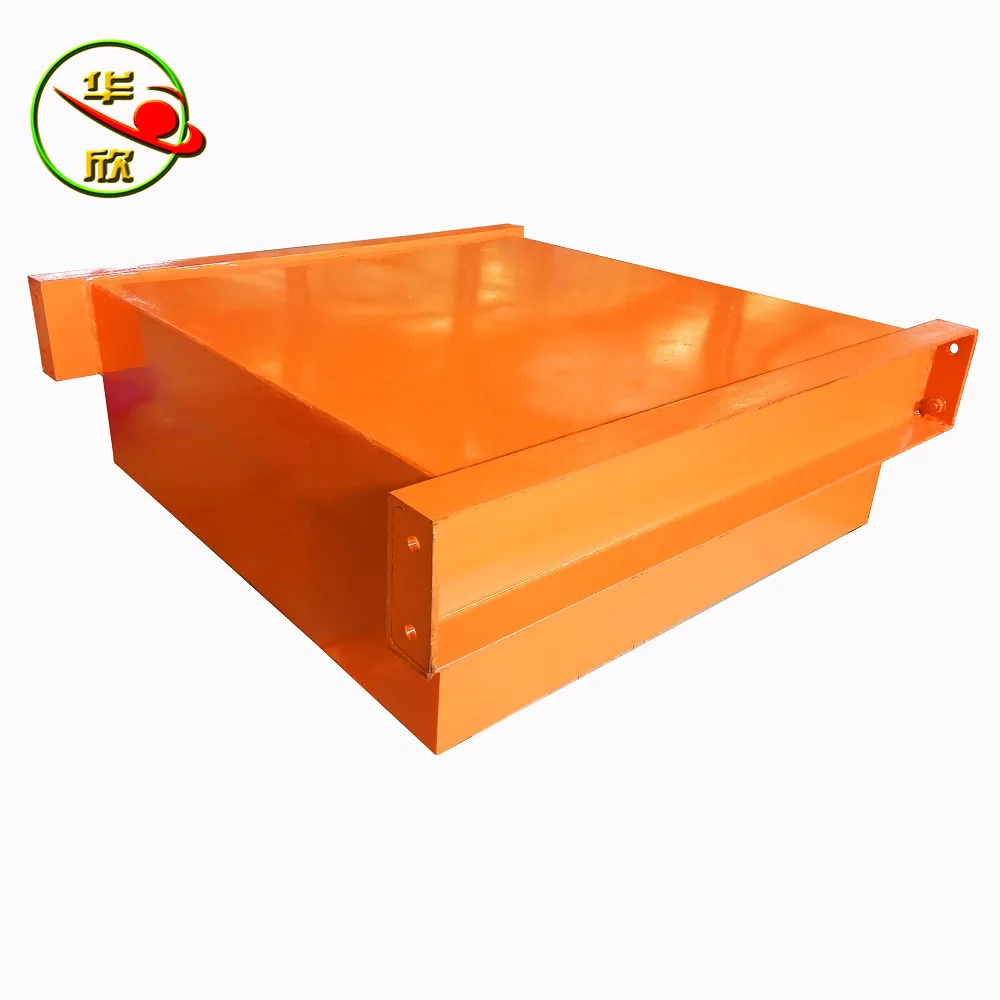

  high intensity fine RCYB dry suspended permanent overband glass magnet magnetic separator  for conveyor belts

Introduction of  magnetic separator

The RCYB over band magnetic separator adopts high coercive force, high remanence NdFeB to form integrated magnet system, robust in design & known as- high gauss intensity conveyor over band neodymium  magnetic metal magnet separator. which is suitable for continuous duty occasions where ferrous contamination is low. when the metal pass from under magnets, iron pieces are extracted from the flow of convey material.

Also available in electro magnetic design, can be installed  ahead of jaw cone crusher to ensure normal & safe operation of the next-step equipment.

Yes, it plays a role of reliable protection for roller press ,grinding machine, etc..



 Advantage features  of  magnetic separator

(1), 20 years experiences in design and manufacture of magnetic separator.

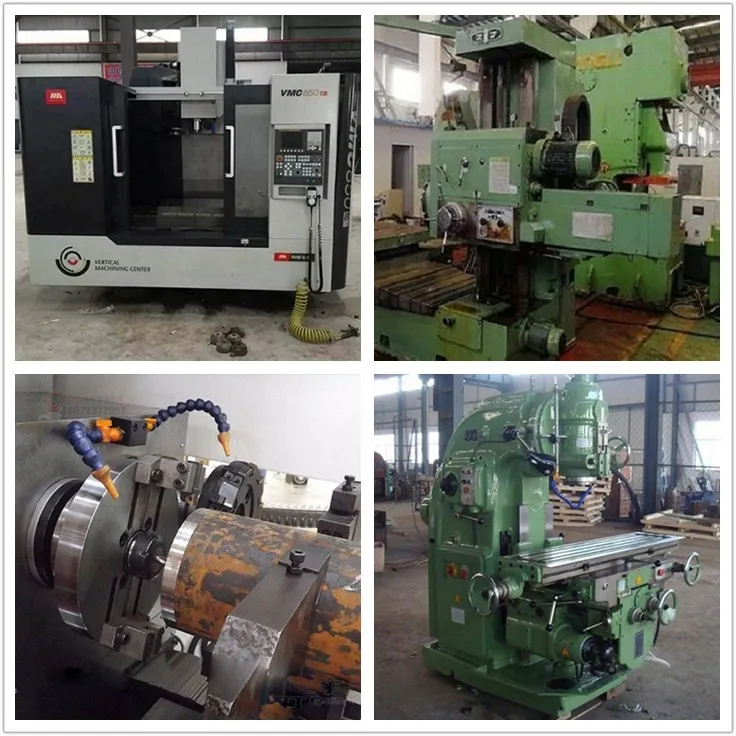

(2),CNC machine tools and machining center.

(3),the wholly sealed structure makes the  magnet separator water-proof and corrosion resisting.

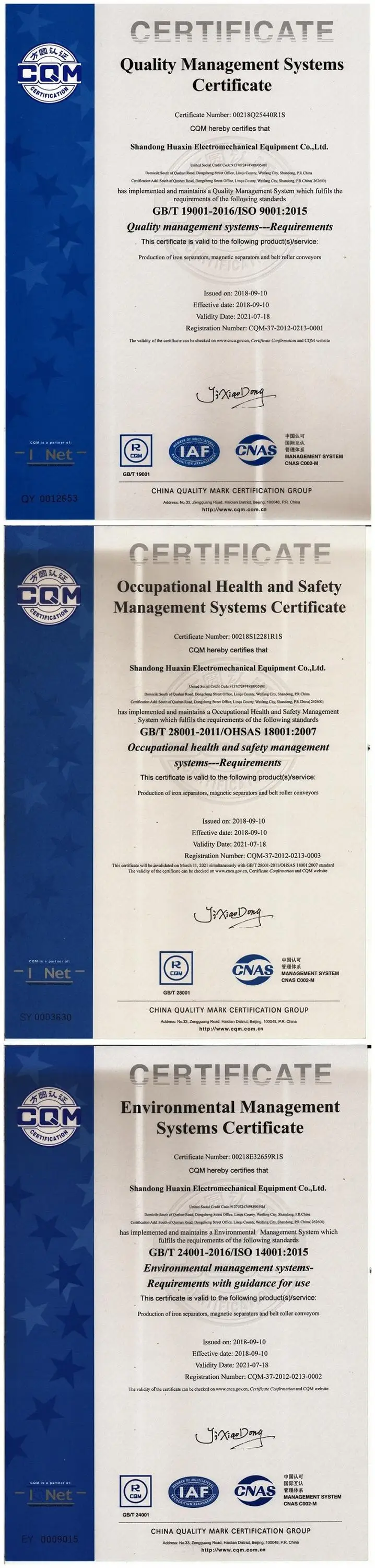

(4),ISO 9001:2015, OHSAS 18001:2007, ISO 14001:2015

(5),easy to install and convenient to operate , with maintenance.

Confuguration Options of  magnetic separator

(1), To avoid frequent manual cleaning, the dry cross/ inline magnetic belt separator is recommended, where there is highly contaminated material.

(2), Adopt shield shielding material en closured upon magnet, to make the magnetic flux focus on the ferrous object, thus achieving a deep penetrating magnetic field, MAX attraction force can be up to 45kgs.

(3), flexible in design for low cost and compact devices.









Technical Data of  magnetic separator

(1),National stardard



Model No	Belt width mm	Rated suspension height h≤mm	Magnetic strength ≥mT	Belt speed ≤m/s	Burden depth ≤mm	weight kg	Dimension mm
							L	D	H
RCYB-4	400	125	60MT	2.5	60	100	400	300	230
RCYB-5	500	150	70MT		90	165	500	300	260
RCYB-6	600	180	70MT		120	230	600	400	280
RCYB-6.5	650	200	70MT		150	380	650	500	310
RCYB-8	800	250	70MT		200	550	800	600	320
RCYB-10	1000	300	70MT		250	750	1000	800	380
RCYB-12	1200	350	70MT		300	1300	1200	1000	380
RCYB-14	1400	400	70MT		350	1500	1400	1200	380
RCYB-16	1600	400	70MT		400	1700	1600	1400	380

 (2), extro reinforced magnetic strength

Model No.		Belt width mm	Suspension height h≤mm	Magnetic strength ≥mT	Belt speed ≤m/s	Burden depth ≤mm	weight kg	Dimension mm
								L	D	H
RCYB-4	T1	400	125	90MT	4.5	60	100	400	300	230
	T2			120MT				400	300	260
	T3			150MT				400	300	280
RCYB-5	T1	500	150	90MT		90	165	500	300	260
	T2			120MT				500	300	280
	T3			150MT				500	300	310
RCYB-6	T1	600	180	90MT		120	230	600	400	280
	T2			120MT				600	400	310
	T3			150MT				600	400	330
RCYB-6.5	T1	650	200	90MT		150	380	650	500	310
	T2			120MT				650	500	330
	T3			150MT				650	500	370
RCYB-8	T1	800	250	90MT		200	550	800	600	320
	T2			120MT				800	600	340
	T3			150MT				800	600	380
RCYB-10	T1	1000	300	90MT		250	750	1000	800	380
	T2			120MT				1000	800	400
	T3			150MT				1000	800	440
RCYB-12	T1	1200	350	90MT		300	1300	1200	1000	380
	T2			120MT				1200	1000	400
	T3			150MT				1200	1000	440
RCYB-14	T1	1400	400	90MT		350	1500	1400	1200	380
	T2			120MT				1400	1200	400
	T3			150MT				1400	1200	440
RCYB-16	T1	1600	400	90MT		400	1700	1600	1400	380
	T2			120MT				1600	1400	400
	T3			150MT				1600	1400	440

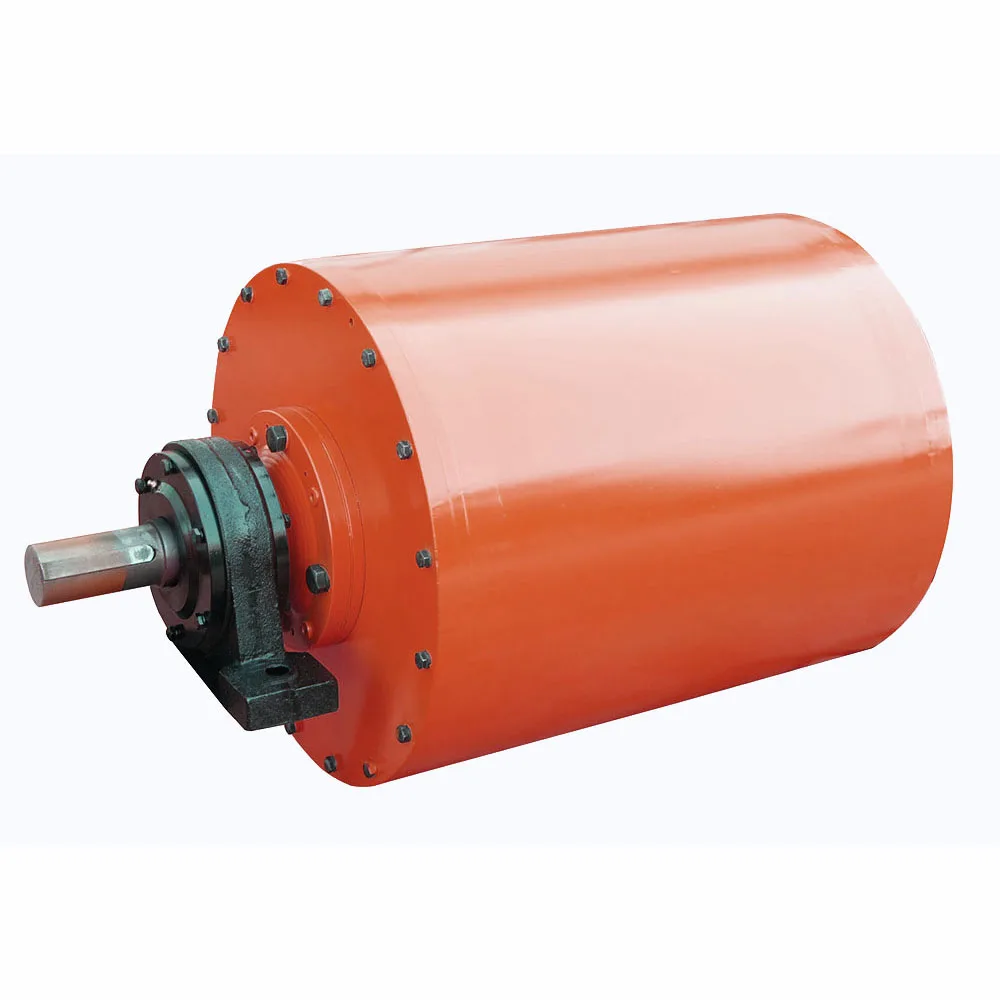

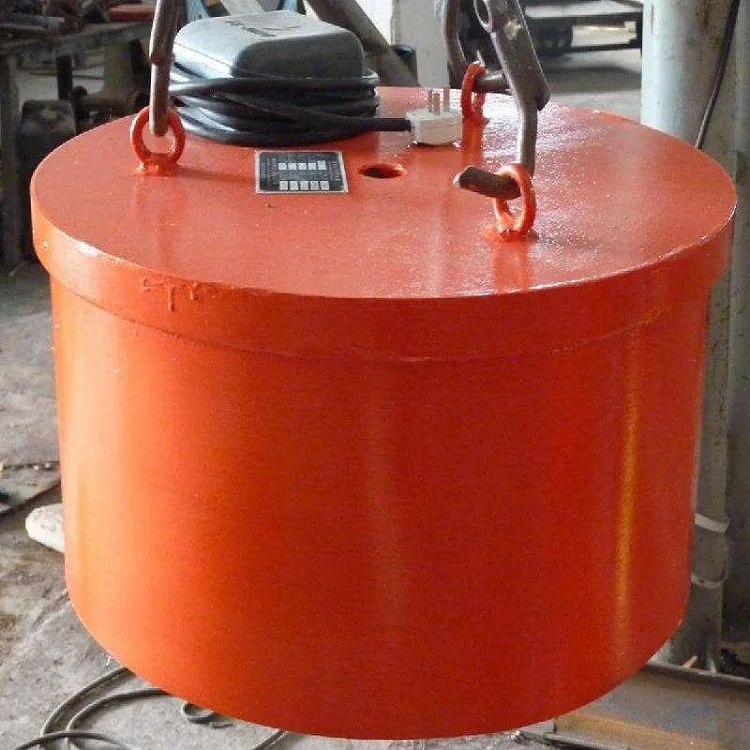

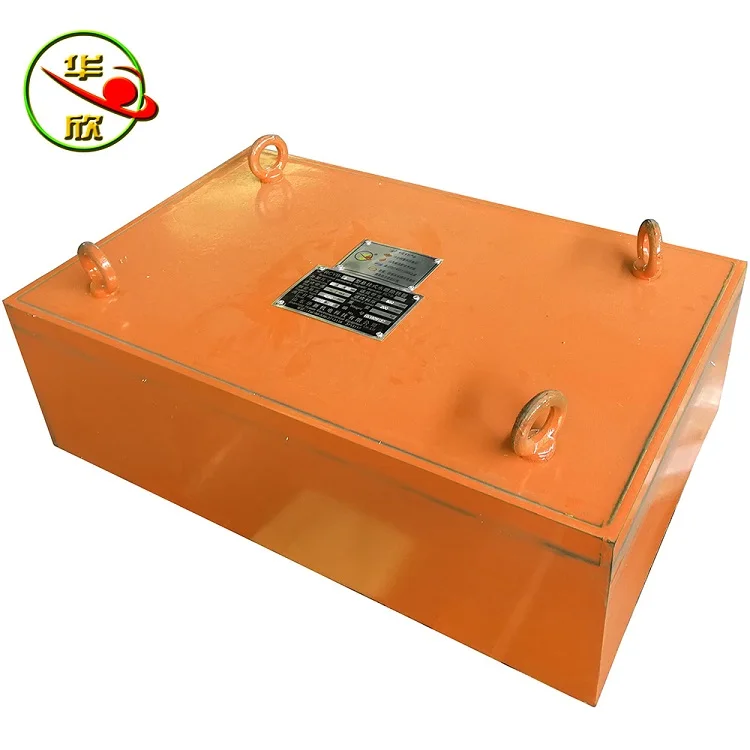

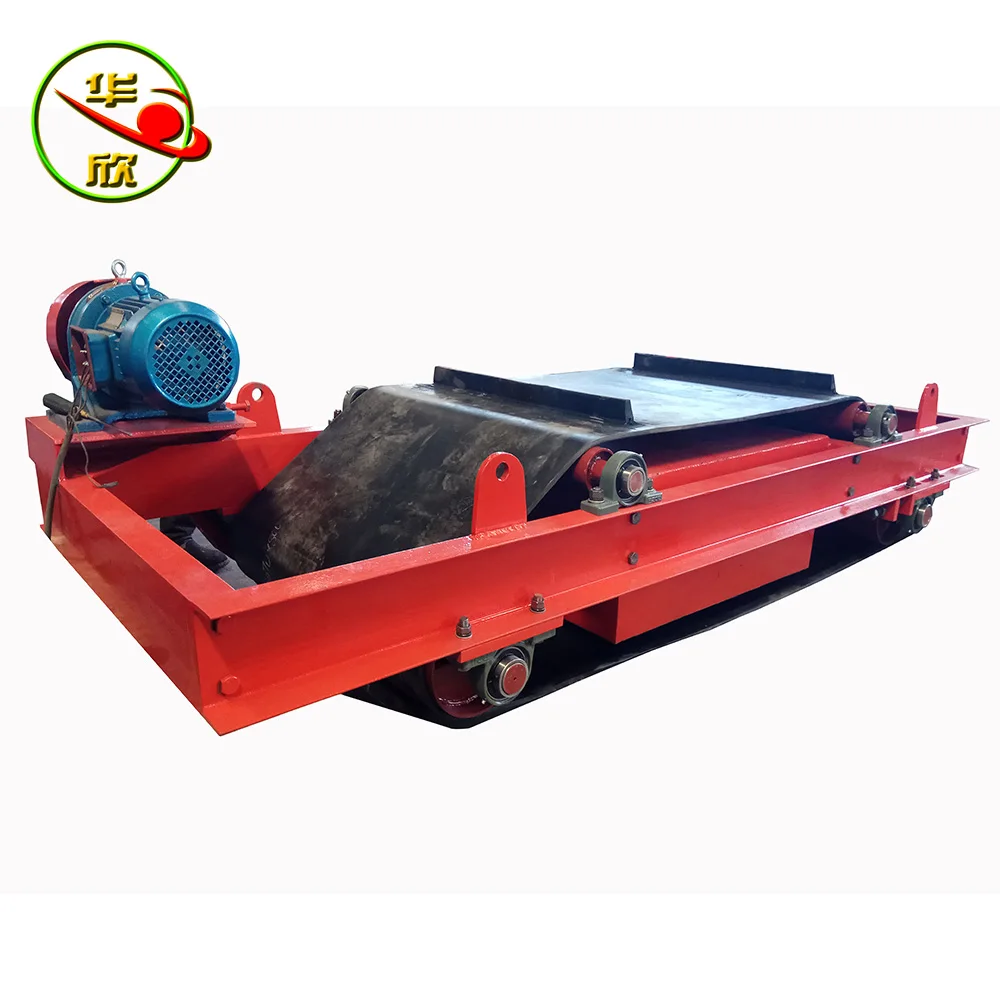

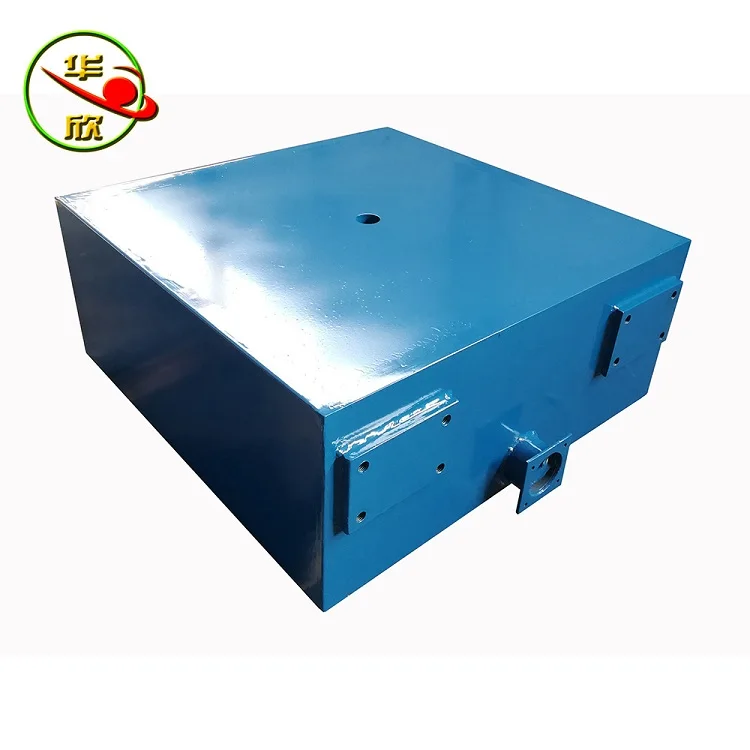

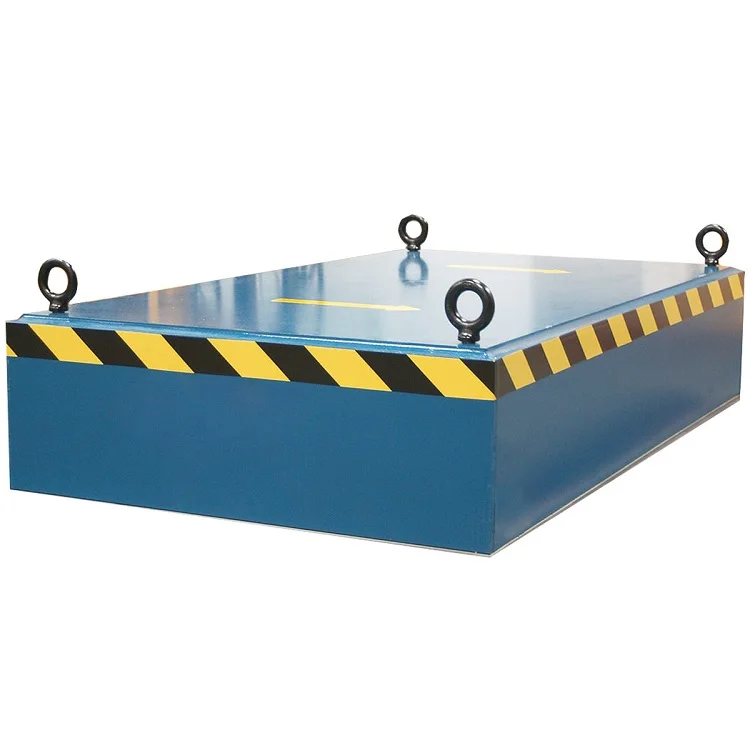

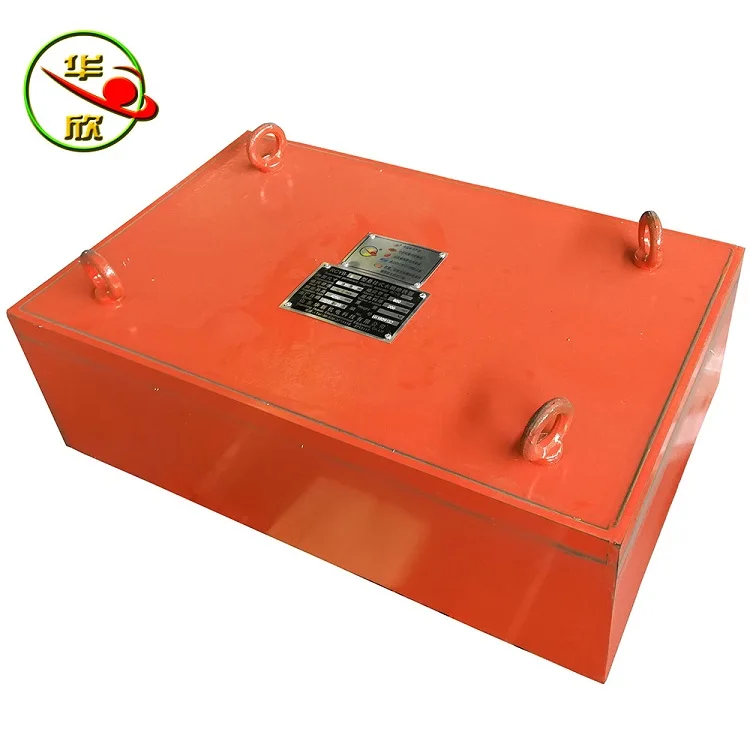

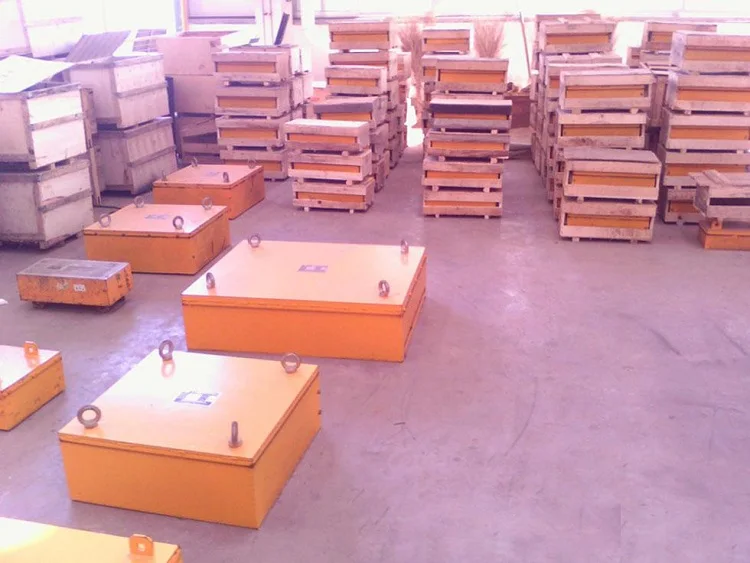

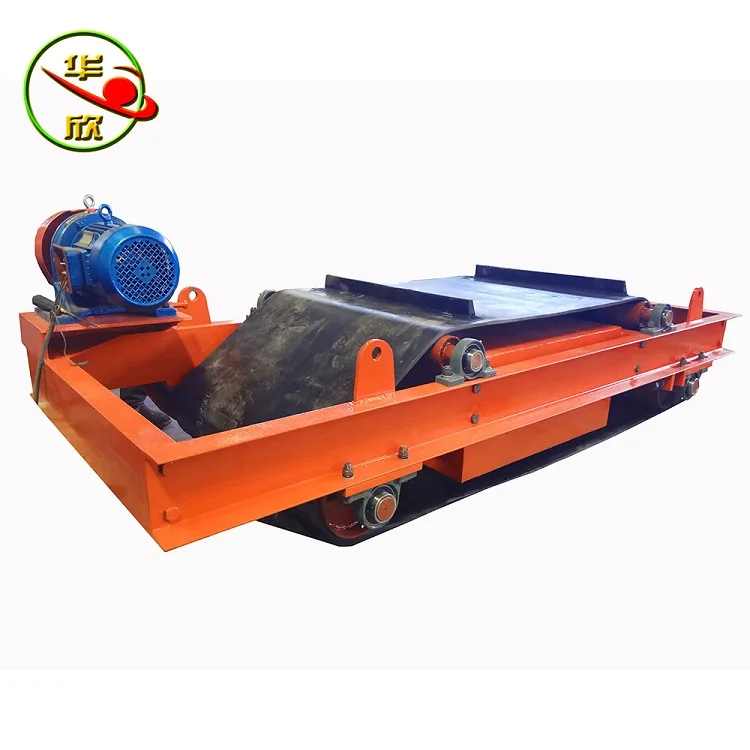

Machine photosof magnetic separator





Installation guide of  magnetic separator

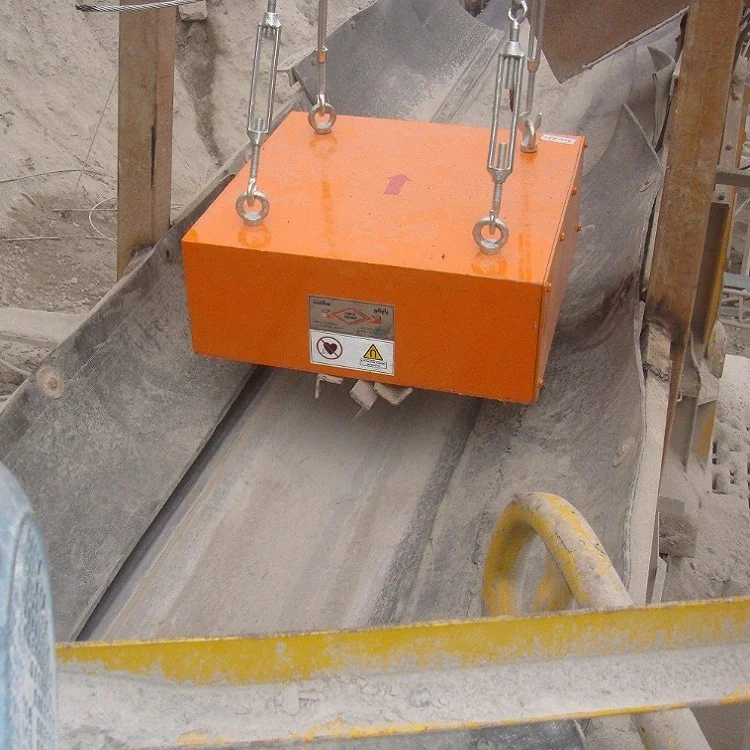

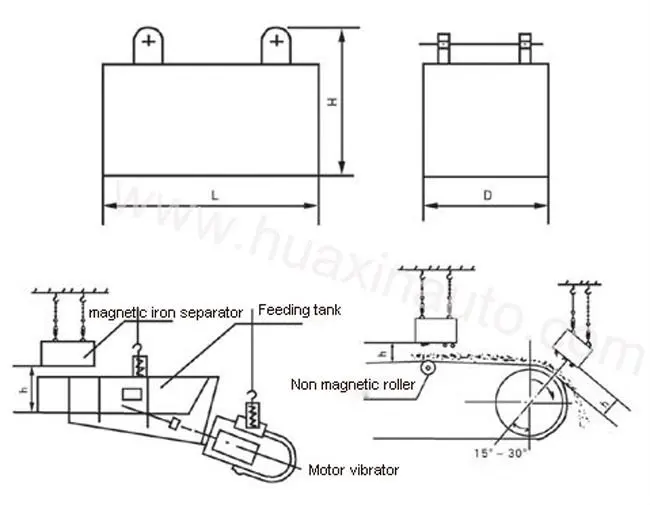

(1), the best position for installation is at an angle over the conveyor head pulley, or at the discharge point of feeder, where the material exposed and is loose.

(2),It would be better to work with a non-magnetic  idle roller, which is installed over the whole level of belt conveyor. When the material pass the pad-up idle roller, the ferrous metal on the fairly stable bed of conveyor become loose and detached.







Machine Equipments of  magnetic separator
