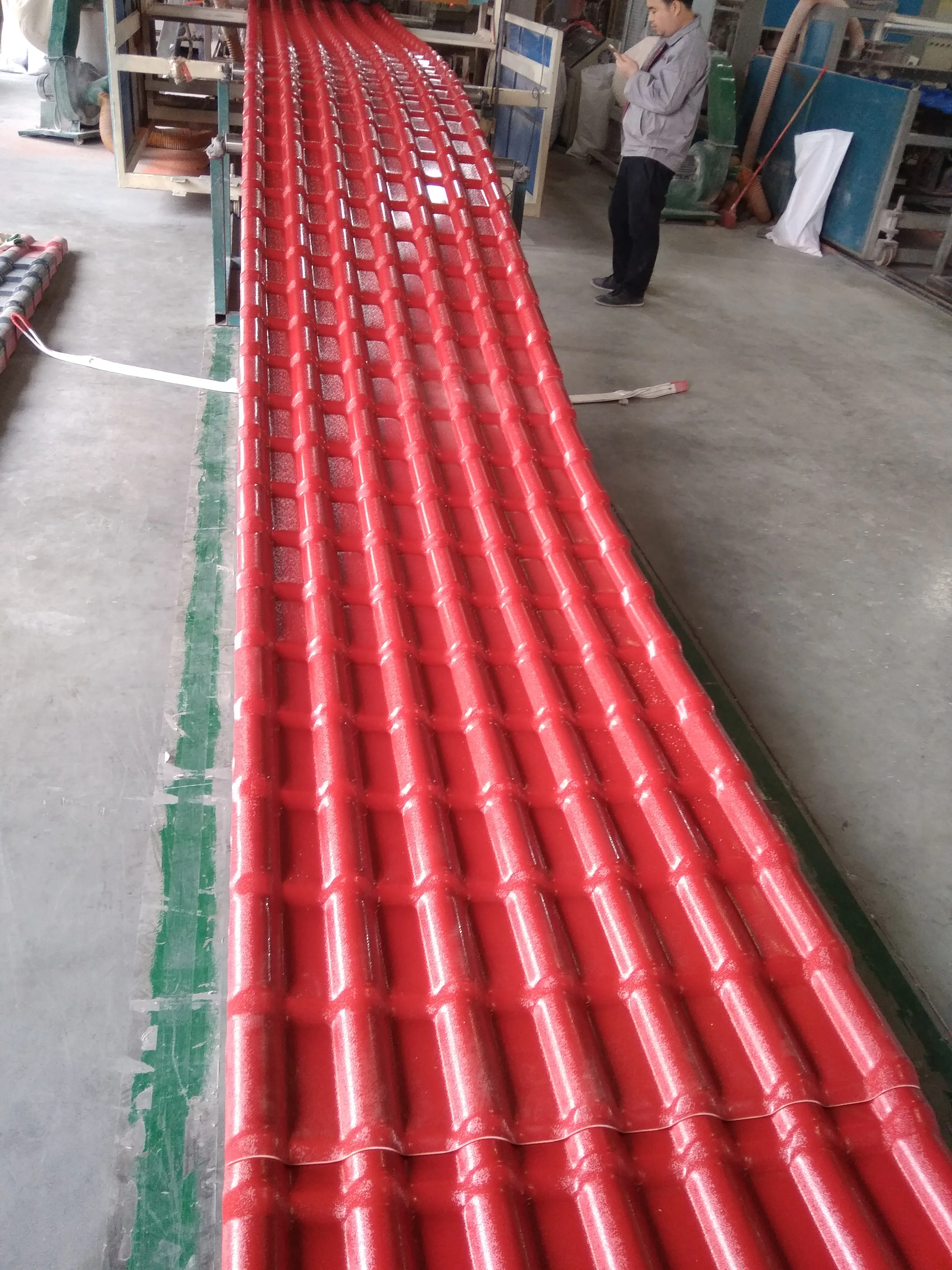

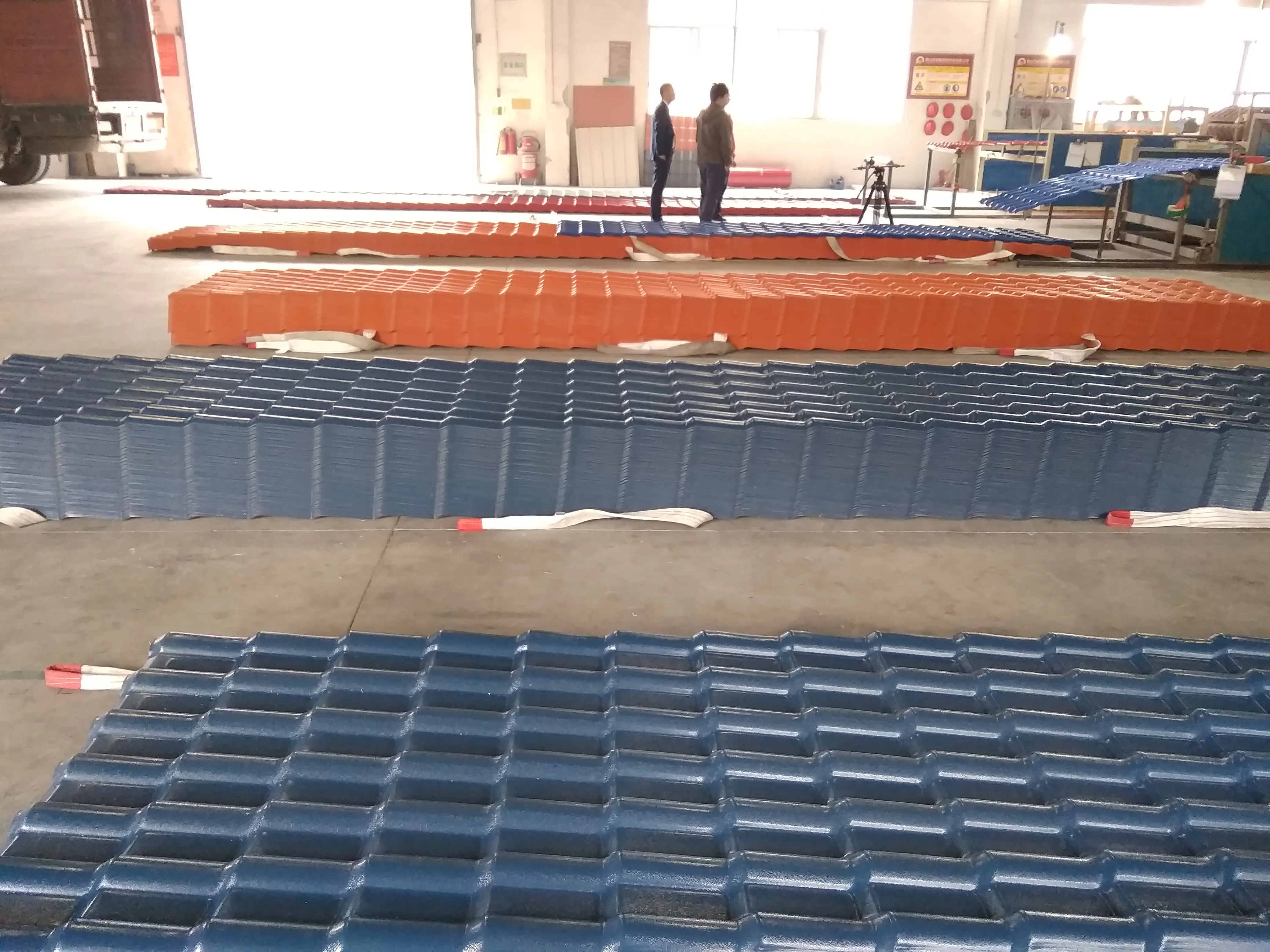

YH покрытый ASA ПВХ Пластиковый Солнечный кровельный лист

Share on (60806638185):


Price:2,50 $ - 3,20 $

Quantity:


Product Overview

Description









































































Place of OriginCN;GUA
TypeBent Tiles
Brand NameYH
Model NumberYH001
Thickness2-3.0mm
LengthCustomized
Wave spacing210mm
Wave height27mm
Width1130mm
ColorCustomized
CertificateSGS,ISO,FQM,MA,AL
Name3 layers heat insulated UPVC Roof Sheet
ApplicationWorkshops/Warehouse/Farm product market
Warranty25 Years






Products features:



  • Weight-light

  • UPVC sheet weight,only 1/12 of the weight of glass of the same thickness

  • Excllent Anti-corrosion performance

  • Synthetic Resin Tile can resist longterm acid ,alkali and salt corrosion ,etc.Tests have proved that there would be no chemical reaction after soaking in salt and alikali and various acid under 60% .It is ideal for application in areas where acid rain is common.

  • Good Waterproofing Performance

  • Synthetic Resin Tile selects highly weater-resistant resin,which is dense and absorbing no water,with no pore penetration problem.The product is 45% wider than traditional tiles with less roof contact,so synthetic resin,s waterproof performance has greatly increased than traditional tiles.

  • Strong Fire Resistance

  • Belonging flame retardant material,with fire resistance ≥ B1 as tested by national authoritative departments according to GBB8624-2006 standard.

  • Excellent Heat Insulating Property

  • The heat conductivity coefficient is 0.325w/m.k,about 1/300 of clay tile ,1/50 of cement tile,and 1/2000 of thick color steel tile.Therefore without condidering ading heat-preserving layer ,the heat insulation and heat preservation of synthetic resin tile can still be optimized.

  • Good sound insulation

  • Tests have proved that synthetic resin tiles have excellent noise absorption function when suffered heavy rains and strong winds.

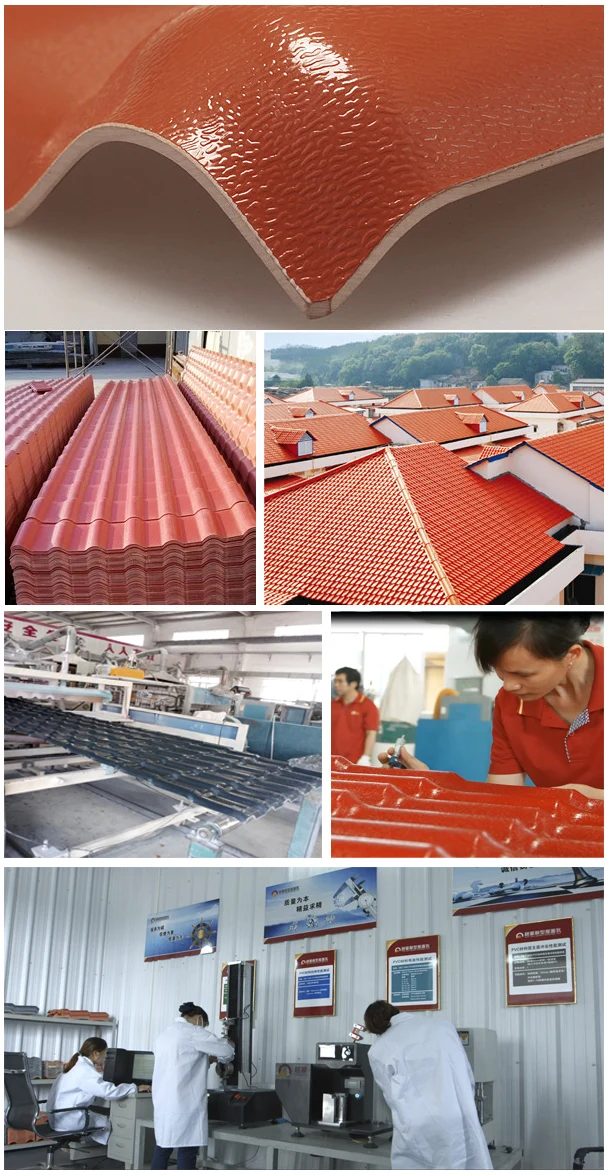

asa pvc roofing

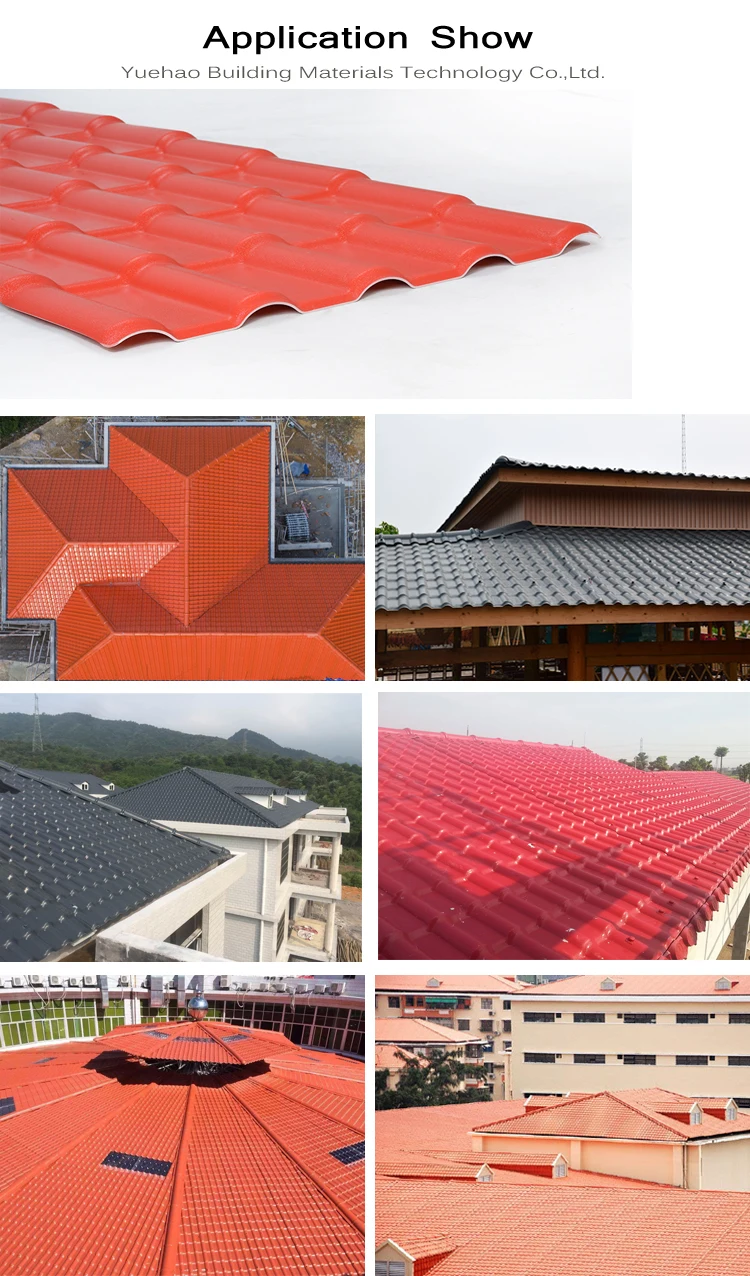

application3




Cautions:
*Mind the sharp edge of the sheets in case of any injury.
*Please use a fine -toothed saw to cut the sheet.
*Do not fix screw sets too tight because the sheets will expand with heat and contract with cold. Otherwise, noise might occur when the sheet shrink due to low temperature.
*Screw sets must be fixed at the peak position of the sheets to avoid any leakage.
*The sheets must be installed starting from the opposite direction of local wind direction.
*Can drill hole with hand drill or power drill. When drilling, the sheet should be supported in the bottom side to prevent swaying, and the hole diameter should be 2.0mm bigger than screw.
*When fixing screws, special rubber mat should be placed under the tile, and the screws should be properly fasten and should not be too tight.
*The frame structure can be steel or wood as purines. Purlins require to be neat, parallel and evenly spaced without deforming.
*Purlins distance is related with temperature of the building, the higher temperature, the shorter distance of purlins.
*Two waves for crosswise lap joint while lengthwise lap joint should be respectively more than 15cm of the each end.






Purlins details as table:






























Tile thickness


Span of slope roof purlins


Span of arch roof purlins


≤1.3mm


≤600mm


≤800mm


1.3mm<thickness≤1.8mm


≤800mm


≤900mm


1.8mm<thickness≤3.0mm


≤900mm


≤1000mm

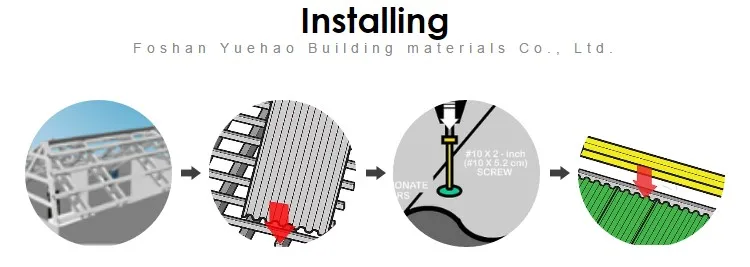

setting struss



placing panel



fixing



decorating









flexible roofing material Royal style asa synthetic resin roof tile
flexible roofing material Royal style asa synthetic resin roof tile
Multi Layers Color Fasting PVC Roof Tile
Multi Layers Color Fasting PVC Roof Tile
Excellent Corrosion Resistance Color Fasting PVC Roof Tile
Excellent Corrosion Resistance Color Fasting PVC Roof Tile
Anti-UV, Color Fasting PVC Roof Sheet
Anti-UV, Color Fasting PVC Roof Sheet
New building materials composite roof tiles for houses
New building materials composite roof tiles for houses
Anti Corrosion Color Coated PVC Corrugated Plastic Roofing Sheets
Anti Corrosion Color Coated PVC Corrugated Plastic Roofing Sheets
Popular Coated ASA PVC Plastic Roof Sheet
Popular Coated ASA PVC Plastic Roof Sheet

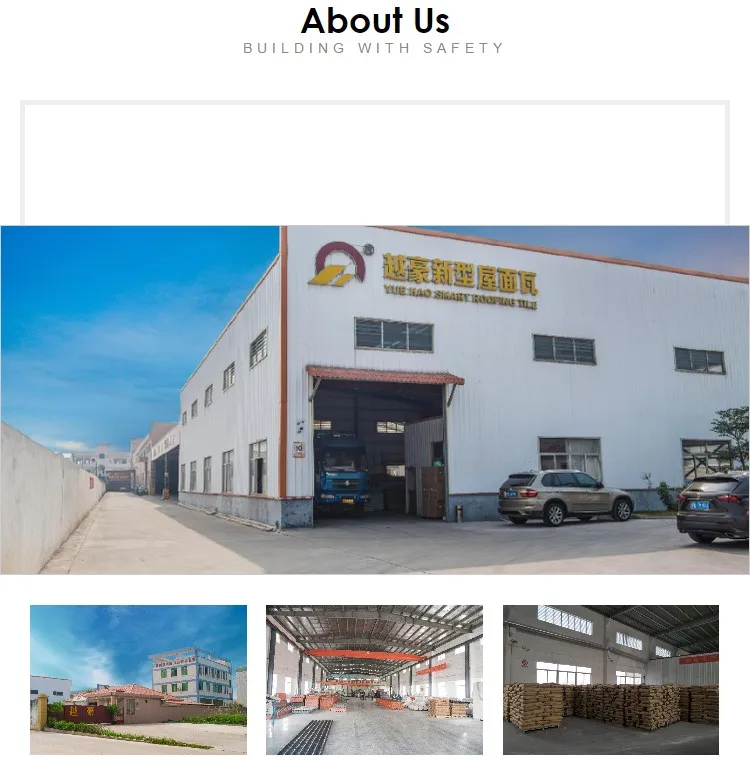

Yuehao Building Materials Technology CO.,Ltd has now grown to be a well-established, highly reputed and respected organization, inheriting credibility and reliability in the field of plastic roofing industry in the China. We are committed to serve our clients by providing high quality products and competitive price.
