M12 Connector NPN/PNP NO NC Output Inductive Proximity Sensor Switch 5V/12V/24VDC/AC110V/220V Metal Detector IP67 (IBEST)

Product Overview

Description

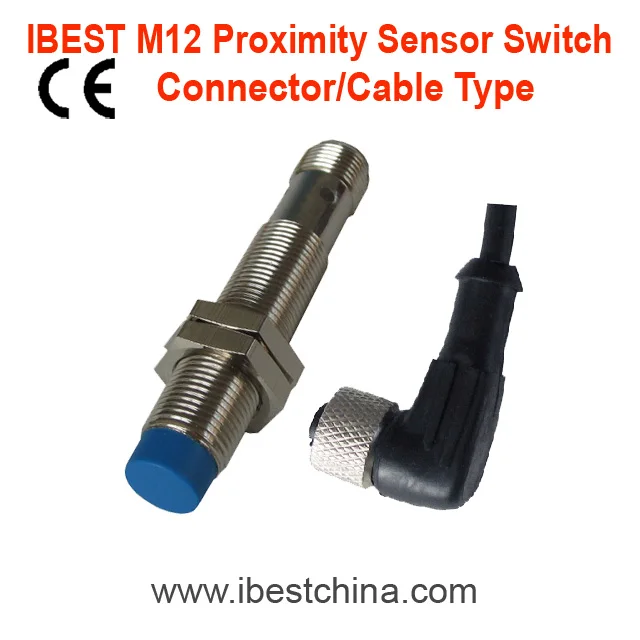

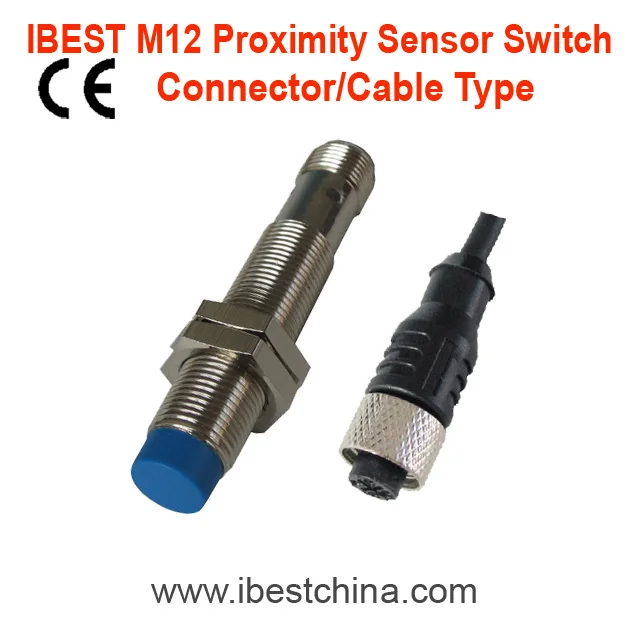

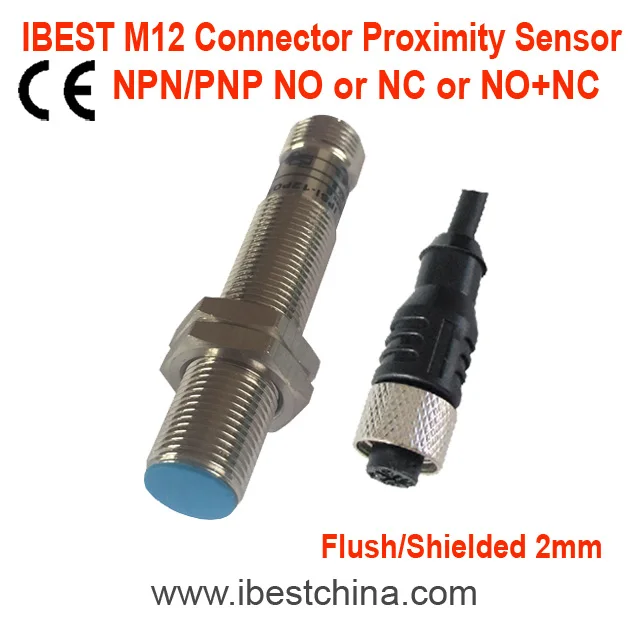

IBEST M12 Connector Type Inductive Proximity Sensor/Switch

NPN/PNP  NO+NC Dual Output



1. Features of M12 Proximity Sensor  :

--     Inductive proximity sensor, style: cylinder, diameter: 12mm
--     Detect Distance: Unshielded 2mm or shielded 4mm type . (Extended distance is available, Flush 4mm or non-flush 6mm)
--     DC 2-wire (10-30V DC), DC 3-wire(10-30V DC), DC 4-wire(10-30V DC),AC 2-wire (90-250 AC) type

--     Connection mode: with M12 connector. (Plug in cable connector needs to be configuared)

--     With LED operation indicate lamp, easily identifiable
--     Brass chrome plated, proof of oil, water acid, alkaline
--     Standard sensing object: iferrous metals;
--     Over load, short circuit protection , against polarity reversal
--      IP ratings: IP67

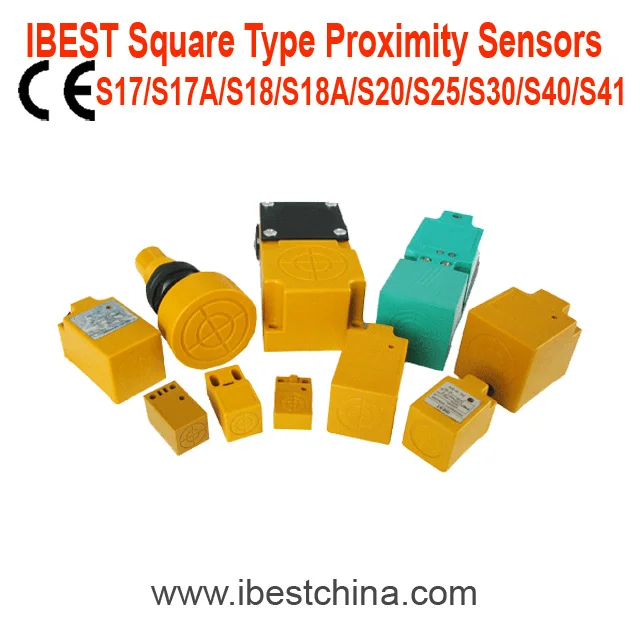

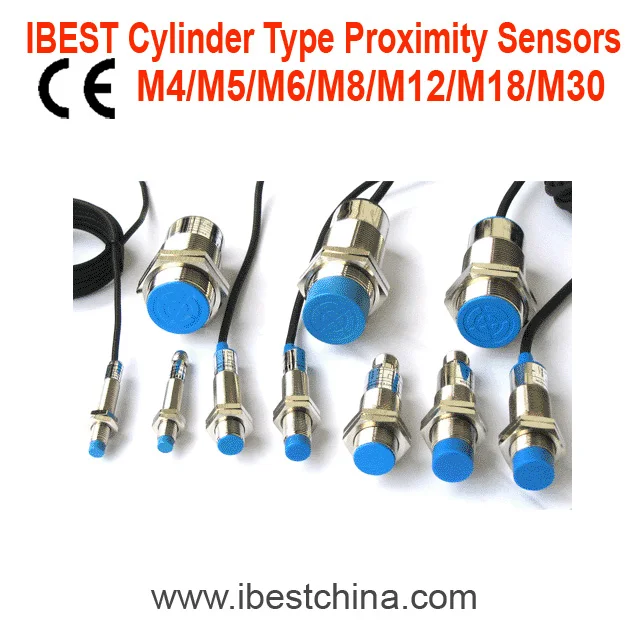

--      Various other shapes: M5/M6/M8/M18/M30, square types and pancake types.
--      Widely applied in measuring, Counting, Rpm measuring in mechanism, chemical, paper manufacture light industry, etc . --      Reliable quality to replace famous brands .

2.Ordering code

IPSI/L-12NO2B	NPN NO	2mm,shielded	≤200mA	DC 10-30V	Plug-in connector
IPSI/L-12NC2B	NPN NC	2mm,shielded	≤200mA	DC 10-30V	Plug-in connector
IPSI/L-12NO4B	NPN NO	4mm,unshielded	≤200mA	DC 10-30V	Plug-in connector
IPSI/L-12NC4B	NPN NC	4mm,unshielded	≤200mA	DC 10-30V	Plug-in connector
IPSI/L-12NOC2B	NPN NO+NC	2mm,shielded	≤200mA	DC 10-30V	Plug-in connector
IPSI/L-12NOC4B	NPN NO+NC	4mm,unshielded	≤200mA	DC 10-30V	Plug-in connector
IPSI/L-12DO2B	DC 2 Wire NO	2mm,shielded	≤200mA	DC 10-30V	Plug-in connector
IPSI/L-12DC2B	DC 2 Wire NC	2mm,shielded	≤200mA	DC 10-30V	Plug-in connector
IPSI/L-12DO4B	DC 2 Wire NO	4mm,unshielded	≤200mA	DC 10-30V	Plug-in connector
IPSI/L-12DC4B	DC 2 Wire NC	4mm,unshielded	≤200mA	DC 10-30V	Plug-in connector
IPSI/L-12AO2C	AC 2 Wire NO	2mm,shielded	≤300mA	AC 90-250V	Plug-in connector
IPSI/L-12AC2C	AC 2 Wire NC	2mm,shielded	≤300mA	AC 90-250V	Plug-in connector
IPSI/L-12AO4C	AC 2 Wire NO	4mm,unshielded	≤300mA	AC 90-250V	Plug-in connector
IPSI/L-12AC4C	AC 2 Wire NC	4mm,unshielded	≤300mA	AC 90-250V	Plug-in connector

IPSI/L-12PO2B	PNP NO	2mm,shielded	≤200mA	DC 10-30V	Plug-in connector
IPSI/L-12PC2B	PNP NC	2mm,shielded	≤200mA	DC 10-30V	Plug-in connector
IPSI/L-12PO4B	PNP NO	4mm,unshielded	≤200mA	DC 10-30V	Plug-in connector
IPSI/L-12PC4B	PNP NC	4mm,unshielded	≤200mA	DC 10-30V	Plug-in connector
IPSI/L-12POC2B	PNP NO+NC	2mm,shielded	≤200mA	DC 10-30V	Plug-in connector
IPSI/L-12POC4B	PNP NO+NC	4mm,unshielded	≤200mA	DC 10-30V	Straight connector



3. Technical Specifications:

Property project Specific parameter Mounting distance shielded: 2mm / unshielded : 4mm (Or  special extended distance) Sensing distance shielded: 0-1.8mm / unshielded : 0-3.6mm Power supply DC 10-30V / AC 90-250V Frequency DC:  ≤800Hz / AC:≤20Hz Current output DC:≤ 200mA / AC: ≤ 300mA Ambient temperture -15-+65 C Protection DC:Over-Load & short circuit protection. IP rating IP67 Water Spray Resistant

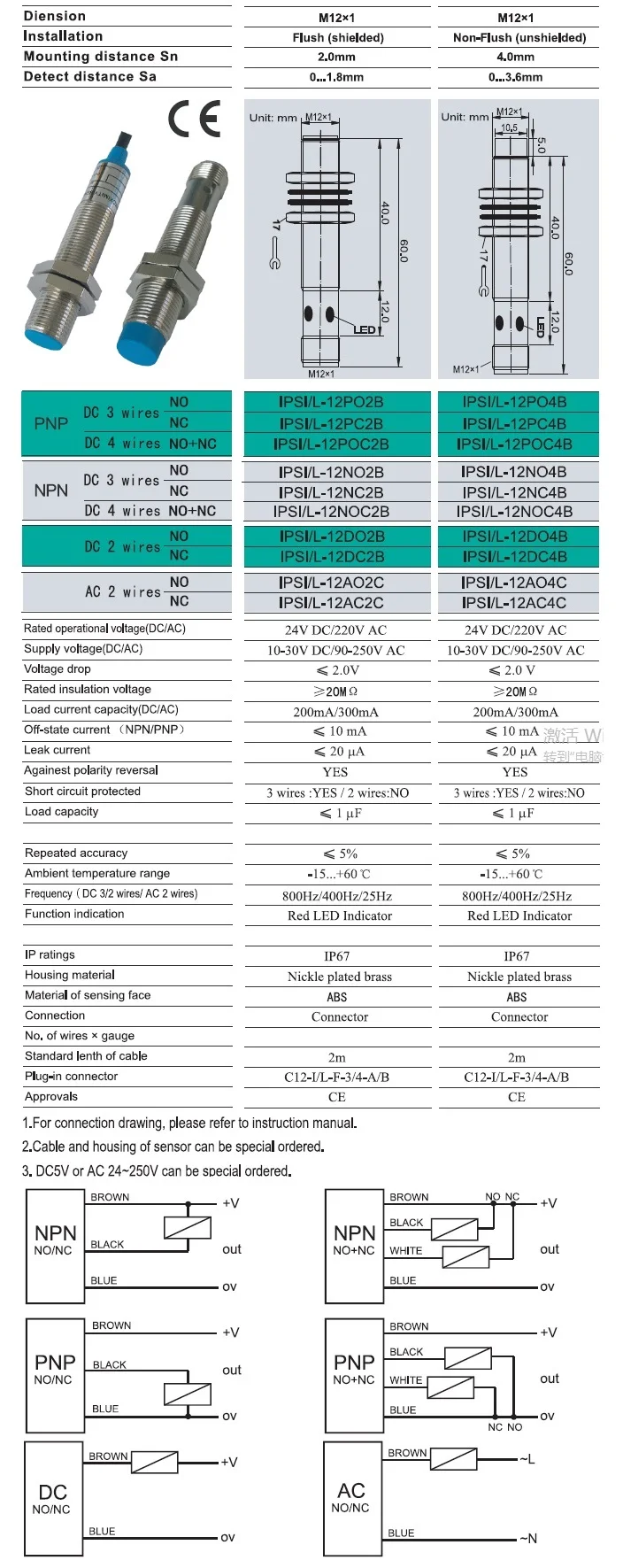

4. Dimensions:
