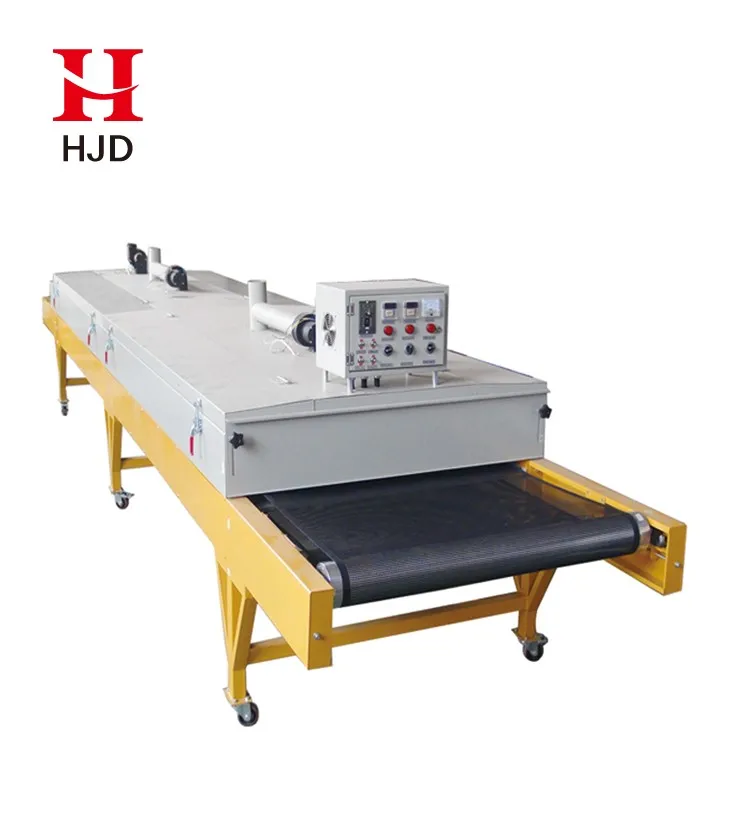

large size screen printing conveyor ir dryer

Product Feature:

1.Adopt conveyor belt, can operate continuously, greatly improve work efficiency;

2.Electronic control greenhouse, ensure accurate temperature equilibrium;

3.Adopt air circulation system, guarantees the drying quality;

4.Conveying system is equipped with stepless speed drive control;

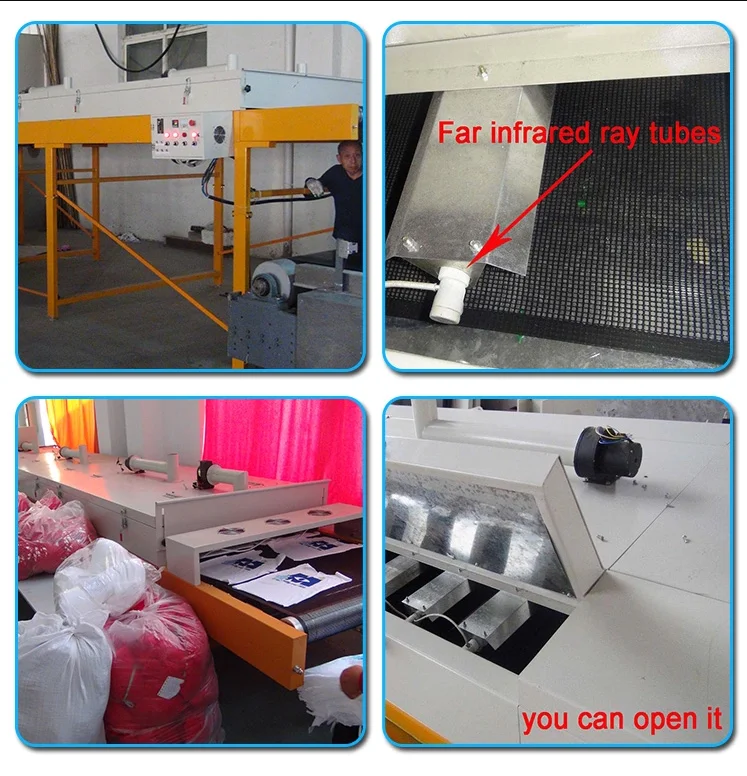

5.Internal galvanized steel structure, effectively transmit infrared light, cold setting

speed up the time, curing effect is good.



Operation Step:

1) Turn on the "Power Switch", "Conveyor Switch", "and Fan Switch".

2) Turn on the "Heating Switches". And set heating temperature.

3) Put drying objects to be dry on conveyor belt at entrance.

4) Pick up objects from Outlet side of the machine.

5) Adjust conveyor speed if the object has not been dried properly.

6) Adjust height of the heating tubes by turning the wheels on top of heating chamber if color . of objects is burned.
