Product Overview
Description
Product Description

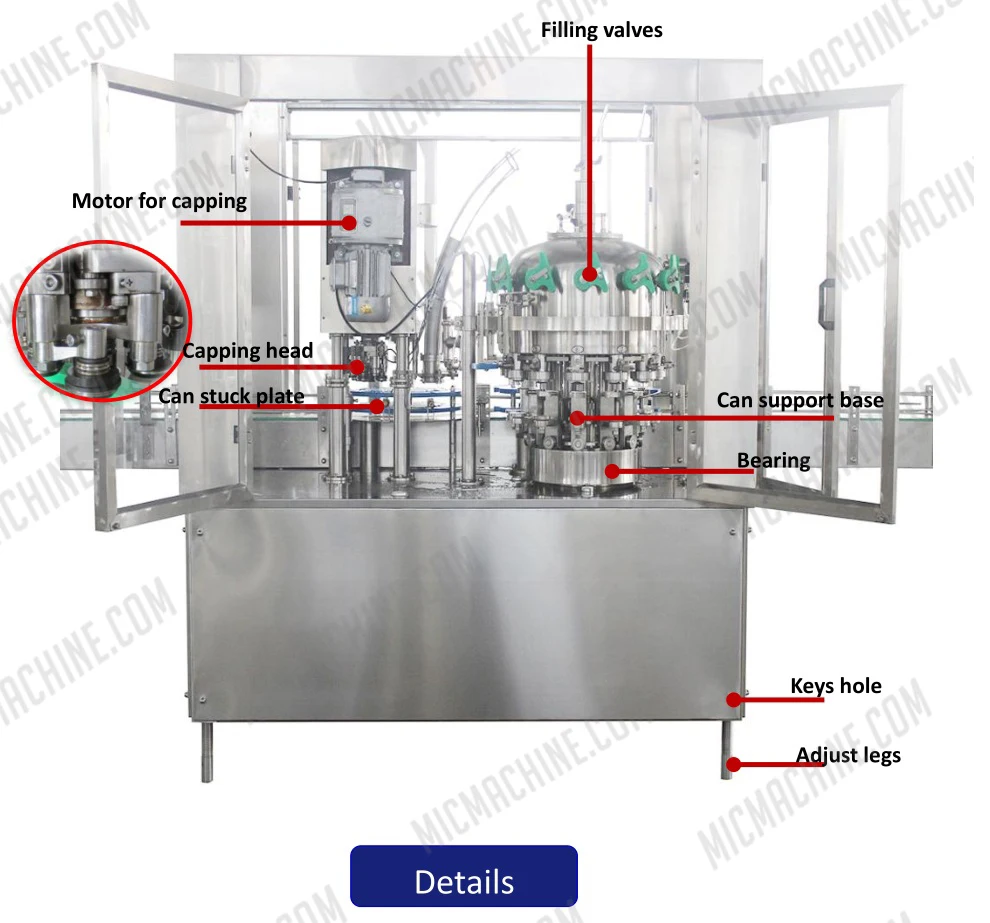

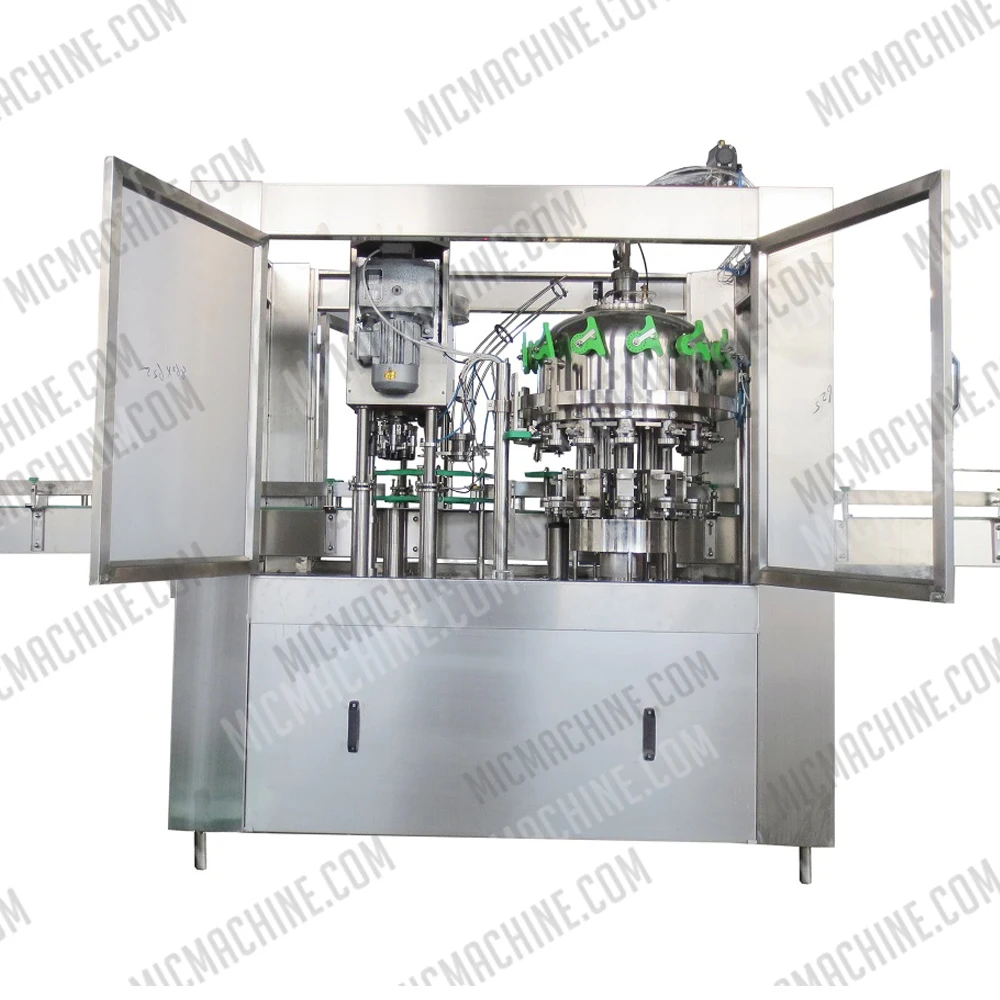

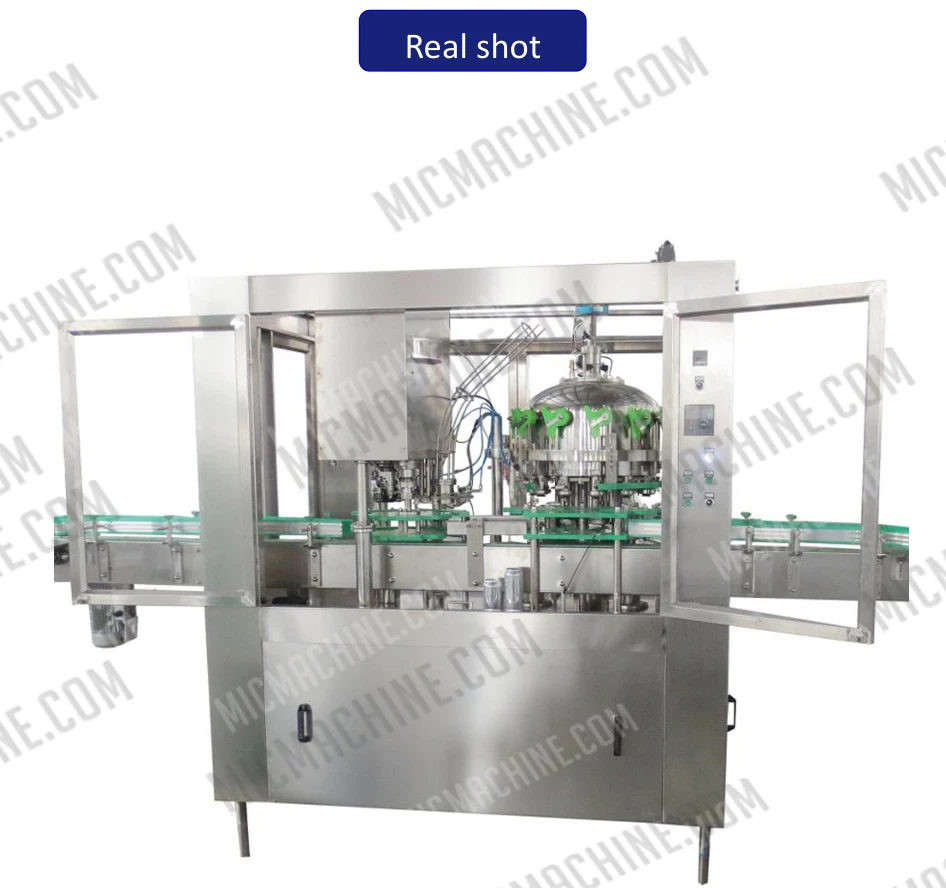

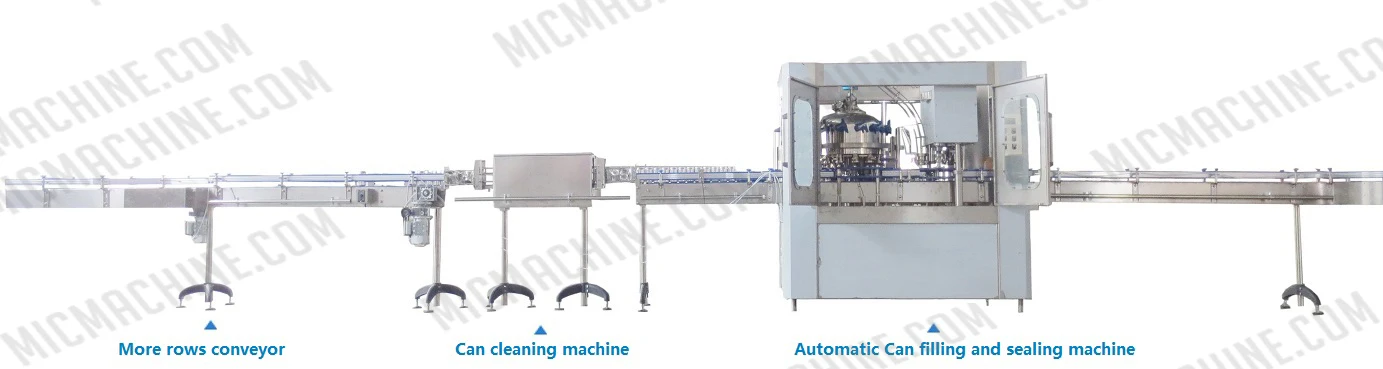

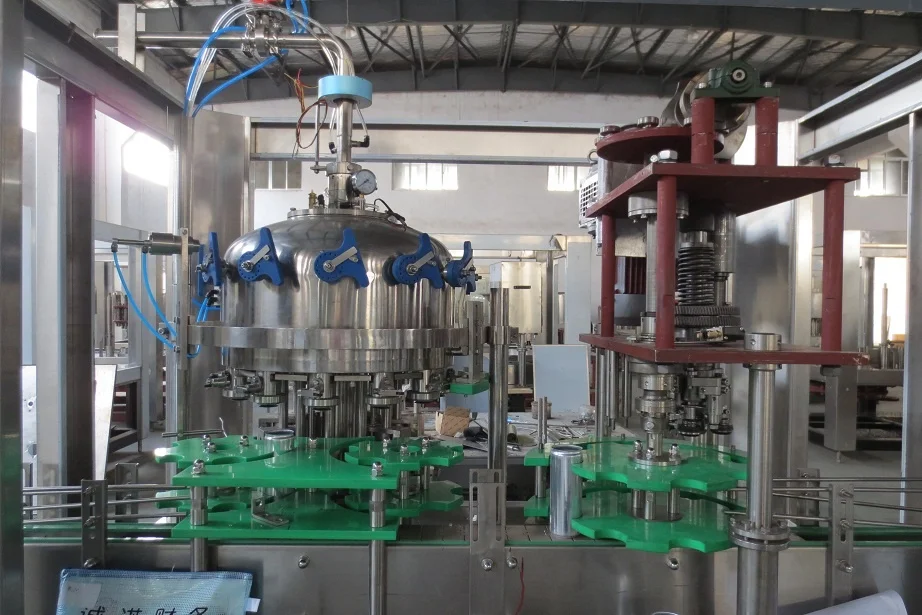

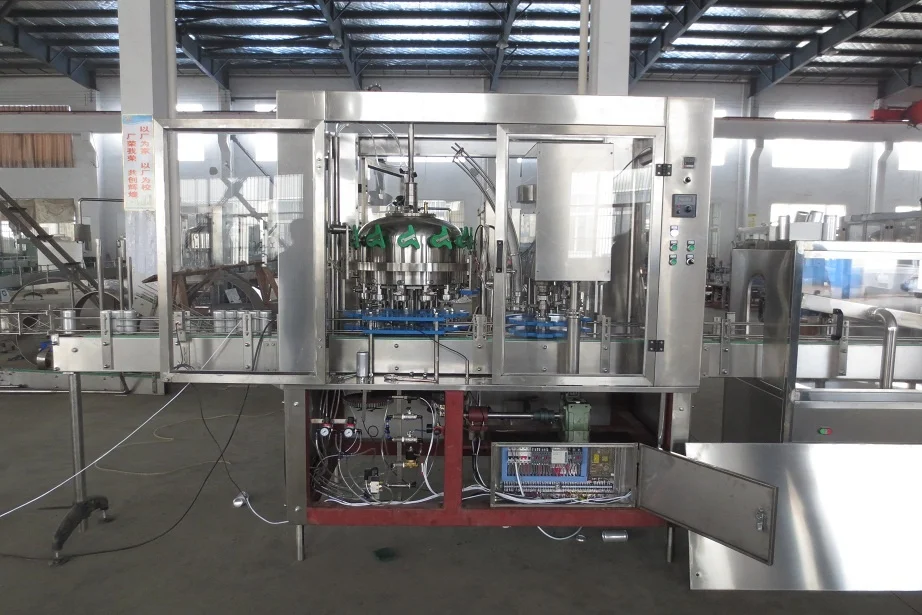

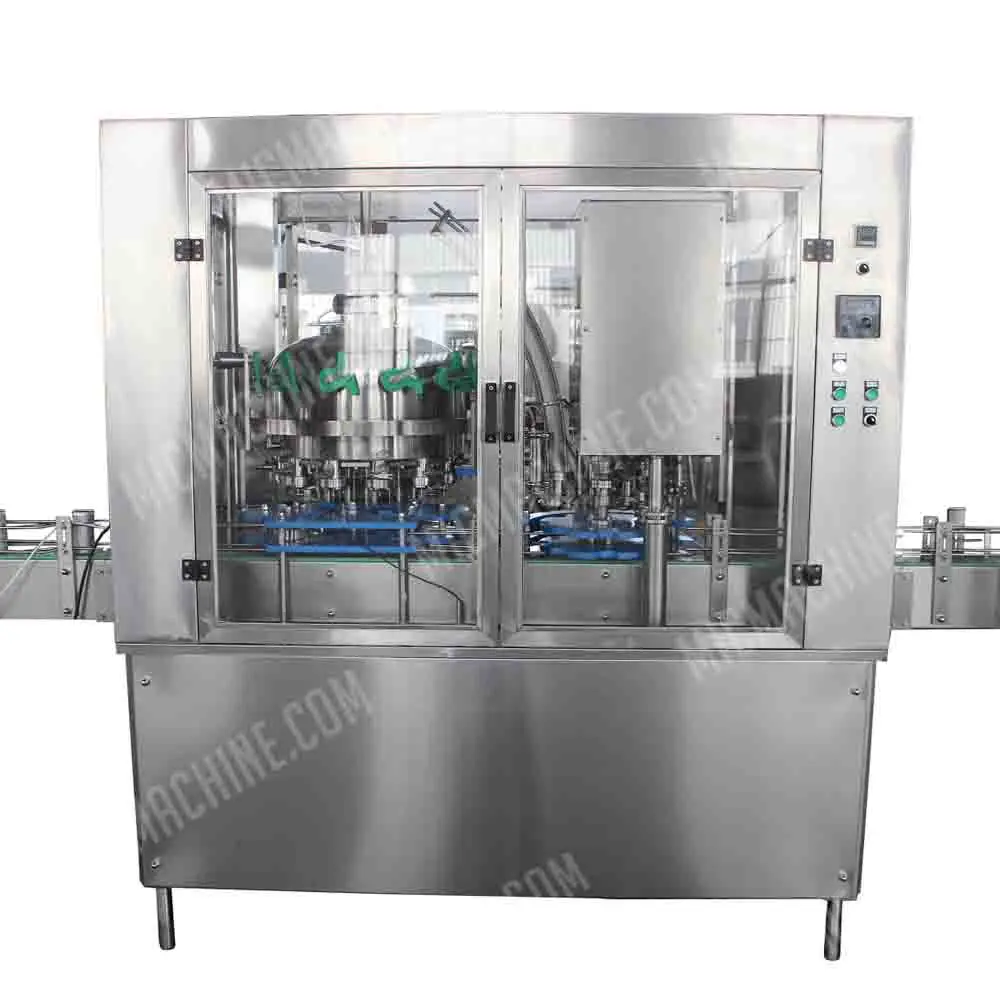

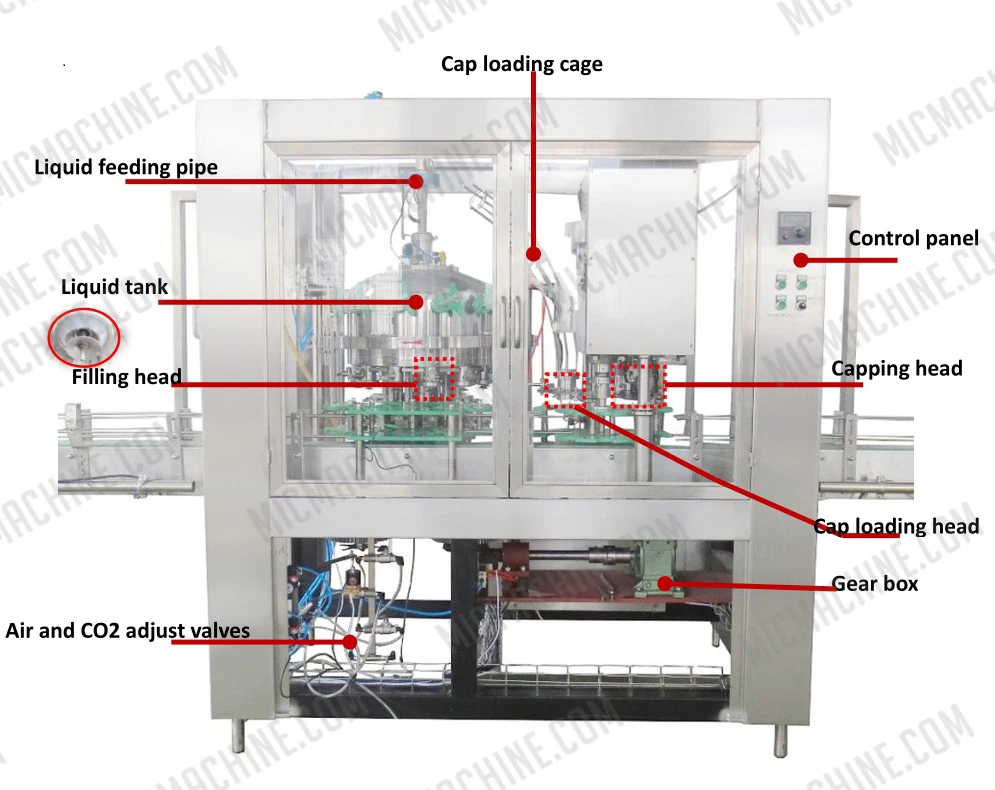

This machine is suitable to cans of drink (beer) industry of soda cans filling and sealing, filling and sealing for the overall design by isobaric filling principle, filling overhead tank into liter gas tank moving tank support, compressed air by pneumatic triple pieces into the ascending tank cylinder and the empty tank rises and filling valve conical gasket seal, filling valve translocation fast block in another cylinder under the action of transposition of the valve to open, empty cans to inflate and formation pressure, beer made from aniseed tank by 12 small pipe flow to empty cans, empty tank of liquid level to rise to block back to port, stop filling. Row Mo valve in touch block under slowly began to bleed pressure relief and tank supporting cylinder continues to decline, after the tank is synchronous operation of the hook chain sent to sealing machine sealing, sealing, sealing round pre sealing and then real sealing, jar sealed after being hit cover mechanism starts to launch, the dial dial to the conveyor belt sent.

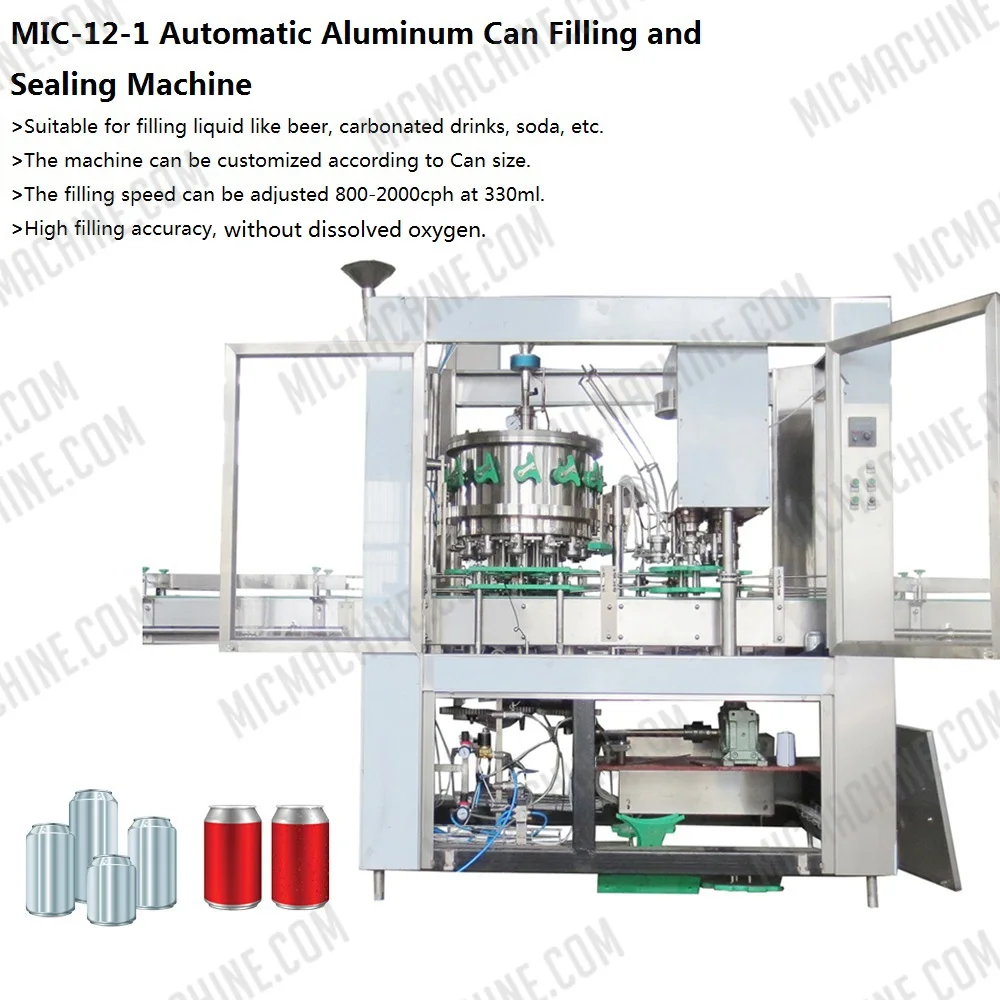

Des. | MIC-12-1 | |||
Power | 1.1Kw | |||
Main material | SUS304 | |||
Production capacity | 800-2000CPH at 330ml | |||
Can diameter range | Ф50-90MM | |||
Bottle height | 39-170MM | |||
Filling pressure | 0.2～0.3 Mpa | |||
Dimension | 1750*1140*1950mm | |||
Weight | 1800Kg |

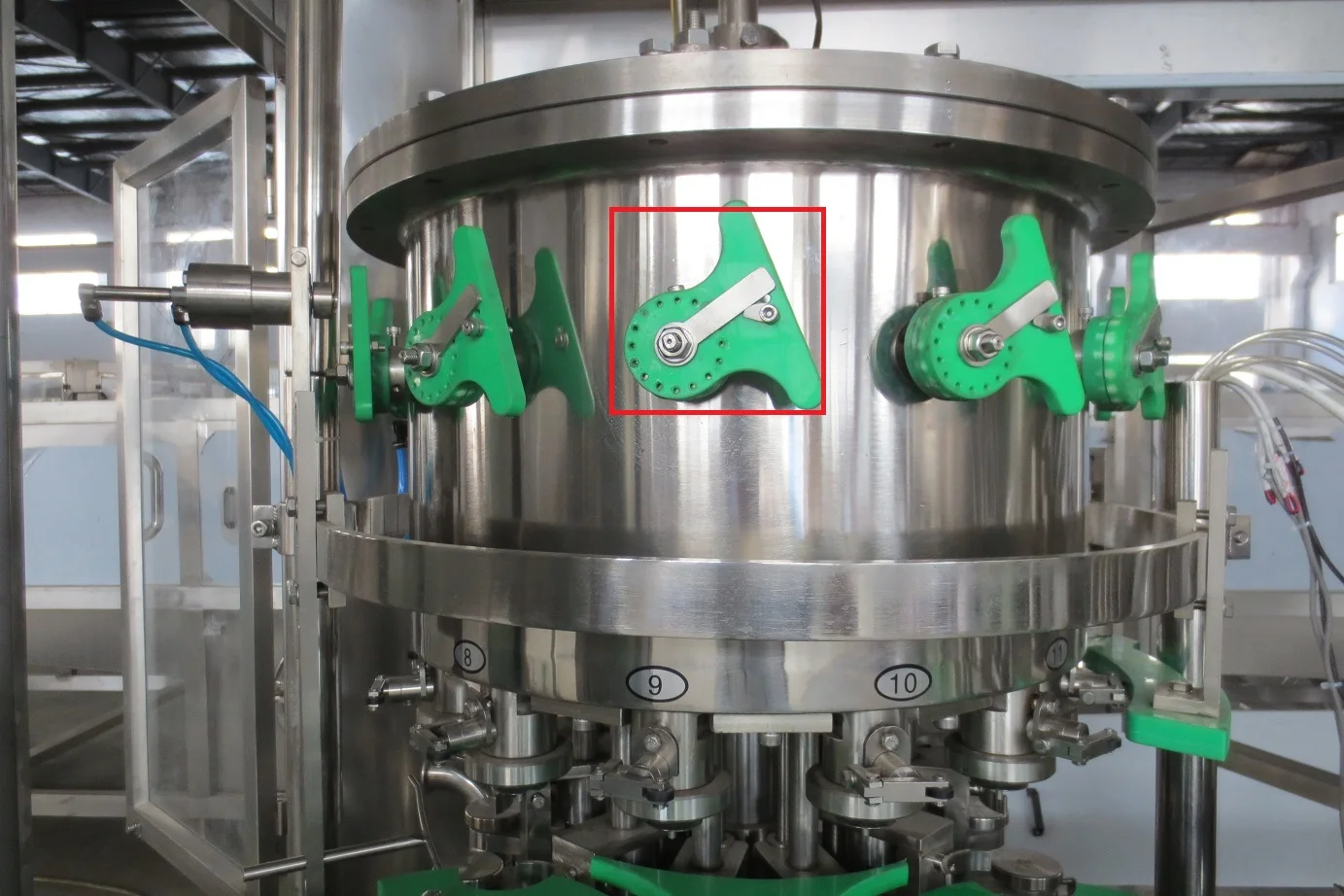

It is for gas open and closed valve. It has a plastic shell, which is a ceramic structure. To prevent the liquid corrosion, anti dust, to prevent leakage.

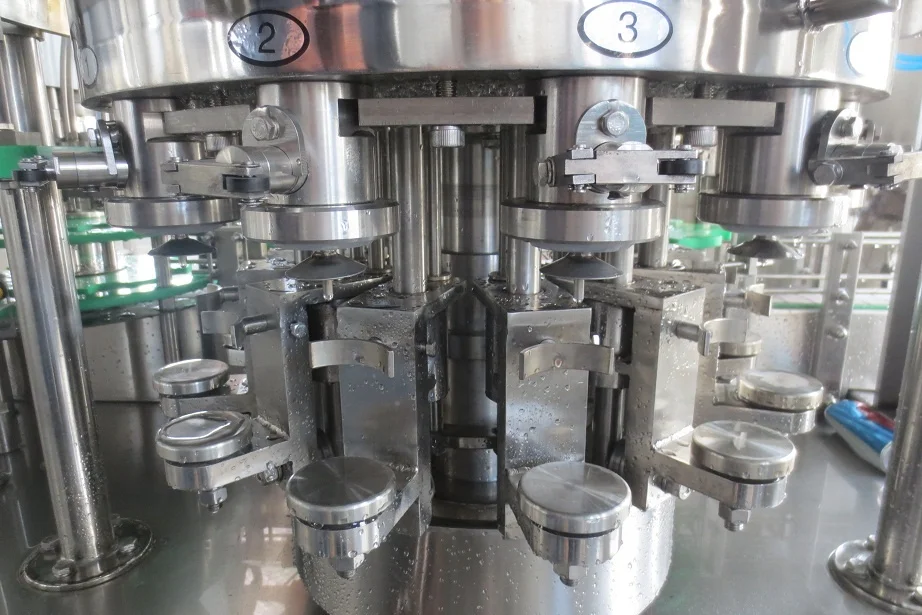

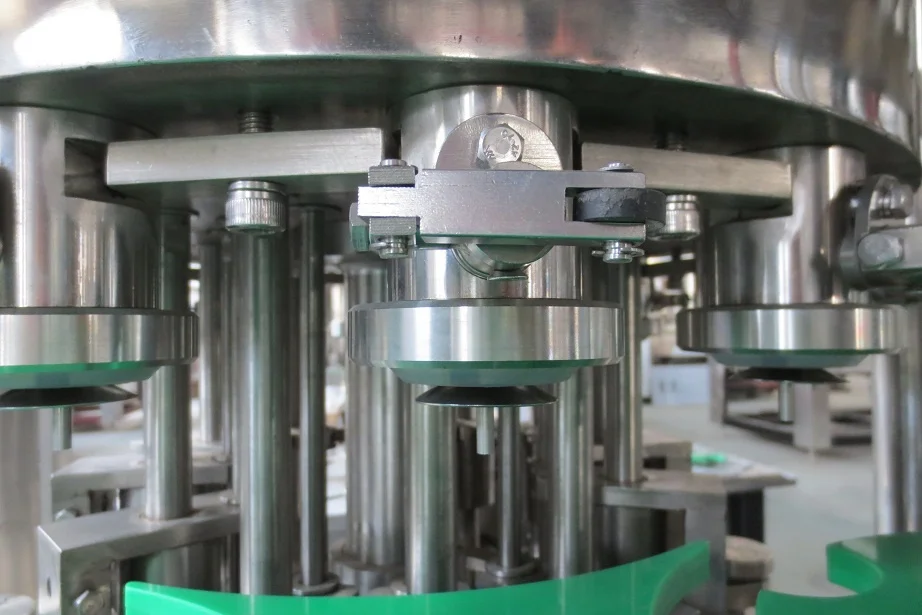

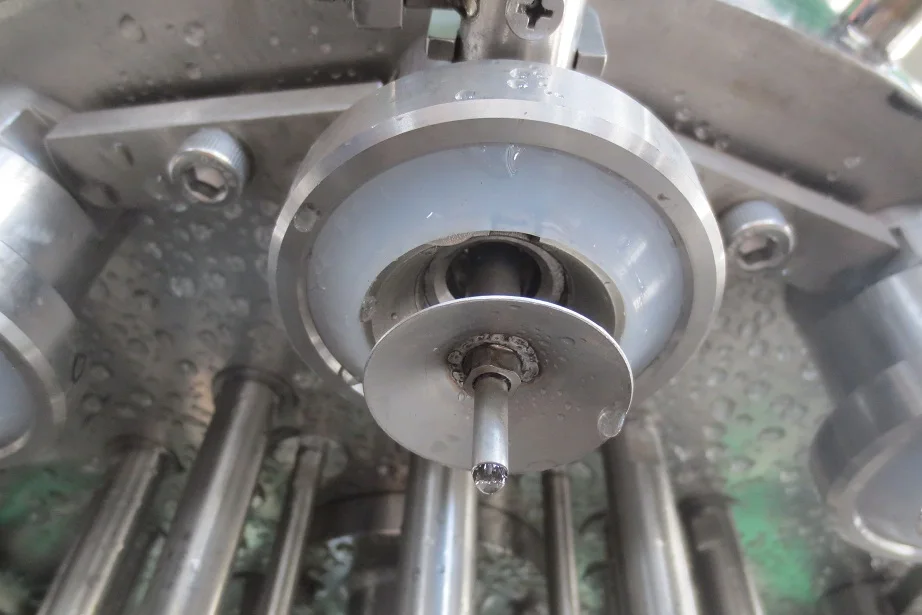

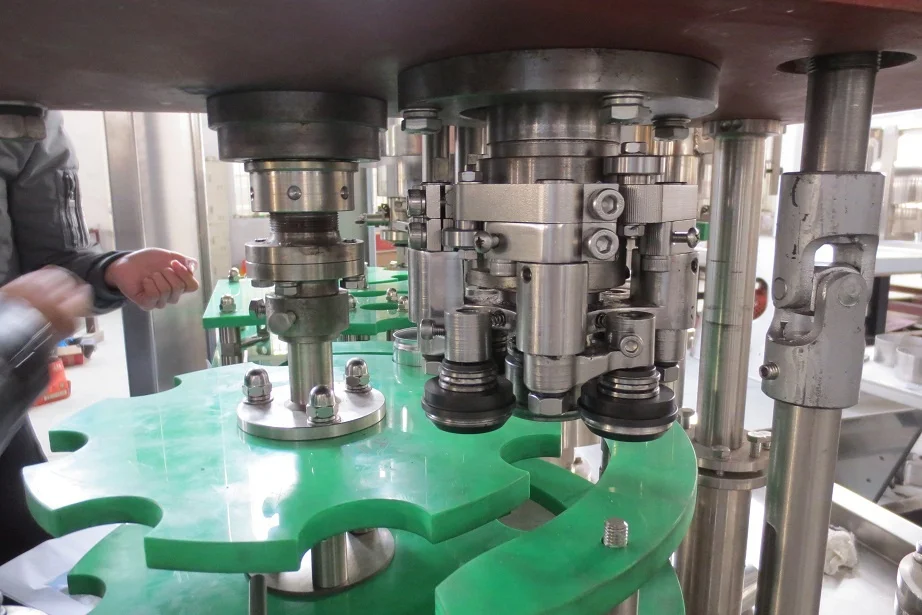

Filling valve adopts 316 materials to airproof to realize the constant pressure filling.

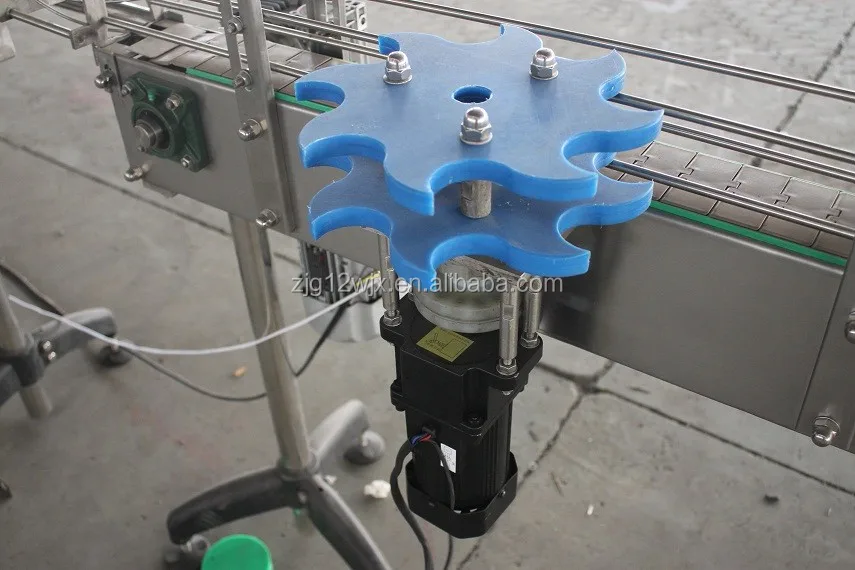

This is Canns feeding wheel, it will push the Canns into washing machine. If the diameter of Can is different, this part need to be changed.

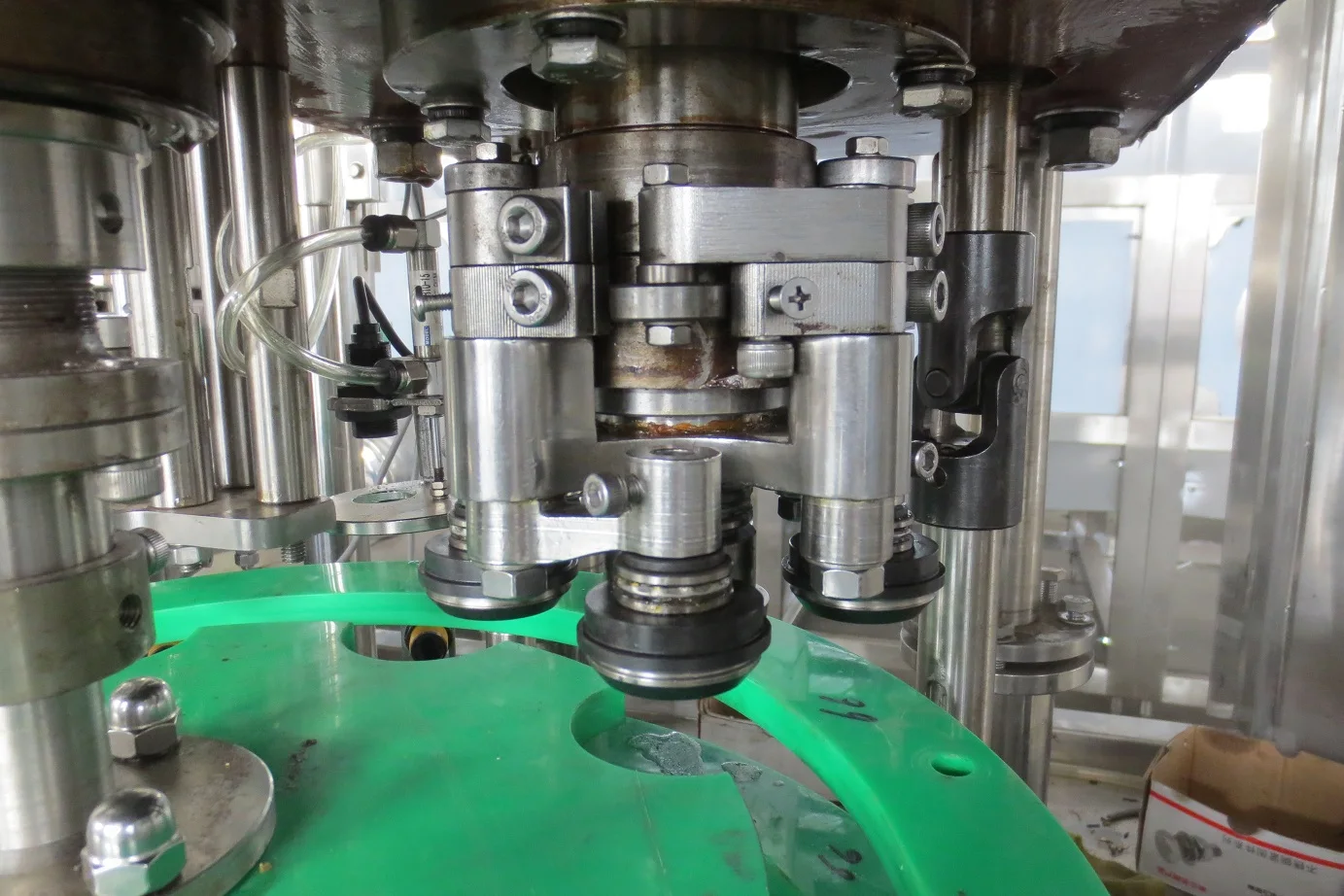

not leak after sealing.
Please send us your request, we can help you customize a suitable machine!

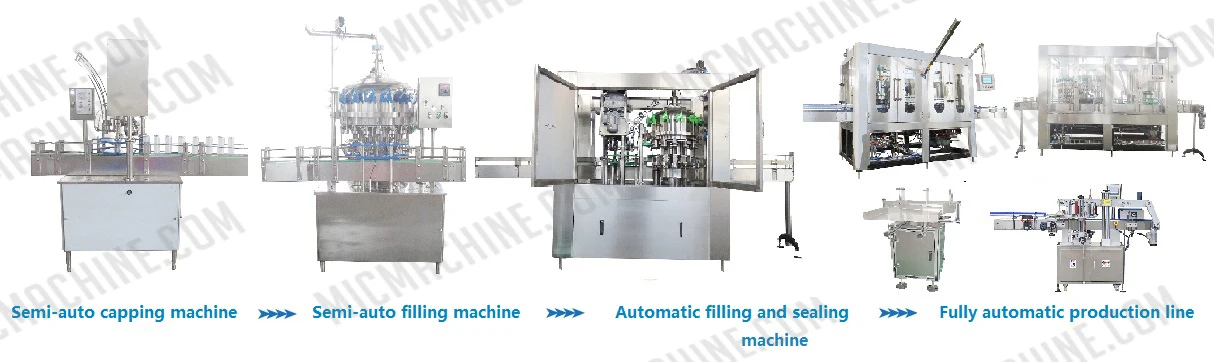

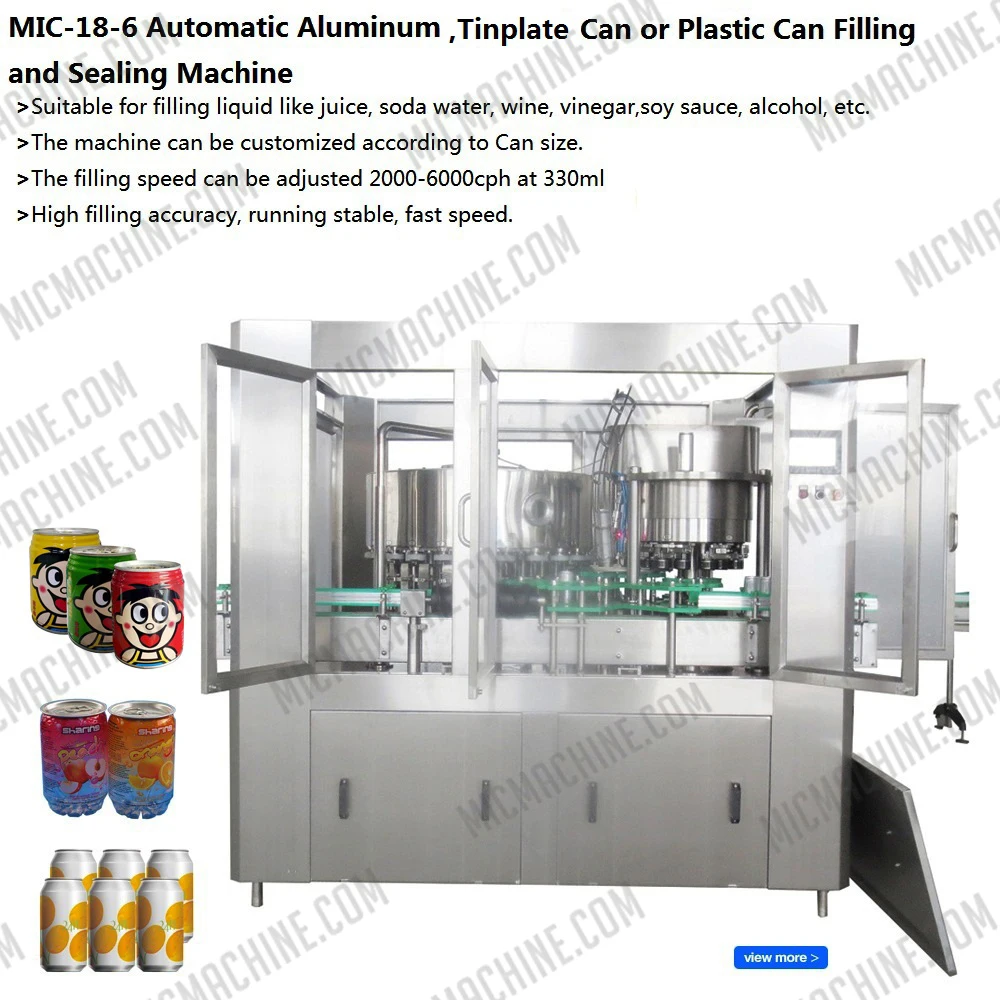

We have other machine, if you want to know, please send us your request, we can help you customize a suitable machine !
Related Products
Company information

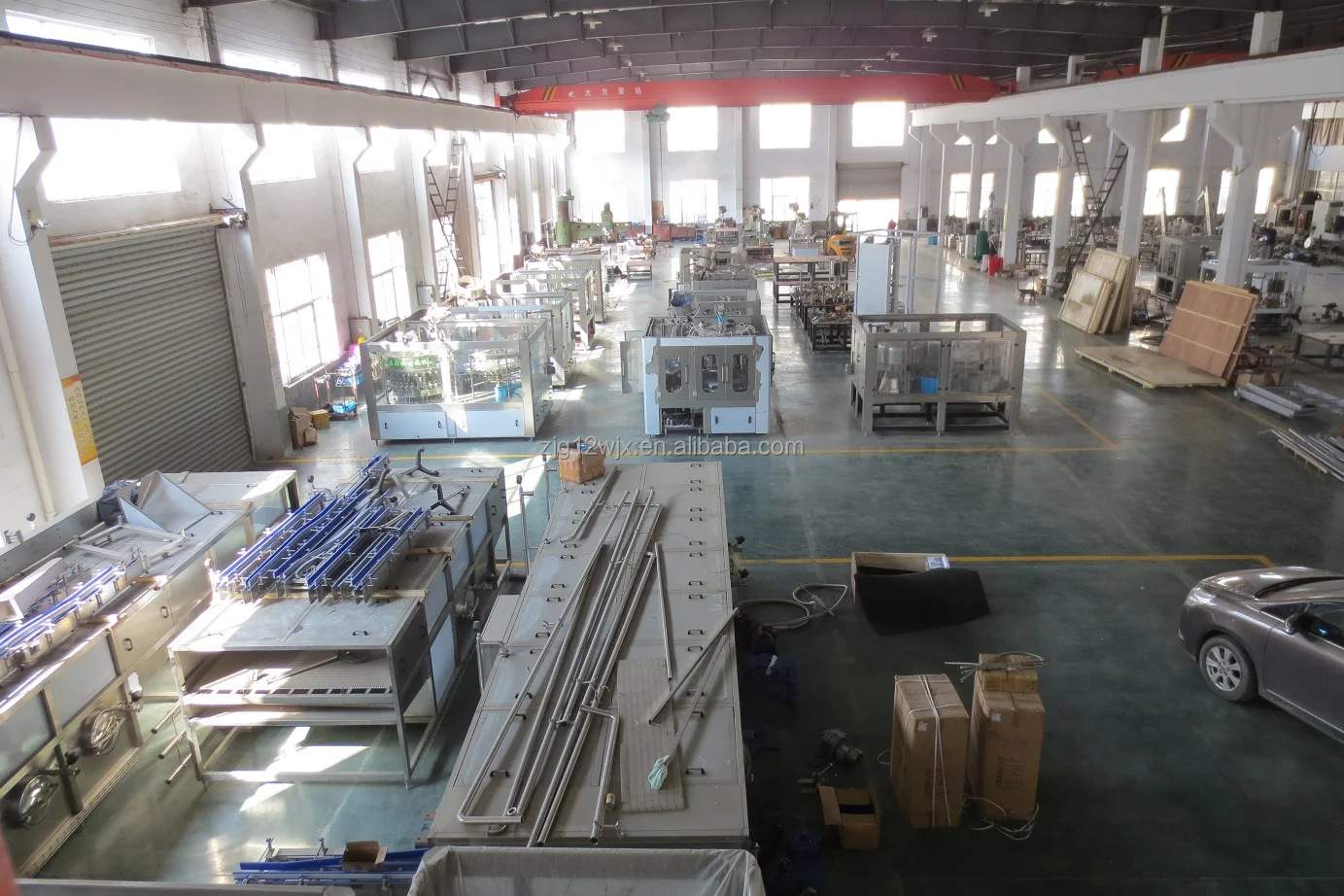

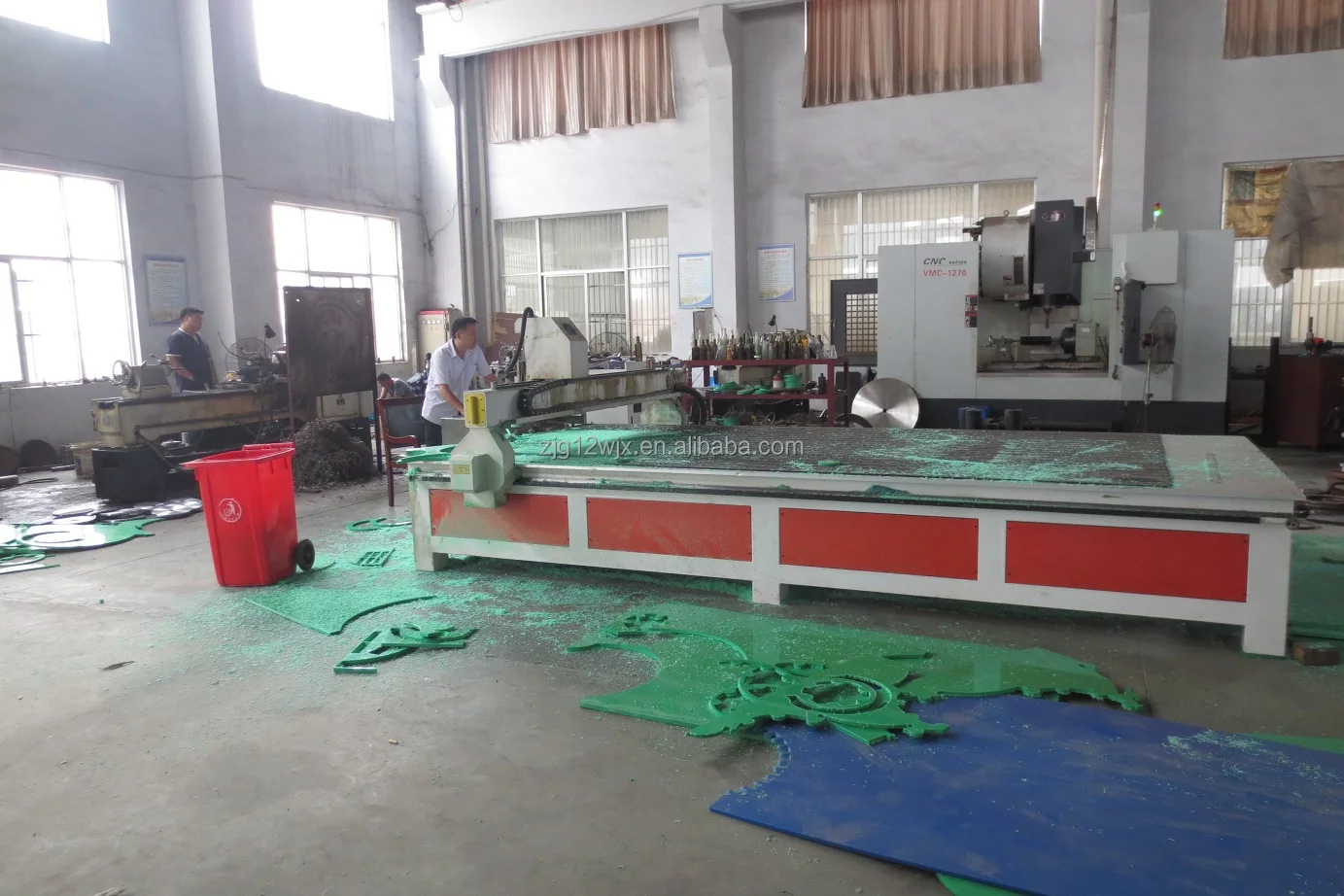

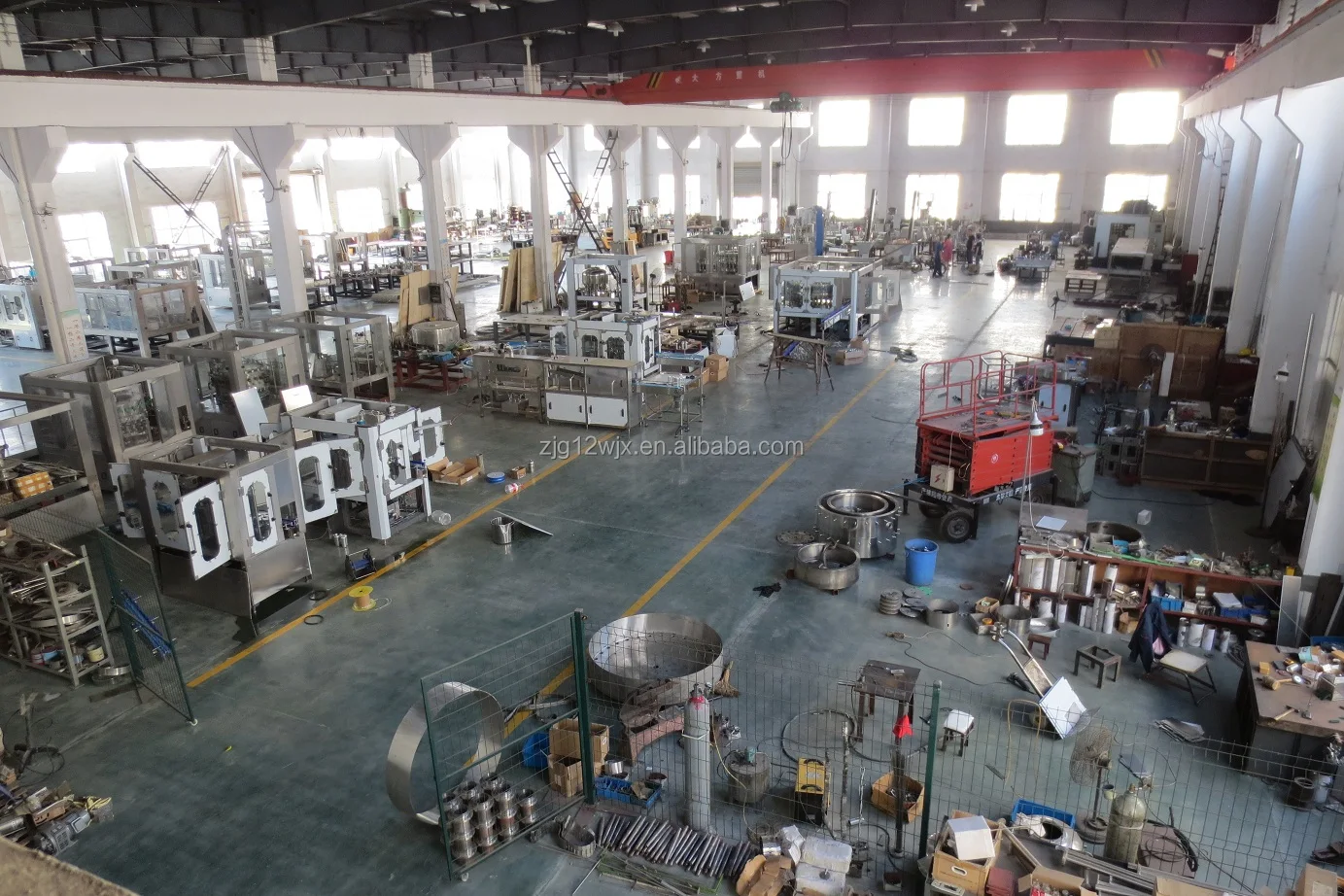

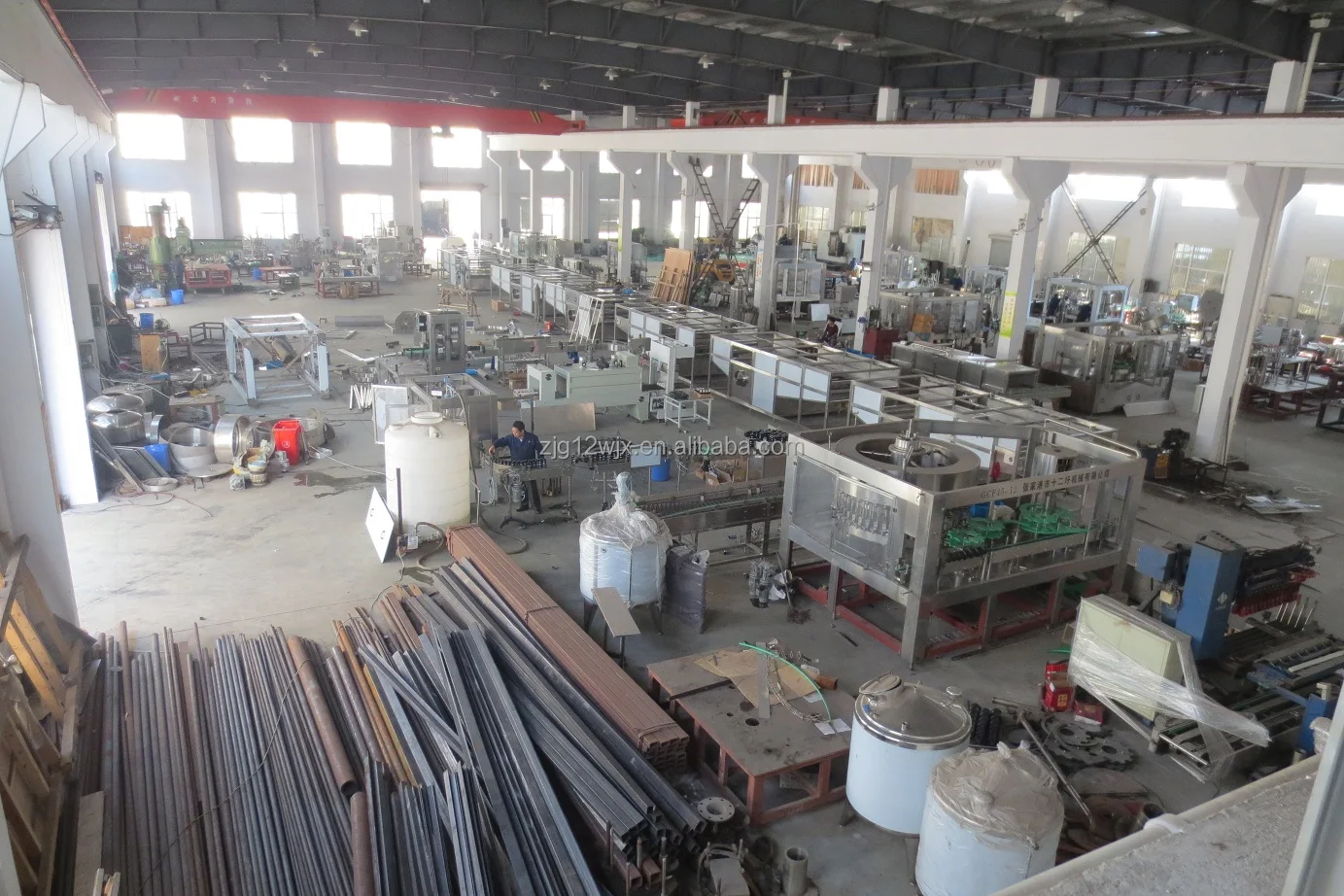

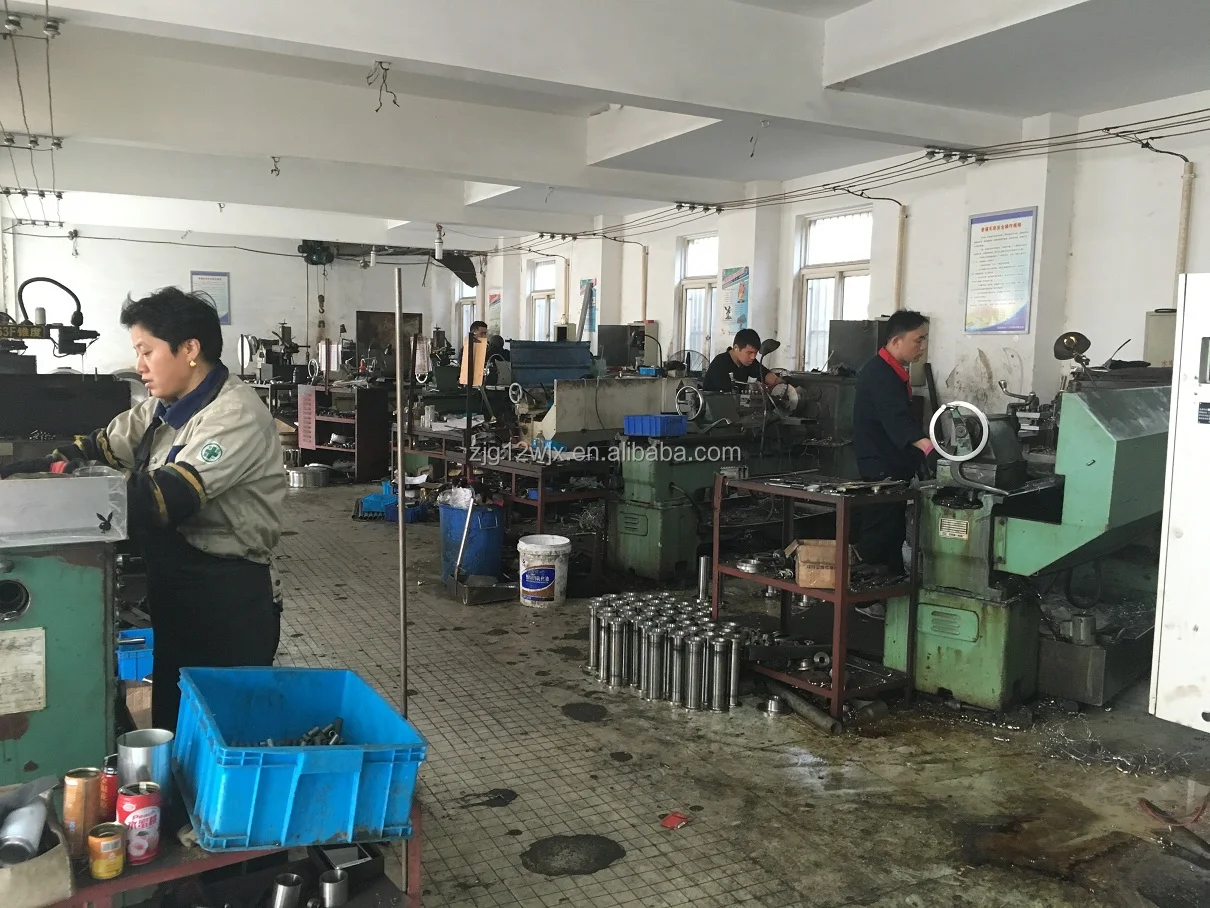

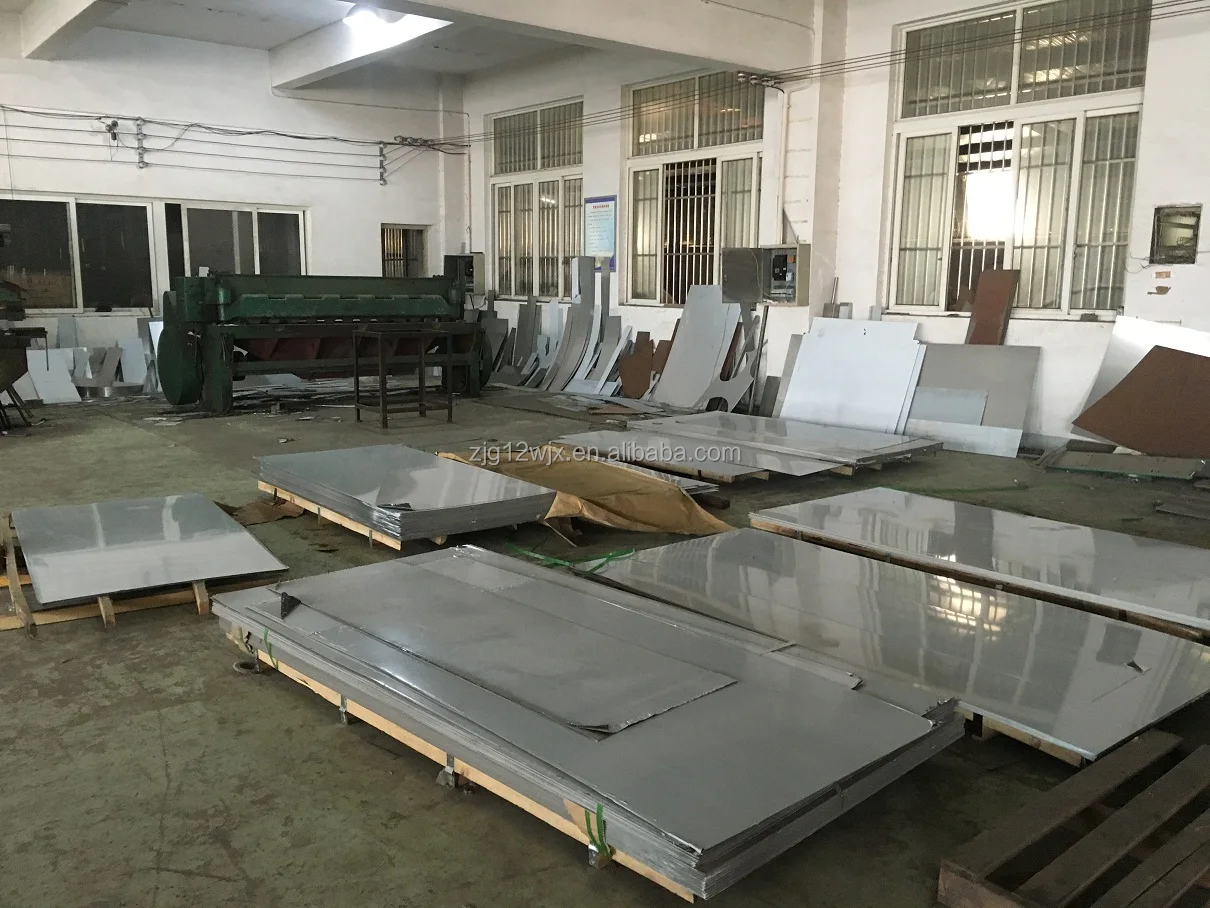

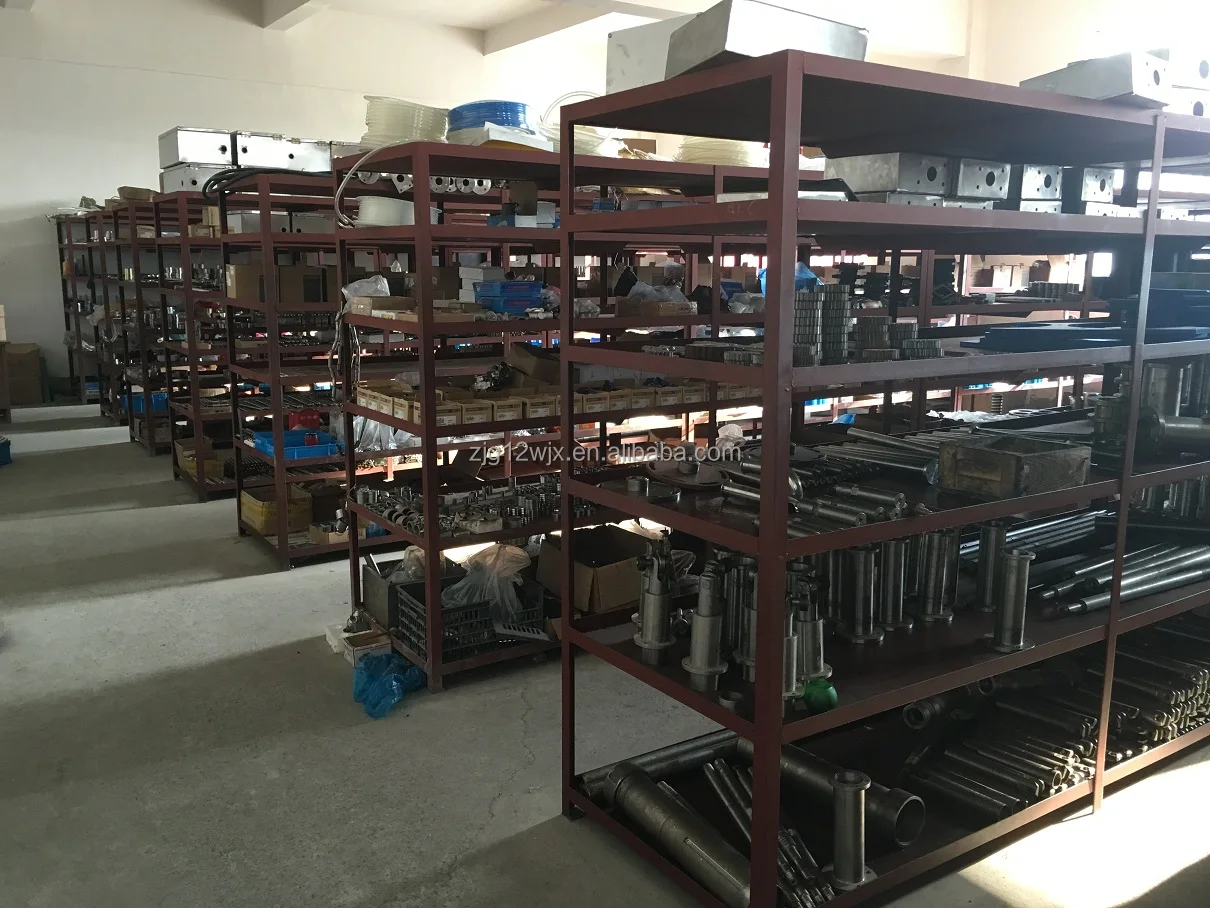

Our factory
