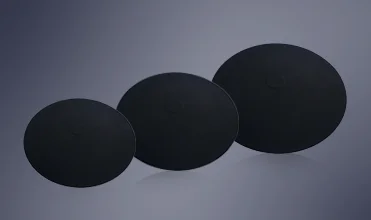

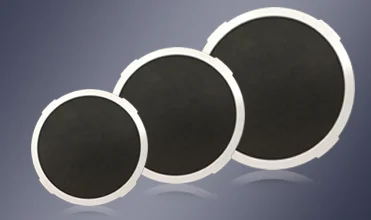

Disc diffuser adopts energy saving design, low installation cost, high reliability and excellent performance in intermittent and continuous aeration process. Dense drilling is conducive to efficient oxygen transfer and utilization, in order to apply the aeration system specifications, can use different drilling mode to adjust the working pressure, such as different slot length, distance, the density of drilling.


Model | HSCD200 | HSCD260 | HSCD300 | HSPD215 | HSPD260 | HSPD300 | HSPD330 |
Bubble Type | Crown Type | Crown Type | Crown Type | Plate Type | Plate Type | Plate Type | Plate Type |
Pic. |
|
| |||||
Size | 8 inch | 10 inch | 12 inch | 8 inch | 10 inch | 12 inch | 13 inch |
MOC | EPDM membrane | EPDM/Corundum | EPDM membrane | ||||
| ABS carrier plate | ||||||
Connector | 3/4"NPT male thread | ||||||
Bubble Size | 1-2mm | ||||||
Flow Range(m³/h) | 1-6 | 1-8 | 1-12 | 1-6 | 1-8 | 1-12 | 1-15 |
Design Flow(m³/h) | 1.5-3 | 3-5 | 5-6 | 1.5-2.5 | 3-4 | 5-6 | 7-8 |

FAQ
Q: Are you a trading company or a manufacturer?
A: Manufacturer
Q: How long is your delivery time?
A: Usually 5-10 days, special case 15-20 days
Q: Do you provide samples? Is it free or extra?
A: Yes.the samples for free ,freight in your charge
Q: What is your payment terms?
A: Payment ≤ 20000 USD, 100% in advance. Payment ≥ $20000, 30% T / T in advance, balance before shipment.



Normal package is free cardboard boxes.Sometimes inside will use small pack,such as bubble pack to absorb shock.We can also pack according to customers special request.
Ceramic diffuser is fragile.Its package is wooden box.The size will be customized according to purchases.Wooden box is not free.
