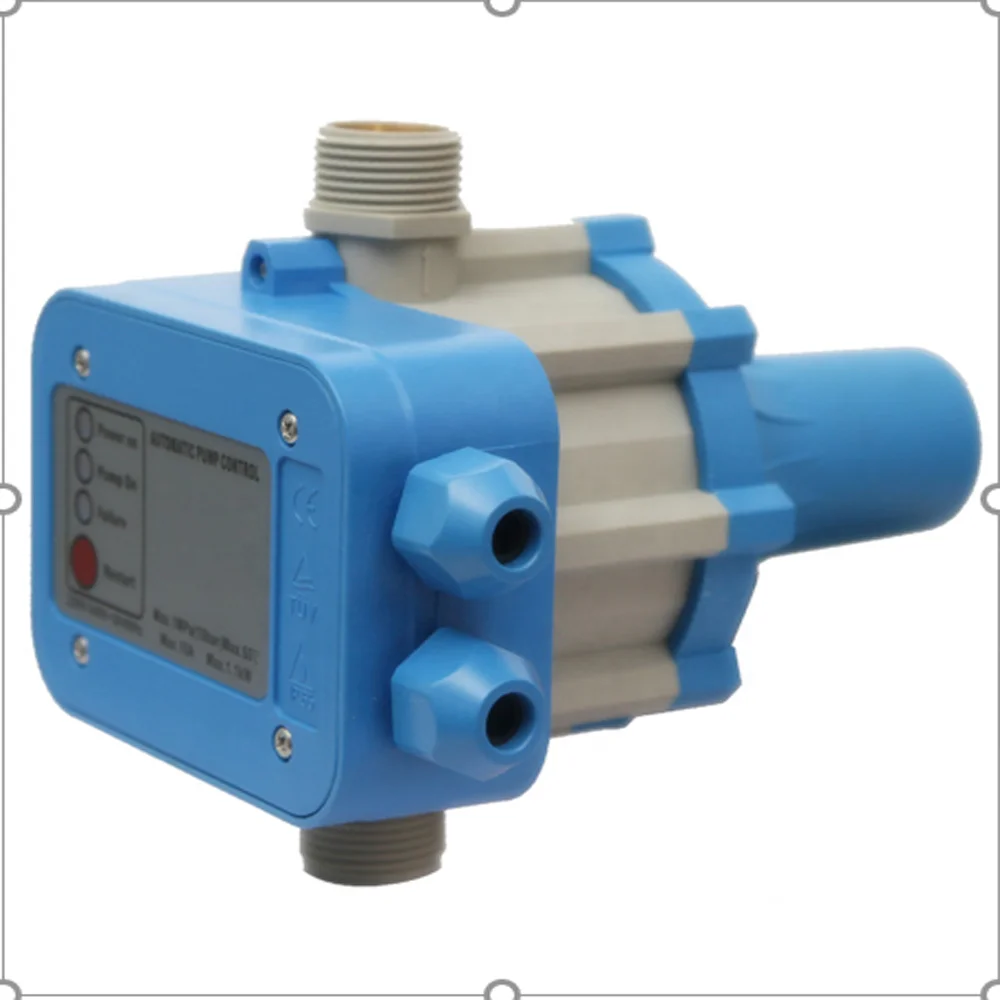

SKA WP2 Voltage 110 240V electronic pressure switch for water pump
- Category: >>>
- Supplier: Shanghai Kara Instruments Co. Ltd.
Share on (60806800658):
Product Overview
Description
Technical Parameters :
1,Rated Voltage: 220V-240V / 110V-120V
2,Frequency : 50/60Hz
3,Max Current: 10A
4,Max Power : 1.1KW/1.8KW
5,Starting Pressure setting : 1.5bar/2.2bar
6,Max working Pressure :10 Bar
7,Joint Screw: G1″
8,Ingress Protection:IP65
9,Max Temperature: 60℃
10,Applied Range : Self-Sucking Pump,Injection pump,The garden pump,Clarified Water Pump
Base Functions:
The product is specially design for all the control function of water pump ,instead of many parts assembling(Pressure Watch ,Pressure Switch ,Three-Way Cock \\Pressure Tank ),Stability ,Reliability .This water pump controller can keep a constant pressure in the water supplying system ,reducing the Water Hammer Effect of pipe .Except that , this controller has Power Reset Function .
Alternative
1,Color
2,Relay:TE-OEG/OMRON
3,Starting Pressure setting : 1.5bar/2.2bar
4,Cable & Pluge
5,Length & Style of cable
Packing Size
PACKING SIZE(cm) 46*32*39
PCS/CTN 12
N.W.(KGS) 12.0
G.W.(KGS) 15.0
| Description | Carton (cm) | Q'ty/Carton (pcs) | G. W. | Remark | ||
| (KGS) | ||||||
| Item: SKA-1 | 53*35*37.5 | 12 | 16 | OMRON Relay | ||
| Voltage:220-240V,50/60HZ | 30CM connecting wire:USD0.25/pc | |||||
| Max Current:10A | 100CM Plug:USD 1/pc | |||||
| Start Pressure setting:1.5Bar 1.2Bar 0.8Bar | ||||||
| Max working Pressure:10Bar | ||||||
| Max Power :1.1KW | ||||||
| Thread:G1” | ||||||
| Max Temperature:60℃ | ||||||
| Item: SKA-1D30A | 53*35*37.5 | 12 | 16 | 40A Repay | ||
| Voltage:220-240V,50/60HZ | ||||||
| Max Current:40A | ||||||
| Start Pressure setting:1.5Bar 1.2Bar 0.8Bar | ||||||
| Max working Pressure:10Bar | ||||||
| Max Power:2.2KW | ||||||
| Thread:G1” | ||||||
| Max Temperature:60℃ | ||||||
| Item: SKA-1P | 47*40*33 | 12 | 16 | OMRON Relay | ||
| Voltage:220-240V,50/60HZ | ||||||
| Max Current:10A | Embedded intelligent IC with timing start and anti-lock function of water pump. | |||||
| Start Pressure setting:1.5Bar 1.2Bar 0.8Bar | ||||||
| Max working Pressure:10Bar | ||||||
| Max Power:2.2KW | ||||||
| Thread:G1” | ||||||
| Max Temperature:100℃ | ||||||
| Item: SKA-2 | 40*32.5*47.5 | 12 | 16 | OMRON Relay | ||
| Voltage:220-240V,50/60HZ | ||||||
| Max Current:10A | ||||||
| Start Pressure setting:1.5Bar 1.2Bar 0.8Bar | ||||||
| Max working Pressure:10Bar | ||||||
| Max Power:1.1KW | ||||||
| Thread:G1” | ||||||
| Max Temperature:60℃ | ||||||
| Item: SKA-2.1 | 40*32.5*47.5 | 12 | 16 | OMRON Relay | ||
| Voltage:220-240V,50/60HZ | ||||||
| Max Current:10A | ||||||
| Start Pressure setting:1.2-3.0Bar(Adjustable) | ||||||
| Max working Pressure:10Bar | ||||||
| Max Power:1.1KW | ||||||
| Thread:G1” | ||||||
| Max Temperature:60℃ | ||||||
| Item: SKA-2.3 | 40*32.5*47.5 | 12 | 16 | OMRON Relay | ||
| Voltage:220-240V,50/60HZ | ||||||
| Max Current:10A | ||||||
| Start Pressure setting:1.2-3.0Bar(Adjustable) | ||||||
| Max working Pressure:10Bar | ||||||
| Max Power:1.1KW | ||||||
| Thread:G1” | ||||||
| Max Temperature:60℃ | ||||||
| Item: SKA-3 | 58.5*26.5*41 | 12 | 13 | OMRON Relay | ||
| Voltage:220-240V,50/60HZ | ||||||
| Max Current:10A | ||||||
| Start Pressure setting:1.5Bar | ||||||
| Max working Pressure:10Bar | ||||||
| Max Power:1.1KW | ||||||
| Thread:G1” | ||||||
| Max Temperature:60℃ | ||||||
| Item: SKA-3DW | 58.5*26.5*41 | 12 | 13 | 30A Relay | ||
| Voltage:110-240V,50/60HZ | ||||||
| Max Current:30A | ||||||
| Start Pressure setting:1.5Bar | ||||||
| Max working Pressure:10Bar | ||||||
| Max Power:2.2KW | ||||||
| Thread:G1” | ||||||
| Max Temperature:60℃ | ||||||
| Item: SKA-5 | 53*42.5*22.5 | 20 | 13 | Normal white Relay | ||
| Voltage:110-240V,50/60HZ | ||||||
| Max Current:10A | ||||||
| Start Pressure setting:1.0-3.5Bar(Adjustable) | ||||||
| Max working Pressure:10Bar | ||||||
| Max Power:1.1KW | ||||||
| Thread:G1” | ||||||
| Max Temperature:60℃ | ||||||
| Item: SKA-8 | 47*40*33 | 12 | 15 | OMRON Relay | ||
| Voltage:220-240V,50/60HZ | ||||||
| Max Current:10A | ||||||
| Start Pressure setting:1.5Bar 1.2Bar 0.8Bar | ||||||
| Max working Pressure:10Bar | ||||||
| Max Power:1.1KW | ||||||
| Thread:G1” | ||||||
| Max Temperature:60℃ | ||||||
| Item: SKA-8D | 47*40*33 | 12 | 15 | 30A Relay | ||
| Voltage:220-240V,50/60HZ | ||||||
| Max Current:30A | ||||||
| Start Pressure setting:1.5Bar 1.2Bar 0.8Bar | ||||||
| Max working Pressure:10Bar | ||||||
| Max Power:2.2KW | ||||||
| Thread:G1" | ||||||
| Max Temperature:60℃ | ||||||
| Item: SKA-8P | 47*40*33 | 12 | 15 | OMRON Relay | ||
| Voltage:220-240V,50/60HZ | ||||||
| Max Current:10A | Embedded intelligent IC with timing start and anti-lock function of water pump. | |||||
| Start Pressure setting:1.5Bar 1.2Bar 0.8Bar | ||||||
| Max working Pressure:10Bar | ||||||
| Max Power:1.1KW | ||||||
| Thread:G1” | ||||||
| Max Temperature:60℃ | ||||||
| Item: SKA-8.2 | 47*40*33 | 12 | 16 | OMRON Relay | ||
| Voltage:220-240V,50/60HZ | ||||||
| Max Current:10A | ||||||
| Start Pressure setting:1.0-3.0Bar(adjustable) | ||||||
| Max working Pressure:10Bar | ||||||
| Max Power:1.1KW | ||||||
| Thread:G1” | ||||||
| Max Temperature:60℃ | ||||||
| Item: SKA-8.2WD(adjustable voltage) | 47*40*33 | 12 | 15 | OMRON Relay | ||
| Voltage:110-240V,50/60HZ | ||||||
| Max Current:10A | ||||||
| Start Pressure setting:1.5Bar 1.2Bar 0.8Bar | ||||||
| Max working Pressure:10Bar | ||||||
| Max Power:1.1KW | ||||||
| Thread:G1” | ||||||
| Max Temperature:100℃ | ||||||
