Product Overview

Description

Product Name

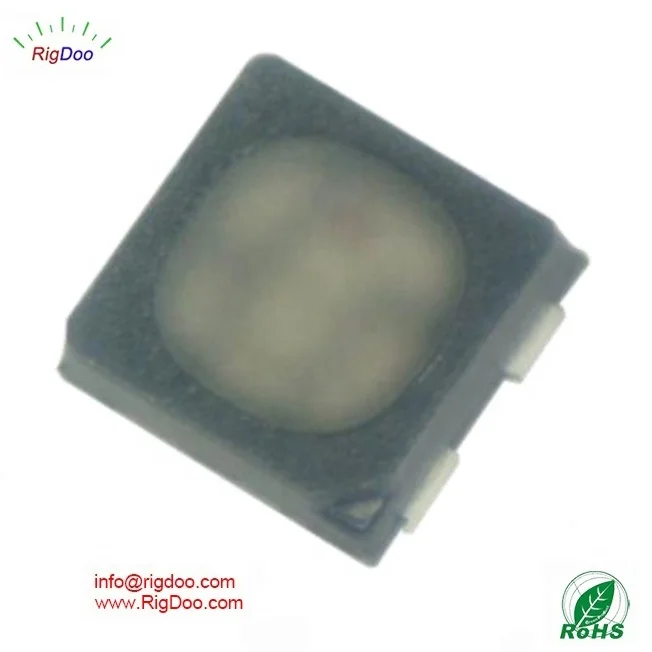

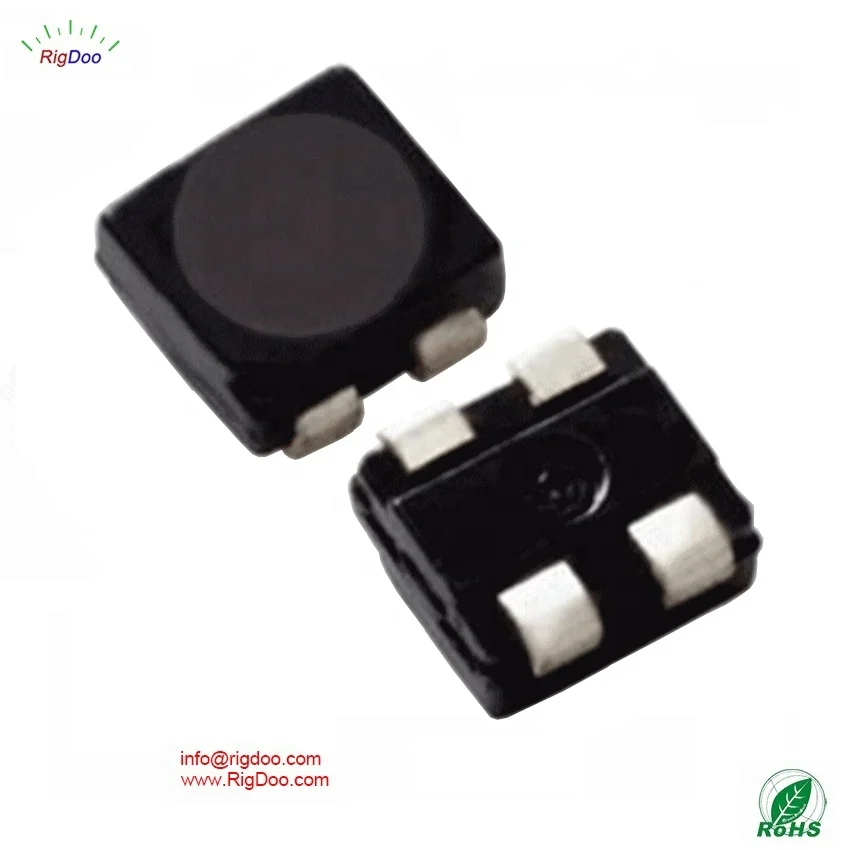

China Factory Free Samples In Stock 2121 RGB 7 Color SMD LED Multi-Color Lighting Component For Indoor LED Display Screens

China Factory Free Samples In Stock 2121 RGB 7 Color SMD LED Multi-Color Lighting Component For Indoor LED Display Screens

Products Description

Features

Package ( L/W/H ) : 2.1×2.1×1.0 mm
Color : Ultra High Bright RGB
Lens: Black Diffused Flat Mold
EIA STD Package
Meet ROHS, Green Product
Compatible With SMT Automatic Equipment
Compatible With Infrared Reflow Solder Process

Package Profile & Soldering PAD Suggested

Absolute Maximum Ratings At Ta=25℃

Parameter
Symbol
Rating
Unit
Power Dissipation
Pd
R
45
mW
G
45
B
25
Peak Forward Current
(1/10 Duty Cycle, 0.1ms Pulse Width)
IFP
R
60
mA
G
60
B
60
DC Forward Current
IF
R
10
mA
G
5
B
5
Reverse Voltage
VR
R
5
V
G
5
B
5
Operating Temperature Range
Topr
-30C ~ + 85C
Storage Temperature Range
Tstg
-40C ~ + 90C
Soldering Condition
Tsol
Reflow soldering : 260C For 5 Seconds
Hand soldering: 300C For 3 Seconds

Electrical Optical Characteristics At Ta=25℃

Parameter
Symbol
Colors
Min.
Typ.
Max.
Unit
Test Condition
Luminous Intensity
IV
R

50

mcd
IF=10mA
G

160

IF=5mA
B

50

IF=5mA
Dominant Wavelength
λd
R
620

630
nm
IF=10mA
G
520
525
IF=5mA
B
460

470
IF=5mA
Peak Wavelength
λp
R
625
IF=10mA
G
525
IF=5mA
B
465
IF=5mA
Forward Voltage
VF
R
1.8
2.6
V
IF=20mA
G
2.8
3.6
IF=5mA
B
2.8
3.6
IF=5mA
Reverse Current
IR
R
5
uA
VR=5V
G
5
VR=5V
B
5
VR=5V
Viewing Angle
2θ1/2
120
deg
IF = 10mA

Packing


Certificates
Applications

Backlight for Indicator Board

Backlight for Automobile Meter

Backlight for Digital and Marks

Backlight for Digital,words and Marks

Indicator Application

Backlight for Keyboard and Nameplate

LED Lighting

LED Strips, LED Strings

LED Screen

Company Information

Company Profile

Shenzhen RigDoo Optoelectronics Co., Ltd is awarded High-Tech enterprise by China with more than 18 years experience in LED industry.

RigDoo specially R&D, manufacture and sales LED, SMD LED, DIP LED (Lamp LED, Through Hole LED) and High Power COB integrated LED. Good Quality, Competitive Price and Good Service!

For SMD LED, we have package 0402, 0404 (1010), 0603 (1608), 0605 (1615), 0805 (2012), 1206 (3216 3215), 1204 (3210), 3014, 3020, 3528 (1210), 2835, 5050 (5054), 5630 5730, Top View & Side View, in Single Color, Bi-color and RGB Full color, Red, Blue, Green, Yellow, Orange, White, Warm White, Purple, Pink, Red/Blue, Red/White, Red/Green, Red/Yellow, Blue/Green, Yellow/Green, RGB full color etc..

For DIP LED (Lamp LED, Through Hole LED), we have 3mm, 5mm, 8mm and 10mm Single color, Bi-color and RGB Tri-Color, Red, Blue, Green, Pure Green, Yellow, Orange, White, Warm White, Purple, Pink, Red/Blue, Red/Green (Common Anode & Common Cathode), RGB full color etc..

For High Power COB integrated LED, we have 1-300W, White, Red, Green, Yellow, Blue, Orange, Bi-Color, RGB etc.

Our factory are with certificates of ISO9001 and ISO14000.
Our products are with certificates of RoHS, CE, SGS, Reach Test etc..
