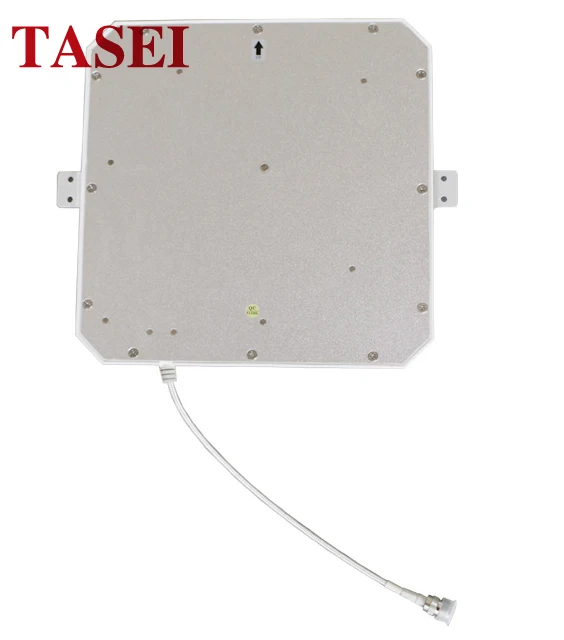

UHF 10dbi Linear polarization Cabinet RFID antenna
- Category: >>>
- Supplier: Shenzhen Tasei RFID Co. Limited
Share on (60806819390):
Product Overview
Description
UHF 10dbi Linear polarization Cabinet RFID antenna
Product Description
Introduction
♦ 902MHz-928MHz or 865MHz-868MHz
♦ Gain 10dbi
♦ Linear Polarization
♦ 1600x60x22mm
Application
♦ ultra-thin size
♦ Plug and play
♦ wide coverage
♦ Applicable to all kinds of material cabinets
Specification
Frequecy | 902MHz-928MHz or 865MHz-868MHz |
Antenna Gain | 10dbi |
Polarization | Linear Polarization |
Beam width | Horizontal angle:75° Vertical angle:45° |
VSWR | ≤1.5 |
F/B Ratio | ≥20 |
Impedance | 50Ω |
Maximum power | 50W |
Lightning protection | DC Ground |
Connector Type | SMA-Female |
Antenna Size | 1600x60x22mm |
Net Weight | 1.5kg |
Package Size | 1730x61x23mm |
Gross Weight | 2KG |
Material | PVC |
Color | White |
Rated wind velocity | 60m/s |
Operating Temp | -40-70℃ |
Product details

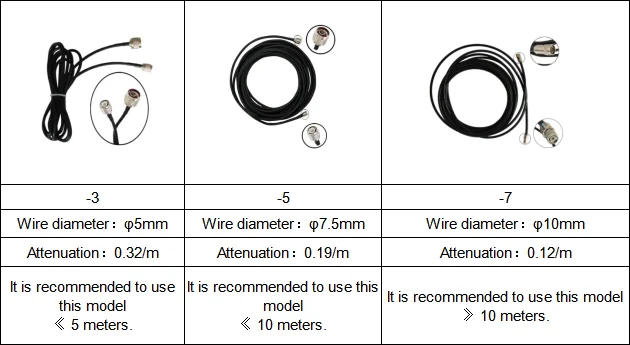

How to choose to cable length , there are three types different parameters for your choose .Because cable if is longer , its Signal attenuation is larger ,so relatively should choose more high-quality cable according to cable's length
