M12 Connector Type NPN/PNP NO NC Inductive Proximity Switch Sensor Shielded 4mm 5V/12Vdc/24V/AC/220V IP67 Waterproof (IBEST)

Product Overview

Description

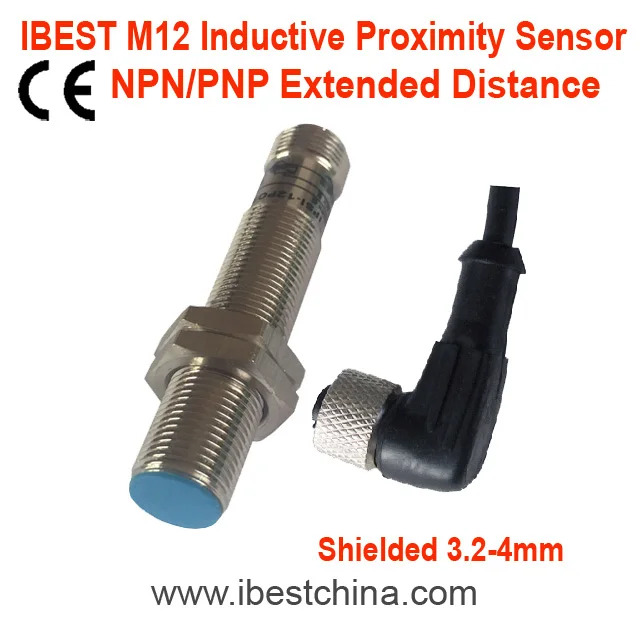

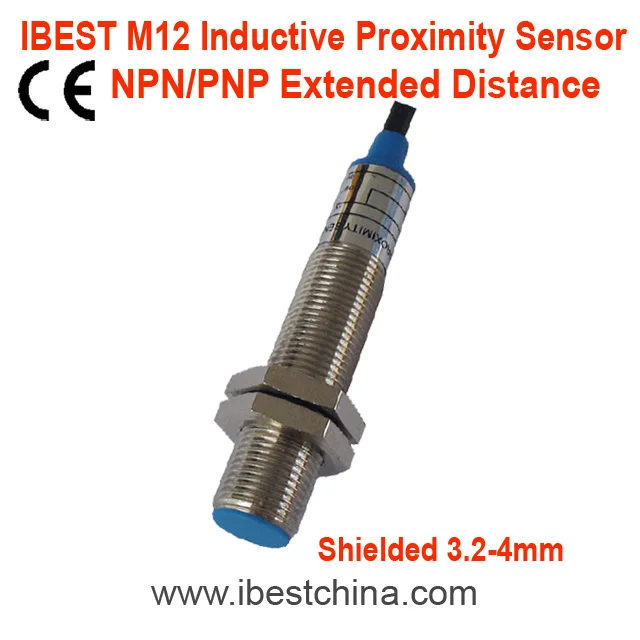

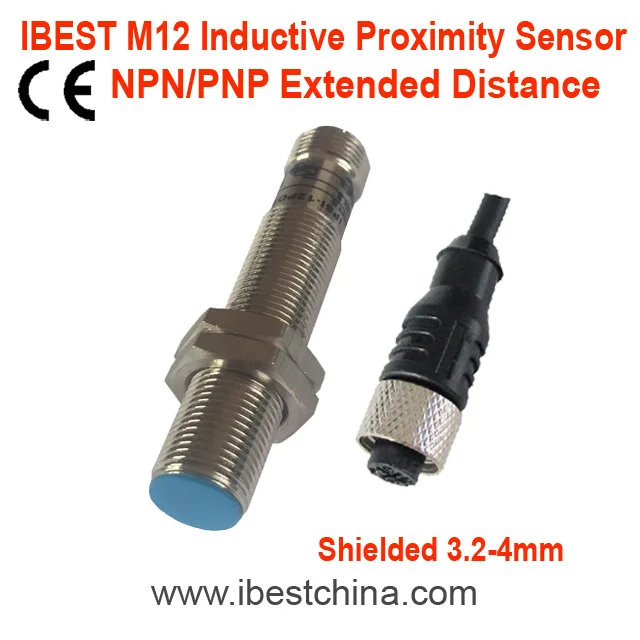

IBEST M12 Connector Type Inductive Proximity Sensor

Extended Distance Flush 3.2-4.0mm/ NPN Or PNP NO+NC



1. Features of M12 Inductive Proximity Sensor  :

--     Inductive proximity sensor, style: cylinder, diameter: 12mm
--     Extended Detect Distance: shielded flush mount 3.2-4mm.

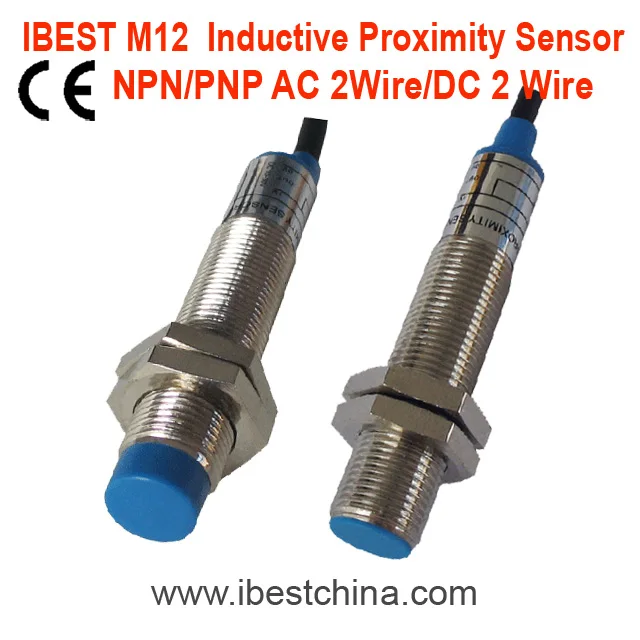

--     DC 2-wire (10-30V DC), DC 3-wire(10-30V DC), DC 4-wire(10-30V DC),AC 2-wire (90-250 AC) type

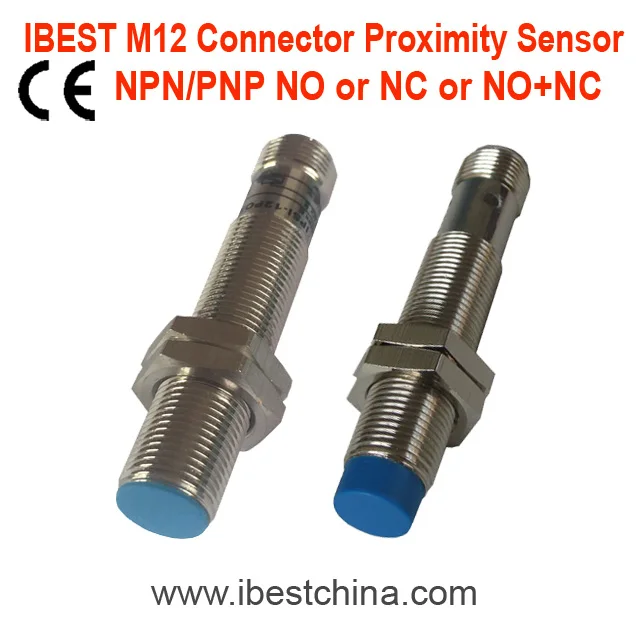

--     Connection mode: with M12 connector.

--     With LED operation indicate lamp, easily identifiable
--     Brass chrome plated, proof of oil, water acid, alkaline
--     Standard sensing object: iferrous metals;
--     Over load, short circuit protection , against polarity reversal
--      IP ratings: IP67

--      Various other shapes: M5/M6/M8/M18/M30, square types and pancake types.
--      Widely applied in measuring, Counting, Rpm measuring in mechanism, chemical, paper manufacture light industry, etc . --      Reliable quality to replace famous brands .

2.Ordering code   :

IPS-12PO4B-D	PNP NO	4 mm,shielded	≤200mA	DC 10-30V	W/2M Cable
IPS-12PC4B-D	PNP NC	4mm,shielded	≤200mA	DC 10-30V	W/2M Cable
IPS-12NO4B-D	NPN NO	4mm,shielded	≤200mA	DC 10-30V	W/2M Cable
IPS-12NC4B-D	NPN NC	4mm,shielded	≤200mA	DC 10-30V	W/2M Cabler
IPS-12POC4B-D	PNP NO+NC	4mm,shielded	≤200mA	DC 10-30V	W/2M Cable
IPS-12NOC4B-D	NPN NO+NC	4mm,shielded	≤200mA	DC 10-30V	W/2M Cable



IPSI-12PO4B-D	PNP NO	4 mm,shielded	≤200mA	DC 10-30V	Plug-in connector
IPSI-12PC4B-D	PNP NC	4mm,shielded	≤200mA	DC 10-30V	Plug-in connector
IPSI-12NO4B-D	NPN NO	4mm,shielded	≤200mA	DC 10-30V	Plug-in connector
IPSI-12NC4B-D	NPN NC	4mm,shielded	≤200mA	DC 10-30V	Plug-in connector
IPSI-12POC4B-D	PNP NO+NC	4mm,shielded	≤200mA	DC 10-30V	Plug-in connector
IPSI-12NOC4B-D	NPN NO+NC	4mm,shielded	≤200mA	DC 10-30V	Straight connector



3. Technical Specifications:

Property project Specific parameter Mounting distance shielded: 4.0mm (Or special extended distance) Sensing distance shielded:3.2-3.5mm  Power supply DC 10-30V / AC 90-250V Frequency DC:  ≤800Hz / AC:≤20Hz Current output DC:≤ 200mA / AC: ≤ 300mA Ambient temperture -15-+65 C Protection DC:Over-Load & short circuit protection. IP rating IP67 Water Spray Resistant





4. Dimensions:
