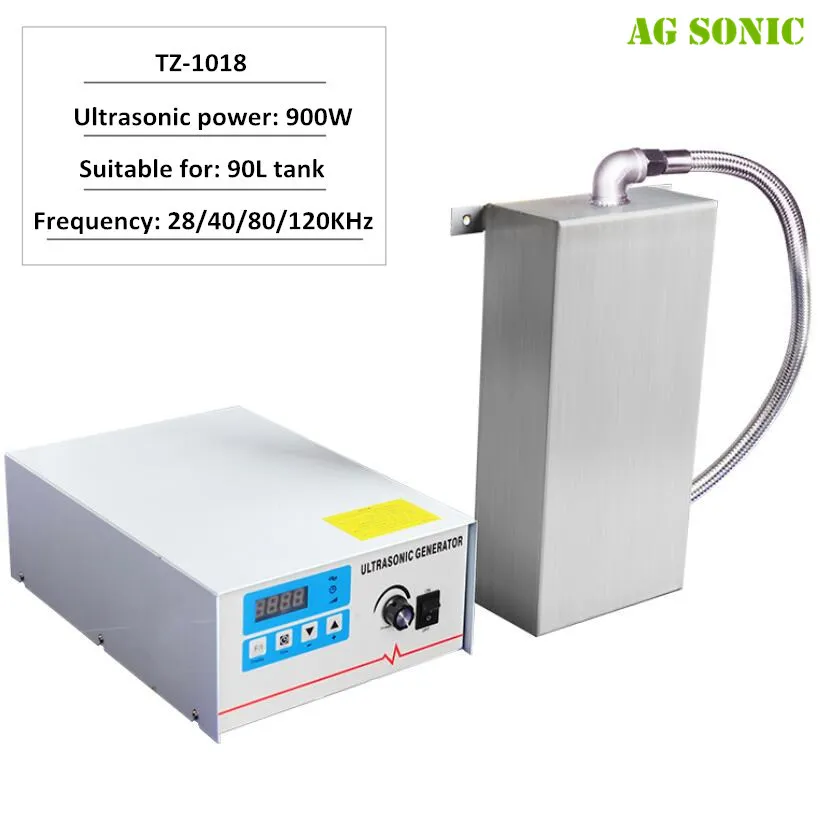

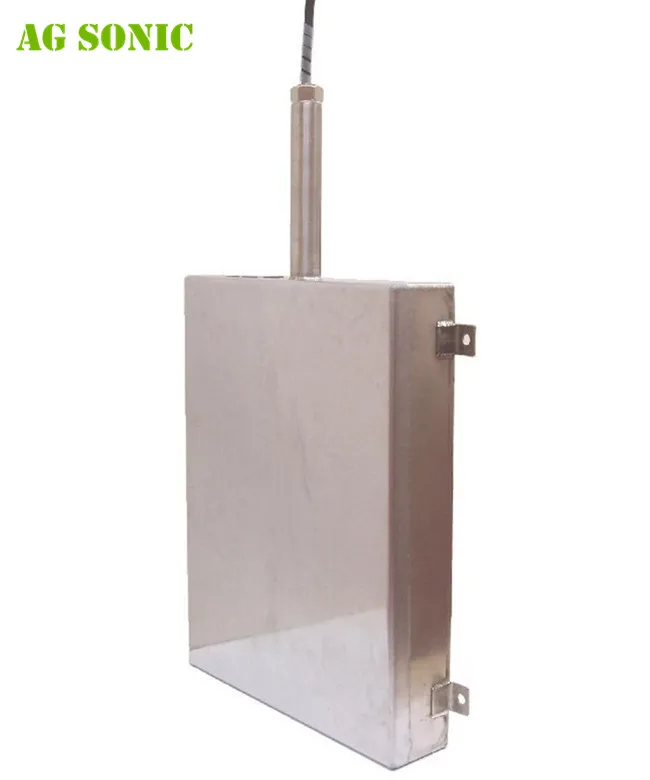

Ultrasonic Vibration Generator With Vibrating Plate Ultrasound Cleaner Plate Transducer

Common Applications – Advantages of Immersible Ultrasonic Cleaning Transducers

• Drop in ultrasonics addition to existing manufacturing cleaning process lines (aqueous cleaning lines, passivation, plating lines, or other part finishing processes which require from microscopic surface scrubbing agitation)
• The stainless steel box heavy duty design with completely sealed components allow for precision ultrasonic cleaning in conditions normally too harsh for such precision electronics
• Valve bodies and manifolds with small internals not accessible for cleaning by forced spray or mechanical removal
• Medical device stainless steel parts cleaning
• Aerospace parts cleaning
• Ultrasonic part cleaning of water soluble machining coolants, chips, particulate, and true machining/cutting oils, buffing, polishing and lapping compounds which require mechanical surface scrubbing to remove.
• General washing for maintenance, manufacturing, rework and/or remanufacturing.

Common configurations:

Since submersible ultrasonic boxes are most commonly added to existing stainless steel and other metallic based tanks, the boxes and ultrasonic power are made to fit such tanks. We can easily make our immersible ultrasonics into any tank configuration sizing required for your application with little to no additional custom size pricing.

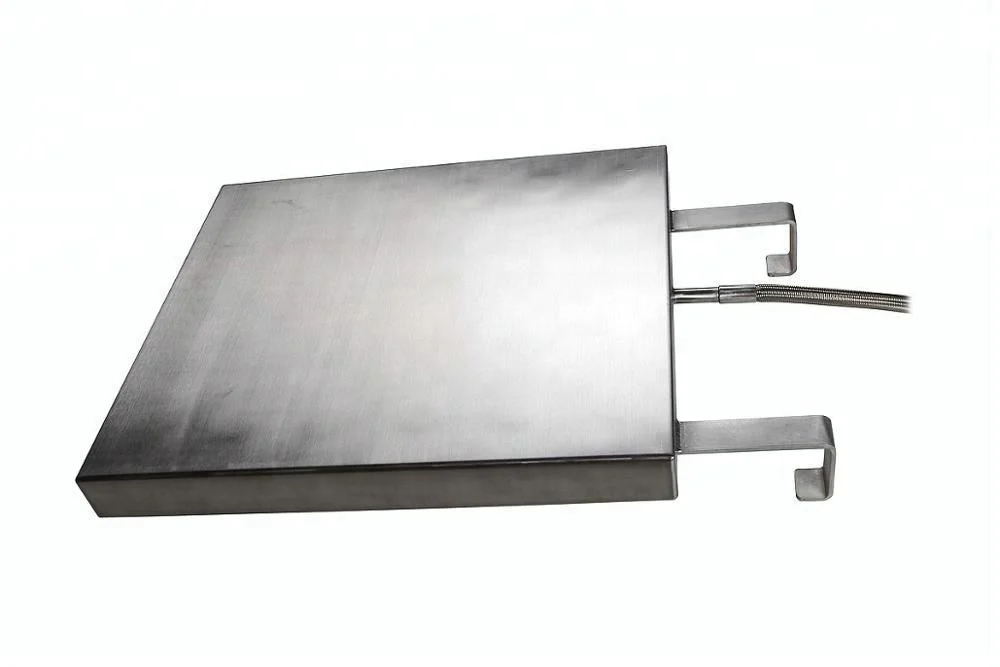

Brief Introduction of the immersible ultrasonic transducers:
Immersible ultrasonic transducers are sealed stainless steel enclosures which allow for adding ultrasonics to parts cleaning new tanks or adding onto existing tanks, equipment and systems.
The number and placement of the submersible Transducer Pack

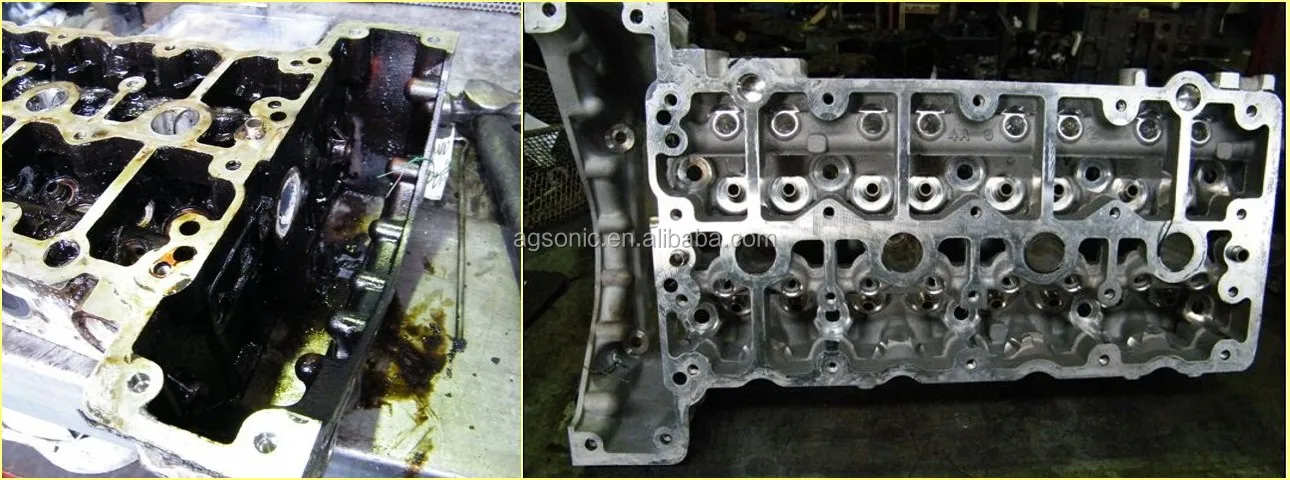

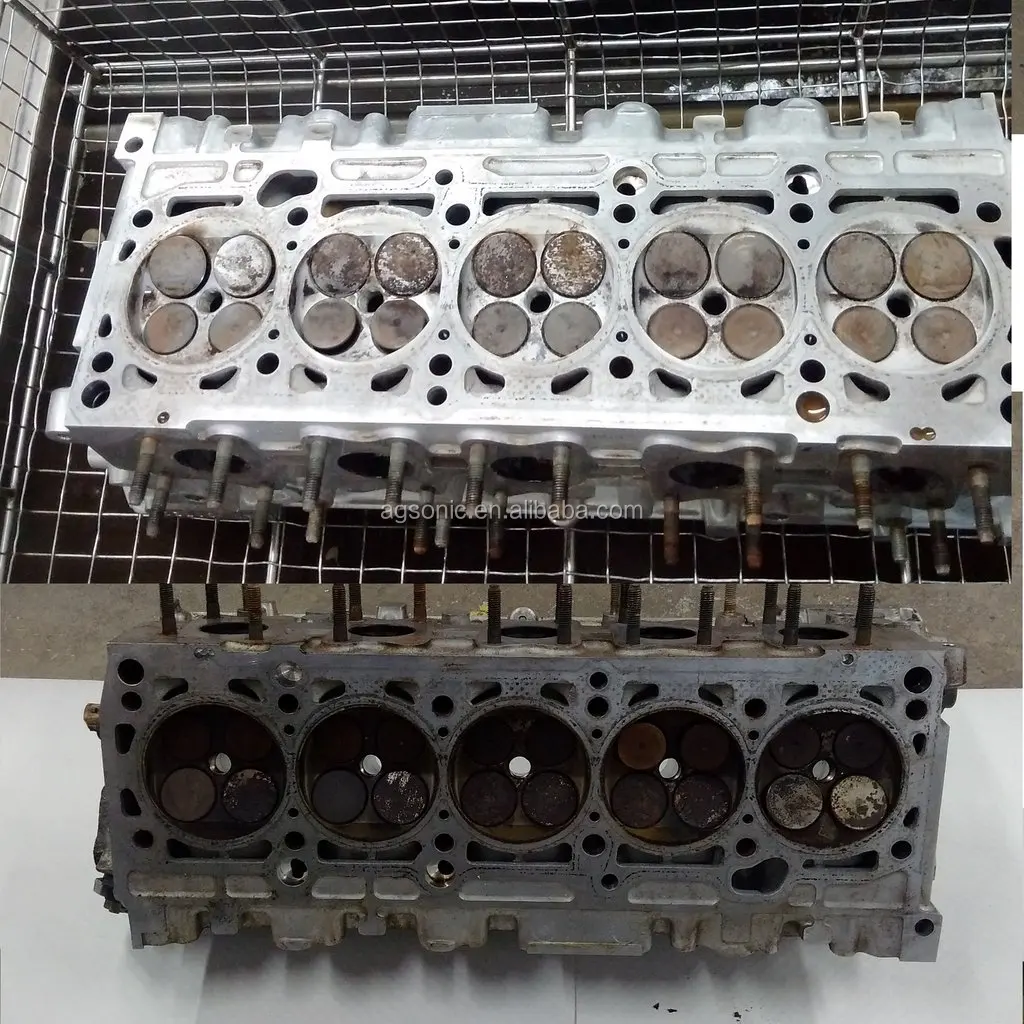

 Ultrasonic Plate Transducer Cleaning Effect

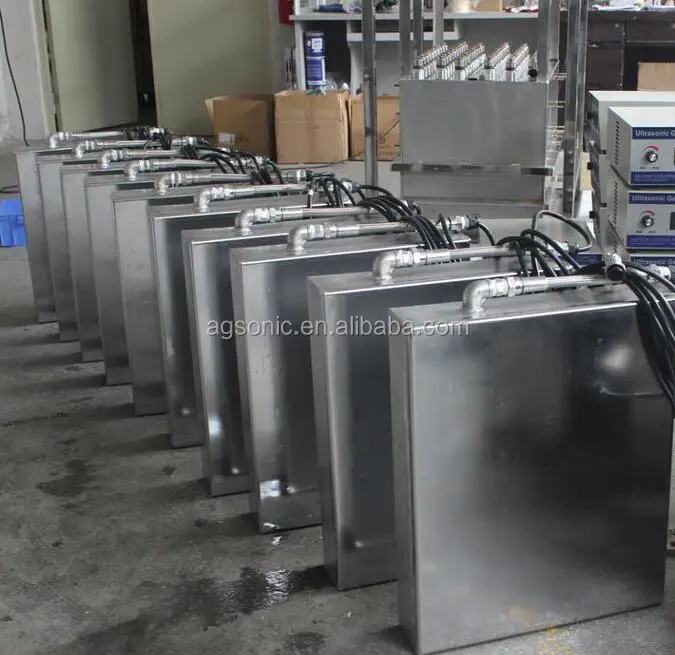

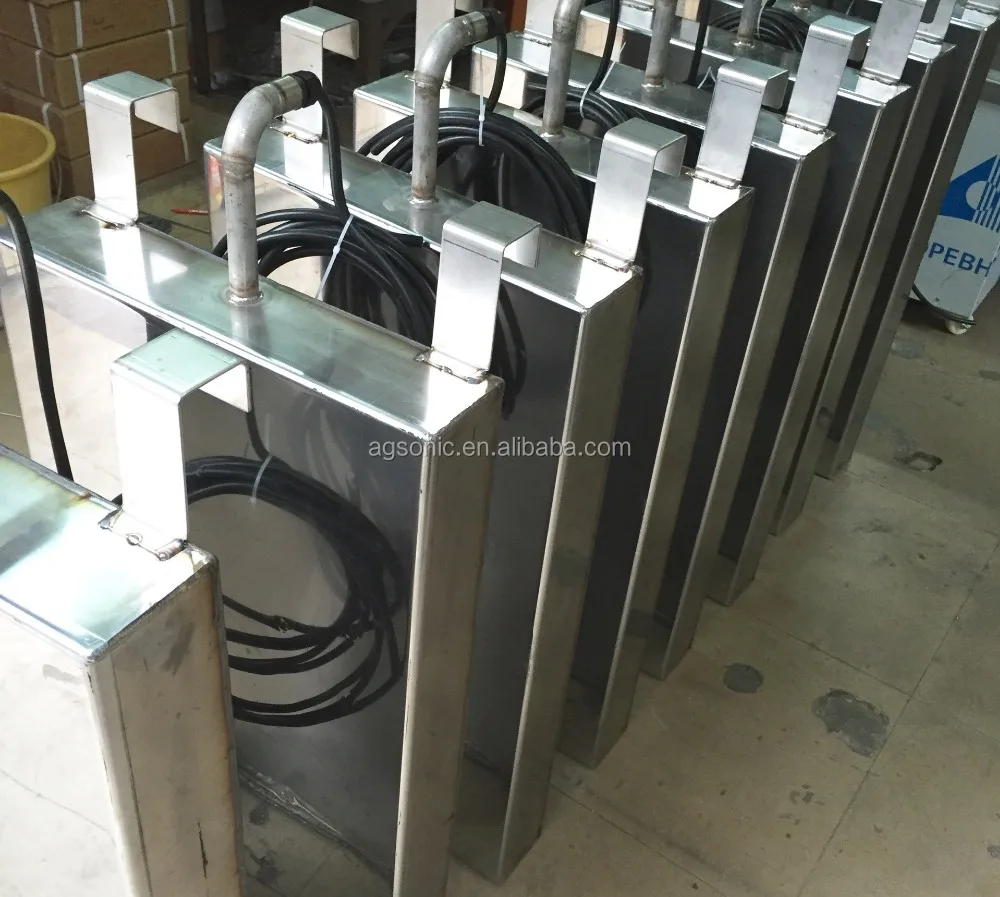

Immersible trandsucer Production :

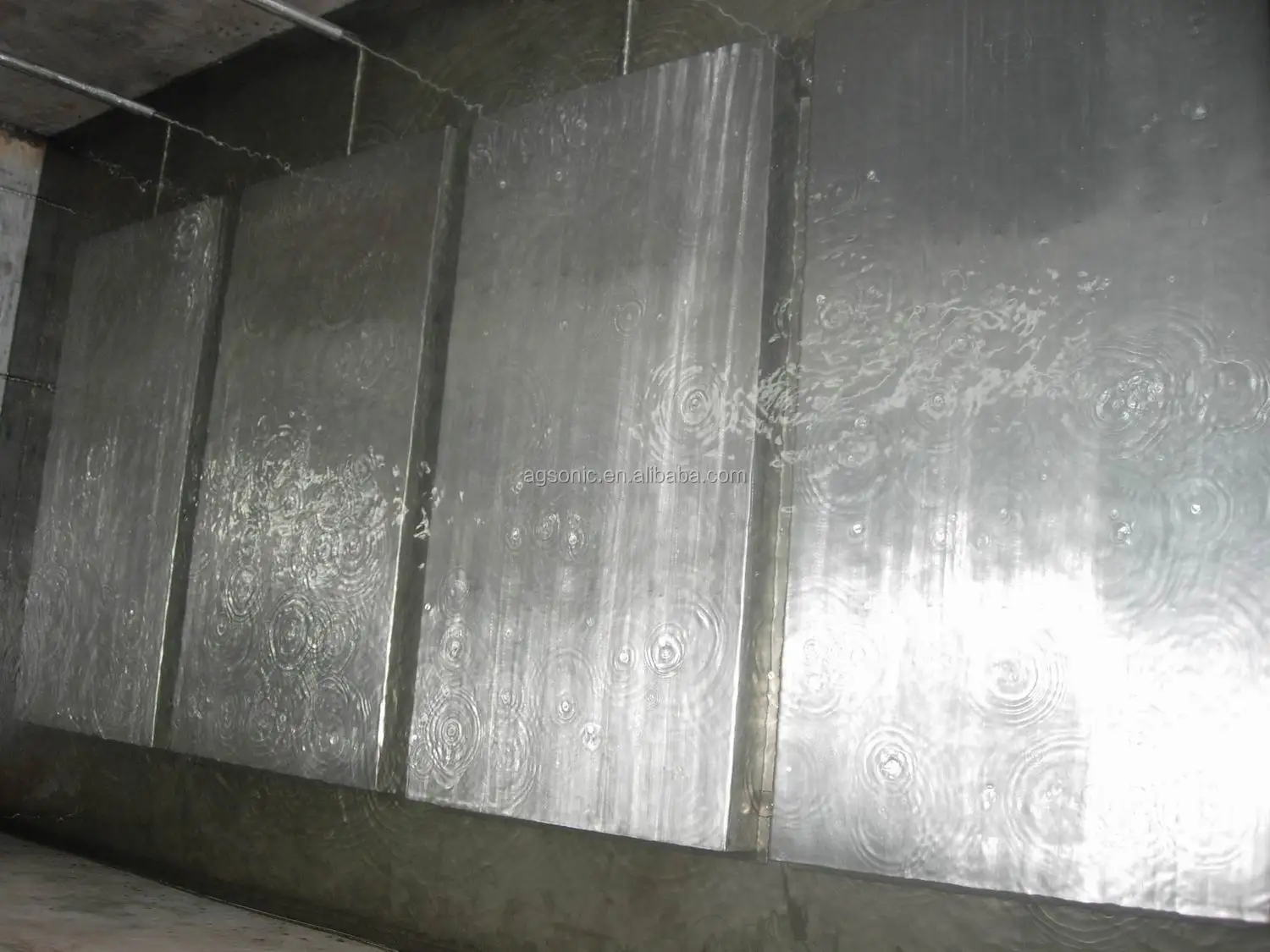

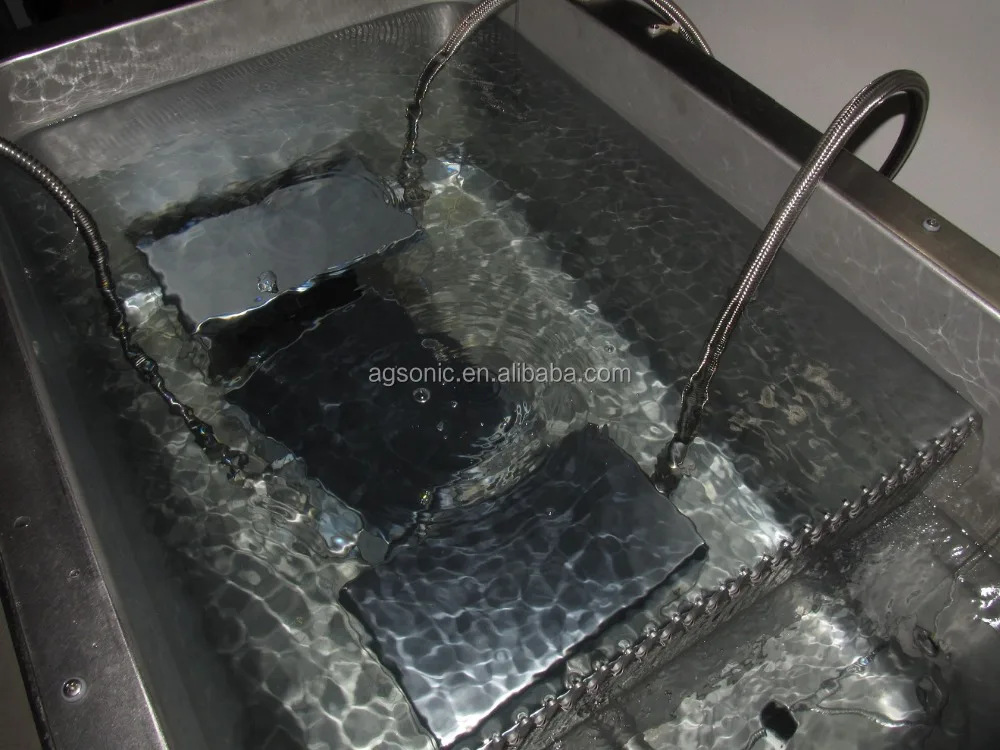

 Immersible trandsucer Working in Tank

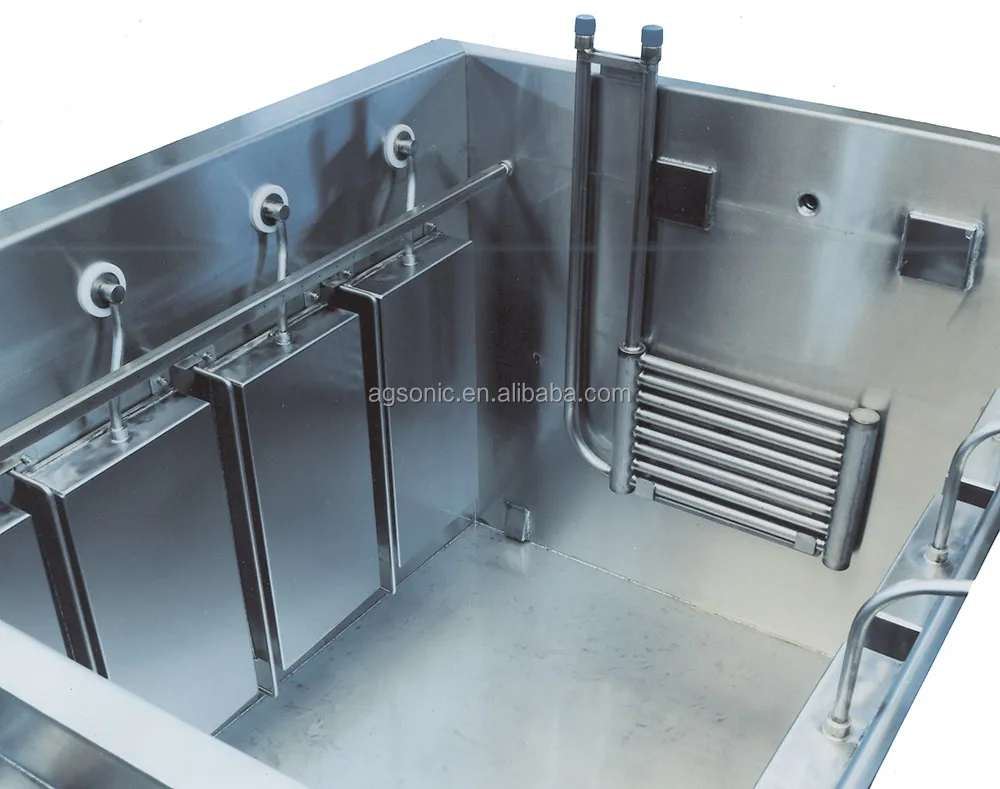

 Immersible ultrasonic transducers do not require attachment to the tank (other than to hold them in position) to function efficiently.  As a result, transducers can be moved from tank to tank and positioned as required for special applications when needed. Various mounting options are shown below.

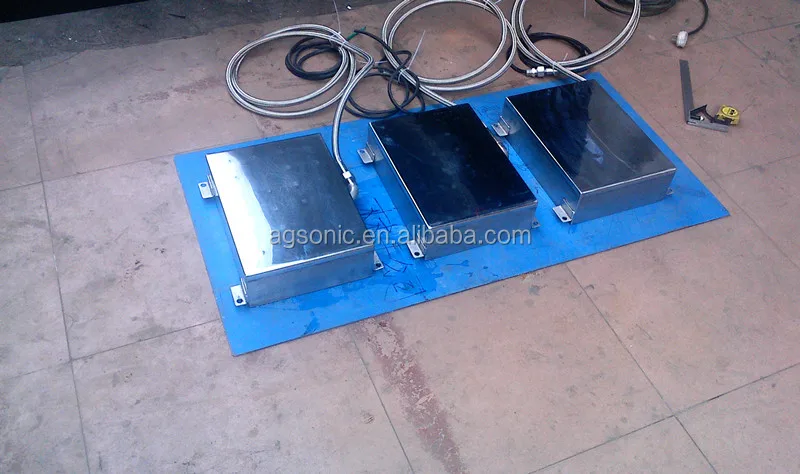

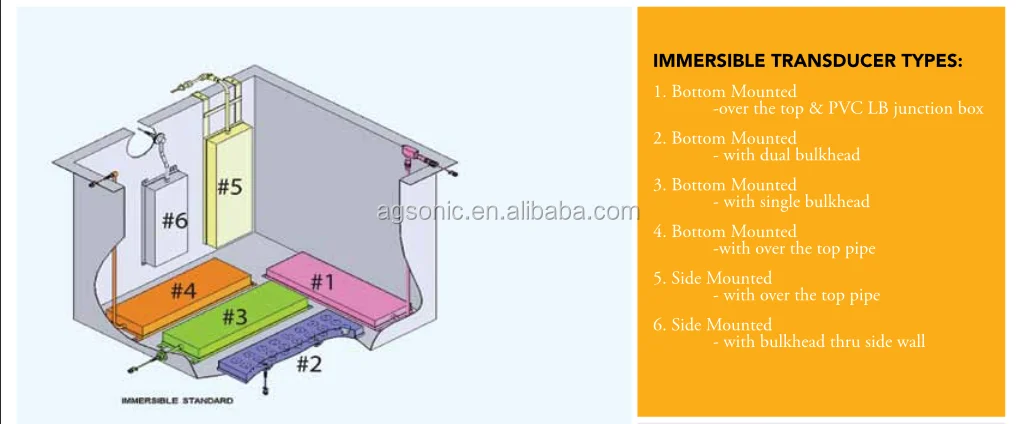

Immersible transducer Types:

Bottom Monunted -over Top Junction Box

Bottom Mounted with dual Bulkhead

Bottom Mounted With single Bulkhead

Bottom Mounted With Over The Top Pipe

Side Mounted With Over the Top Pipe

Side Mounted With Bulkhead Thru Side Wall

Mounting may be either wall or bottom mounted, depending on the application. The units are shipped fully assembled and require only simple insertion into the tank prior to operation.

Specifications:

Enhance the cleaning power of your existing tank with AGSONIC Submersible Ultrasonic Cleaning SystemsFor customers who would like to improve the cleaning power of their existing tank by installing an ultrasonic cleaning device, AGSONIC's submersible system may be the most economical and efficient choice on the market.

However, before buying a submersible system, please consider the tank you already have and its material of construction.

Technical Specifications
Ultrasonic transducer elements sealed in a liquid-tight housing are an option to transducer elements permanently bonded to the side or bottom of a cleaning tank.  The major benefits of immersible ultrasonic transducers are that they are easy to service and can be added to existing equipment, often without extensive tank modifications. Ultrasonics unique technology is offered in the immersible transducer format.  This includes standard individual frequencies from 28 kHz to 120 kHz as well as multiple frequencies in a single or multiple units.
