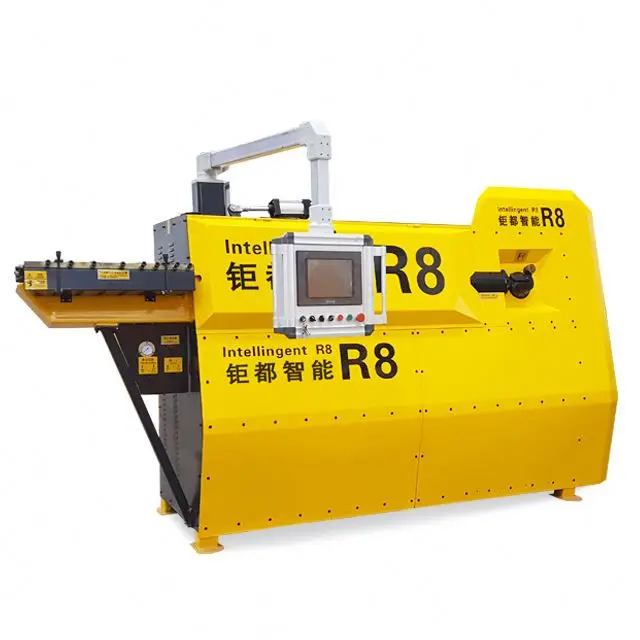

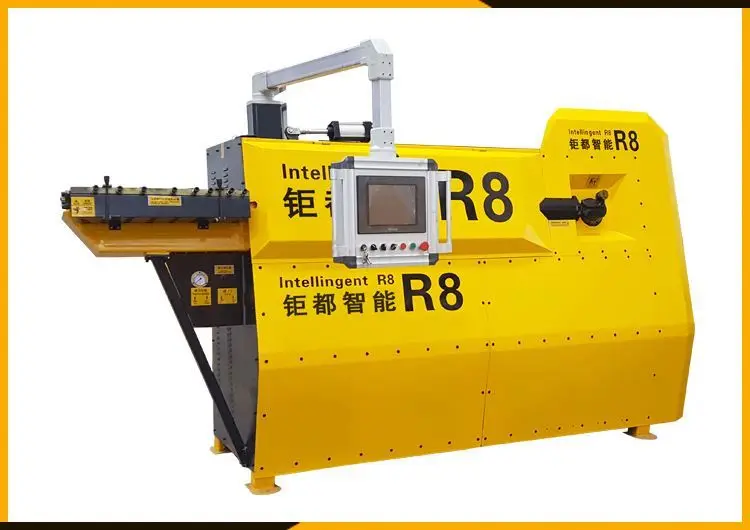

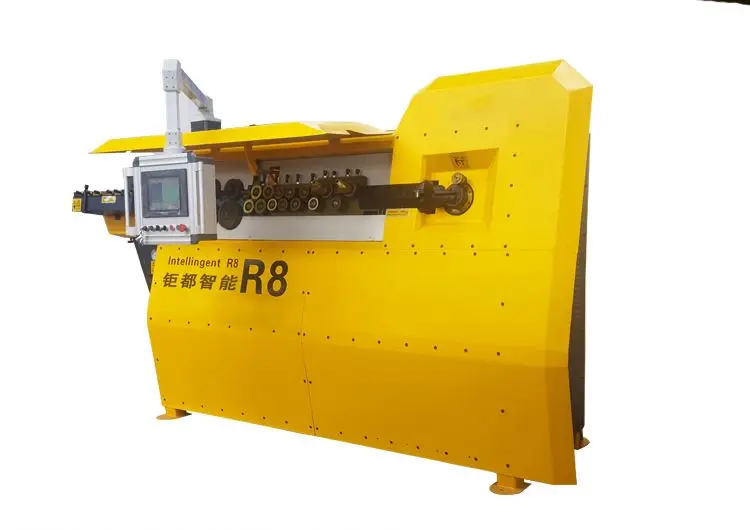

CNC program system continuous tmt bar bending machine. rebar bending hoop machine

Product Overview

Description



CNC program system continuous tmt bar bending machine. rebar bending hoop machine

1.R8 stirrup bending machine adopts the CNC servo control system, which can automatically complete the process of pulling ,straightening, lengthening, bending hoop and cutting of steel bars.

2.It can bend 5-12 mm diameter of the largest diameter for round steel and screw steel, continuous production of any plane shape products, the bending machine is widely used in construction industry, large steel processing plant and other fields.

3.In addition, the bending machine from the production after several improved products more perfect, more able to meet the actual needs of steel production and processing

The advantages of tmt bar bending machine:

1.CNC control system has high accuracy of bending machine

2.It has the largest storage and can process almost 500 types

3.Synchronous belt conveyor, low failure rate, low maintenance costs

4.With two-way bending function, can process a variety of special-shaped pieces

5.Double roller wheel synchronous wire feeding device, feeding is simple, easy to operate, easy to learn

6.Don't floss, engineering slope design, straightening and high efficiency

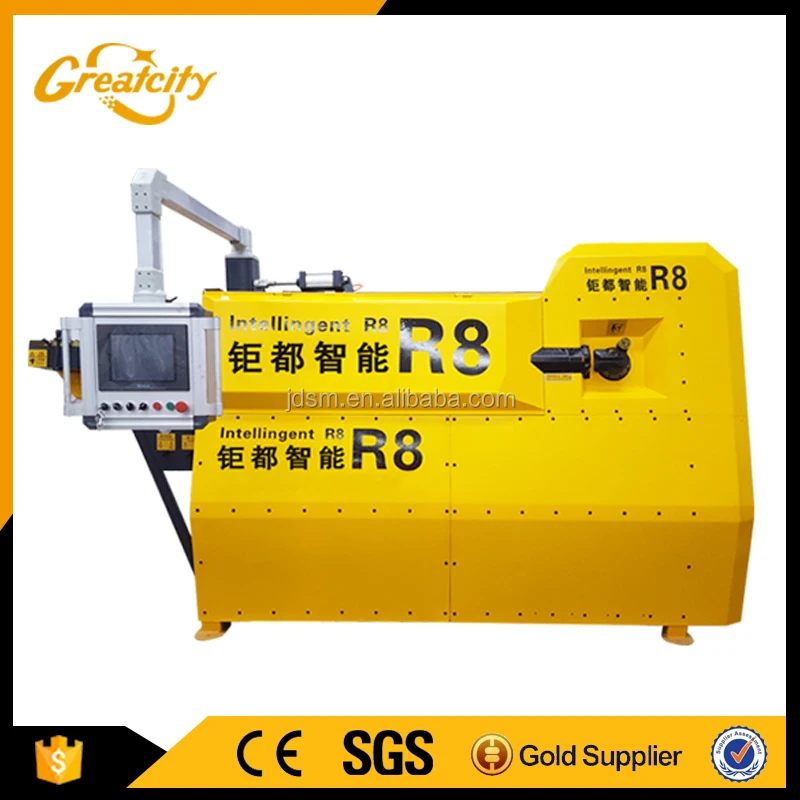

The major technical parameters of R8 tmt bar bending machine:

Type	R8
Single wire process	5-12mm
Double wire process	5-10mm
Bending angle	180°
Max. Towing speed	130m/min
Max. Bending speed	1460°sec
Productivity (piece/hour)	1600-1800
Length accuracy	±1mm
Angular accuracy	±1°
Average power	8kw/h
Equipment Powder	24.5kw
Steel processing shapes	500
Work condition temperature	-5°—+40°
Dimensions	3510*1510*2310mm
Total weight	2980kg

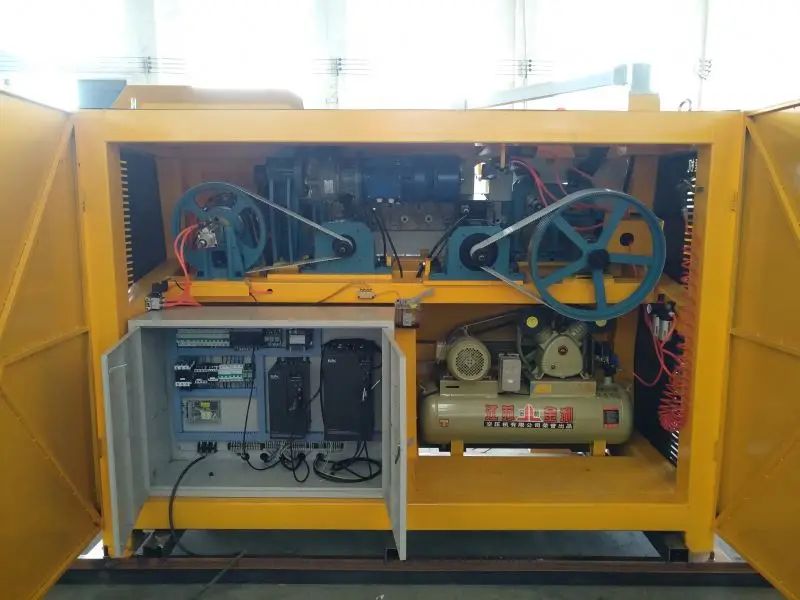

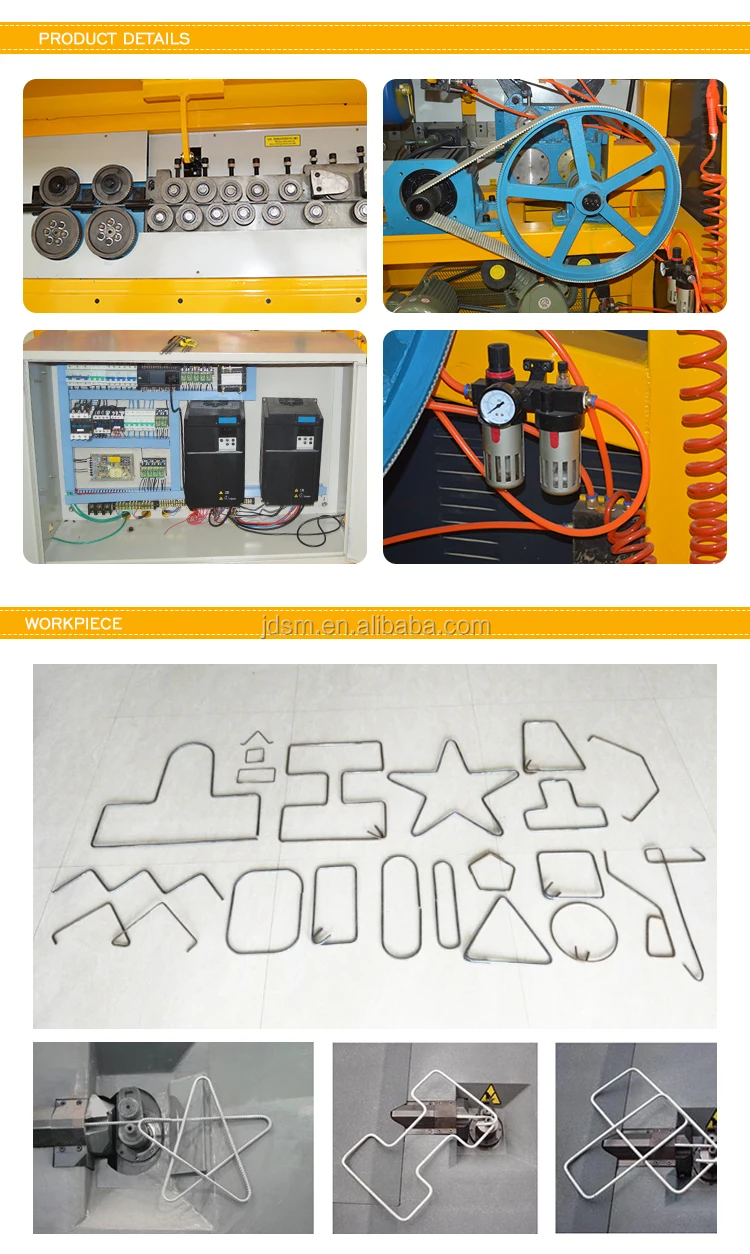

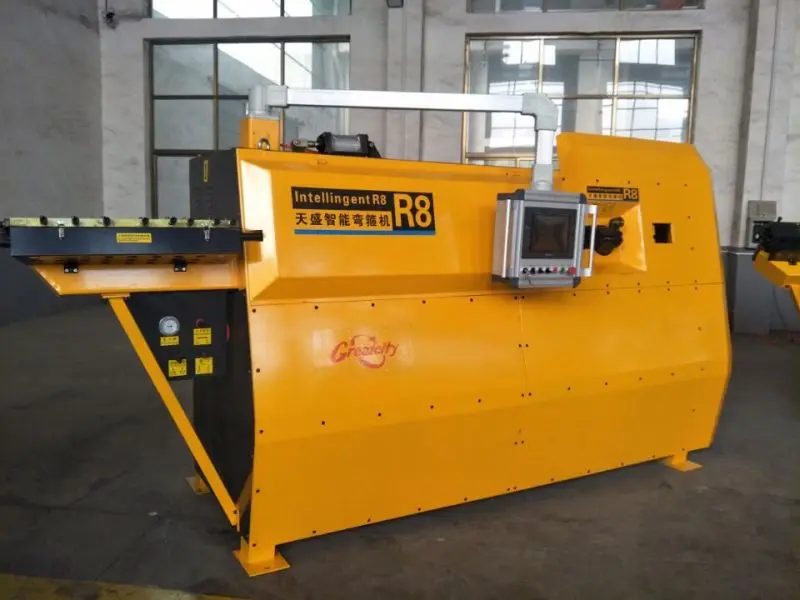

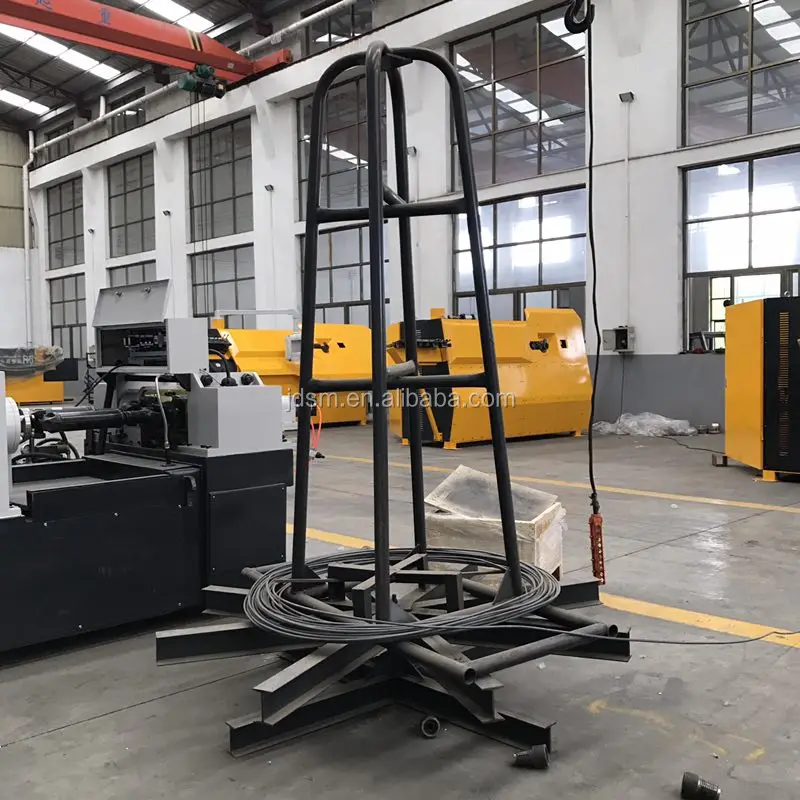

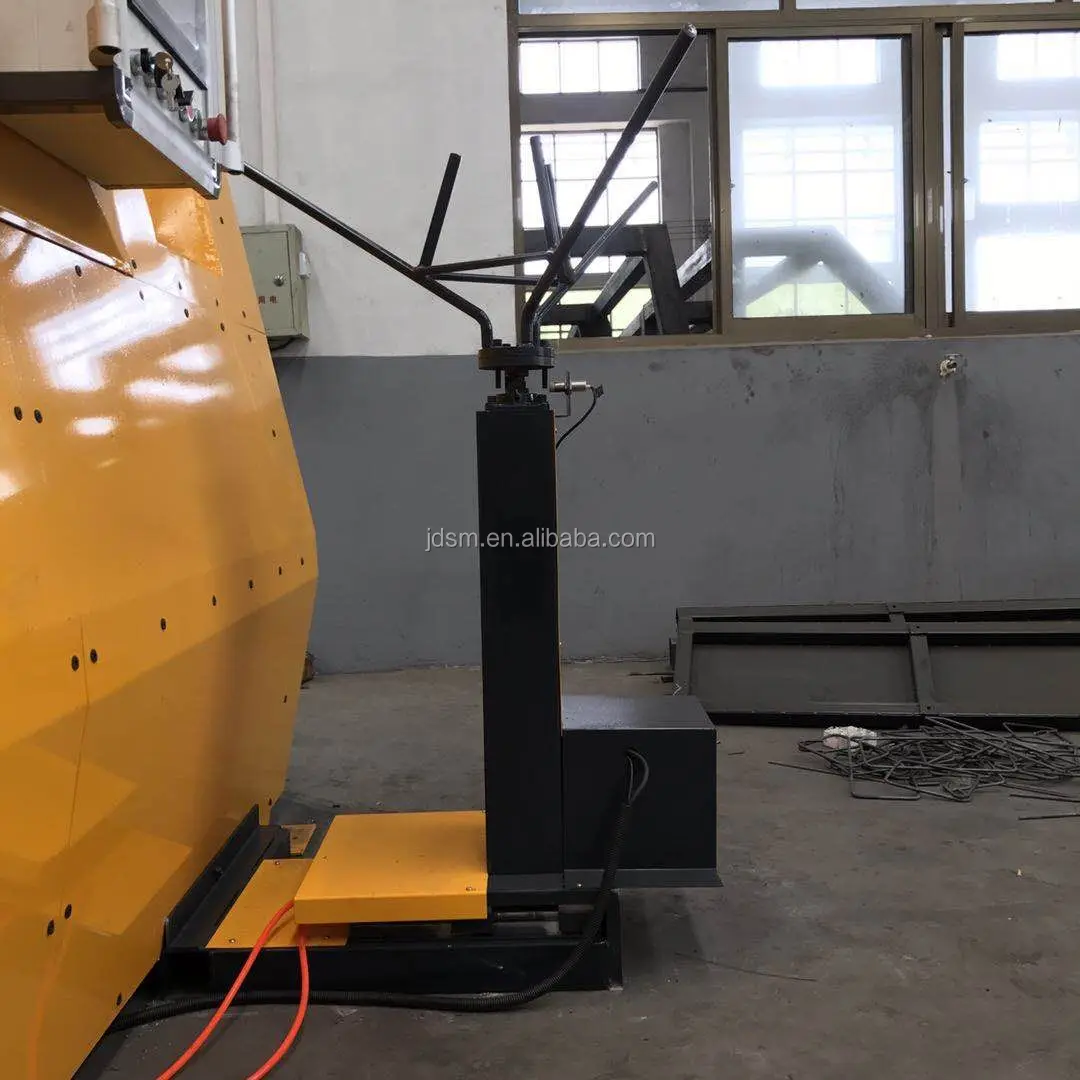

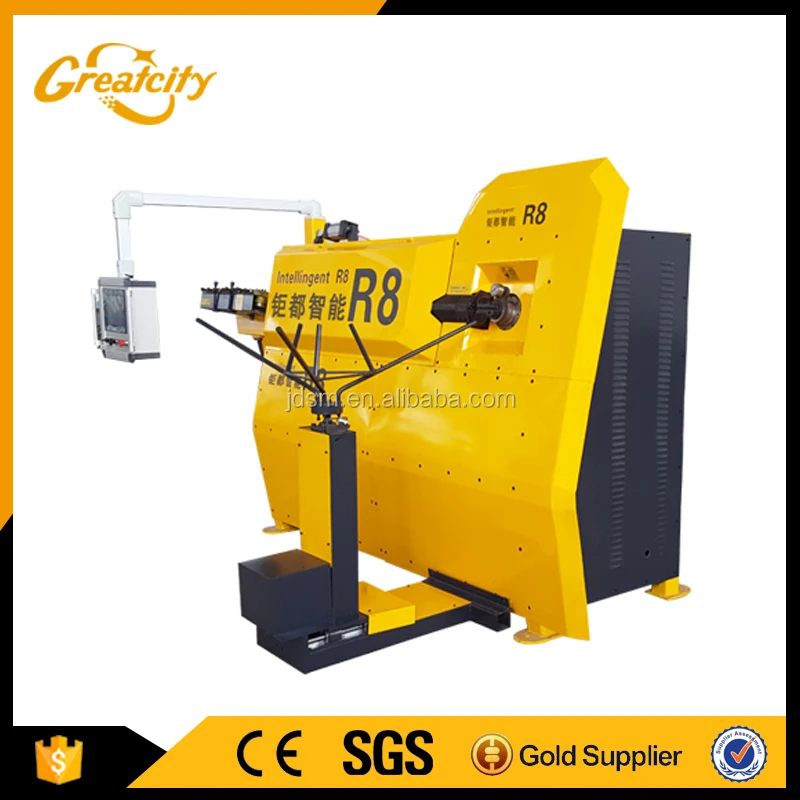

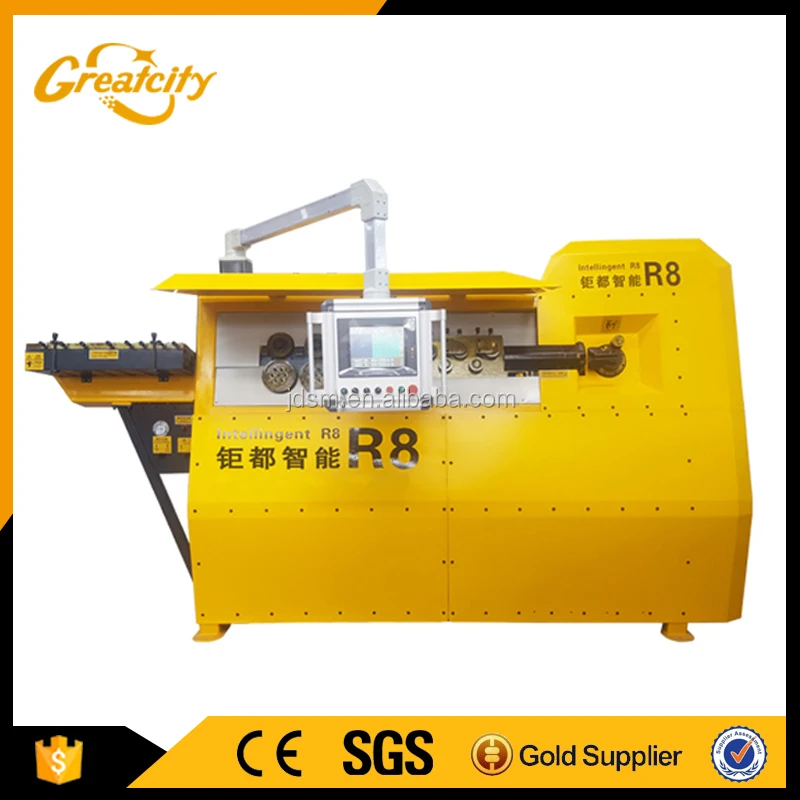

More detailed pictures show of R8 tmt bar bending machine:

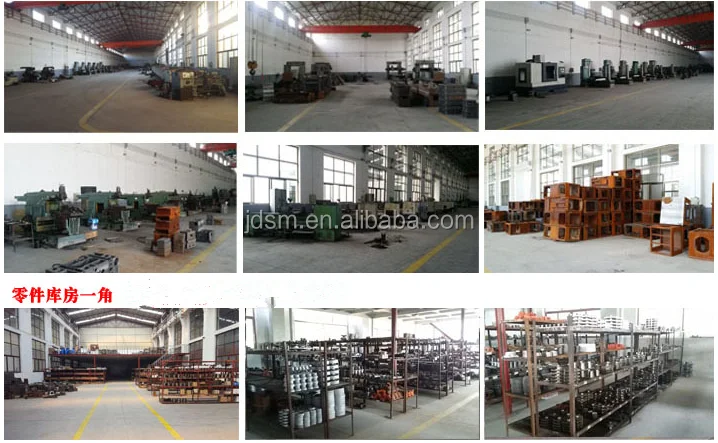

Company information:

Xingtai Judu Technology Co.,LTD was founded in 1990,Specialized in machinery production & export for tmt bar bending machine,has been in this field for more than 20 years.The Hydro construction machines, R series rebar bending machine is our advantages machine. These machines now export to all over the world such as Asia,Africa,South America,Australia and so on.

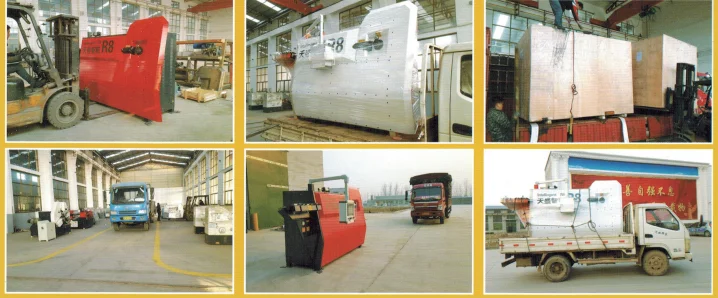

Packing and shipment:

tmt bar bending machine standard export  wooden case  packing. you can ship it by sea or car. We have our own farwarder. We can check the delivery information timely. You can also use forwarder by yours. We will contact with him ASAP.

Delivery time: 3-7 days after receiving the deposit.





Trade assurance:

Place order online and pay to the designated bank account to get full protection.

100%Payment protection

100%On-time shipment

100%Product quality protection

Pre-sale Service

1.Supply item design,process design.

2.Help you to chose the fitest machine.

3.Making the machine according to your requirement.

Sale Service

1.Acceptance equipment together with you.

2.Help you to make the method statement and the details of the process.

After Service

1.Guarantee for 5 years.

2.Quality problem,we will send you the accessories.

3.Free repair whole using life(without the freight and accessories charge).
