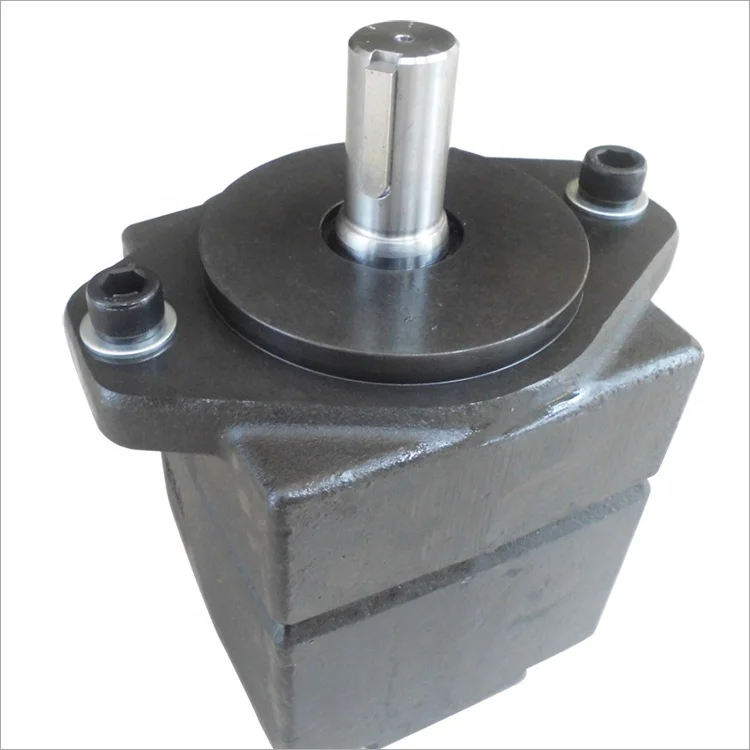

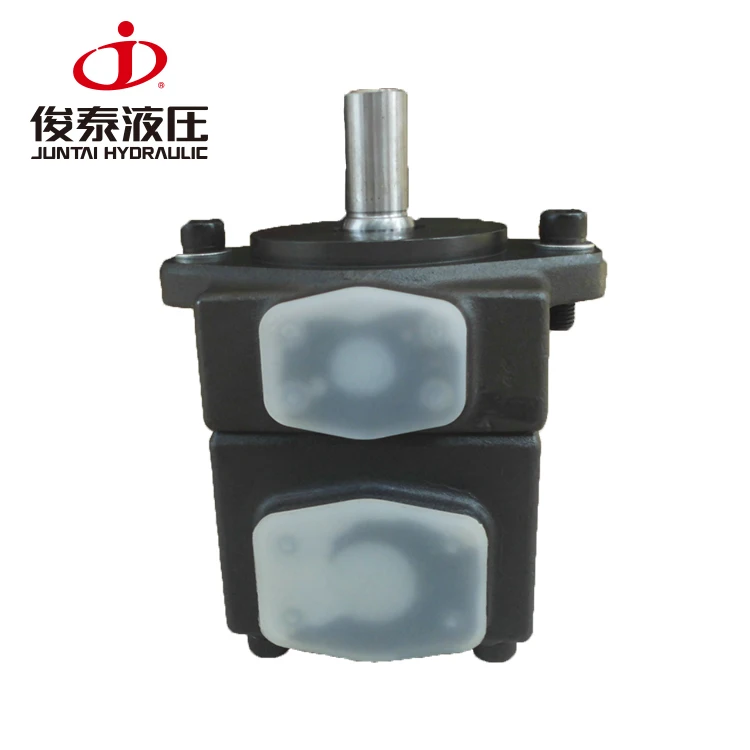

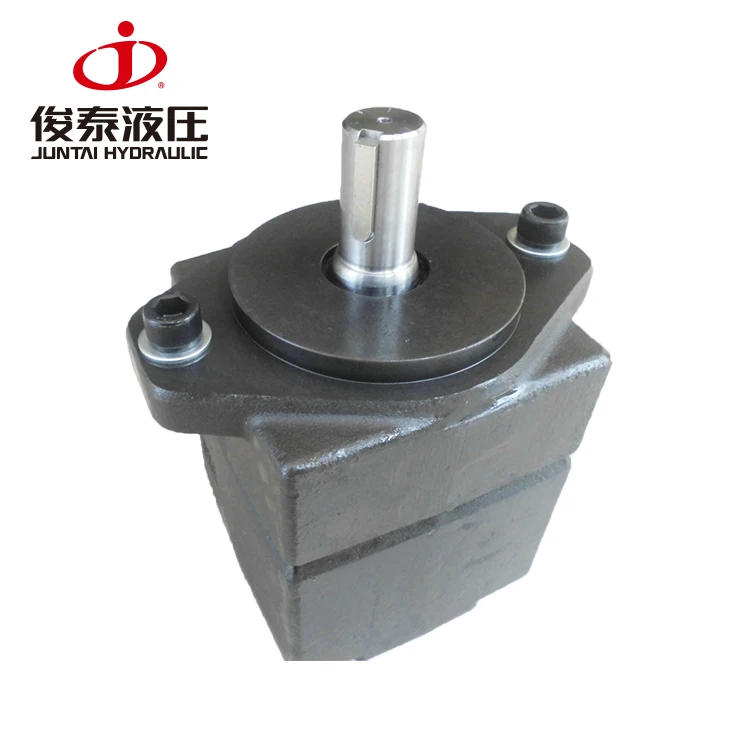

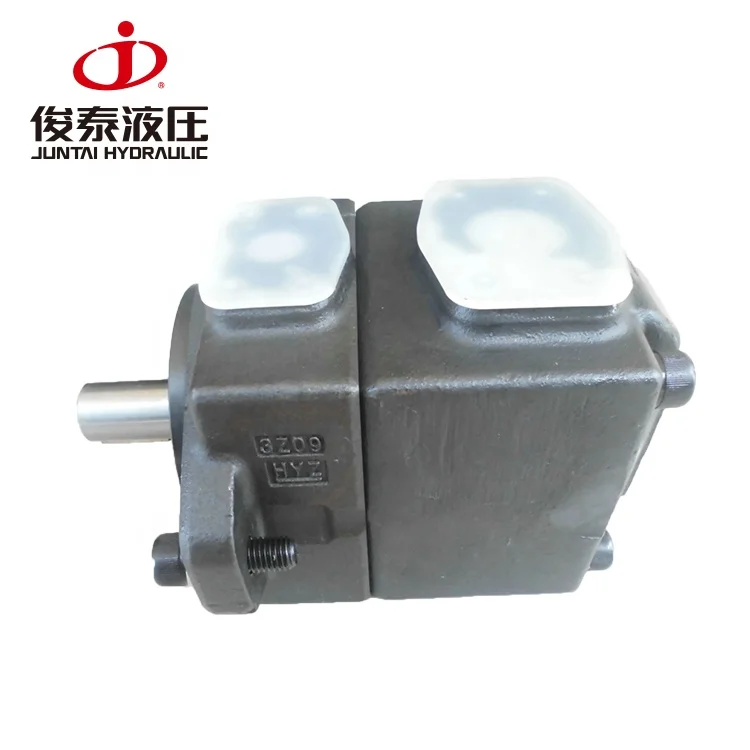

PV2R2 Fixed Vane Pump

Product Overview

Description

High efficiency PV2R2 type hydraulic vane pump

Characteristic:



1,this series of pump are low noise,high pressure and high efficiency vane pump.

2,the range of displacement is big, can satisfy the request for many kinds of machine. Widely used for hydraulic system. Such as pressure machine, plastic machine and consutruction machine.

3, the design of inner structure is convenient for maintaining.

1) reasonable design, firm structure, good quality raw material, precision processing ,high efficiency and stable operation, long working life.

2) pump core was assembled by screw completely ,plug-in structure, you can change the pump core after opening the cover. So that you can maintain and repair your pump easily.

3) special design of oil return, make the shaft radial pressure steady download ,reduce the abrasion for vane,assure the best gap of pump core , let pump have best volume rate.



Model description :

Note: 1,sauction port face the top.



          2, we can customize the counter-clockwise rotating pump.



          3,we can supply special pump used for phosphate liquid ,need special seal parts .



fiange parts
this pump don,t include flange parts,when you place order, please indicate the part no.
asbelow list



PV2R type single fixed displacement vane pump

Performamce parameter

Anti-wear hydraulic oil viscosity 20mm2/s(ISOVG-32 temperature 50oC),based on rotation speed 1500r/min.

Note:
1.Start in low speed,biggest viscosity was limited,please refer to page 2.
2.Working pressure is over 16MPa, should increase rotation speed,more than 1450r/min.
3.To promote the performance of pump,prolong the working life, we recommend you to use abrasion
resistant hydraulic oil.



Mounting dimension



Packaging & Shipping

Packaging: pack one pump in one plastic bag,then put it in one thick paper carton,then heap up them on the plastic pallet, wrap the plastic pallet and cartons with plastic membrane then bind the cartons with plastic packing belt.

Delivery date:about 10-20 days after receipt your 30%T/T for deposit



Trade term: FOB SHENZHEN, C&F or CIF



Shipping for sample and bulk productions:

send sample by international Express(Fedex or UPS or TNT or DHL),sample freight paid by collect.

For bulk production, shipped as per customer's instruction,shipping process all fllow INCOTERM regulations.



Product packing details:

style#	carton dimension of each item	net weight	gross weight	quantity
PV2R2-33	refer to spec. sheet	19kg	20kg	1 pc/ carton



Our Services

 Warranty period:  ONE YEAR



1,Within one week after receipt of the goods, if customer use the products in correct method,and find any problem of performance or  construction with obvious evidence,we will be responsible for replacement or other discussing solution between us.

2,But if customer using method are not correct, or customer disassemble our products privately,we will not  responsible  for any problem or defective points of products.

3, If you meet any questions of installation or debugging, please inquiry us anytime, our Engineer will provide technical support in time, or we will help you to resolve the technical failure through online video.

4, Any damage from transportion, we will slove the problem according to the responsibility standard of INCOTERMS.



Company Information

We are Guangdong Juntai Hydraulic Technology Co.,Ltd.,which located in Dongguan City, Guangdong Province, China.
We have R&D department with about 5-10 engineers and designers. Our factory have over 200 skilled employees, our production facility have many advanced manufacturing equipments and testing equipments, such as numerical control lathe, the processing center, CNC milling machine, special CNC grinding machine, double grinding machine, automatic 3D measuring instrument, etc.
Our company received ISO9001:2008 quality management system certification, CCC certification and Europe CE certification.
Our main products are hydraulic variable displacement vane pump, double pump, HVP high pressure variable displacement vane pump, Japanese type PV2R1 & PV2R2 series of fixed displacement vane pump and electrical motors for hydraulic application.
Our products are widely used for industrial machinery, NC lathe machine, shoe machinery, wood working machines, plastic machines, construction machines and various hydraulic system machinery.
We can also supply the customized products and services as per your spec. ,we are looking forward to cooperating with your company sincerely.

 Summary:

1, OEM and ODM manufacturer

 2, R&D department with about 5-10 engineers and designers

 3,more than 200 skilled workers

 4,have many advanced processing machines and advanced testing equipments

 5,passed ISO9001:2008 , CCC and CE certification

 6,production with good quality but competitive prices

 7,products series:hydraulic variable displacement vane pump, double pump, HVP high pressure pump, YUKE style PV2R1 & PV2R2 series fixed displacement vane pump and electrical motors for hydraulic equipment.



Our partners and our hydraulic parts application area:



FAQ

Frequently Asked Questions (FAQ) :

1, What's the standard hydraulic oil and its working temperature ?

Under 70 bar pressure, use hydraulic oil viscosity 30-50CST(ISO VG-46) in temperature 40℃. Working temperature 15-16℃ .



2, How to adjust the pressure through the pressure adjustment screw ?

clockwise rotation, increase pressure; counter-clockwise rotation, decrease pressure.



3,How to adjust the displacement through the displacement adjustment screw ?

clockwise rotation, decrease the displacement  ; counter-clockwise rotation, increase displacement.



4, What's the possible reason if there is no oil output from delivery port ?

 1),the shaft rotating direction is wrong.

 2), sauction oil pipe was jamed.

 3), vane was locked in the rotor,can't slip out from rotor.



5), what's your contact information:

Guangdong Juntai Hydraulic Technology Co.,Ltd.

Add.:No.2,Jiannan 2nd Road,Xiaoxiang Industrial Zone,Wanjiang District,Dongguan city,Guangdong Province,China 523048

Tel.:+86-769-22773551(ext.8036)

Fax: +86-769-22773561

Mobile :+86-13662813492

Wechat#:13662813492
