TIG Welding / Automatic Circular Seam Welding Machine

Automatic circular seam welding machine adopts argon arc welding machine as the welding power source. The stepping motor drives the welding gun to conduct constant speed movement. The moving speed and length is set through PLC; use pneumatic pressing plate to press to ensure the stability and consistency of welding; the action program of the whole machine is controlled by PLC; use the touch screen to input data.

Composition

Main Body:The main body is made of good quality steel plate. Reasonable rigid structure. Ensure the main body has enough rigidity and stability to support the machine when conducting high speed welding.

Power Source: Both the imported pulse AC and DC from "Panasonic, OTC" or argon arc welding machine from famous brand as the welding power source. The minimum thickness of sheet is 0.2mm.

Pressurized structure: Adopt pneumatic components of famous brands as the pressurized source of the machine. The upper part will press down while the lower part will rise up. To ensure the reasonable machine structure and to coordinate with fast locating structure to conduct welding locating.

Welding Control System: Adopt electricity and gas, coordinating with transmission mechanism to form the overall operation network. Use Japan Panasonic PLC as the central processing unit to transmit all kinds of data. Easy debugging and convenient operation.

Cooling System: Adopt parallel connection embedding cooling system. Forced water cooling. Provide guarantee for high frequency and long time working.

Jig Tool

Adopt machinery clamping locating device. Adopt embedded clamp to locate so as to meet the needs of welding different products.

Technology

Welding Power Source:The work piece needs long arc welding and high requirement to the efficiency. Thus, pulse DC argon arc welding machine is adopted to meet the requirement of fast speed and stable welding.

Pressurized Structure: Any type of metal will expand with heat and contract with cold when welding. In order to prevent deformation after welding, adopt the air bag and built-in forced cooling water to solve the problem.

Rotating Structure: Since the machine is of high working requirement, the belt drive through coding stepping motor and match with finish machining slide. The work piece will conduct uniform motion. Good stability.

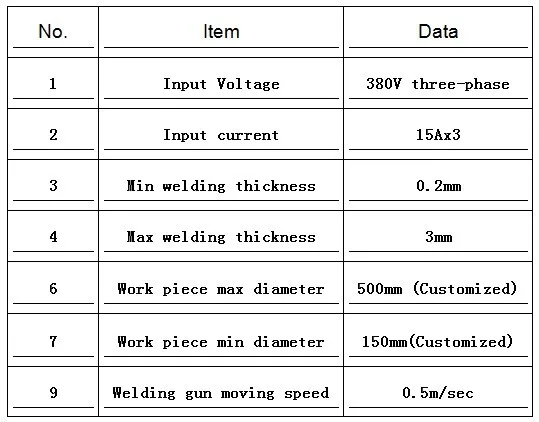

Technical Parameter

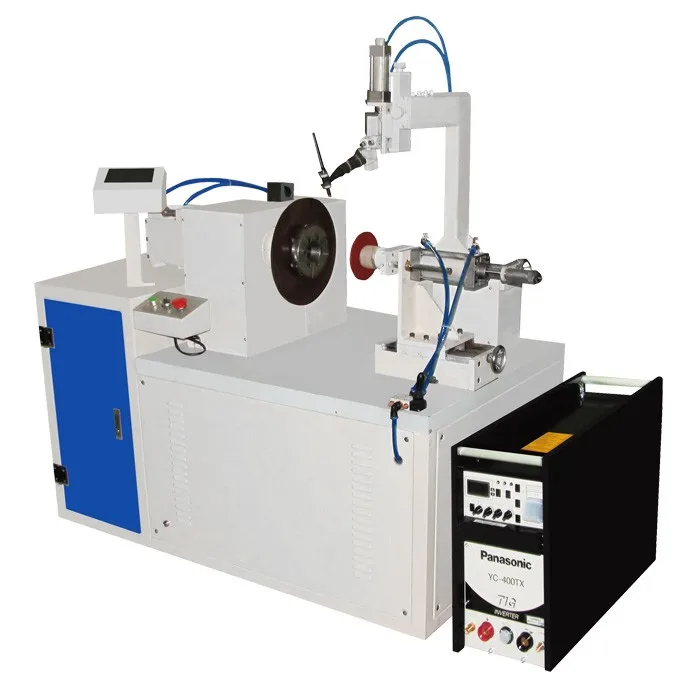

Detailed Images

Our Company

Certifications

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

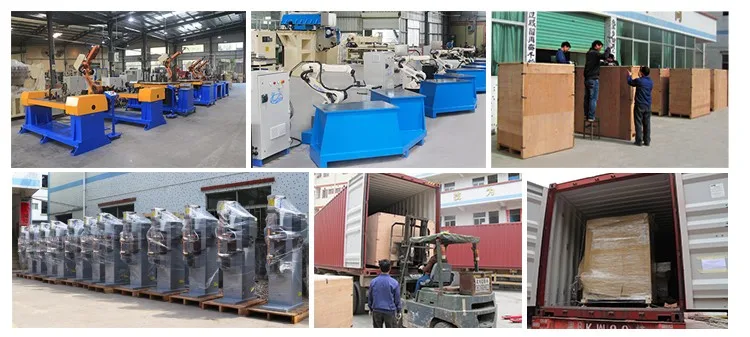

Packing & Delivery

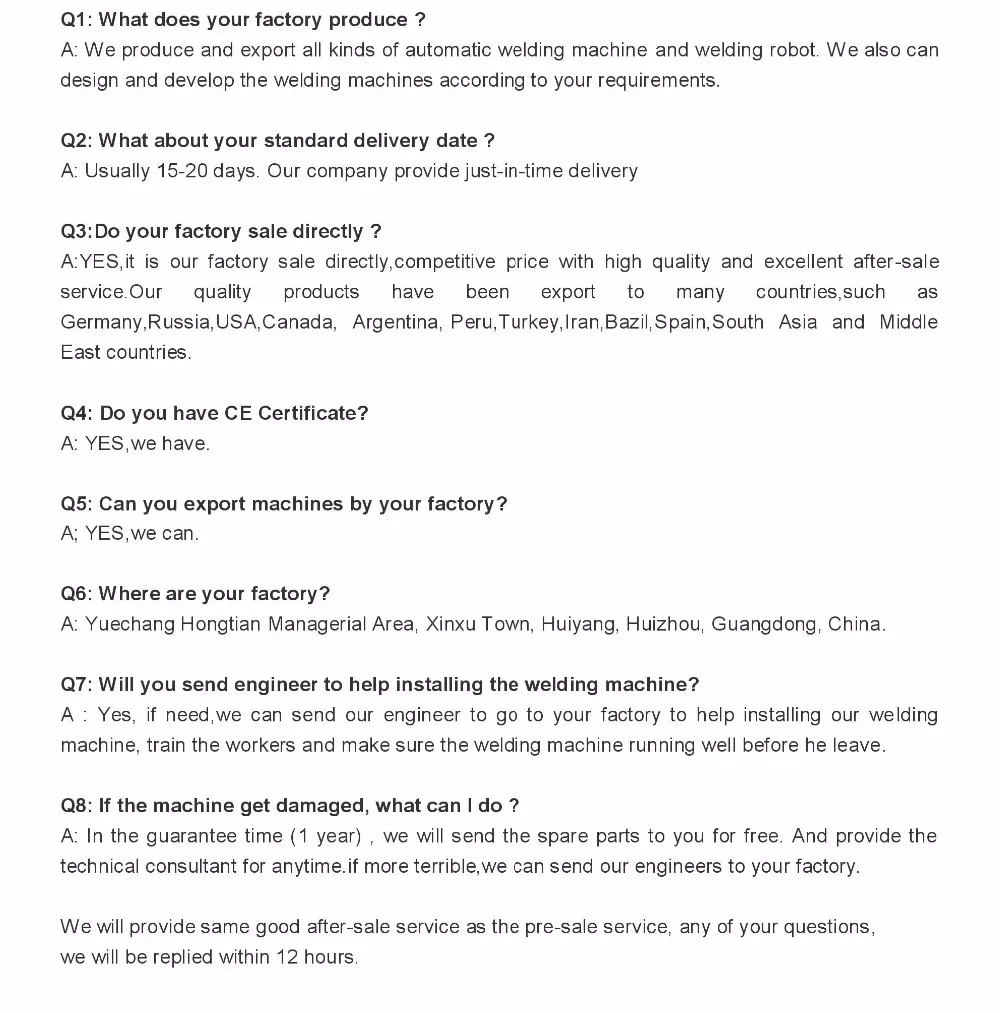

FAQ
